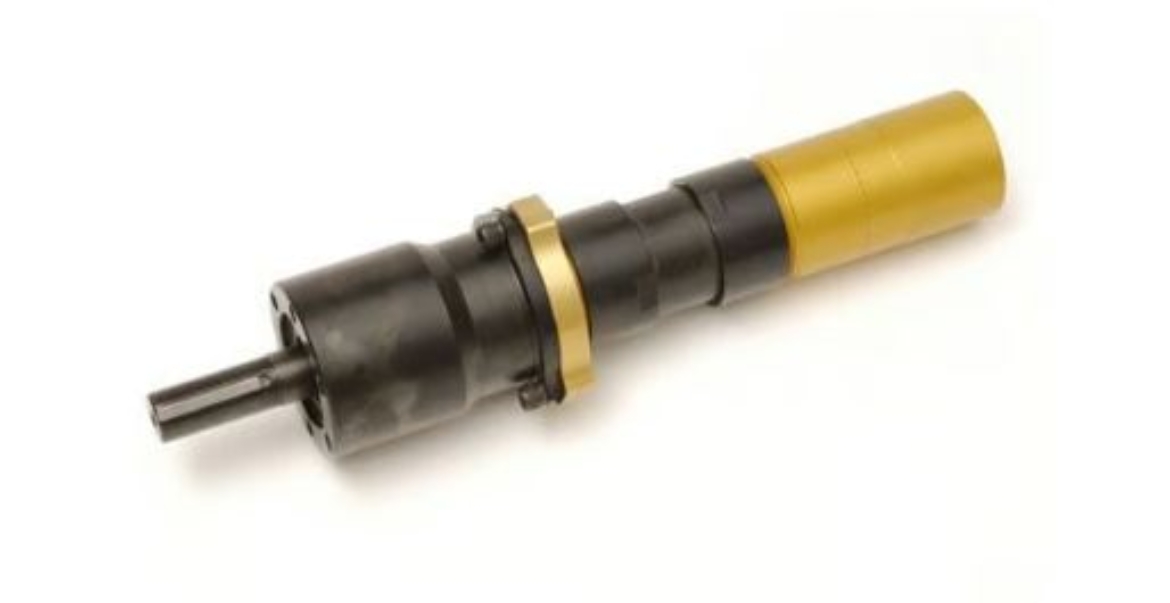

IR M007RHR037AR4
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 540 RPM, 0.79 HP, 35.7 NM, Non-reversible
Features And Benefits:
- Safety: Meets ATEX Standards
- Air Consumption at Max HP (scfm): 36
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 1/2
- Drive Type: Round Keyed
- Exhaust Location: Rear
- Finish: Black Oxide and Anodize
- Gear Ratio: 37:1
- Gear Reduction: Double
- Gear Train: Planetary
- Max Free Speed (rpm): 540
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 26
- Max Torque (in-lb): 316
- Max Torque (nm): 35.7
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Flanged Mounting
- Number of Mounting Holes: 2
- Power Source: Air Powered
- Product Weight (lb): 3.5
- Rated Power (hp): 0.79
- Rated Power (kW): 0.59
- Reversible: Non-reversible
- Speed at Max Power (rpm): 270
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 20
- Starting Torque (nm): 26.7
