Air Motors

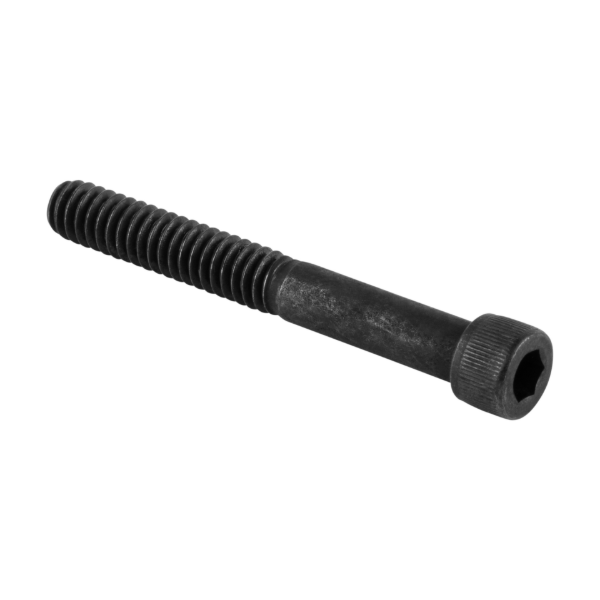

IR 518-104

Set Screw for Air Motor

Product Application and Uses:

For use with Ingersoll Rand 4800 and 4840 Series Air Motors.

• For Use With: 4800D
• For Use With: 4800K
• For Use With: 4800M
• For Use With: 4800N
• For Use With: 4800P
• For Use With: 4800Q
• For Use With: 4800S
• For Use With: 4800U
• For Use With: 4840D
• For Use With: 4840K
• For Use With: 4840M
• For Use With: 4840M/VSM-5165
• For Use With: 4840N
• For Use With: 4840P
• For Use With: 4840Q
• For Use With: 4840Q2
• For Use With: 4840S
• For Use With: 4840U

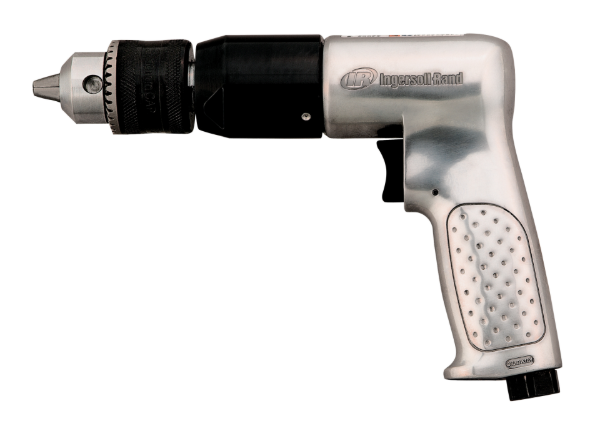

IR 7803A

1/2" Keyed Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

Description: A classic pistol-shaped 1/2" air drill with a feather trigger for variable speed options and a keyed chuck. This drill is great for honing, reaming or drilling holes.

Features And Benefits:

• Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time. Comes with a 1-year warranty.

Product Application and Uses:

These drills are designed for drilling, valve guide reaming and cylinder honing operations in the automotive industry.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 27
• Air Consumption @ Load (l/min): 765
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Bearing Type: Double Row Ball

• Chuck Capacity/Bit Capacity (in): 1/2
• Chuck Type: Keyed Chuck
• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Duty Rating: Industrial Duty

• Exhaust Location: Handle
• Gear Train: Planetary

• Handle Material: Aluminum
• Height Over Spindle (in): 9
• Housing Material: Aluminum

• Max Free Speed (rpm): 500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 0.9
• Max Torque (in-lb): 11
• Max Torque (nm): 1.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 9

• Product Weight (lb): 3.2
• Rated Power (hp): 0.5
• Reversible: Non-reversible

• Side to Center Distance (in): 0.9
• Side to Center Distance (mm): 23

• Sound Pressure/Power Db(A): 83
• Speed Setting: Variable Speed

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Accessories: 7803-BOOT

• Lubrication: 10P
• Parts: 7816-99

IR 7816-A48

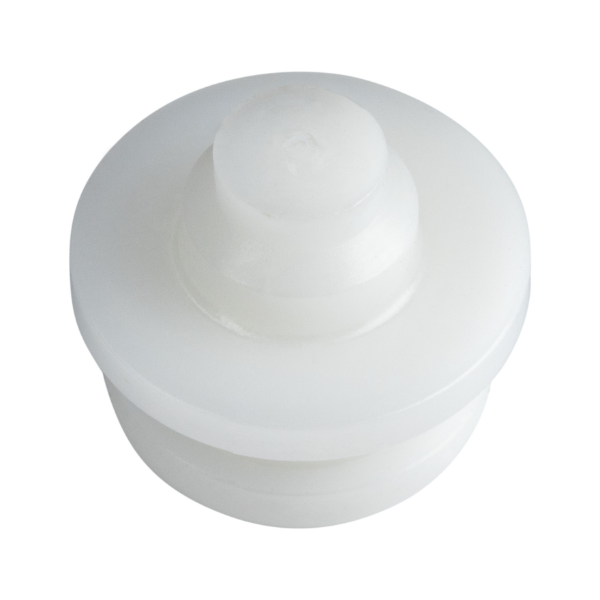

IR M004-210

Front End Plate Seal Service Part for Ingersoll Rand Power Tools

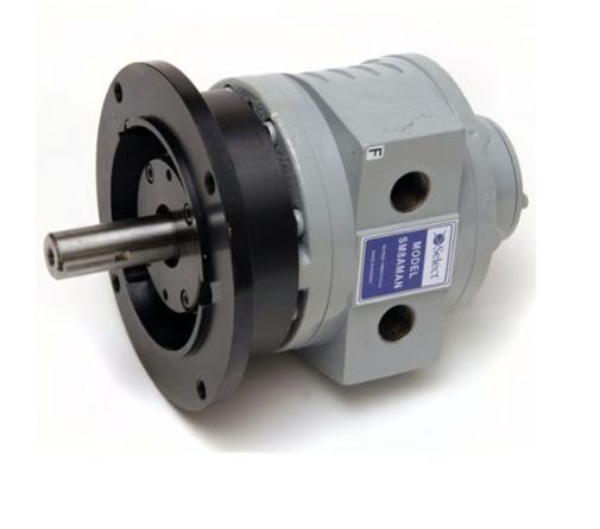

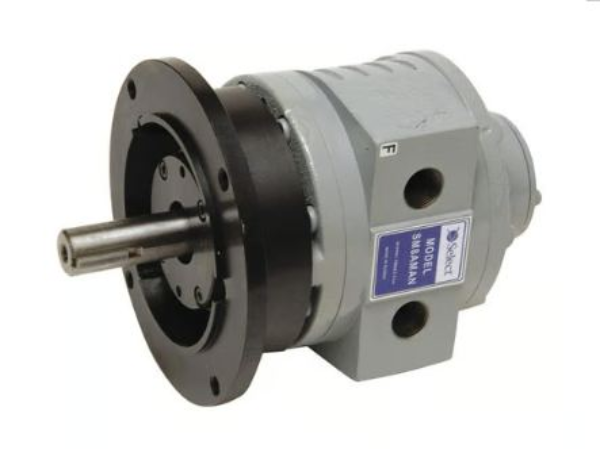

IR SM8AMAN

MPT IR-33SJ REBUILT

RR 70897-01

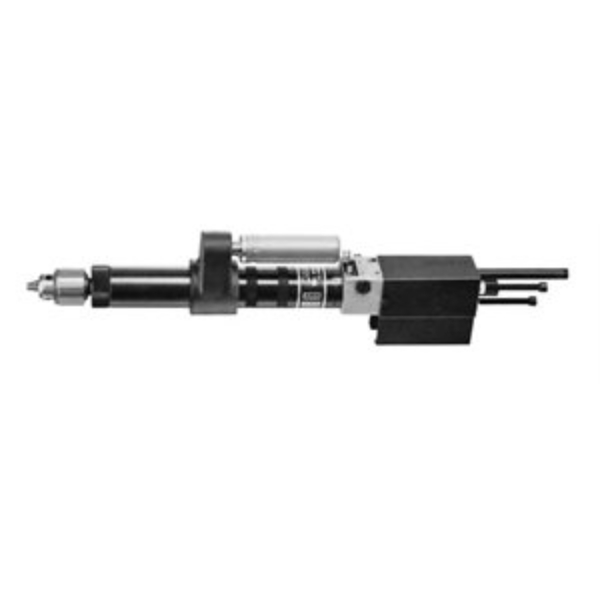

AA 8255-A14-3

BB 37-478

DD PT-50

DY 98623

GG 245111

GG M12LP0

GS 1AM-NRV-39A

IR 1841U

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 380 RPM, 1.1 HP, 67.8 NM, Reversible

• Air Consumption at Max HP (scfm): 43
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 5/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 380
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 50
• Max Torque (in-lb): 600
• Max Torque (nm): 67.8
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 5.88
• Rated Power (hp): 1.1
• Rated Power (kW): 0.82
• Reversible: Reversible

• Speed at Max Power (rpm): 175
• Starting Torque (ft-lb): 37
• Starting Torque (nm): 50.2

• Warranty: 1-year

• Parts: R1801-A123

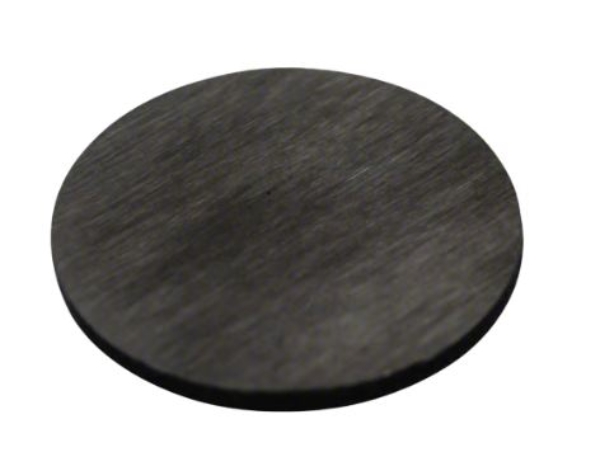

IR 7AD-171

IR M002-561

IR M004-739

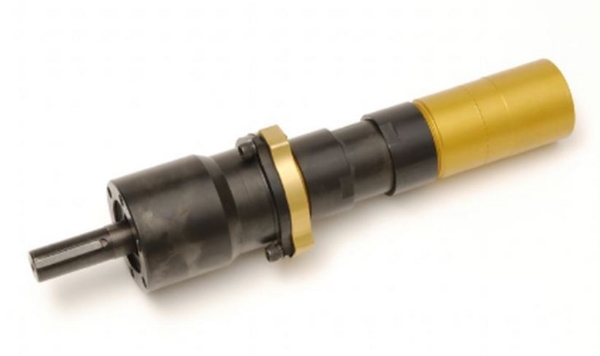

IR M007RVR374BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 47 RPM, 0.61 HP, 274 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

Product Application and Uses:

Limited to 224 lb-ft (304) Nm

• Air Consumption at Max HP (scfm): 33
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/4
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 374:1
• Gear Reduction: Quadruple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 47
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 202
• Max Torque (in-lb): 2425
• Max Torque (nm): 274
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Power Source: Air Powered

• Product Weight (lb): 7.38
• Rated Power (hp): 0.61
• Rated Power (kW): 0.46
• Reversible: Reversible

• Speed at Max Power (rpm): 23
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 152
• Starting Torque (nm): 206

• Warranty: 1-year

IR SM2AMC

IR SM8AMA

IR SS815GB03R31-02K

IR ST400C03R29

SX SDR-8

AA 7800-4B
