Power Motor

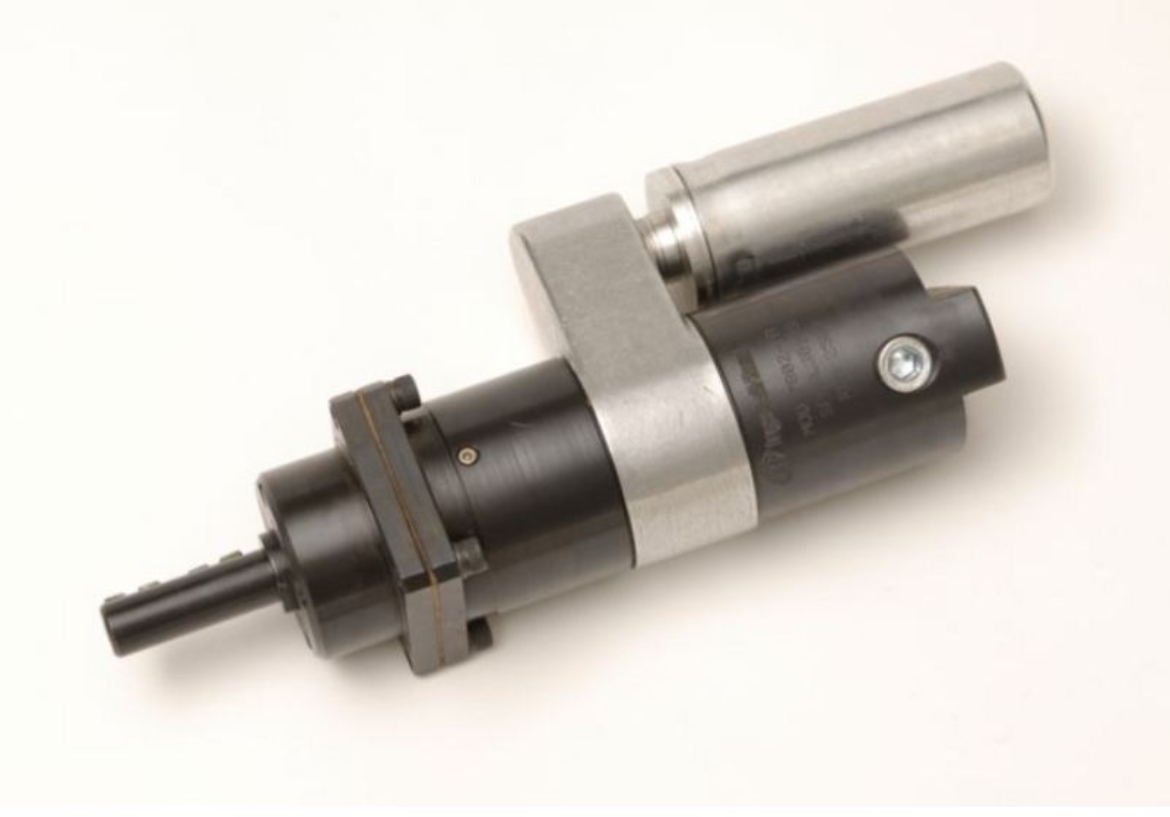

IR 8231-9B

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 475 RPM, 0.5 HP, 26.2 NM, Reversible

• Air Consumption at Max HP (scfm): 41
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Ratio: 38.1:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 475
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 19
• Max Torque (in-lb): 232
• Max Torque (nm): 26.2
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Foot Mount Optional

• Power Source: Air Powered

• Product Weight (lb): 2.98
• Rated Power (hp): 0.5
• Rated Power (kW): 0.37
• Reversible: Reversible

• Sound Level dB(A): 80
• Speed at Max Power (rpm): 240

• Torque Output @ Max HP (ft-lb): 11
• Torque Output @ Max HP (nm): 14.9
• Warranty: 1-year

• Parts: 37896
