Air Motors

AA 7817-1B

DY 59498

CL 936281PT

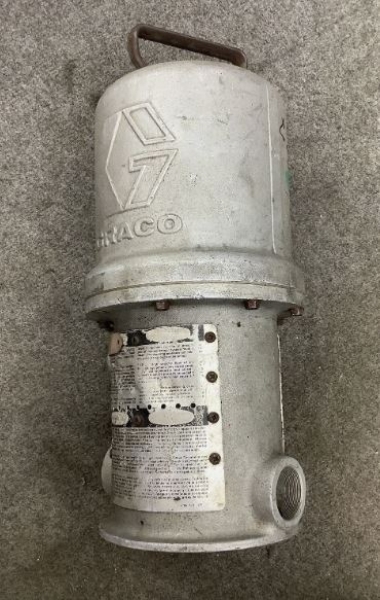

GG 207352

MOTOR,AIR, PRESIDENT

Graco 207352 President Air Motor, for divorced mounting

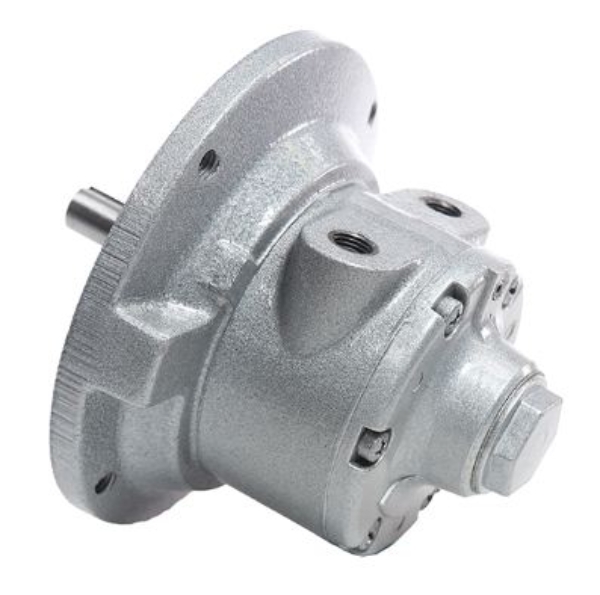

GS 4AM-NRV-50C

IR 7811-11

RR 70880-406

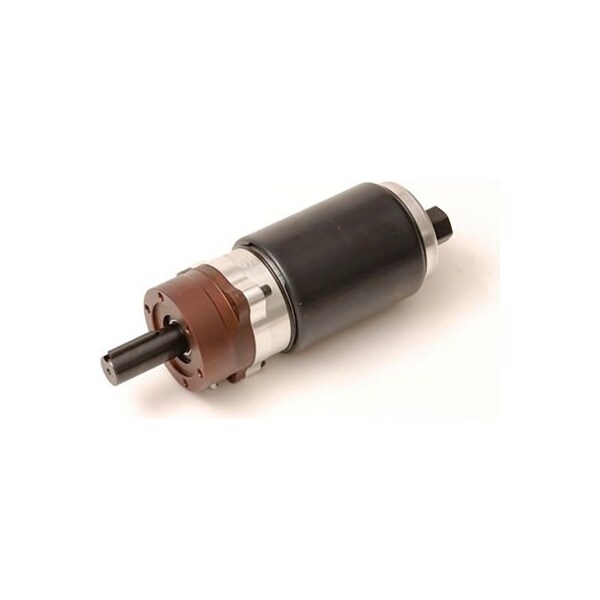

IR 3840P

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 440 RPM, 1.35 HP, 72.6 NM, Reversible

Description: With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.

Features And Benefits:

• Safety: Meets ATEX Standards
• Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
• Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.

Product Application and Uses:

Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller

• Air Consumption at Max HP (scfm): 44
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90

• Drive Length (in): 2.1875
• Drive Size (in): 3/4
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide
• Gear Ratio: 19.3:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel
• Keyaway Length (in): 1.5

• Max Free Speed (rpm): 440
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 54
• Max Torque (in-lb): 643
• Max Torque (nm): 72.6
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Operating Temperature Range: 0F to 150F
• Power Source: Air Powered
• Product Length (in): 8.69

• Product Width (in): 3.25
• Product Height (in): 3.25
• Product Weight (lb): 8.75
• Rated Power (hp): 1.35
• Rated Power (kW): 1.01
• Reversible: Reversible

• Speed at Max Power (rpm): 215
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 40
• Starting Torque (nm): 54.2

• Warranty: 1-year

• Parts: R3800-A123

IR 7803RA

1/2" Keyed Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

Description: A classic pistol-shaped 1/2" reversible air drill with a feather trigger for variable speed options and a keyed chuck. this drill is as versatile as it is efficient.

Features And Benefits:

• Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time.
• Reversible Motor: The quick reverse lever allows you to choose between forward and reverse on the .5 HP motor.
• Balanced: Planetary gear reduction balances the load.

Product Application and Uses:

Designed for drilling, hole-sawing, cylinder honing, and any other job that calls for a 1/2" size

• Includes: 1/2 Chuck Tool, 7816-A48 Side Handle
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 27
• Air Consumption @ Load (l/min): 765
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/2" -24 Thread
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Bearing Type: Double Row Ball

• Chuck Capacity/Bit Capacity (in): 1/2
• Chuck Type: Keyed Chuck
• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Duty Rating: Industrial Duty

• Exhaust Location: Handle
• Gear Train: Planetary

• Handle Material: Aluminum
• Height Over Spindle (in): 8.7
• Housing Material: Aluminum

• Max Free Speed (rpm): 500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 0.9
• Max Torque (in-lb): 11
• Max Torque (nm): 1.2
• Min Hose Size (in): 3/8
• Nominal Drilling Capabilities (Alum 2024t4): 1/4
• Nominal Drilling Capabilities (Steel 1213): 3/16
• Nominal Drilling Capabilities (Stnls Steel Type 34): 3/32

• Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
• Power Source: Air Powered
• Product Length (in): 8.7

• Product Width (in): 7.09
• Product Height (in): 6
• Product Weight (lb): 3.3
• Rated Power (hp): 0.5
• Reversible: Reversible

• Side to Center Distance (in): 0.9
• Side to Center Distance (mm): 23

• Sound Pressure/Power Db(A): 83
• Speed Setting: Variable Speed
• Spindle Attachment: Drill Chuck

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Accessories: 7803-BOOT

• Lubrication: 10P
• Parts: 7816-99

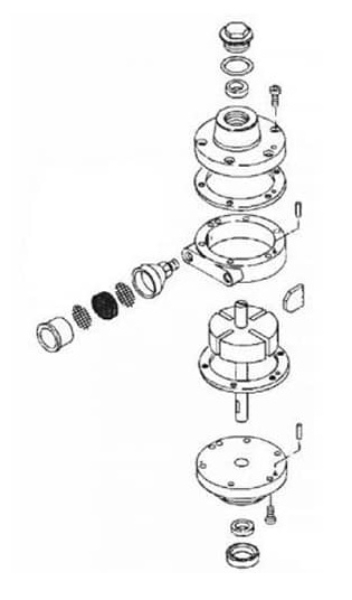

BB PT-410

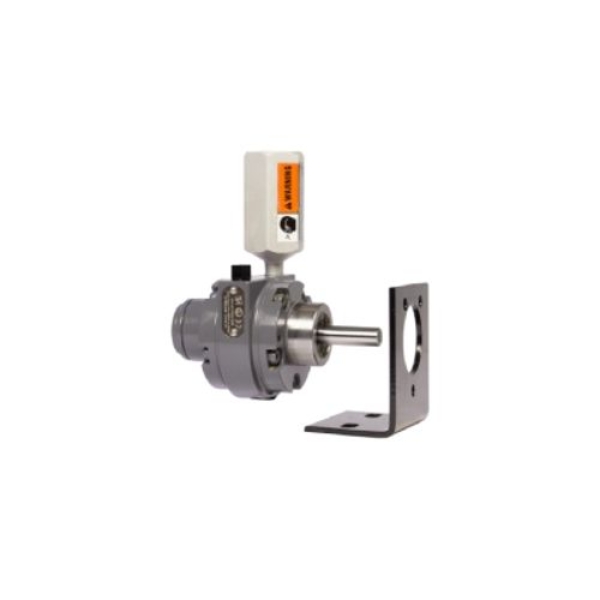

IR SM4AMB

Direct Drive Lube Free Air Motor, 7900 RPM, 1.5 HP, 5.6 NM, Reversible

• Air Consumption at Max HP (scfm): 67
• Air Pressure (psi): 90

• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Gray
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Gearless

• Housing Material: Steel
• Lubrication Type: Lube Free

• Max Free Speed (rpm): 7900
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 4.1
• Max Torque (in-lb): 50
• Max Torque (nm): 5.6
• Motor: Rotary Vane
• Motor: Direct Drive
• Mounting Type: Face

• Power Source: Air Powered

• Product Weight (lb): 8.25
• Rated Power (hp): 1.5
• Rated Power (kW): 1.1
• Reversible: Reversible

• Speed at Max Power (rpm): 3000
• Starting Torque (ft-lb): 2.6
• Starting Torque (nm): 3.5

• Warranty: 1-year

LOB 64916

LP 970-0029

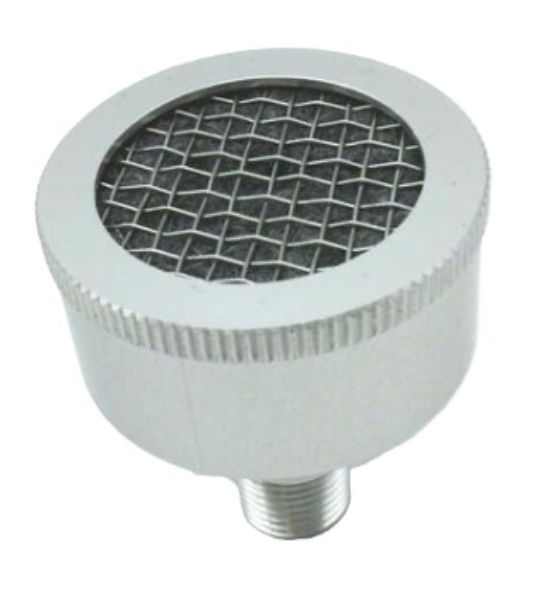

BB 83-1527

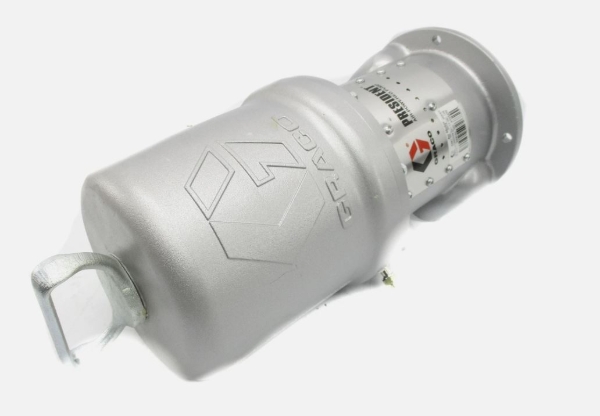

GG 205038

MOTOR,AIR, PRES

Graco 205038 President Air Motors- for use with Graco fluid handling pumps

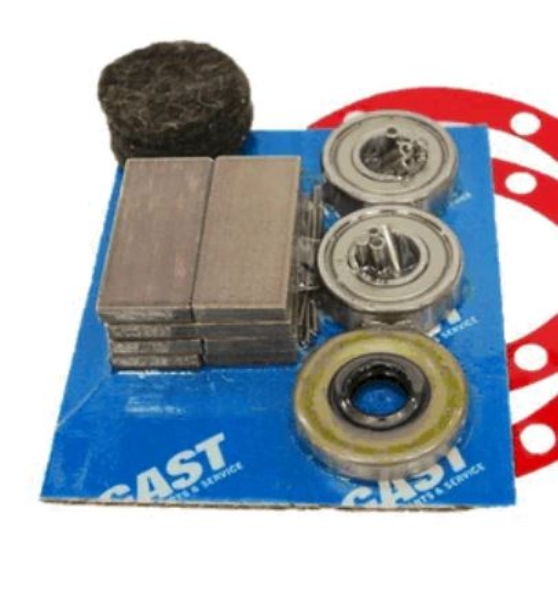

GG 224954

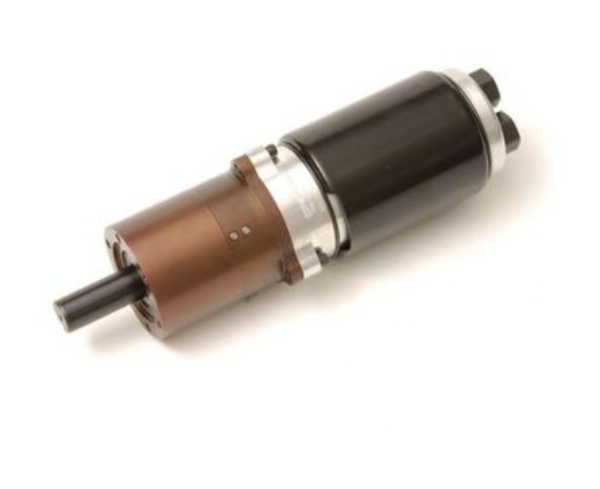

IR 4800U2/VSM-6417

IR T480PVRP-03-31P

LOB 64931

AA 7811-1B

AA 8255-A28-1

AA 8265-25-3

GS 2AM-NCC-16

IR 150BMP-2451B

IR 1841Q

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 550 RPM, 1.1 HP, 48.8 NM, Reversible

• Air Consumption at Max HP (scfm): 43
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 5/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 550
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 36
• Max Torque (in-lb): 432
• Max Torque (nm): 48.8
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 2
• Power Source: Air Powered
• Product Length (in): 8.5

• Product Weight (lb): 5.88
• Rated Power (hp): 1.1
• Rated Power (kW): 0.82
• Reversible: Reversible

• Speed at Max Power (rpm): 260
• Starting Torque (ft-lb): 27
• Starting Torque (nm): 36.6

• Warranty: 1-year

• Parts: R1801-A123
