IR 7803A
1/2" Keyed Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

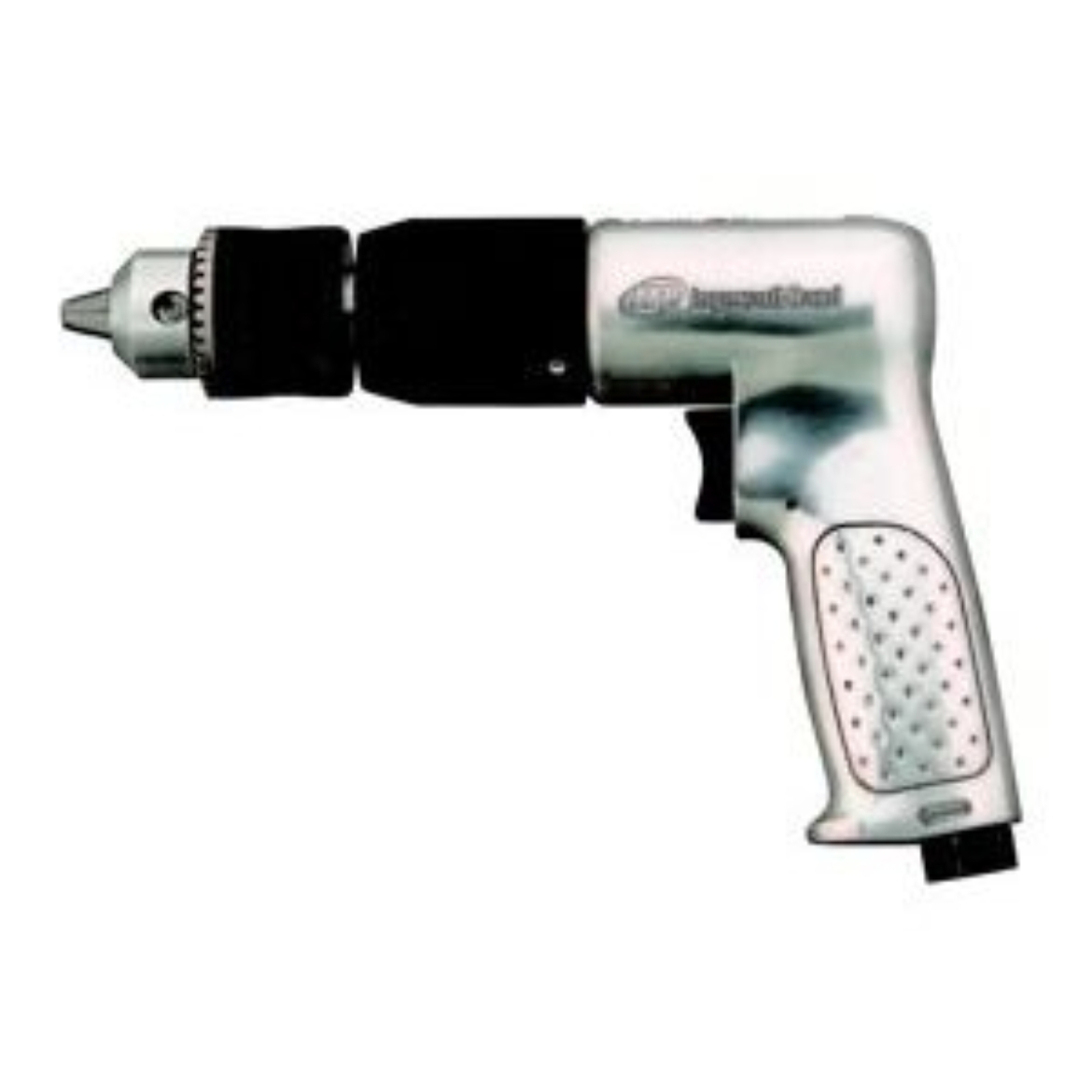

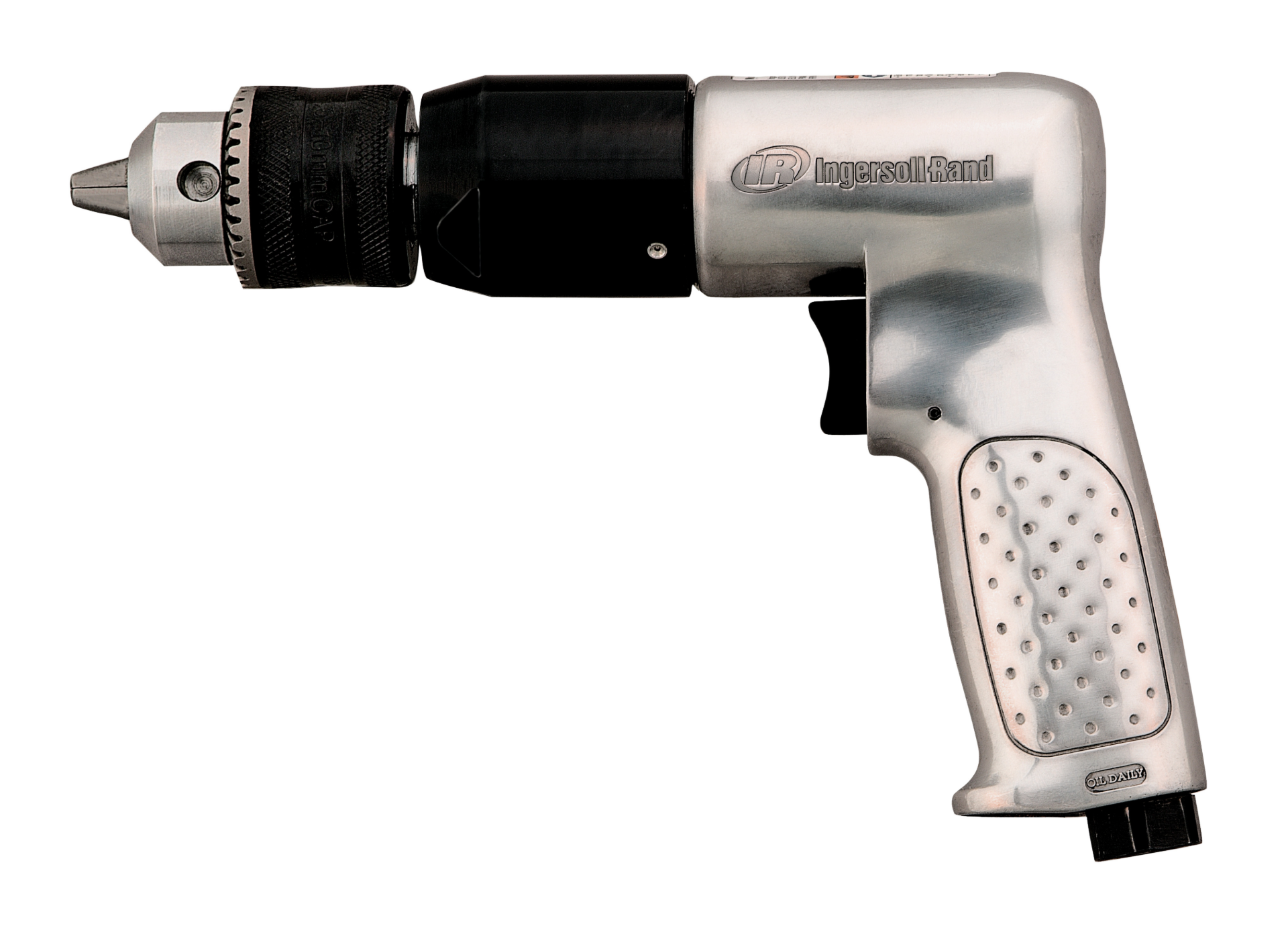

Description: A classic pistol-shaped 1/2" air drill with a feather trigger for variable speed options and a keyed chuck. This drill is great for honing, reaming or drilling holes.
Features And Benefits:
- Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time. Comes with a 1-year warranty.
Product Application and Uses:
These drills are designed for drilling, valve guide reaming and cylinder honing operations in the automotive industry.
- Actuation/Throttle Type/Switch Type: Trigger
- Air Consumption @ Load (cfm): 27
- Air Consumption @ Load (l/min): 765
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Average Air Consumption (cfm): 4
- Average Air Consumption (l/min): 113
- Bearing Type: Double Row Ball
- Chuck Capacity/Bit Capacity (in): 1/2
- Chuck Type: Keyed Chuck
- Color: Silver
- Configuration/Handle Type: Pistol Grip
- Duty Rating: Industrial Duty
- Exhaust Location: Handle
- Gear Train: Planetary
- Handle Material: Aluminum
- Height Over Spindle (in): 9
- Housing Material: Aluminum
- Max Free Speed (rpm): 500
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 0.9
- Max Torque (in-lb): 11
- Max Torque (nm): 1.2
- Min Hose Size (in): 3/8
- Power Source: Air Powered
- Product Length (in): 9
- Product Weight (lb): 3.2
- Rated Power (hp): 0.5
- Reversible: Non-reversible
- Side to Center Distance (in): 0.9
- Side to Center Distance (mm): 23
- Sound Pressure/Power Db(A): 83
- Speed Setting: Variable Speed
- Vibration Level (m/s2): <2.5
- Warranty: 1-year
- Lubrication: 10P
- Parts: 7816-99
