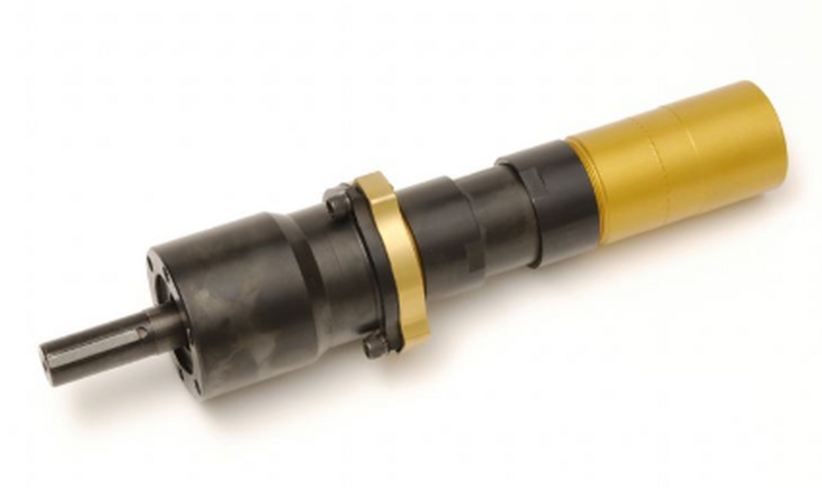

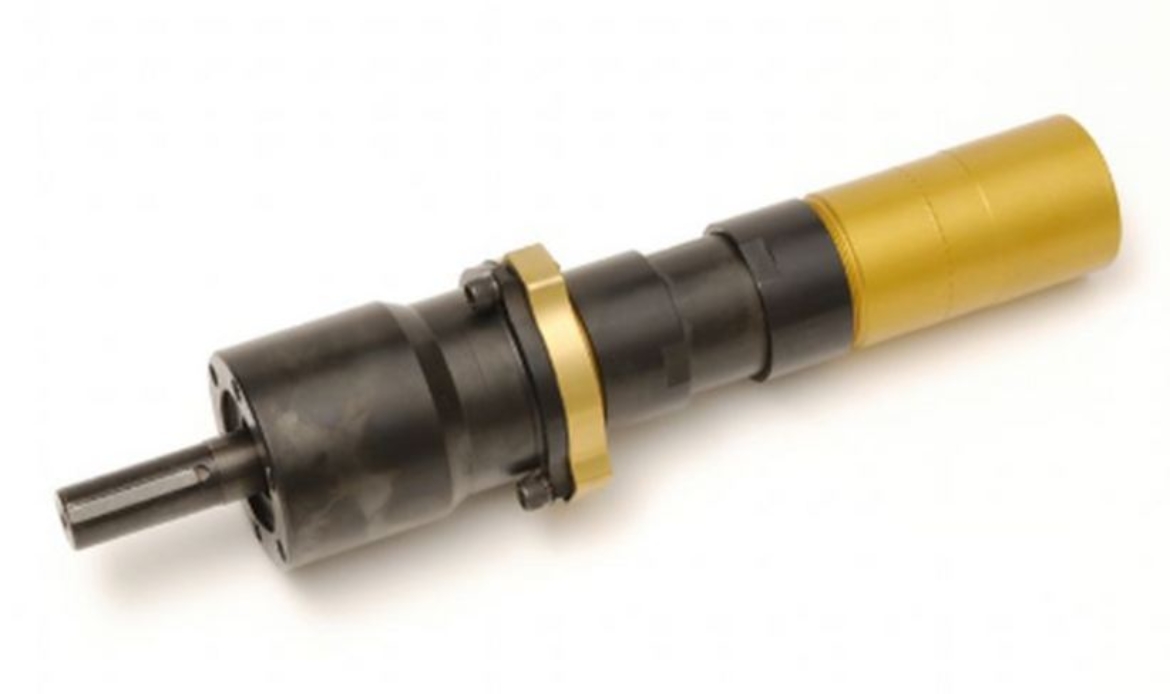

IR M007RVR374BR6
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 47 RPM, 0.61 HP, 274 NM, Reversible
Features And Benefits:
- Safety: Meets ATEX Standards
Product Application and Uses:
Limited to 224 lb-ft (304) Nm
- Air Consumption at Max HP (scfm): 33
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/4
- Drive Type: Round Keyed
- Exhaust Location: Rear
- Finish: Black Oxide and Anodize
- Gear Ratio: 374:1
- Gear Reduction: Quadruple
- Gear Train: Planetary
- Max Free Speed (rpm): 47
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 202
- Max Torque (in-lb): 2425
- Max Torque (nm): 274
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 6
- Power Source: Air Powered
- Product Weight (lb): 7.38
- Rated Power (hp): 0.61
- Rated Power (kW): 0.46
- Reversible: Reversible
- Speed at Max Power (rpm): 23
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 152
- Starting Torque (nm): 206
