Motor

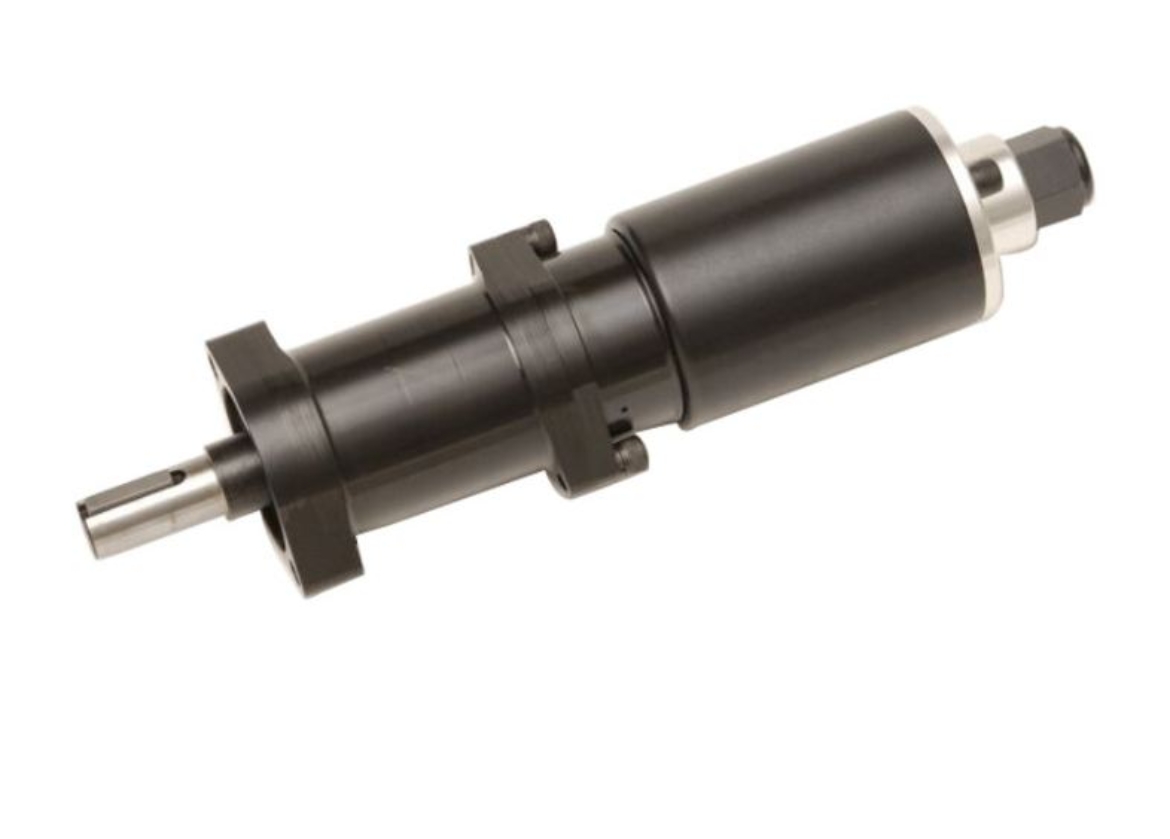

IR 1801W

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 370 RPM, 1.35 HP, 94.9 NM, Non-reversible

• Air Consumption at Max HP (scfm): 46
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 5/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 370
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 70
• Max Torque (in-lb): 840
• Max Torque (nm): 94.9
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 5.75
• Rated Power (hp): 1.35
• Rated Power (kW): 1.01
• Reversible: Non-reversible

• Speed at Max Power (rpm): 175
• Starting Torque (ft-lb): 52
• Starting Torque (nm): 70.5

• Warranty: 1-year

• Parts: R1801-A123
