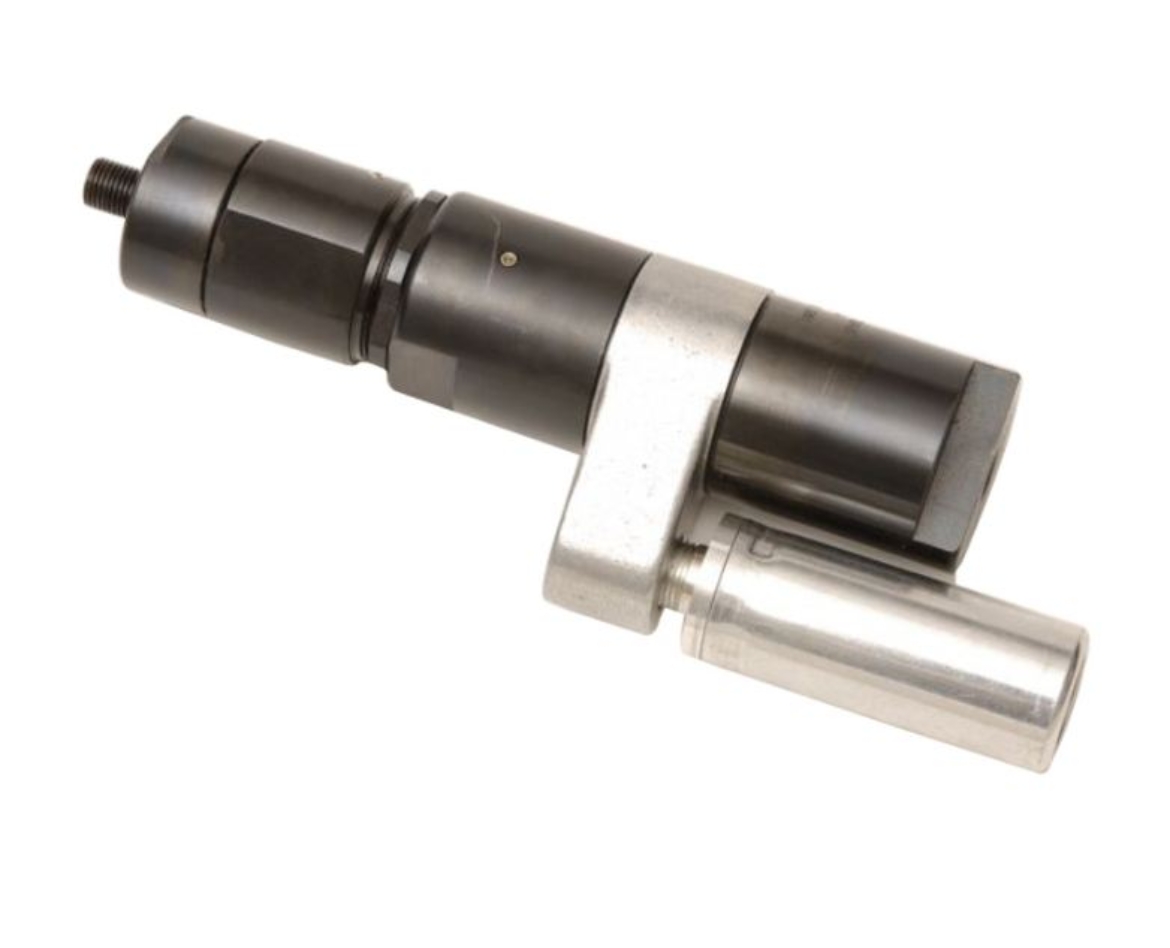

Power Motor

IR 7811-B

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 250 RPM, 0.7 HP, 74 NM, Reversible

• Air Consumption at Max HP (scfm): 37.3
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1/2
• Drive Type: Round Keyed

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 250
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 55
• Max Torque (in-lb): 655
• Max Torque (nm): 74
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Foot Mount Optional

• Power Source: Air Powered

• Product Weight (lb): 5.17
• Rated Power (hp): 0.7
• Rated Power (kW): 0.52
• Reversible: Reversible

• Sound Level dB(A): 85
• Speed at Max Power (rpm): 130

• Torque Output @ Max HP (ft-lb): 29
• Torque Output @ Max HP (nm): 38.7
• Warranty: 1-year

• Parts: 37894
