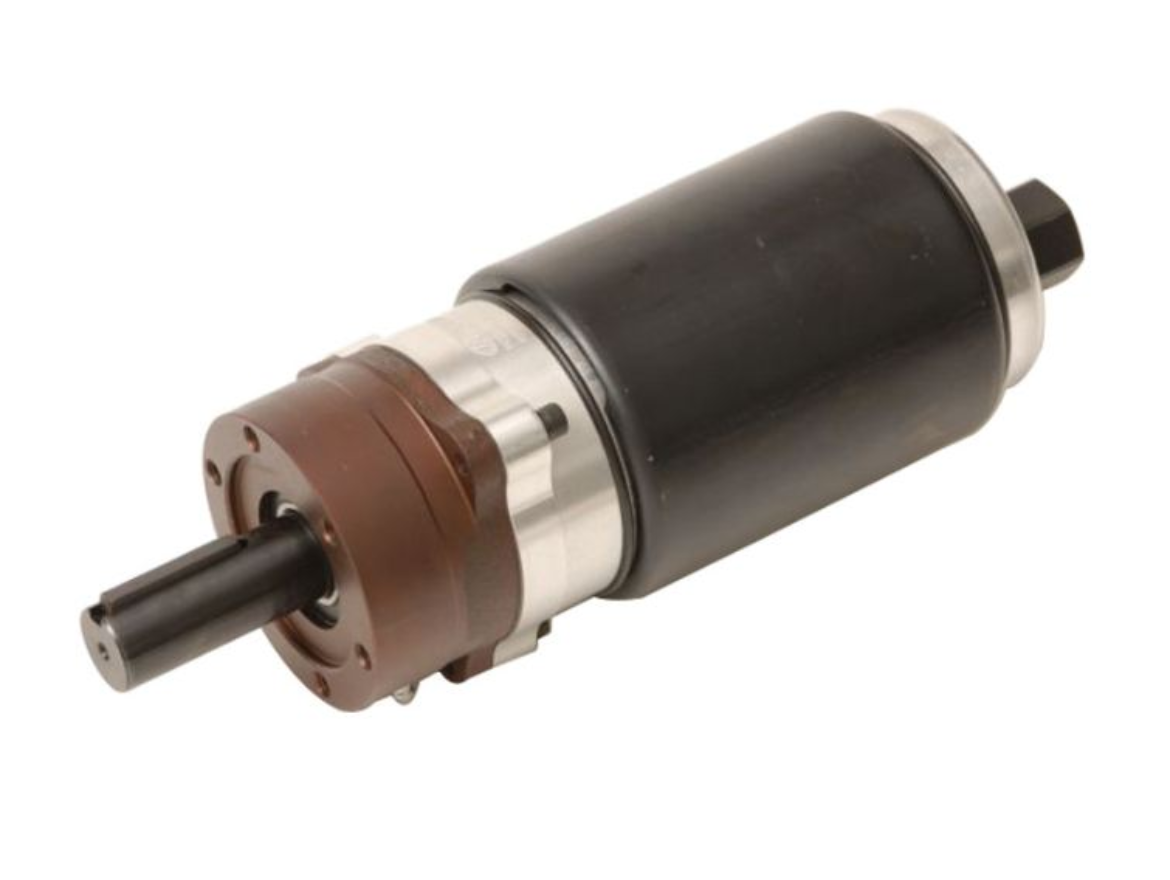

IR 3840R
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 238 RPM, 1.35 HP, 125 NM, Reversible
- Air Consumption at Max HP (scfm): 44
- Air Inlet: 1/2" NPT
- Air Pressure (psi): 90
- Drive Size (in): 3/4
- Drive Type: Round Keyed
- Exhaust Location: Rear
- Finish: Black Oxide
- Gear Reduction: Double
- Gear Train: Planetary
- Housing Material: Steel
- Keyaway Length (in): 1.5
- Max Free Speed (rpm): 238
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 92
- Max Torque (in-lb): 1106
- Max Torque (nm): 125
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 6
- Power Source: Air Powered
- Product Length (in): 8.69
- Product Width (in): 3.25
- Product Height (in): 3.25
- Product Weight (lb): 8.75
- Rated Power (hp): 1.35
- Rated Power (kW): 1.01
- Reversible: Reversible
- Speed at Max Power (rpm): 122
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 69
- Starting Torque (nm): 93
