Agitators

GG 25A600

GG 25A602

GG 25C471

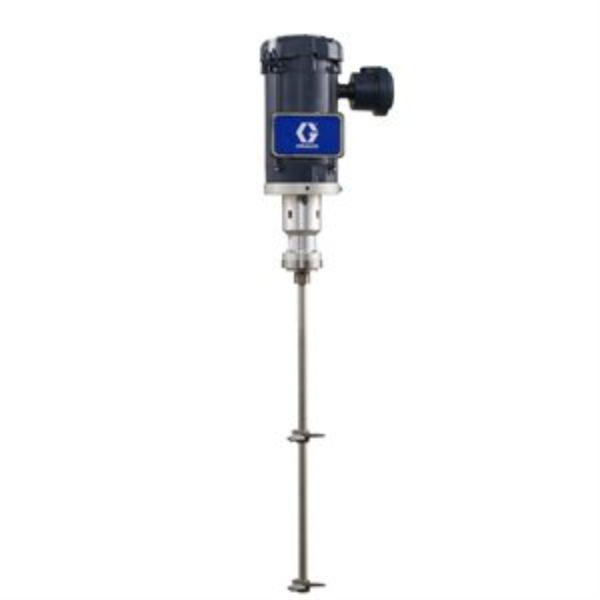

AGITATOR, ASSY, PRESSURE TANK, 15 GAL

Graco 25C471 Pressure Tank Agitator Assembly, 15 gallon (56 L), UL

Low shear, electric, direct drive agitator (UL listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This model includes a shaft and impeller, but no pressure tank. It can replace existing air motor driven pressure tank agitators.

• Electric agitators are up to 5 times more efficient than pneumatic agitators.
• Speed remains constant, regardless of material level in tank.
• Low shear mixing ensures uniform particle dispersion without material degradation.

• For Use With: 15 Gallon (57 Litre) Pressure Tank

• Includes: Shaft, Impeller

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 300

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37

GG 25C529

AGITATOR, AIR, OUTBOARD

Graco 25C529 Carbon Steel Direct Drive, 55 gallon (208 L), side mount, 2 aluminum 5.5-inch (14 cm) propellers

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Recommended agitator rotation: Clockwise
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston

GG 25C532

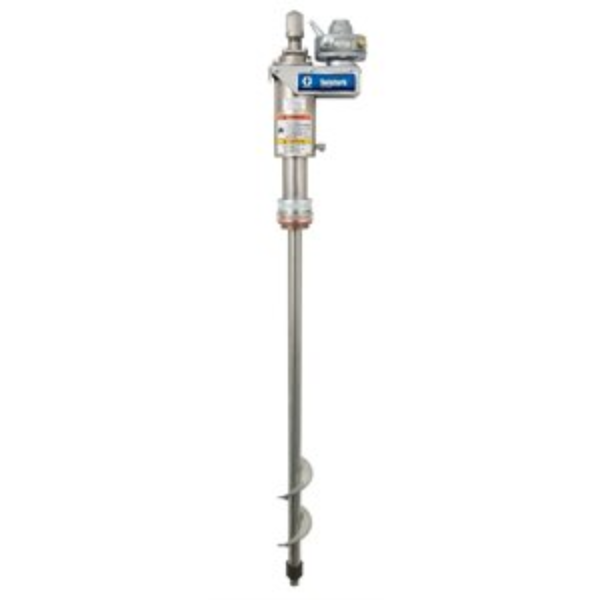

AGITATOR, SIPHON TWISTORK

Graco 25C532 Twistork Helix Mixer with suction feature - stainless steel, bung mount, belt drive

Rotate agitator clockwise or counter clockwise for optimal mixing.

• Radial piston air driven motor uses less compressed air than most rotary vane air motors.
• Install quickly and operate quietly.
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Model: Twistork

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• For Use With: Closed-head, Bung-type, 55 Gallon (208 Liter) Drum

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston

GG 25C533

AGITATOR, DIRECT DRIVE, CS

Graco 25C533 Carbon Steel Direct Drive, 30/55 gallon, 2 aluminum 5.5-inch (14 cm) propellers

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Agitator mounts directly to mix tank or drum cover and rotates clockwise
• Dual propeller ensures efficient and thorough mixing
• Easy adjustment knob fine-tunes agitator speed to ideal mixing parameters
• Control speed with Gracos Intelligent Paint Kitchen (IPK)
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston

GG 26B633

AGITATOR, 6:1 GEAR REDUCTION, SIPHON

Graco 26B633 Back-Geared Radial Piston Agitator, heavy duty, with elevator, drum cover and siphon kit

Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.

Application: For agitating 500 cP to 3000 cP viscosity materials

• Installs quickly for immediate cost savings
• Needs no air line lubrication to keep running well
• Operates more quietly than comparable rotary vane agitator air motors

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• For Use With: 55 Gallon (208 Liter) Drum

• Includes: Elevator, drum cover and siphon kit

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 83

• Maximum Viscosity (cP): 3000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston

• Power Rating (HP): 0.16
