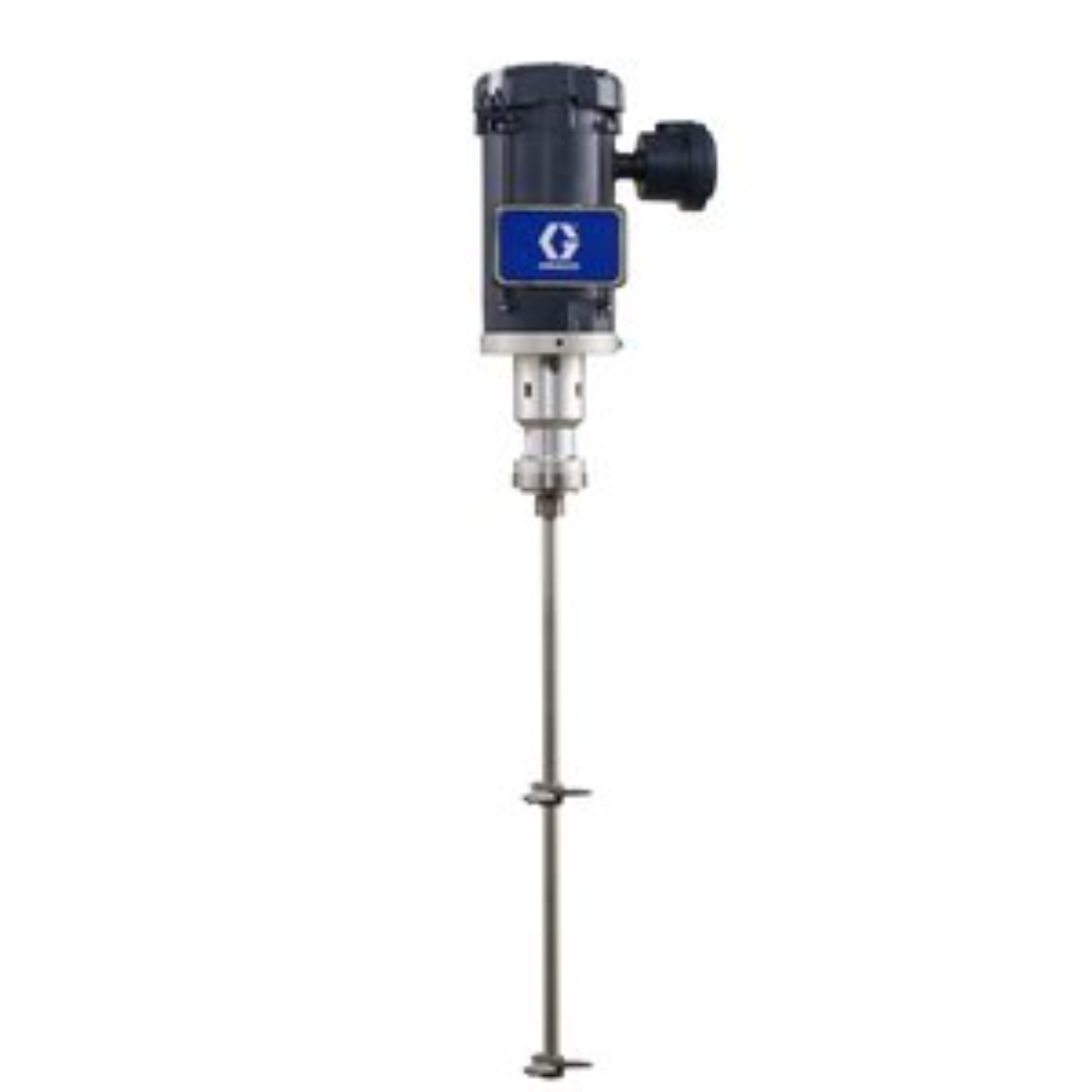

Pressure Tank Agitator Assembly, 15 gallon (56 L), UL

GG 25C471

AGITATOR, ASSY, PRESSURE TANK, 15 GAL

Graco 25C471 Pressure Tank Agitator Assembly, 15 gallon (56 L), UL

Low shear, electric, direct drive agitator (UL listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This model includes a shaft and impeller, but no pressure tank. It can replace existing air motor driven pressure tank agitators.

• Electric agitators are up to 5 times more efficient than pneumatic agitators.
• Speed remains constant, regardless of material level in tank.
• Low shear mixing ensures uniform particle dispersion without material degradation.

• For Use With: 15 Gallon (57 Litre) Pressure Tank

• Includes: Shaft, Impeller

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 300

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37
