AGITATOR, SUCTON, REVERSIBLE, TWISTRK

Manufacturer: GRACO INC. S10595

GG 236760

AGITATOR, SUCTON, REVERSIBLE, TWISTRK

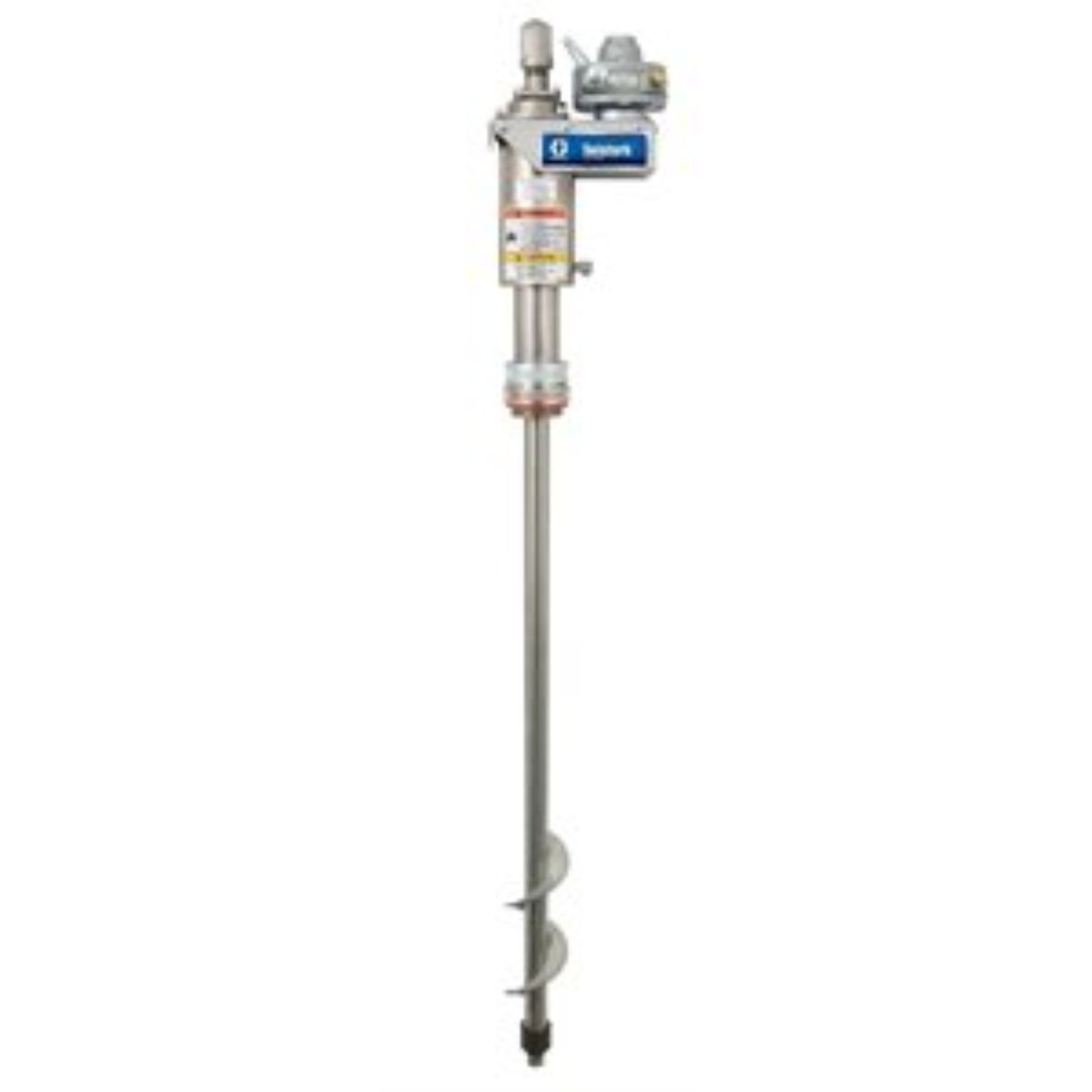

Graco 236760 Twistork Drum Agitator, Oil-less, Reversible, Siphon, Air, 3/4 HP, 47.5 in long, 304 SST, Adjustable for 31.5-35.5 in Drums

  • Helix blade effectively mixes higher viscosity materials
  • Mounts directly to 2 inch drum bung
  • Stainless and carbon steel material options
  • Sealed agitator drive prevents material contamination and evaporation
  • ATEX approval for hazardous locations
  • Max viscosity 10,000 cps


  • Model: Twistork
  • Air Inlet Size (cm): 0.3175
  • Air Inlet Size (in): 1/8
  • Air Inlet Size (mm): 3.175
  • Air Inlet Thread Type: NPT
  • For Use With: 55 Gallon (208 Liter) Drum
  • Maximum Speed (RPM): 800
  • Maximum Viscosity (cP): 10000
  • Maximum Working Pressure (bar): 7
  • Maximum Working Pressure (kPa): 700
  • Maximum Working Pressure (psi): 100
  • Motor Type: Pneumatic - Rotary Vane
  • Power Rating (HP): 0.75
SKU: GG 236760
Availability:
Price: $4,230.00
