Agitators

View as Grid List

Sort by

Display items per page

AGITATOR, SIPHON TWISTORK

GG 25C532

AGITATOR, SIPHON TWISTORK

Graco 25C532 Twistork Helix Mixer with suction feature - stainless steel, bung mount, belt drive

Rotate agitator clockwise or counter clockwise for optimal mixing.

Application: For wood (top coat, primer) and general finishing applications

Radial piston air driven motor uses less compressed air than most rotary vane air motors.
Install quickly and operate quietly.
Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

Model: Twistork

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
For Use With: Closed-head, Bung-type, 55 Gallon (208 Liter) Drum
Maximum Air Inlet Pressure (bar): 5
Maximum Air Inlet Pressure (kPa): 500
Maximum Air Inlet Pressure (psi): 70
Maximum Speed (RPM): 500
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 5
Maximum Working Pressure (kPa): 500
Maximum Working Pressure (psi): 70
Motor Type: Pneumatic - Radial Piston

$3,710.00

AGITATOR, DIRECT DRIVE, CS

GG 25C533

AGITATOR, DIRECT DRIVE, CS

Graco 25C533 Carbon Steel Direct Drive, 30/55 gallon, 2 aluminum 5.5-inch (14 cm) propellers

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

Application: For wood (top coat, primer) and general finishing applications

Agitator mounts directly to mix tank or drum cover and rotates clockwise
Dual propeller ensures efficient and thorough mixing
Easy adjustment knob fine-tunes agitator speed to ideal mixing parameters
Control speed with Graco&prime, s Intelligent Paint Kitchen (IPK)
Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT

Maximum Air Inlet Pressure (bar): 5
Maximum Air Inlet Pressure (kPa): 500
Maximum Air Inlet Pressure (psi): 70
Maximum Speed (RPM): 500
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 5
Maximum Working Pressure (kPa): 500
Maximum Working Pressure (psi): 70
Motor Type: Pneumatic - Radial Piston

$2,120.00

5 Gallon, Back Geared Stand Mixer

ASC ASC-SM-5-BG-A-E

5 Gallon, Back Geared Stand Mixer

$4,850.00

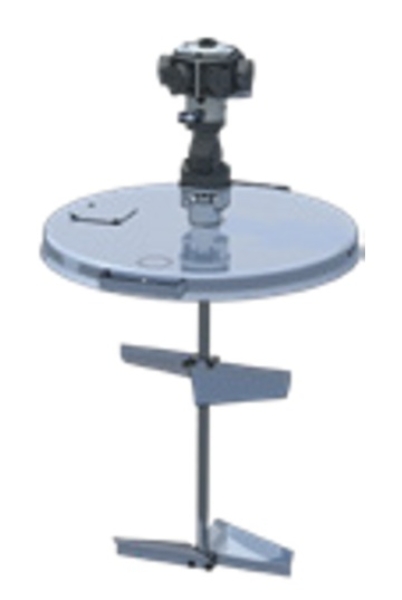

55 Gallon Agitator Asm

BB 31-527

55 Gallon Agitator Asm

$4,825.00

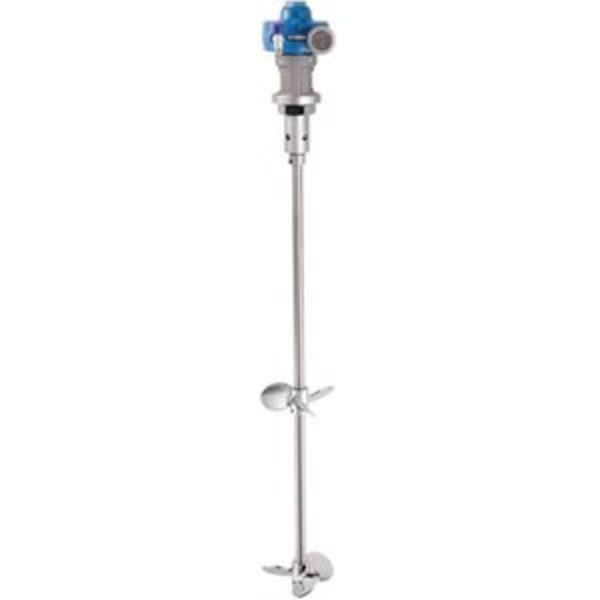

Ss Direct Agitator 55 Gal

BB 41-3304

Ss Direct Agitator 55 Gal

$1,691.00

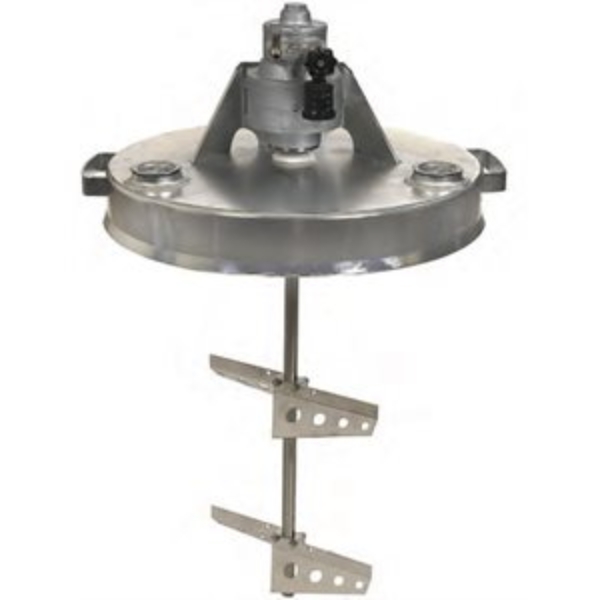

Gear Drive Agitator L/Air

BB 41-3305

Gear Drive Agitator L/Air

$1,986.00

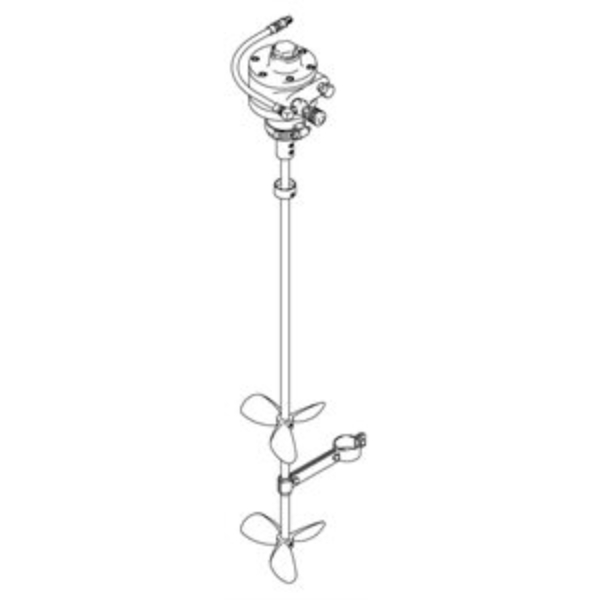

AGITATOR, 55 GAL

GG 204995

AGITATOR, 55 GAL

Drum agitator without mounting tube, air driven, 1/2 HP, 31.25 inches (79.3 cm) in length, carbon steel material Mounts on 237307 cover; mounts to suction tube or pump cylinder. Agitators mount directly to mix tank or drum covers Dual propeller ensures efficient and thorough mixing Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters

$2,120.00

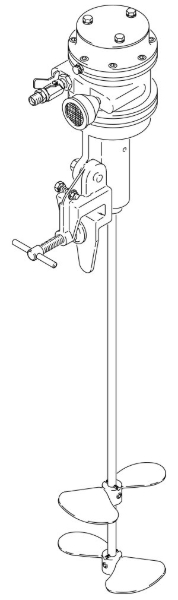

AGITATOR

GG 225883

AGITATOR

Graco 225883 Clamp Mounted Drum Agitator, air driven, 2-1/2 HP, 41.5 inches (105.4 cm) long, includes dual round prop, open drum

Clamp mounts agitator directly to drum
Adjustable shaft angle reduces mixing vortex and air entrapment
Dual propeller ensures efficient and thorough mixing

Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Type: NPT

For Use With: 55 Gallon (208 Liter) Drum
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Speed (RPM): 2500
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (psi): 100
Motor Type: Pneumatic - Rotary Vane
Power Rating (HP): 2.5

$3,360.00

AGITATOR, ASSY, DIRECT DRIVE

GG 25C454

AGITATOR, ASSY, DIRECT DRIVE

Graco 25C454 7.5 in OD Flange Mount Agitator Motor (3 in 150# ANSI Flange Mounting Holes), UL

Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.

Application: For advanced control and energy savings, switch to electric agitators.

Electric agitators are up to 5 times more efficient than pneumatic agitators.
Speed remains constant, regardless of material level in tank.
Low shear mixing ensures uniform particle dispersion without material degradation.

For Use With: Drum or Pressure Tank

Includes: Motor, Flange
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Speed (RPM): 500
Maximum Viscosity (cP): 300
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Motor Type: Electric
Power Rating (HP): 0.75
Power Rating (kW): 0.37

$3,540.00

AGITATOR, BACK GEAR, SIPHON

GG 25C486

AGITATOR, BACK GEAR, SIPHON

Graco 25C486 Electric Back Gear Drum Agitator with siphon, shaft and blades, UL, drum cover and elevator not included

Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.

Application: For advanced control and energy savings, switch to electric agitators.

Drum cover and elevator are not included.
Speed remains constant, regardless of material level in tank.
Quiet electric motor improves work environment.
drum cover and elevator not included

For Use With: 55 Gallon (208 Liter) Drum

Includes: Siphon, Shaft, Blade
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Speed (RPM): 50
Maximum Viscosity (cP): 3000
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (psi): 100
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Motor Type: Electric
Power Rating (HP): 0.75
Power Rating (kW): 0.37

$6,200.00

AGITATOR, DIRECT DRIVE, SST

GG 25C528

AGITATOR, DIRECT DRIVE, SST

Graco 25C528 Stainless Steel Direct Drive, 30/55 gallon (113.5/208 litres), 1 stainless steel 5.5-inch (14 cm) propeller

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

Application: For wood (top coat, primer) and general finishing applications

Agitator mounts directly to mix tank or drum cover and rotates clockwise
Dual propeller ensures efficient and thorough mixing
Easy adjustment knob fine-tunes agitator speed to ideal mixing parameters
Control speed with Graco&prime, s Intelligent Paint Kitchen (IPK)
Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT

Maximum Speed (RPM): 500
Maximum Viscosity (cP): 1000
Maximum Working Pressure (bar): 5
Maximum Working Pressure (kPa): 500
Maximum Working Pressure (psi): 70
Motor Type: Pneumatic - Radial Piston

$2,250.00

AGITATOR, HELIX, SST

GG 25C534

AGITATOR, HELIX, SST

Graco 25C534 Stainless Steel Direct Drive, helix, bung mount

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

Application: For wood (top coat, primer) and general finishing applications

Recommended agitator rotation: Clockwise
Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
Maximum allowable process fluid temperature: 158° F (70° C)

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT

$3,020.00

AGITATOR, DIRECT, DRIVE

GG 25M481

AGITATOR, DIRECT, DRIVE

Graco 25M481 Stainless Steel Direct Drive, 30/55 gallon, 1 stainless steel 8-inch (20 cm) impeller

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

Application: For wood (top coat, primer) and general finishing applications

Recommended agitator rotation: Clockwise
Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
Maximum allowable process fluid temperature: 194° F (90° C)

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT

Maximum Air Inlet Pressure (bar): 5
Maximum Air Inlet Pressure (kPa): 500
Maximum Air Inlet Pressure (psi): 70
Maximum Speed (RPM): 500
Maximum Viscosity (cP): 500
Maximum Working Pressure (bar): 5
Maximum Working Pressure (kPa): 500
Maximum Working Pressure (psi): 70
Motor Type: Pneumatic - Radial Piston

$2,560.00

AGITATOR, 6:1 GEAR REDUCTION

GG 26B618

AGITATOR, 6:1 GEAR REDUCTION

Graco 26B618 Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 2 inch Bung Mount

Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.

Application: For agitating 500 cP to 3000 cP viscosity materials

Installs quickly for immediate cost savings
Needs no air line lubrication to keep running well
Operates more quietly than comparable rotary vane agitator air motors

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT

For Use With: 55 Gallon (208 Liter) Drum
Maximum Air Inlet Pressure (bar): 5
Maximum Air Inlet Pressure (kPa): 500
Maximum Air Inlet Pressure (psi): 70
Maximum Speed (RPM): 83
Maximum Viscosity (cP): 3000
Maximum Working Pressure (bar): 5
Maximum Working Pressure (kPa): 500
Maximum Working Pressure (psi): 70
Motor Type: Pneumatic - Radial Piston
Power Rating (HP): 0.16

$4,140.00

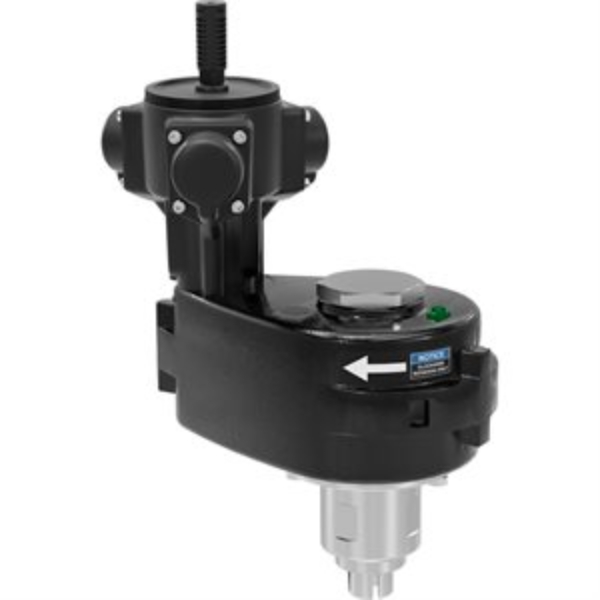

AGITATOR, 6:1 DRUM MOUNT, 1.5IN

GG 26B619

AGITATOR, 6:1 DRUM MOUNT, 1.5IN

Graco 26B619 Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 1.5 inch Bung Mount

Application: For agitating 500 cP to 3000 cP viscosity materials

Installs quickly for immediate cost savings
Needs no air line lubrication to keep running well
Operates more quietly than comparable rotary vane agitator air motors

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT

$4,100.00

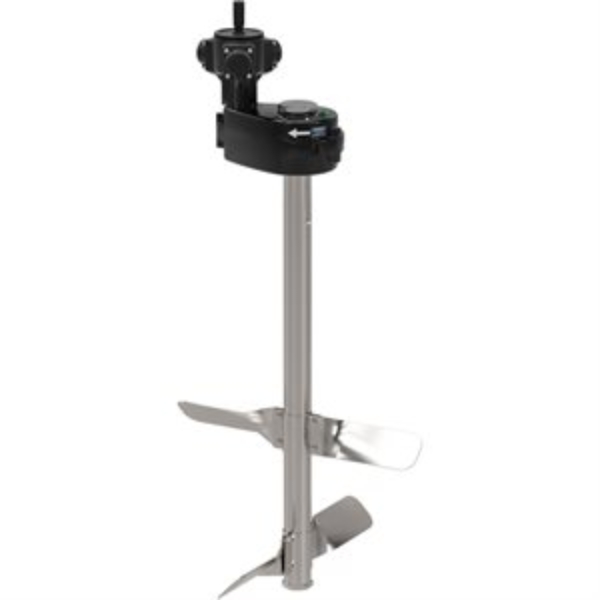

AGITATOR, 6:1 W/SIPHON

GG 26B631

AGITATOR, 6:1 W/SIPHON

Graco 26B631 Back-Geared Radial Piston Agitator, heavy duty, with siphon kit

Application: For agitating 500 cP to 3000 cP viscosity materials

Installs quickly for immediate cost savings
Needs no air line lubrication to keep running well
Operates more quietly than comparable rotary vane agitator air motors

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT

For Use With: 55 Gallon (208 Liter) Drum
Includes: Siphon kit
Maximum Air Inlet Pressure (bar): 5
Maximum Air Inlet Pressure (kPa): 500
Maximum Air Inlet Pressure (psi): 70
Maximum Speed (RPM): 83
Maximum Viscosity (cP): 3000
Maximum Working Pressure (bar): 5
Maximum Working Pressure (kPa): 500
Maximum Working Pressure (psi): 70
Motor Type: Pneumatic - Radial Piston
Power Rating (HP): 0.16

$5,470.00

AGITATOR, ASSY, PRESSURE TANK 5 GAL

GG 25C462

AGITATOR, ASSY, PRESSURE TANK 5 GAL

Pressure Tank Agitator Assembly, 5 gallon (19 L), UL Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks. For advanced control and energy savings, switch to electric agitators. Electric agitators are up to 5 times more efficient than pneumatic agitators. Speed remains constant, regardless of material level in tank. Low shear mixing ensures uniform particle dispersion without material degradation.

$5,090.00

AGITATOR, BACK GEAR

GG 25C485

AGITATOR, BACK GEAR

Graco 25C485 Electric Back Gear Drum Agitator with shaft and blades, UL, drum cover and elevator not included

Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.

Application: For advanced control and energy savings, switch to electric agitators.

Drum cover and elevator are not included.
Speed remains constant, regardless of material level in tank.
Quiet electric motor improves work environment.
drum cover and elevator not included

For Use With: 55 Gallon (208 Liter) Drum

Includes: Shaft, Blade
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Speed (RPM): 50
Maximum Viscosity (cP): 3000
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (psi): 100
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Motor Type: Electric
Power Rating (HP): 0.75
Power Rating (kW): 0.37
