GG 25C532
AGITATOR, SIPHON TWISTORK

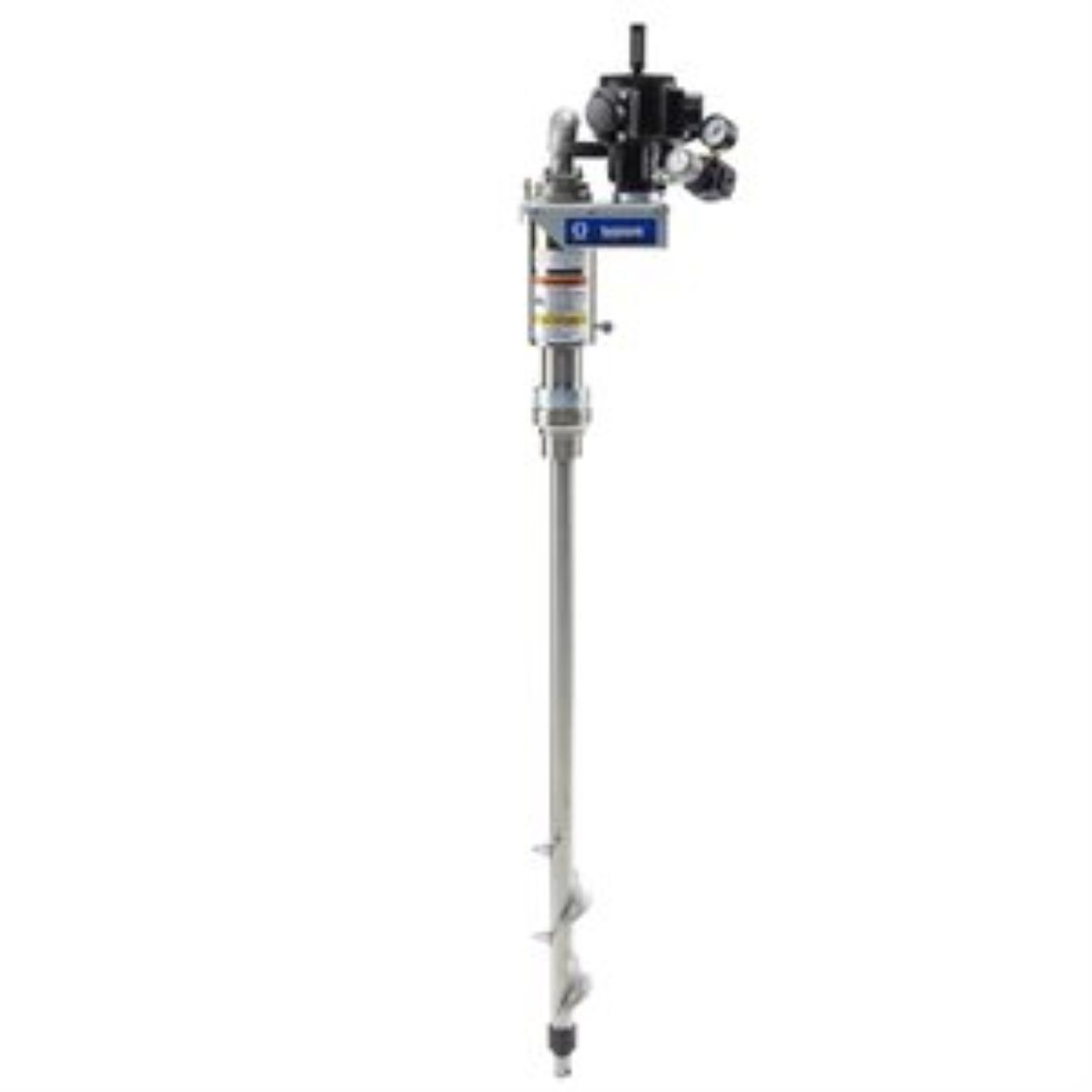

Graco 25C532 Twistork Helix Mixer with suction feature - stainless steel, bung mount, belt drive
Rotate agitator clockwise or counter clockwise for optimal mixing.
Application: For wood (top coat, primer) and general finishing applications
- Radial piston air driven motor uses less compressed air than most rotary vane air motors.
- Install quickly and operate quietly.
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: Closed-head, Bung-type, 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
