Agitator,Air,Outboard

GG 25C529

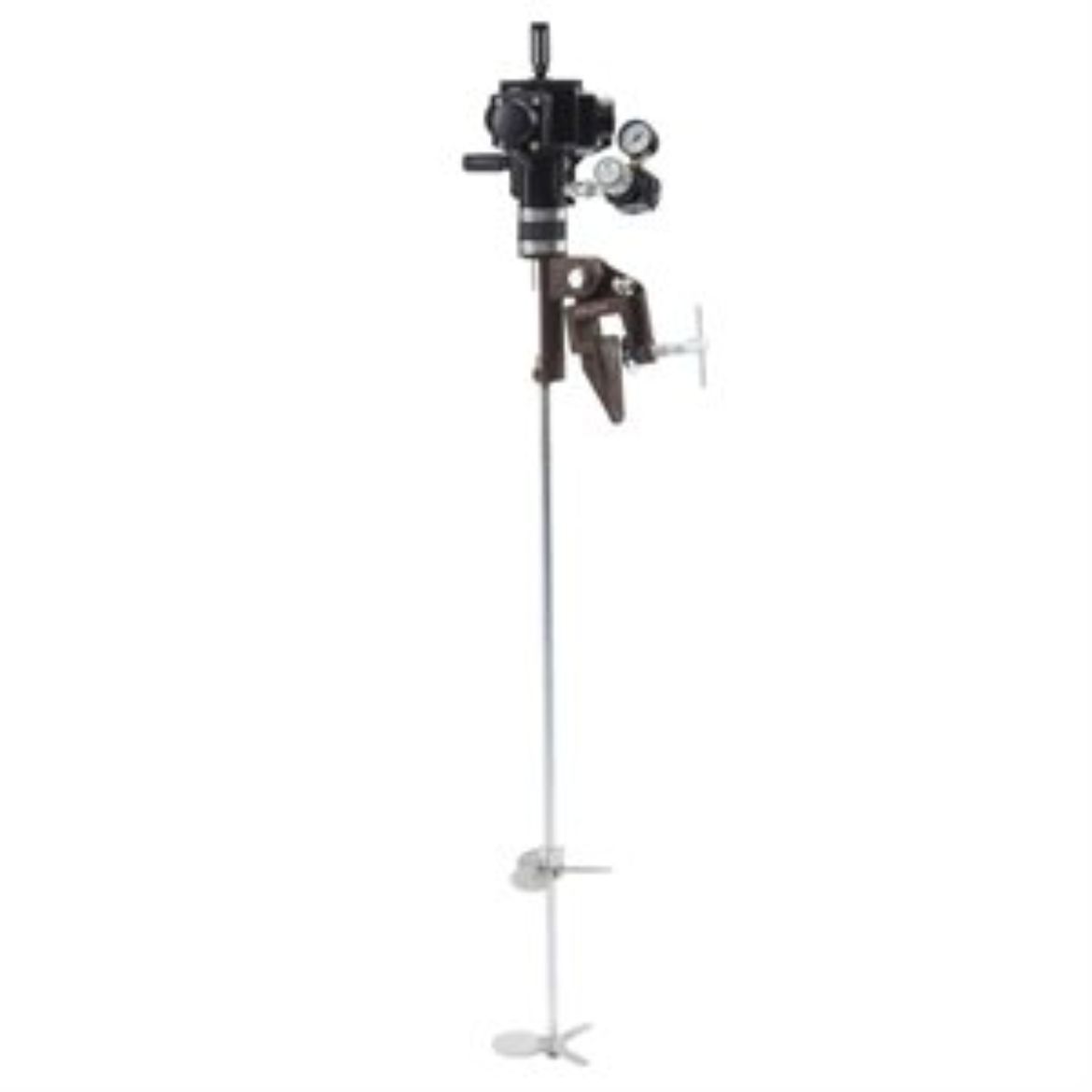

AGITATOR, AIR, OUTBOARD

Graco 25C529 Carbon Steel Direct Drive, 55 gallon (208 L), side mount, 2 aluminum 5.5-inch (14 cm) propellers

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Recommended agitator rotation: Clockwise
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston
