Agitators

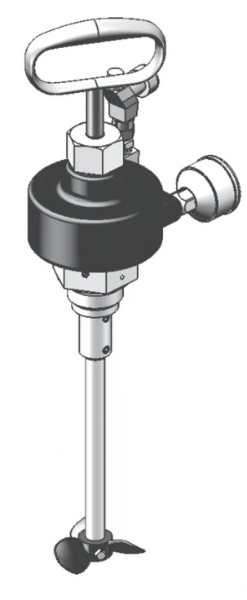

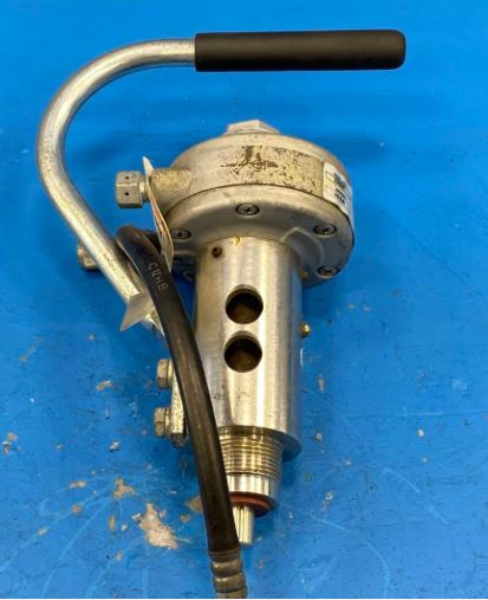

Agitator Assembly, 2 Gallon, Direct Drive
DD QMS-430
DD QMS-430
Agitator Assembly, 2 Gallon, Direct Drive
$1,394.00

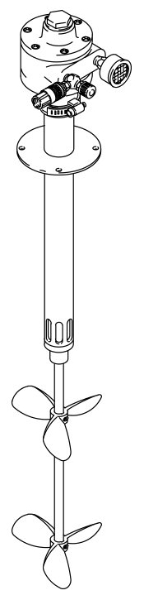

AGITATOR, AIR
GG 206760
GG 206760
AGITATOR, AIR
Graco 206760 Carbon Steel Agitator for 60-Gallon Mix tanks, Air-Driven, 1-1/2 HP, 33.25 inches (84.4 cm) long, CS/Aluminum
Dual round prop
- Agitators mount directly to mix tank or drum covers
- Dual propeller ensures efficient and thorough mixing
- Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 60 Gallon Mix Tanks
- Maximum Speed (RPM): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 1.5
$1,910.00

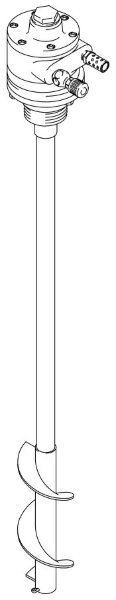

AGITATOR, HELIX
GG 224854
GG 224854
AGITATOR, HELIX
Twistork Helix Mixer, reversible, non-siphon, air driven, 1-1/2 HP, 37.25 in (95 cm) in length, carbon steel material Helix blade effectively mixes high viscosity materials Mounts directly to 2-inch drum bung Comes in stainless steel or carbon steel Siphon model allows material transfer though agitator shaft Sealed agitator drive prevents material contamination and evaporation Approved by ATEX for use in hazardous locations Maximum viscosity is 10,000 cps
$2,190.00

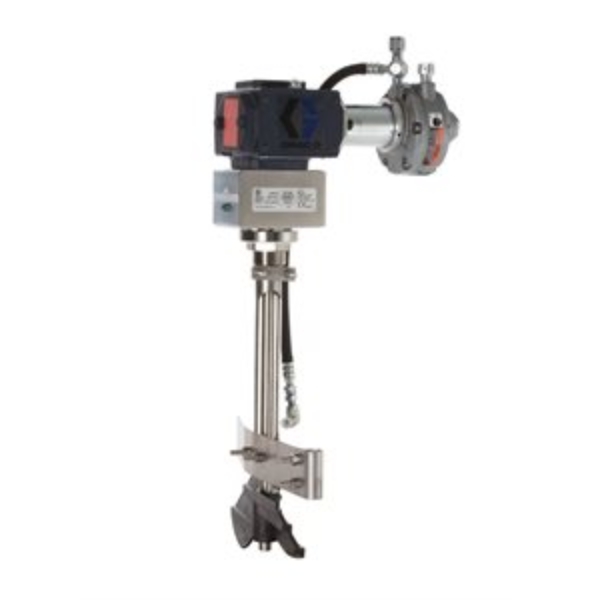

AGITATOR, HEAVY DUTY, 15 GAL
GG 236663
GG 236663
AGITATOR, HEAVY DUTY, 15 GAL
15 Gallon (57 L) Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15 inches (38 cm) in length, gear reduced Waterborne compatible 20:1 gear reduction to mix high viscosity materials, even at low speeds Sealed agitator shaft to prevent air leakage and contamination Built-in baffle and support for efficient mixing Compatible with Graco pressure tanks
$2,950.00

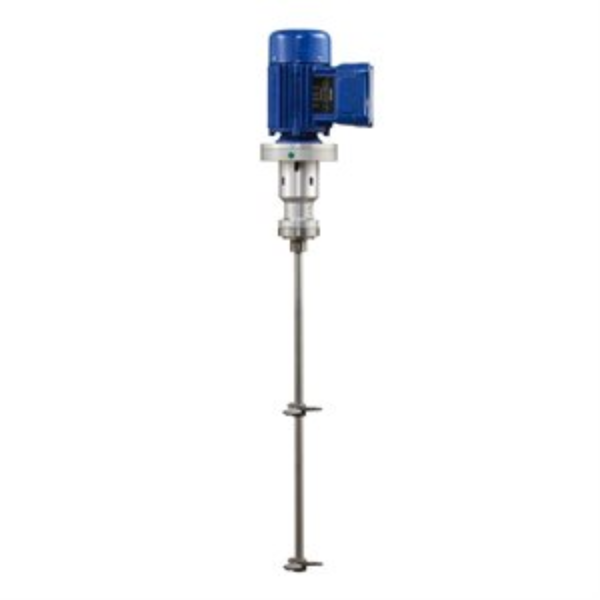

AGITATOR, ASSY, PRES TANK, 15 GAL, ATEX
GG 25C473
GG 25C473
AGITATOR, ASSY, PRES TANK, 15 GAL, ATEX
Pressure Tank Agitator Assembly, 15 gallon (56 L), ATEX Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks. For advanced control and energy savings, switch to electric agitators. Electric agitators are up to 5 times more efficient than pneumatic agitators. Speed remains constant, regardless of material level in tank. Low shear mixing ensures uniform particle dispersion without material degradation.
$5,970.00
Agitator, Direct Drive, 3/4 HP
ASC ASC-1-2-55-P
ASC ASC-1-2-55-P
Agitator, Direct Drive, 3/4 HP
$1,350.00

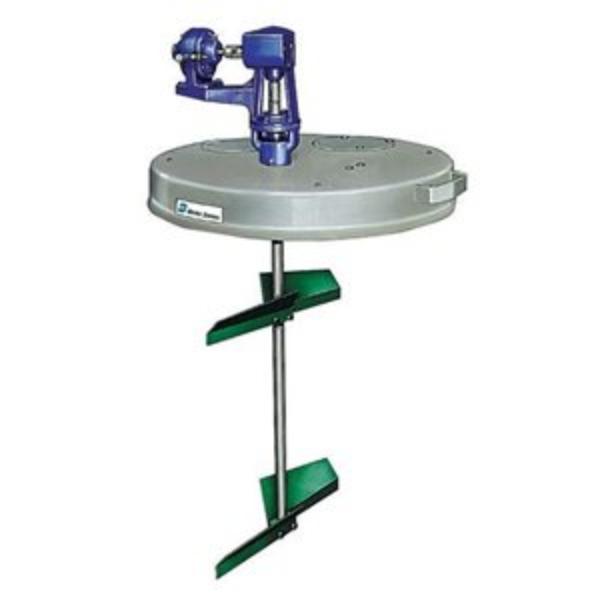

Ss Agitator Asm W/Cover (Not Shown)
BB 31-129
BB 31-129
Ss Agitator Asm W/Cover (Not Shown)
$2,184.00

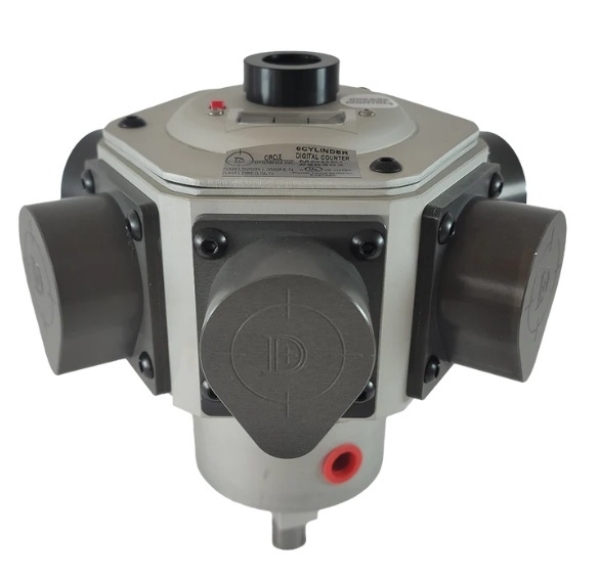

1 HP, 6 Cylinder Bare Air Motor, C/W Tacho
BB 31-510
BB 31-510
1 HP, 6 Cylinder Bare Air Motor, C/W Tacho
$1,778.00

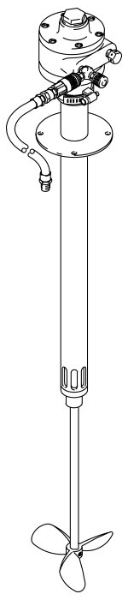

AGITATOR, DIRECT DRIVE
GG 222698
GG 222698
AGITATOR, DIRECT DRIVE
Graco 222698 Drum agitator without mounting tube, air driven, 3/4 HP, 31.25 inches (79.3 cm) in length, stainless steel material
- Agitators mount directly to mix tank or drum covers
- Dual propeller ensures efficient and thorough mixing
- Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon Drums and 30 Gallon Mix Tanks
- Maximum Speed (RPM): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.75
$1,570.00
AGITATOR, HELIX, CS
GG 25C535
GG 25C535
AGITATOR, HELIX, CS
Graco 25C535 Carbon Steel Direct Drive, helix, bung mount
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Application: For wood (top coat, primer) and general finishing applications- Recommended agitator rotation: Clockwise
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Maximum allowable process fluid temperature: 158° F (70° C)
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 500
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
$2,480.00
AGITATOR, HEAVY DUTY, 5 GAL
GG 25C539
GG 25C539
AGITATOR, HEAVY DUTY, 5 GAL
Agitator for a 5 gallon (19 L) tank, pressure tank not included Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications. For wood (top coat, primer) and general finishing applications Use less compressed air than most rotary vane air motors. Install quickly and operate quietly. Maintain easily – air line lubrication not required. Add DataTrak for speed monitoring and over-speed alert. Control speed with Graco's Intelligent Paint Kitchen (IPK). Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
$2,990.00
AGITATOR, IN-DRUM, 2.0 BUNG,
GG 25N882
GG 25N882
AGITATOR, IN-DRUM, 2.0 BUNG,
In-Drum, 2-inch (5 cm) Bung Mount Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications. For wood (top coat, primer) and general finishing applications Recommended agitator rotation: Clockwise Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA Maximum allowable process fluid temperature: 194° F (90° C) Bung adapter sizes: 1 1/2–11.5 npsm and 2–11.5 npsm
$2,610.00

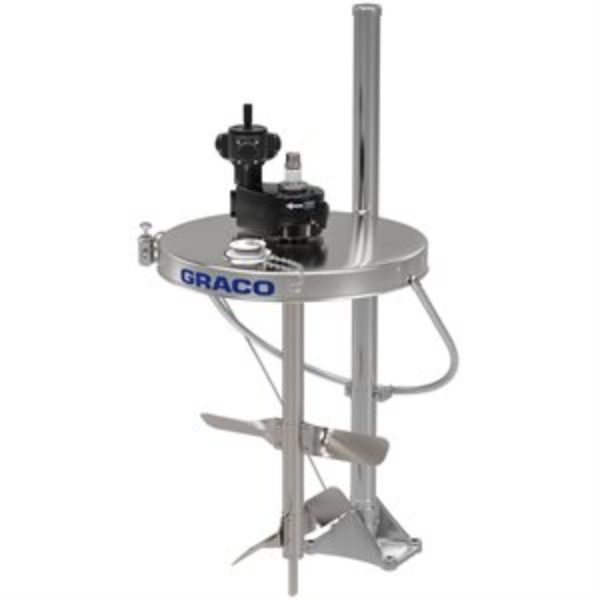

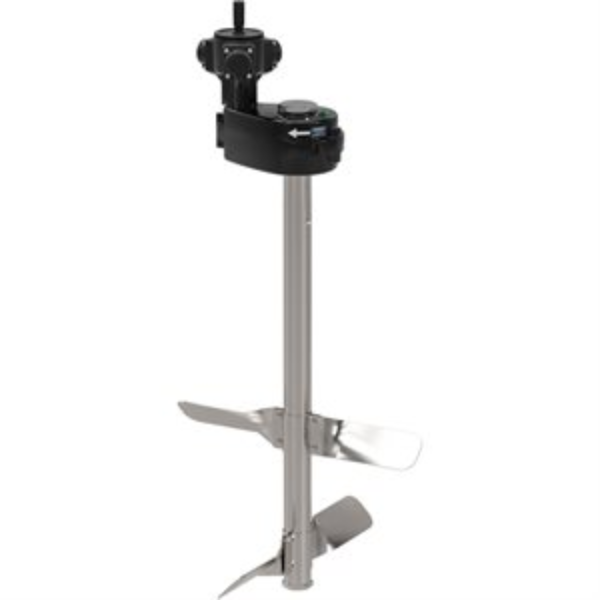

AGITATOR, 6:1 GEAR REDUCTION, SIPHON
GG 26B633
GG 26B633
AGITATOR, 6:1 GEAR REDUCTION, SIPHON
Graco 26B633 Back-Geared Radial Piston Agitator, heavy duty, with elevator, drum cover and siphon kit
Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.
Application: For agitating 500 cP to 3000 cP viscosity materials
- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Includes: Elevator, drum cover and siphon kit
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 83
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
- Power Rating (HP): 0.16
$7,750.00

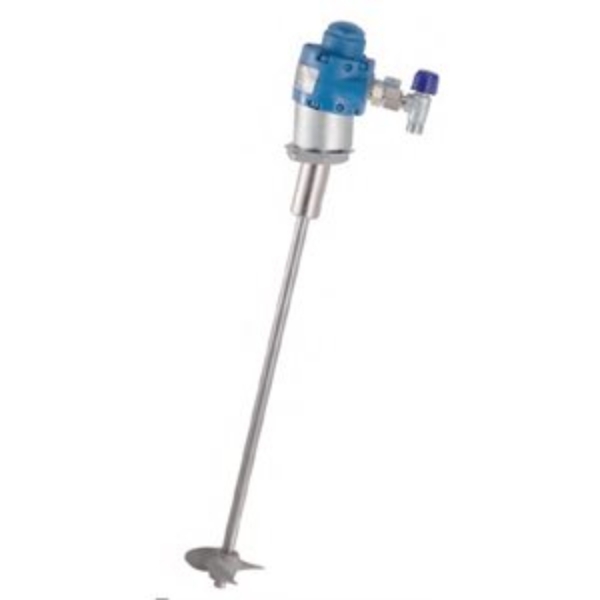

Agitator Assembly Stainless Steel, 5 Gallon
BB 41-3312
BB 41-3312
Agitator Assembly Stainless Steel, 5 Gallon
$846.00
Agitator Assembly Stainless Steel, 5 Gallon, Short Shaft
BB 41-3312-S
BB 41-3312-S
Agitator Assembly Stainless Steel, 5 Gallon, Short Shaft
$838.00

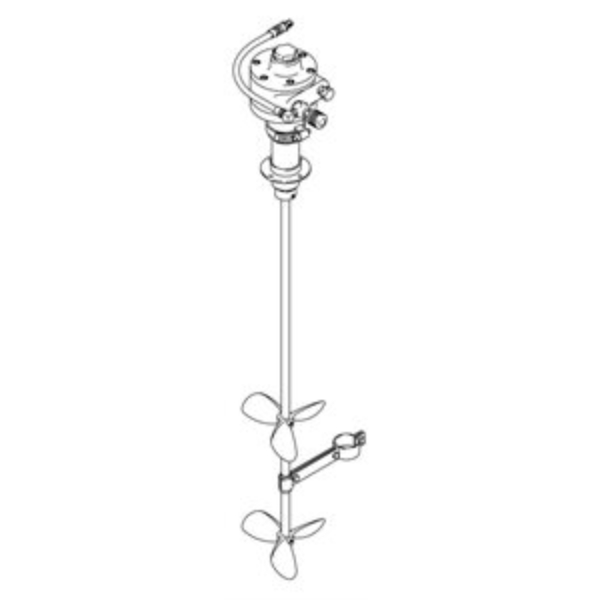

AGITATOR, 55 GAL
GG 206219
GG 206219
AGITATOR, 55 GAL
Graco 206219 Drum Agitator with Mounting Tube, Air-Driven, 1/2 HP, 31.25 inches (79.3 cm) long, CS
Mounts on cover 237308
- Agitators mount directly to mix tank or drum covers
- Dual propeller ensures efficient and thorough mixing
- Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters
- For Use With: 55 Gallon Drums
- Includes: Mounting Tube
- Maximum Speed (RPM): 800
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.75
$1,920.00

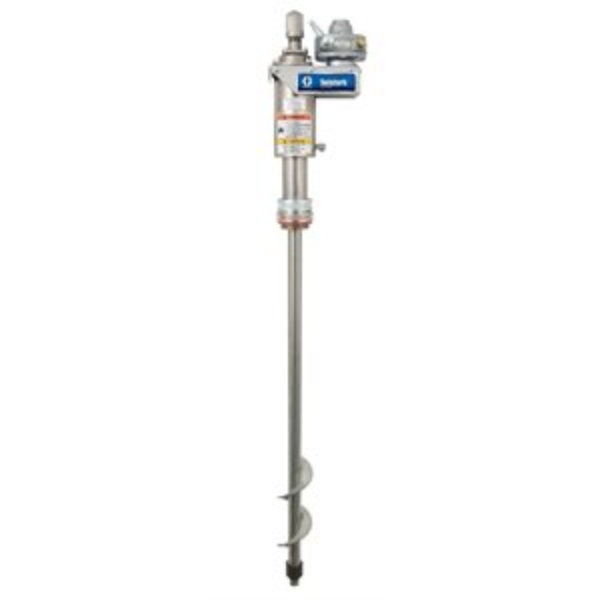

AGITATOR, SUCTON, REVERSIBLE, TWISTRK
GG 236760
GG 236760
AGITATOR, SUCTON, REVERSIBLE, TWISTRK
Graco 236760 Twistork Drum Agitator, Oil-less, Reversible, Siphon, Air, 3/4 HP, 47.5 in long, 304 SST, Adjustable for 31.5-35.5 in Drums
- Helix blade effectively mixes higher viscosity materials
- Mounts directly to 2 inch drum bung
- Stainless and carbon steel material options
- Sealed agitator drive prevents material contamination and evaporation
- ATEX approval for hazardous locations
- Max viscosity 10,000 cps
- Model: Twistork
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Speed (RPM): 800
- Maximum Viscosity (cP): 10000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.75
$4,230.00
AGITATOR, ASSY, PRESSURE TANK, 15 GAL
GG 25C471
GG 25C471
AGITATOR, ASSY, PRESSURE TANK, 15 GAL
Pressure Tank Agitator Assembly, 15 gallon (56 L), UL Low shear, electric, direct drive agitator (UL listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This model includes a shaft and impeller, but no pressure tank. It can replace existing air motor driven pressure tank agitators. For advanced control and energy savings, switch to electric agitators. Electric agitators are up to 5 times more efficient than pneumatic agitators. Speed remains constant, regardless of material level in tank. Low shear mixing ensures uniform particle dispersion without material degradation.
$5,040.00
AGITATOR, AIR, OUTBOARD
GG 25C529
GG 25C529
AGITATOR, AIR, OUTBOARD
Graco 25C529 Carbon Steel Direct Drive, 55 gallon (208 L), side mount, 2 aluminum 5.5-inch (14 cm) propellers
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Application: For wood (top coat, primer) and general finishing applications- Recommended agitator rotation: Clockwise
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 500
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
$2,440.00
