Torque Control

IR CPS2-27

NUT, COUPLING

IR CPS2-442

HOUSING, HALL

IR CPS3Q4

ASSY, LARGE ANGLE HEAD

IR GEA15-25-M37

GEAR PACK ASSEMBLY

IR GEA40-136

SLEEVE-OUTER COVER

IR QXBD5AT000P000

BACKCAP ASSEMBLY, 40V ANGLE, BLUETOOTH ONLY, DISPLAY, STANDARD

IR QXWD2PT000E000

Backcap Assembly, 20V Pistol, WIFI, Zigbee and Bluetooth, Display, ETS

NTT 16010

HT-1/5.2 1700 Nm, 1/2in In, 3/4in Out

ETA TLA-312

Tap Adapter

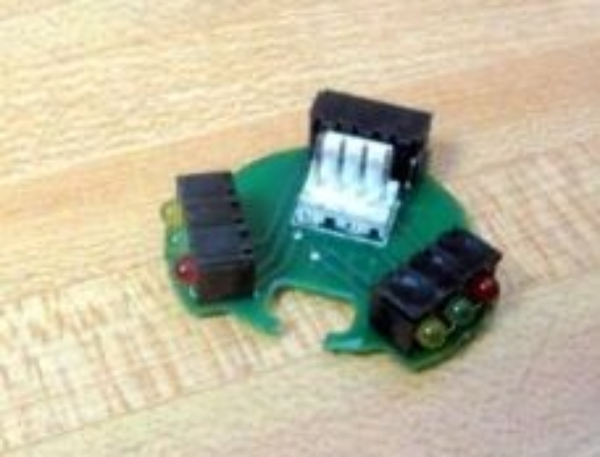

IR GEA40-98

BOARD-LEDS

IR QCP2P12Q4

1/4" Quick Change 20V Cordless Clutch Tool, 12 Nm, 700 RPM, Programmable, Pistol

QC Series Clutch Tools are engineered for robust performance, withstanding over 500k cycles in demanding assembly environments and delivering precision in every fastening application. The clutch tool offers a seamless setup experience via the INSIGHT™ Connect app, enabling quick programming of advanced parameters to meet specific application needs. Designed with user comfort in mind, the balanced ergonomic build helps reduce fatigue, while the dual-speed non-contact trigger provides smooth, efficient operation. Experience the perfect blend of durability, simplicity, and precision with the QC Series Clutch Tools.

Features And Benefits

• Precise: Thanks to an auto shutoff clutch, QC Series Clutch tools achieve Cmk >1.67 at +/—10% accuracy, providing higher repeatability and consistent output; The QC Series Clutch Tool configuration is equipped with a lockable, tamper-proof clutch that delivers up to 30 Nm of torque for various applications; Program RPM and other advanced tool settings via the Insight CONNECT mobile and desktop app.
• Simple: The multi-color 360º status beam LED ring light illuminates the work area and provides clear feedback to the user on the workpiece; Combined with the Cycle Status Indicator, which shows pass/fail and helps users verify their work quickly, it helps minimize defects and improve overall quality; Unlock faster and smarter tool configurations with 8 programmable parameters, making it easy to meet specific application requirements; QC Series Clutch Tools are compatible with IQV20™ battery and charger platform, providing flexibility and reducing operational costs.
• Durable: Designed to last more than 500k cycles in a high-speed assembly environment, QC Series Clutch Tools deliver reliable performance in almost any application.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: Production Environment
Housing Material: Nylon
Lumens: 11
Max Free Speed (rpm): 700
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.26
Product Weight (lb): 2.31
Product Weight (lb) (with Battery): 3.21
Recommended Forward Torque Range (ft-lb): 3.7-8.9
Recommended Forward Torque Range (in-lb): 44-106
Recommended Forward Torque Range (nm): 5-12
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): 73 / 81
Vibration Level (m/s2): 0.8
Vibration Uncertainy K* (m/s2): 0.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: USB-C

Similar IR

• QCP2P02Q4
• QCP2P04Q4
• QCP2P08Q4
• QCP2A30S6
• QCN2P02Q4
• QCN2P04Q4
• QCN2P08Q4
• QCN2P12Q4

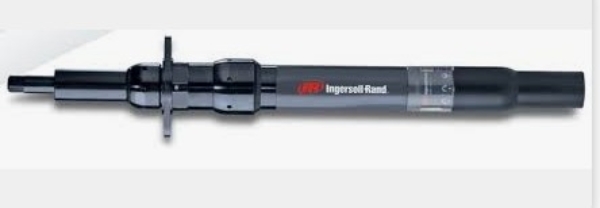

IR QE6ST033F41S06

ASSEMBLY TOOL

NTT 14004

Torque Wrench, 1500, 3/4in drive

NTT 15012

Pro 50 3/8 In. Dr. Torque Wrench

NTT 15063

PRO 100TH, 16MM SPIGOT, 20-100 NM

NTT 17221

1 Inch Square Drive Norbar 5:1 Torque Multiplier

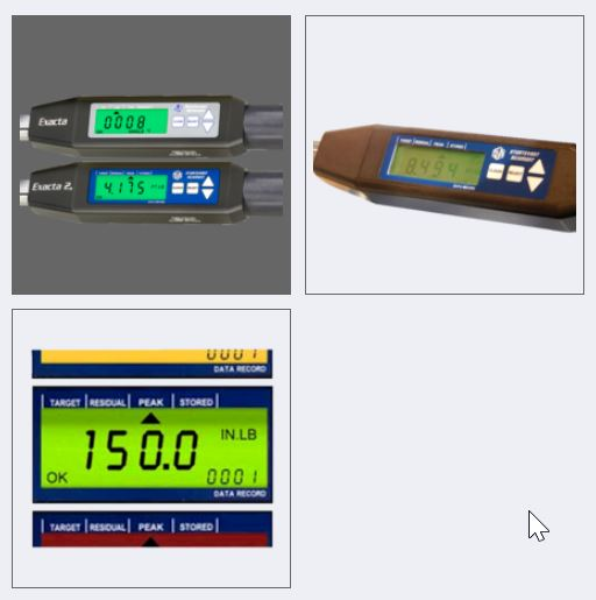

STR 10530

Digital Torque Wrenches: Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta 2 25
Capacity (Nm)	:		33.8 Nm
Torque Range (ft.lb)	:		5-25 ft.lbf
Overall Length	:		16.1 in
Head Type	:		Pin and Spring

Product Description

• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Residual mode assists the user in determining retained torque on a joint
• Actual accuracy percentage is contingent upon the joint condition and user technique
• Includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Ships in a custom, blow-molded plastic case to protect the wrench and serves as an excellent storage space for the wrench
• Large, bright display can be read at arm's length, even in shadow
• Three modes of operation: Track, Peak, and Residual
• Programmable limits with visual notification

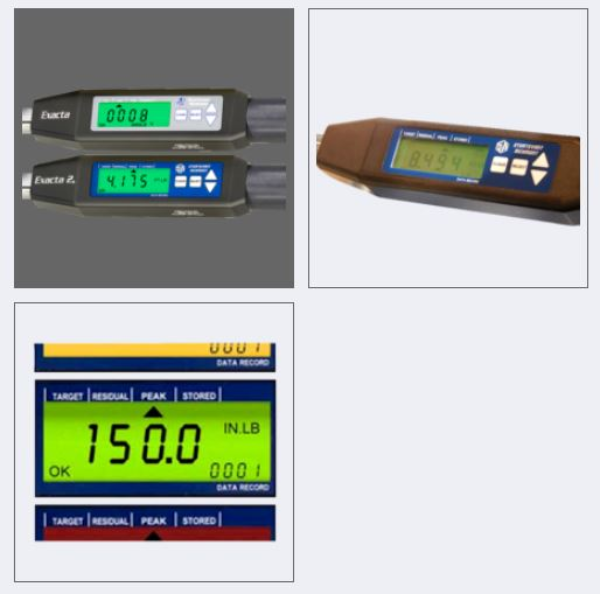

STR 10531

Digital Torque Wrenches: Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta 2 75 QC
Capacity (Nm)	:		101.5 Nm
Torque Range (ft.lb)	:		15-75 ft.lbf
Overall Length	:		19.4 in
Head Type	:		Pin and Spring

Product Description

• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Residual mode assists the user in determining retained torque on a joint
• Actual accuracy percentage is contingent upon the joint condition and user technique
• Includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Ships in a custom, blow-molded plastic case to protect the wrench and serves as an excellent storage space for the wrench
• Large, bright display can be read at arm's length, even in shadow
• Three modes of operation: Track, Peak, and Residual
• Programmable limits with visual notification

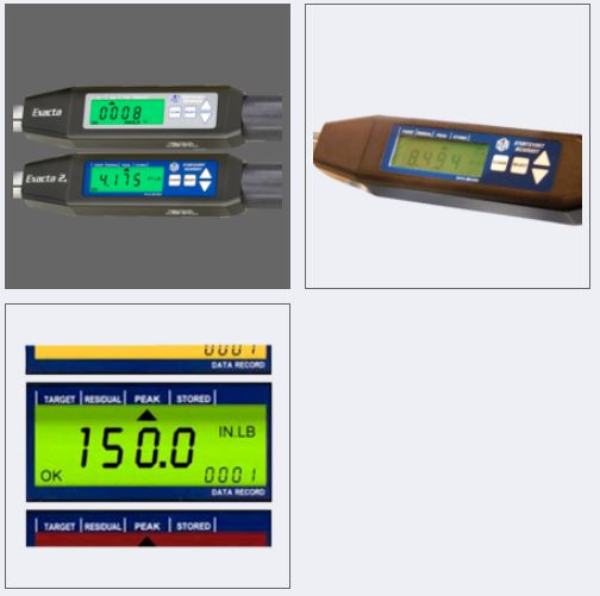

STR 10532

Digital Torque Wrenches: Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta 2 150 QC
Capacity (Nm)	:		203.3 Nm
Torque Range (ft.lb)	:		30-150 ft.lbf
Overall Length	:		21.5 in
Head Type	:		Pin and Spring

Product Description

• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Residual mode assists the user in determining retained torque on a joint
• Actual accuracy percentage is contingent upon the joint condition and user technique
• Includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Ships in a custom, blow-molded plastic case to protect the wrench and serves as an excellent storage space for the wrench
• Large, bright display can be read at arm's length, even in shadow
• Three modes of operation: Track, Peak, and Residual
• Programmable limits with visual notification

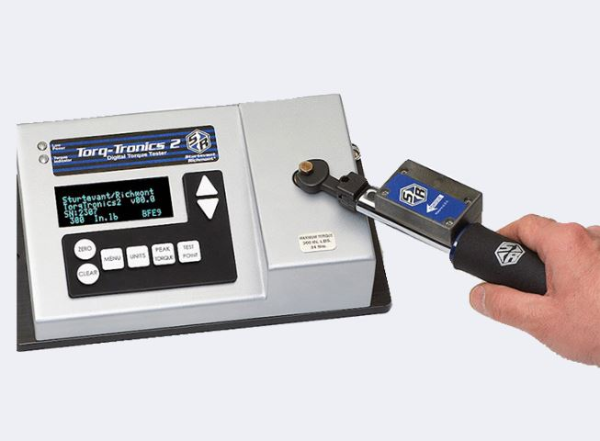

STR 10695

Torque Testers: Torq-Tronics 2 Digital Torque Testers, ft-lb

Model	:		TORQ-TRONICS 2 80 FT LB (1/2 in)
Torque Range (ft-lb)	:		8-80 lbf-ft
Torque Range (nm)	:		10.9-109 Nm

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870778

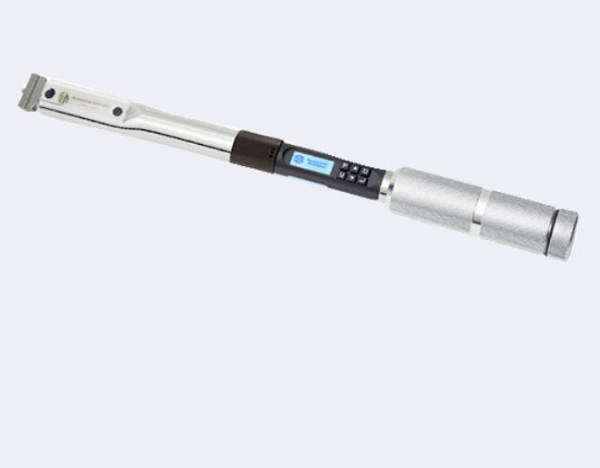

STR 10982

Wireless Digital Torque Wrenches: 1350 Series Digital Torque and Angle Wrench, ft-lb

Product Group	:		1350 Series Digital Torque and Angle Wrench, ft-lb
Model	:		1350 Series Exacta 2-75 AA
Capacity (Nm)	:		101.7 Nm
Torque Range (ft.lb)	:		15-75 ft.lbf
Overall Length	:		16.5 in
Head Type	:		Pin/Spring

Product Description

• Torque Accuracy: +/-2% of the indicated value from 20% to 100% of rated capacity, +/-4% of the indicated value from 5% to 19% of rated capacity in CW and CCW directions
• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque
• Torque and angle can identify changing joint conditions and prevent errors
• The torque-only functionality includes Track and Peak modes of operation
• The backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application; Turns yellow at 90% of target torque; Turns green upon reaching target torque; Turns red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400mp
• P-Sets are set and saved via the controller
• No changes can be made at the wrench level, this provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series

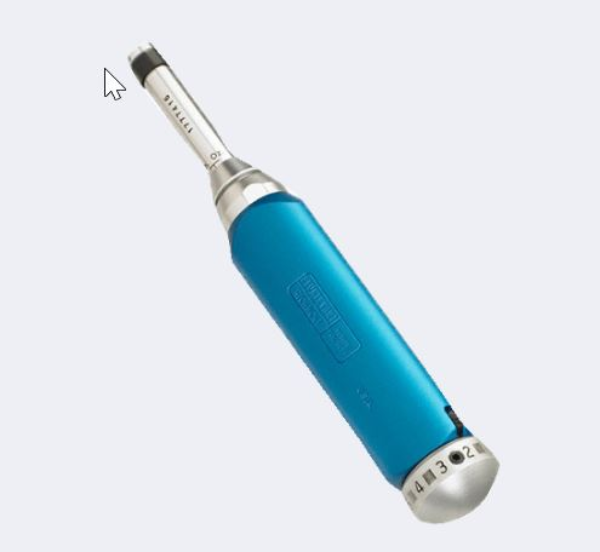

STR 810045

Adjustable Torque Screwdrivers: Exactorq Adjustable Torque Screwdriver, in-oz

Product Group	:		Exactorq Adjustable Torque Screwdriver, in-oz
Model	:		ExacTorq 100
Torque Range	:		20-100 in.oz
Hex Drive	:		1/4 in
Overall Length	:		6.8 in
Weight	:		.4 lb
Scale	:		1 in-lb

Product Description

• Bi-directional accuracy of +/- 6% preset value
• Meets or exceeds ASME B107.300-2010 and ISO 6789
• Operator cannot over-torque, clutch releases automatically when desired torque has been achieved
• Short dwell designed to prevent repetitive motion injuries
• Preset torque using torque tester and insert a bit to use
• Can be set in any unit of torque measurement
• Long shaft for use in limited-access applications
• Uses standard 1/4" bits, adapters, and sockets
• Polished aluminum exterior
• Anti-backlash design enhances repeatability
• Can be ordered preset from factory with calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory

STR 810417

Wireless Click-Type Torque Wrenches: SLTC FM 2.4 GHZ Click Wrenches, in-lb

Product Group	:		SLTC FM 2.4 GHZ Click Wrenches, in-lb
Model	:		SLTC FM2.4 3600 I A3
Torque Range (Nm)	:		408 Nm
Torque Range (in.lb)	:		720-3600 in.lb
Head Type	:		Dovetail

Product Description

• Preset click torque wrench measures and applies torque in the clockwise direction
• Using this wrench in the counter-clockwise direction will apply torque, but it will not measure torque because it does not click in the counter-clockwise direction
• Flattened case for superior accuracy, reliability, and durability
• Accuracy of +/- 4% or better of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Excellent audible/tactile impulse when preset torque is achieved
• Error Proofing By Guidance: Monitors time in the clicked position to proved OK/BAD quality attribute data with every use of the tool
• Error Proofing By Behavior Modification in action. The new A3 has a new battery that lasts longer and is easier to change
• Raised LED Fresnel to improve visibility when working in less than optimal positions
• AAA batteries are more readily available than are the 6-volt batteries

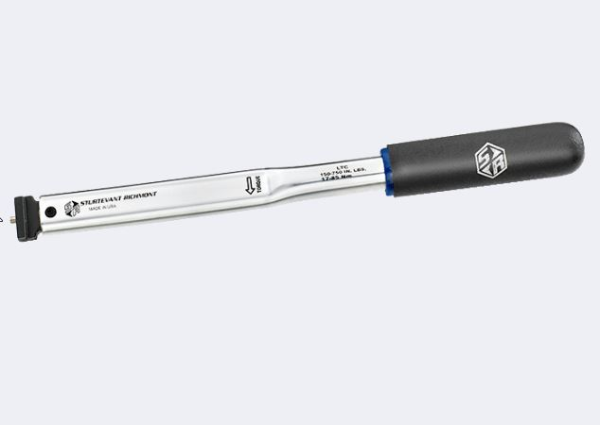

STR 810574

Click-Type Preset Torque Wrenches: LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb

Product Group	:		LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb
Model	:		LTC 300 I OHT
Torque Range (Nm)	:		40.8-204 Nm

Product Description

• +/- 4% repeatability from 20% to 100% of capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• Tools preset at the factory include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Low profile of the square drive creates access where other tools cannot go
• Flattened case is sideloading resistant
• Error Proofing By Design flattened case provides superior mechanism support that makes the wrench easier to calibrate and it holds calibration much longer than other wrenches
• Excellent tactile and audible pulse when the preset torque is achieved
• Cushion grip plus lightweight for excellent ergonomics
• Fixed square drive provides exceptional strength and durability
• CART tool
• Torque is preset and locked in with a special tool
• Torque can be set using any unit of measurement
• Combination Adjusting and Release Tool (CART) P/N 819117 allows the operator to easily adjust torque on all SLTC -FM, SLTC, LTC, LTCR, and LTCS wrenches
• Can be ordered preset from the factory or you can set the torque with your own torque tester

STR 810673

HTS Holding Wrench 13"
