Torque Control

IR GEA15-K48

IR QA4-1-K53

IR QCX-A499-CARR-NR-K

IR QE8AT065PA5S08

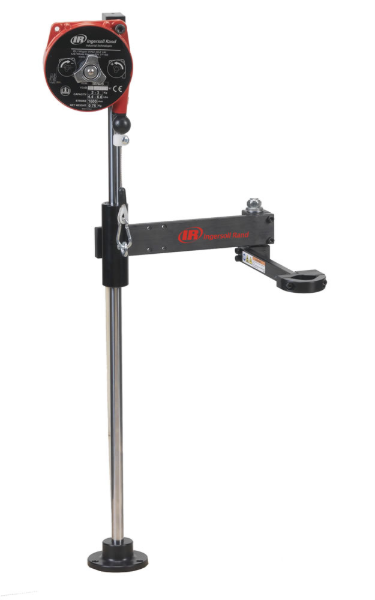

IR QTA010

Bench-mounted Torque Reaction Arm, 10 NM Capacity, 15" Max Working Reach, 13" Vertical Travel, 2.6 LB Weight Capacity, 27.8" H

Description: Ingersoll Rand QTA Series bench-mounted torque reaction arms are constructed of lightweight aluminum. They include an Ingersoll Rand spring-loaded, die-cast aluminum balancer for impressive strength and reduced weight.

Features And Benefits:

• Spring balancer adjusts easily and offers effortless vertical movement.
• Simple, proven design for trouble-free setup and dependability.
• Anodized aluminum body delivers toughness in a lightweight design.
• Chrome-plated pole paired with a self-lubricating bearing, provides unmatched durability.
• Adjustable reach for easy use and convenience when locating fasteners.
• Multiple-tool holder options include right angle, swivel, and pistol grip.
• Cable or air line clamps keep work area clear and organized.
• Custom tool holder options enable seamless integration with Ingersoll Rand QA and QE tools.
• Position arm at 90-degree angle for optimum torque reaction performance. Arm should not be used in fully extended or fully collapsed position as this reduces reaction capabilities.

Product Application and Uses:

For use with assembly tools.

• Includes: tool holder and spring balancer

• For Use With: 1RPNC1
• For Use With: 41PP10TSQ4
• For Use With: 41PP17TSQ4

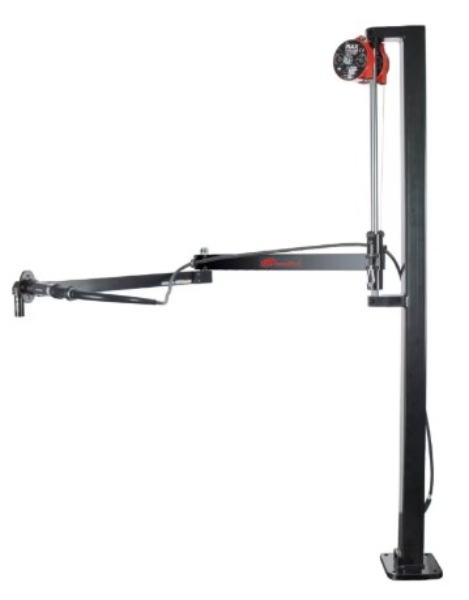

IR QTA150

Floor/Bench Mounted Torque Arm, 52" Reach, 111 ft-lb Torque, 22" Vertical Travel Distance, 10 lb Capacity, 78.7" H

Description: Ingersoll Rand QTA torque reaction arms are constructed of lightweight aluminum and are available in a variety of torque capacities. They include an Ingersoll Rand spring-loaded, die-cast aluminum balancer for impressive strength and reduced weight.

Features And Benefits:

• Generous arm length makes QTA ideal for assembly line applications.
• Custom tool holder options permit use with Ingersoll Rand QA and QE tools.
• Safety stop eliminates over-extending arms.
• Adjustable height control delivers flexibility for virtually any application.
• Simple design ensures easy, effective setup and use.
• Solid, steel-frame construction for rugged dependability.
• Can be easily configured for either a bench-mounted or floor-mounted torque arm, and reconfigured as the job demands.

• Capacity (lb): 10

• Max Torque (ft-lb): 111
• Max Torque (in-lb): 1328
• Max Torque (nm): 150

IR QXBD5AT000P000

IR RTS140PH8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 103ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Retainer

Description: RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits:

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT Connect controller or mobile app, Expert setup via INSIGHTqcx MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20 battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS140PH8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Production Environment

• Fastener Size: M10-M14

• Housing Material: Glass-filled Nylon (PA6-GF30)

• Lumens: 11
• Max Free Speed (rpm): 2700
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 6.69

• Product Weight (lb): 2.42
• Product Weight (lb) (with Battery): 3.32
• Pulses per Minute: 3600
• Recommended Forward Torque Range (ft-lb): 22-103
• Recommended Forward Torque Range (in-lb): 266-1239
• Recommended Forward Torque Range (nm): 30-140
• Retainer Type: Friction Ring and Thru-hole
• Reversible: Reversible

• Sound Pressure/Power Db(A): 95 / 103

• Vibration Level (m/s2): 11
• Vibration Uncertainy K* (m/s2): 1.6
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• W

IR VA1-A37-CP

IR VP1-A93

NTT 15065

STR 10681

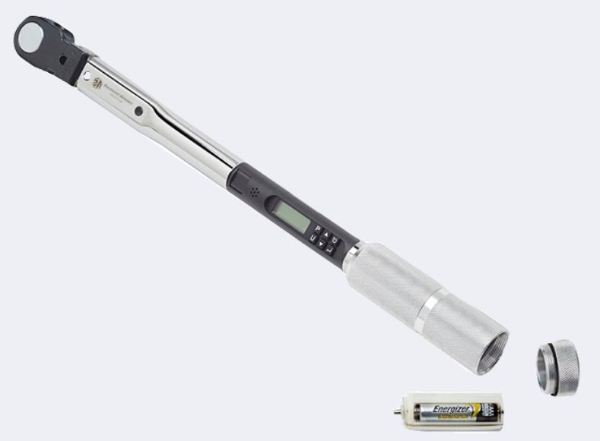

Digital Torque Wrenches: DTC Digital Torque and Angle Wrench, ft-lb

Product Description

• Limiting torque value to wrench capacity
• Black and white display and colored light bands on the side of the wrench
• Bands change yellow to green when the target values are achieved
• Auditory beep and vibrating handle provide two additional modes of operator-focused error-proofing guidance
• Results log large enough for even the busiest assemblies
• Holds 1000 torque results and results can be downloaded
• Using the mini-USB port, and DTC Connect Freeware, the results log can be uploaded to a computer in a CSV format
• Can be used to set parameters in the wrench
• Change units of measure, modes of operation, degrees of fastener rotation, establish a target torque, minimum torque, maximum torque, and more
• DTC CONNECT is freeware and is included in the DTC

STR 10696

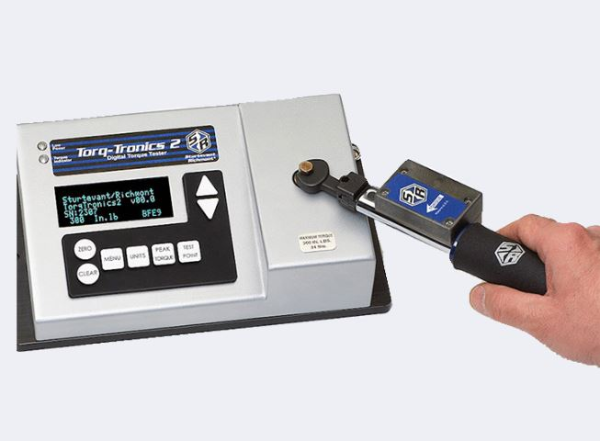

Torque Testers: Torq-Tronics 2 Digital Torque Testers, ft-lb

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870779

STR 10782

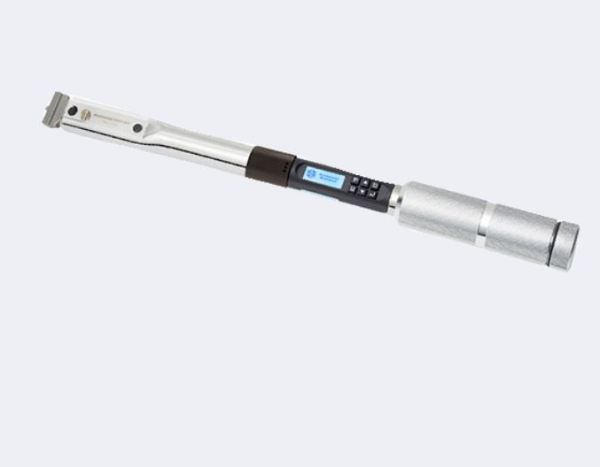

Wireless Digital Torque Wrenches: 1350 Series Digital Torque and Angle Wrench, ft-lb

Product Description

• Torque Accuracy: +/-2% of the indicated value from 20% to 100% of rated capacity, +/-4% of the indicated value from 5% to 19% of rated capacity in CW and CCW directions
• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque
• Torque and angle can identify changing joint conditions and prevent errors
• The torque-only functionality includes Track and Peak modes of operation
• The backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application; Turns yellow at 90% of target torque; Turns green upon reaching target torque; Turns red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400mp
• P-Sets are set and saved via the controller
• No changes can be made at the wrench level, this provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series

STR 810059

Click-Type Preset Torque Wrenches: LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb

Product Description

• LTCR-Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the torque value for you at the factory, we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

STR 810168

Click-Type Preset Torque Wrenches: LTCS Preset Interchangeable Head Click-Type Torque Wrenches - Fixed Square Drive, in-lb

Product Description

• LTCS Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the tool to your requested torque value we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• The low profile of the square drive creates access where other tools cannot go, which is important with our larger square drives
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

STR 810171

Click-Type Preset Torque Wrenches: LTCS Preset Interchangeable Head Click-Type Torque Wrenches - Fixed Square Drive, in-lb

Product Description

• LTCS Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the tool to your requested torque value we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• The low profile of the square drive creates access where other tools cannot go, which is important with our larger square drives
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

STR 810568

Adjustable Torque Screwdrivers: Adjustable Torque Screwdriver Kit, 29 Piece Kit, in-lb

Product Description

• Bi-directional Accuracy of +/- 6% Indicated Value from 20% to 100% of capacity
• Meets or exceeds ASME B107.300-2010 and ISO 6789
• Operator cannot over-torque, clutch releases automatically when desired torque has been achieved
• Scale on the shaft is marked in dual incrementation (in lb and Nm) on Cal 36/4, kgf•cm on CAL 40
• Magnifying lens improves the view of a clearly engraved scale
• To operate, simply dial torque setting and insert bit
• Anti-backlash design enhances repeatability
• Comes with FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Kit includes Hex 5/64, 3/32, 7/64, 1/8, 9/64; PosiDriv 1, 2; Slotted 0-1, 3-4, 5-6, 8-10, 12-14; Torx T10, T15; Phillips 0, 1, 2, 3; Bit Holder 1/4"; Socket Adapter 1/4"
• Includes custom case

STR 810712

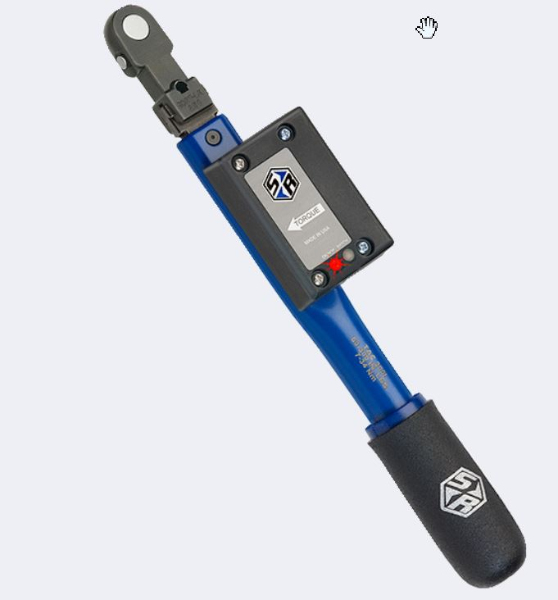

Wireless Digital Torque Wrenches: TAC Digital Torque and Angle Wrench, in-lb

Product Description

• Keep up with the shortest of takt times
• Fully compatible with the Global 400, Global 400mp, and the TCV e2 torque controllers
• Works with the Patented Holding Tool when used with the Global 400 or Global 400mp
• Access to over 200 interchangeable heads that all fit on the end of the Pin and Spring Dovetail
• Heads "Lock On" to the Dovetail when the head is centered on the wrench
• Powered by one AAA NiMH rechargeable battery; Using any battery other than a AAA NiMH immediately voids the warranty
• Ships with two NiMH rechargeable batteries, charger sold separately
• Accuracy of +/- 4% of the indicated value between 20% and 100% of the rated torque capacity
• #Equipped with two LEDs: green/red for OK/NOK and blue that pulses when tool becomes active and ready for use
• Pulsing blue LED timing can be adjusted in the controller to help operators identify the active tool if there are multiple TAC wrenches in a work cell
• Requires a special tool to set torque value, this prevents inadvertent changes to the torque output
• Comes with ISO 17025 Calibration Certificate if we set the torque value at the factory
• Torque modes of operation include Click and Peak
• Click reads the torque value at which the wrench clicked

STR 819467

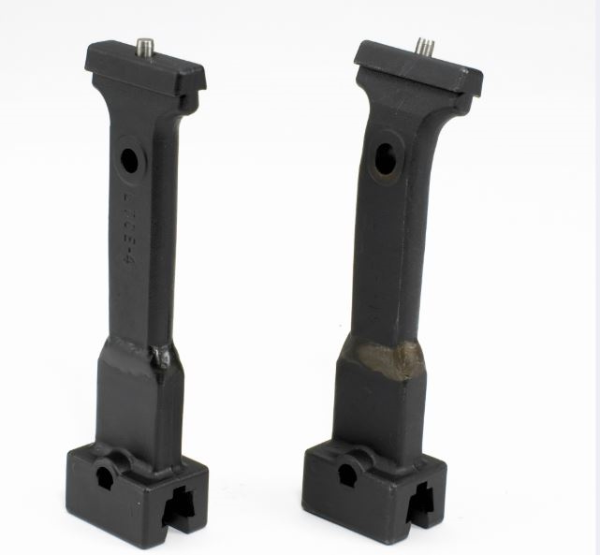

Straight Extension Interchangeable Heads for Torque Wrenches

Product Description

• One piece, cast, proprietary steel selection
• All of our heads fit on all of our wrenches
• Our smallest head fits on our largest wrench
• Our largest head fits on our smallest wrench
• Fewer wrenches to buy, calibrate, repair, and manage
• No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
• Sturtevant Richmont interchangeable heads have two common centerlines
• Typically for sizes 32 mm and below the common centerline is 365 mm
• Sizes larger than 33 mm the common centerline extends to 984 mm

STR 869763

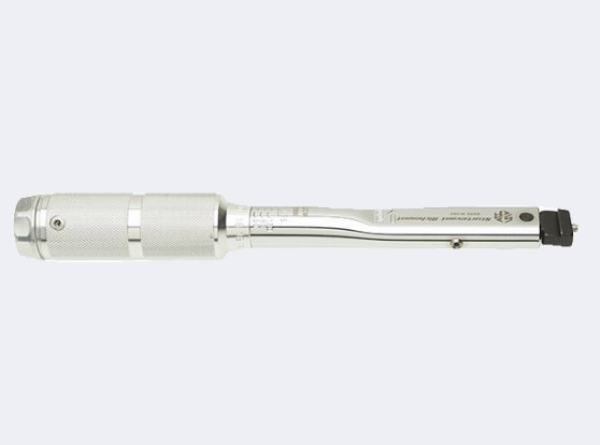

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, in-lb

Product Description

• Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• SR Dovetail connects with all of our interchangeable heads
• Every one of our interchangeable heads fits on every one of our wrenches
• No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
• Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
• Knurl Grip handle is rugged and comfortable in your hand for long periods of time
• Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
• Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
• Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
• Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
• Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
• All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

STR 869769

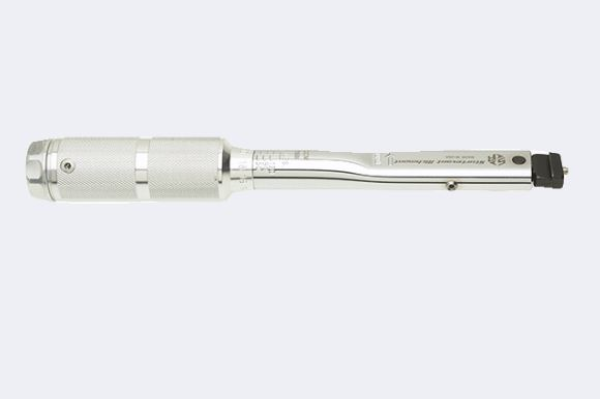

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, in-lb

Product Description

• Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• SR Dovetail connects with all of our interchangeable heads
• Every one of our interchangeable heads fits on every one of our wrenches
• No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
• Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
• Knurl Grip handle is rugged and comfortable in your hand for long periods of time
• Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
• Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
• Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
• Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
• Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
• All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

STR 869771

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, ft-lb

Product Description

• Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• SR Dovetail connects with all of our interchangeable heads
• Every one of our interchangeable heads fits on every one of our wrenches
• No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
• Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
• Knurl Grip handle is rugged and comfortable in your hand for long periods of time
• Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
• Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
• Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
• Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
• Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
• All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

STR 869773

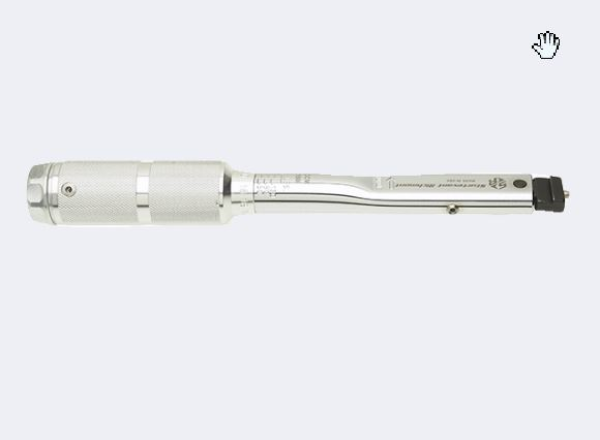

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, in-lb

Product Description

• Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• SR Dovetail connects with all of our interchangeable heads
• Every one of our interchangeable heads fits on every one of our wrenches
• No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
• Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
• Knurl Grip handle is rugged and comfortable in your hand for long periods of time
• Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
• Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
• Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
• Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
• Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
• All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

STR 874016

Click-Type Preset Torque Wrenches: BLT Bidirectional Preset Click-Type Torque Wrenches, in-lb

Product Description

• SR Dovetail Head connects to over 100 SR Interchangeable Heads
• Error Proofing By Design: the SR Dovetail transmits the load at a right angle from the wrench to the head, providing exceptional strength and rigidity of the connection
• A pin lock on the dovetail assures positive head connection, yet permits head changeover in seconds
• CW +/- 4% Indicated Value Accuracy and CCW +/- 6% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• we preset the tool to your requested torque value and we include a Certificate of Calibration from our ISO 17025 Accredited Lab
• Error Proofing By Behavior Modification: excellent tactile and audible pulse when the preset torque is achieved
• Error Proofing By Design: the flattened case prevents side-loading and ensures greater accuracy and durability
• Comfortable cushion grip plus light-weight for excellent ergonomics
• Preset and locked in with a special CART tool
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• All of our tools provide torque measurements in the clockwise direction
• BLT preset click wrench measures torque in both clockwise and counterclockwise directions
