Torque Control

IR QXWD5AT000E000

Backcap Assembly, 40V Angle, WIFI, Zigbee and Bluetooth, Display, ETS

IR VA1-A37-CP

ASSY, GEARCASE

ETA EL315-QXP

El Tool Arm, Qx Pistol, Vert Inline, 26.5In Reach, w/Base And Tool Holder

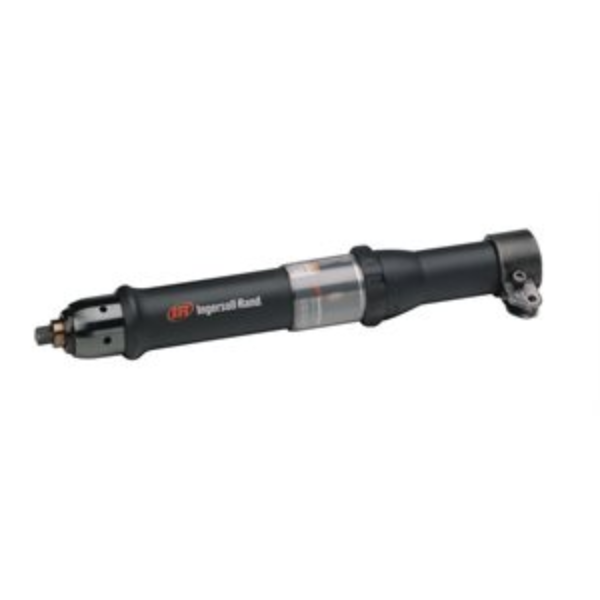

IR QE4TS015R11Q04

QE4 DC FASTENING, PUSH-TO-START, 15 NM

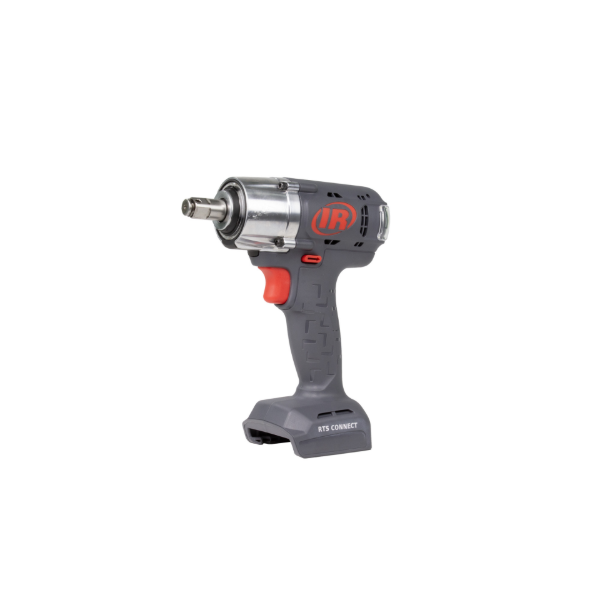

IR RTS225PH8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 165ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Reatiner

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS225PH8-K2 Kit which includes (2) 5.0 Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M12-M18
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.46
Product Weight (lb) (with Battery): 3.37
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 44-166
Recommended Forward Torque Range (in-lb): 531-1991
Recommended Forward Torque Range (nm): 60-225
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 14.8
Vibration Uncertainy K* (m/s2): 2.7
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

NTT 15064

30-150 Ft Lbs Adj Changeable Torque Wren

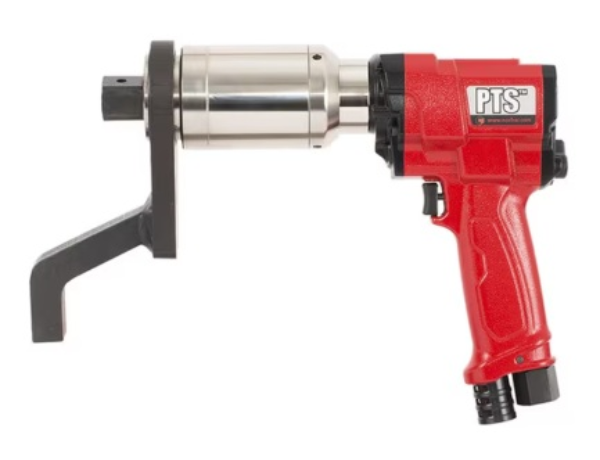

NTT 180245.B08

PTS-72-2000 1 Inch Sq Dr

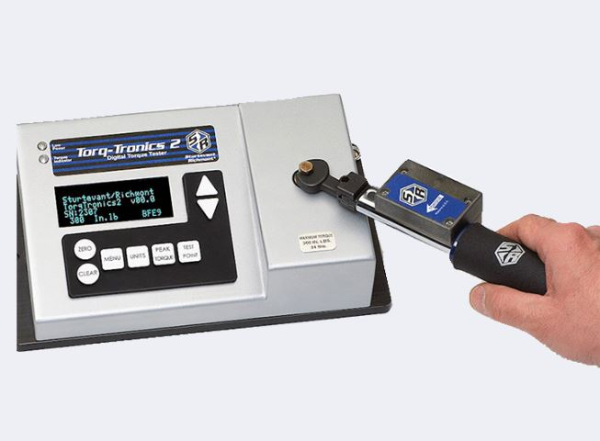

STR 10694

Torque Testers: Torq-Tronics 2 Digital Torque Testers, in-lb

Model	:		TORQ-TRONICS 2 34NM-300INLB
Hexagon Size	:		3/8 in
Torque Range (nm)	:		3.4-34 Nm

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870781

STR 810056

Click-Type Preset Torque Wrenches: LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb

Product Group	:		LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb
Model	:		LTCR 1800 I
Torque Range (Nm)	:		40.8-204 Nm
Weight (lb)	:		1.8 lb

Product Description

• LTCR-Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the torque value for you at the factory, we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

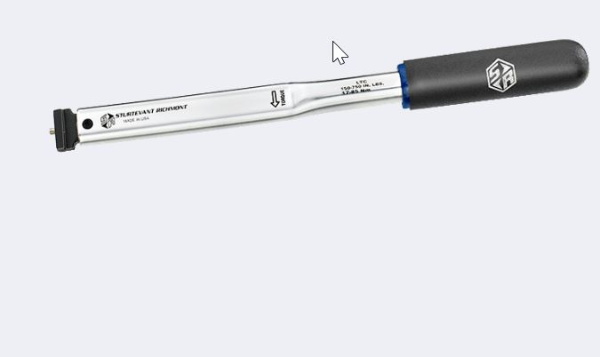

STR 810100

Click-Type Preset Torque Wrenches: LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb

Product Group	:		LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb
Model	:		LTC 50 I
Torque Range (Nm)	:		1.2-6 Nm

Product Description

• +/- 4% repeatability from 20% to 100% of capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• Tools preset at the factory include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Low profile of the square drive creates access where other tools cannot go
• Flattened case is sideloading resistant
• Error Proofing By Design flattened case provides superior mechanism support that makes the wrench easier to calibrate and it holds calibration much longer than other wrenches
• Excellent tactile and audible pulse when the preset torque is achieved
• Cushion grip plus lightweight for excellent ergonomics
• Fixed square drive provides exceptional strength and durability
• CART tool
• Torque is preset and locked in with a special tool
• Torque can be set using any unit of measurement
• Combination Adjusting and Release Tool (CART) P/N 819117 allows the operator to easily adjust torque on all SLTC -FM, SLTC, LTC, LTCR, and LTCS wrenches
• Can be ordered preset from the factory or you can set the torque with your own torque tester

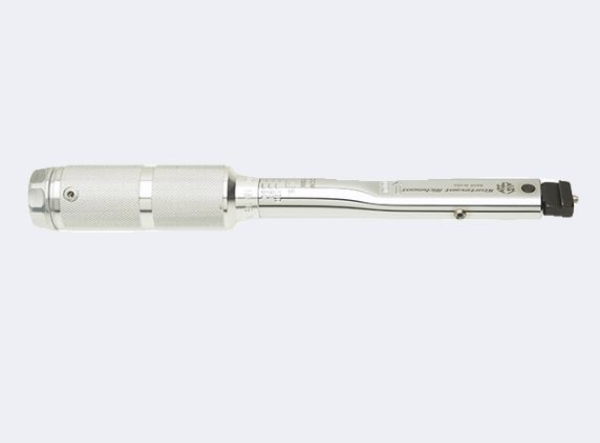

STR 810335

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, ft-lb

Product Group	:		CCM Micrometer Adjustable Click Wrenches, ft-lb
Model	:		CCM 300
Torque Range (in.lb)	:		50-300 lbf ft
Scale (in)	:		2.5 lbf ft

Product Description

• Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• SR Dovetail connects with all of our interchangeable heads
• Every one of our interchangeable heads fits on every one of our wrenches
• No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
• Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
• Knurl Grip handle is rugged and comfortable in your hand for long periods of time
• Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
• Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
• Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
• Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
• Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
• All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

STR 810568

Adjustable Torque Screwdrivers: Adjustable Torque Screwdriver Kit, 29 Piece Kit, in-lb

Product Group	:		Adjustable Torque Screwdriver Kit, 29 Piece Kit, in-lb
Model	:		CAL 36/4K
Torque Range	:		2-36 in.lb
Hex Drive	:		1/4 in
Overall Length	:		7.8 in
Weight	:		.5 lb
Scale	:		2 in-lb

Product Description

• Bi-directional Accuracy of +/- 6% Indicated Value from 20% to 100% of capacity
• Meets or exceeds ASME B107.300-2010 and ISO 6789
• Operator cannot over-torque, clutch releases automatically when desired torque has been achieved
• Scale on the shaft is marked in dual incrementation (in lb and Nm) on Cal 36/4, kgfcm on CAL 40
• Magnifying lens improves the view of a clearly engraved scale
• To operate, simply dial torque setting and insert bit
• Anti-backlash design enhances repeatability
• Comes with FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Kit includes Hex 5/64, 3/32, 7/64, 1/8, 9/64

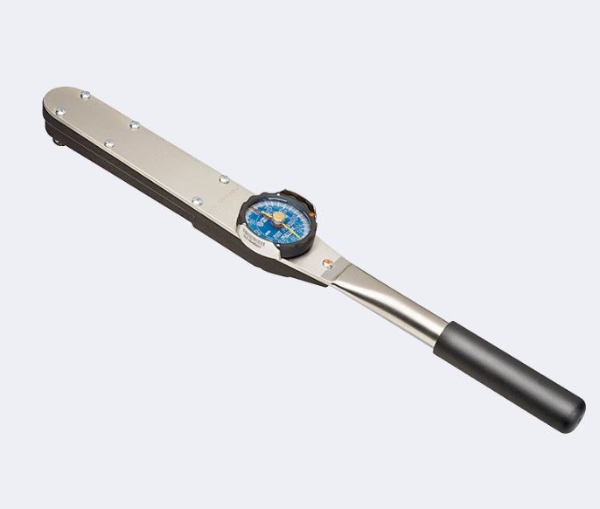

STR 815702

Beam & Dial Torque Wrenches: Dial Torque Wrenches, in-lb

Product Group	:		Dial Torque Wrenches, in-lb
Model	:		IDW 300I FINAL ASSY
Torque Range	:		60-300 lbf in
Scale	:		5 lbf in
Weight	:		1.2 lb
OAL	:		10.3 in

Product Description

• Accuracy of +/- 3% Indicated Value from 20% to 100% of capacity
• Meets or exceeds ASME B107.300-2010 and ISO 6789
• Includes free Certificate of Calibration from our ISO 17025 Accredited Lab
• Error Proofing By Design: Oversized dial face is extremely easy to read and helps to eliminate parallax error
• Glare-resistant dial cover makes it easy to read in difficult light conditions
• Error Proofing By Design: A memory indicator is provided on each wrench and remains at the maximum torque achieved for positive torque verification
• Heavy-duty dial guard protects against breakage
• Dial faces are color-coded: silver for inch-pounds, gold for foot-pounds, and white for Newton meters
• Wrenches with a capacity of up to 50 ft-lbs have a black powder-coated handle that provides an industrial-strength finish
• Wrenches with a capacity of 175 to 250 ft-lbs have a flexible PVC handle. The flexible PVC grip that comes on tools up to 250 ft. lbs. supports proper grip and provides comfort during use
• Wrenches with a capacity of 600 to 1000 ft-lbs have a specially designed extension aluminum handle that is easy to grip
• Each wrench comes in its own rugged, blow-molded, storage case
• FREE NIST-traceable tabulated certification included.

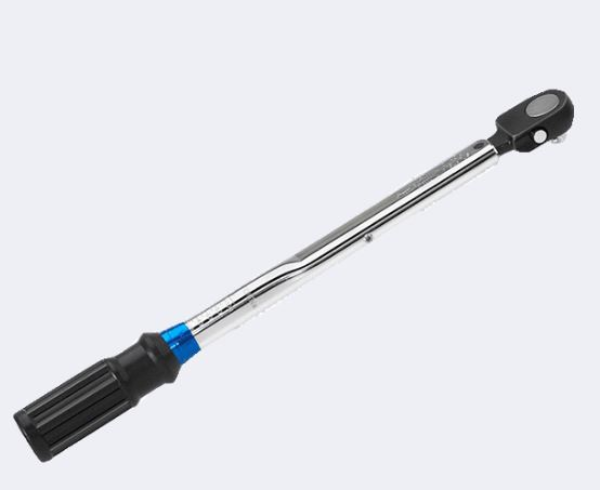

STR 869754

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, ft-lb

Product Group	:		SDR Series Micrometer Adjustable Click Wrench, ft-lb
Model	:		3SDR 100 MG
Torque Range (ft.lb)	:		20-100 lbf ft
Scale (lb)	:		1 lbf ft
Square Drive	:		3/8 in
Weight (lb)	:		1.5 lb

Product Description

• Adjust torque value by rotating the grip
• Grip lock makes locking in torque value fast, easy, and secure
• Tool changees from one end of the scale to the other with the fewest number of turns
• Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
• Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
• Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
• Flattened case prevents side loading during torque application or testing/calibration
• Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
• Ratchet is built for durability
• Ratchet replacement is fast and easy when needed
• All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
• Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

STR 874016

Click-Type Preset Torque Wrenches: BLT Bidirectional Preset Click-Type Torque Wrenches, in-lb

Product Group	:		BLT Bidirectional Preset Click-Type Torque Wrenches, in-lb
Model	:		BLT 300 I
Torque Range (Nm)	:		6.8-34 Nm

Product Description

• SR Dovetail Head connects to over 100 SR Interchangeable Heads
• Error Proofing By Design: the SR Dovetail transmits the load at a right angle from the wrench to the head, providing exceptional strength and rigidity of the connection
• A pin lock on the dovetail assures positive head connection, yet permits head changeover in seconds
• CW +/- 4% Indicated Value Accuracy and CCW +/- 6% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• we preset the tool to your requested torque value and we include a Certificate of Calibration from our ISO 17025 Accredited Lab
• Error Proofing By Behavior Modification: excellent tactile and audible pulse when the preset torque is achieved
• Error Proofing By Design: the flattened case prevents side-loading and ensures greater accuracy and durability
• Comfortable cushion grip plus light-weight for excellent ergonomics
• Preset and locked in with a special CART tool
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• All of our tools provide torque measurements in the clockwise direction
• BLT preset click wrench measures torque in both clockwise and counterclockwise directions

ETA EL315-UV

Tool Arm

IR CPS2-246-111

SPACER

IR CPS2-A570-Q04

SPINDLE ASSM, 1/4" QC, NO FLT

IR GEA40-248

SEAL

IR GEA40-250

SPRING

IR QA4-1-K53

MOTOR TUNEUP KIT

IR QXFN5AT000E000

BACKCAP ASSEMBLY, 40V ANGLE, NO RADIO, NO DISPLAY, ETS

ETA FRS-TH

Flip & Rotate with Stops Holder Only

ETA PA806-DF

Tool Arm, 800 In. Lbs. Vertical Torque

IR GEA15-K48

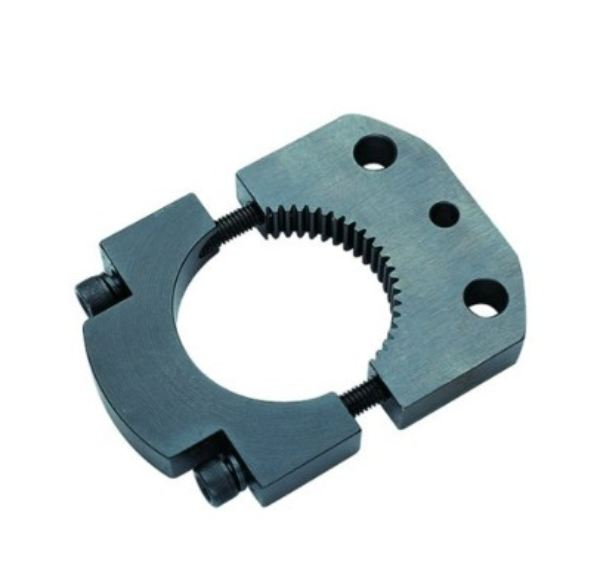

PLATE KIT W/REACT BAR
