Torque Control

IR GEA40-136

IR GEF400-584

IR GEF40-M53-7

IR GEP15-A145

IR GEP15-A98

IR IQI4LT1000PQ4

IQI 1/4" Quick Change Inline Screwdriver, Transducerized Control, Push-to-Start, 500 RPM, 4-10 Nm

Description: Ingersoll Rand IQi Series, is an inline low torque electric screwdriver offering available in transducerized and current control configurations. Customers will experience increased efficiency with faster set up, automated workflows and remote system access, while improving quality through advanced fastening strategies, real-time data traceability and the industry's first tilt angle control. From high-volume assembly to quality-critical manufacturing, IQi Series delivers unmatched efficiency, precision and reliability at a reduced total cost of ownership.

Features And Benefits:

• Increase Efficiency: Reduce setup time up to 50% by reducing costly workflow interruptions with an intuitive web-based interface that eliminates the need for manual controller adjustments. Rapid deployment ensures seamless operational readiness. Seamless MES and Fieldbus integration automates tool and job selection, reducing manual errors and improving uptime. Operators can focus on high-value tasks for increased efficiency.
• Maximize Productivity: With real-time traceability, live access to production data enhances continuous quality control, enabling quick issue identification and resolution to improve productivity and compliance. Program, troubleshoot, and monitor systems remotely. Real-time adjustments from anywhere reduce the on-site presence and operational costs while enhancing scalability for production teams.
• Improve Quality: Achieve fastening precision with plus/minus 03.5% accuracy on transducerized models to minimize assembly errors and significantly lower rework costs with precise torque and angle control, ensuring consistent, high-quality results. Improve assembly quality with the industry-leading tilt angle control that ensures precise tool alignment, prevents cross-threading, and maintains optimal joint integrity.
• Reduce Total Cost: Designed to withstand over 1 million maintenance-free cycles, reducing maintenance frequency and downtime for long-term operational efficiency. The robust design and durable brushless motors extend tool lifespan, minimizing replacement needs and lowering total cost of ownership.

• Actuation/Throttle Type/Switch Type: Push to Start
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Black
• Configuration/Handle Type: Straight
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 7.4
• Max Torque (in-lb): 89
• Max Torque (nm): 10
• Motor: Brushless Motor

• Power Source: Electric
• Product Length (in): 10.7087

• Product Weight (lb): 1.9383259911894273
• Recommended Forward Torque Range (ft-lb): 3.0-7.4
• Recommended Forward Torque Range (in-lb): 35-89
• Recommended Forward Torque Range (nm): 4-10
• Retainer Type: Quick Change
• Reversible: Reversible

• Sound Pressure/Power Db(A): < 70

• Vibration Level (m/s2): < 2.5
• Warranty: 1-year
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: USB-A

• Accessories: IQI11-FM
• Accessories: IQI-CABLE-2M
• Accessories: IQI-CABLE-5M
• Accessories: IQI-PS-1
• Accessories: TT10W
• Accessories: TL15B
• Accessories: TT19W
• Accessories: TT19B
• Accessories: TT19B-L
• Accessories: TA19B
• Accessories: TL30B

IR PARTS-394-SERIES-33764

IR QA4-5-A216

IR QA8-A415

IR QA8-A53-11

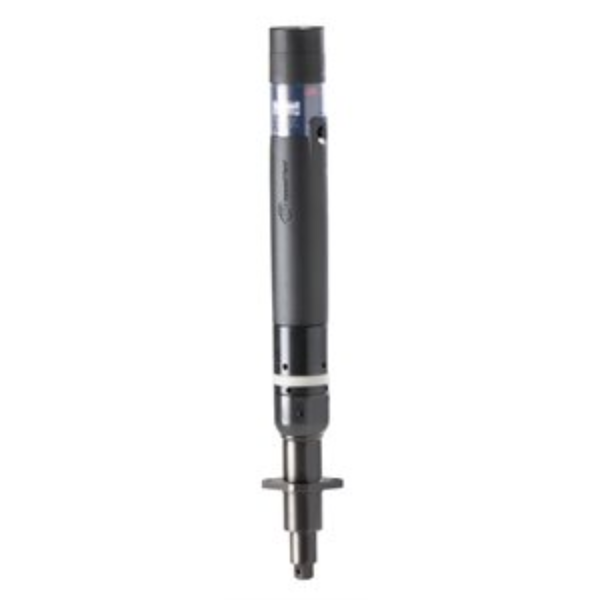

IR QE2SL005P10Q04

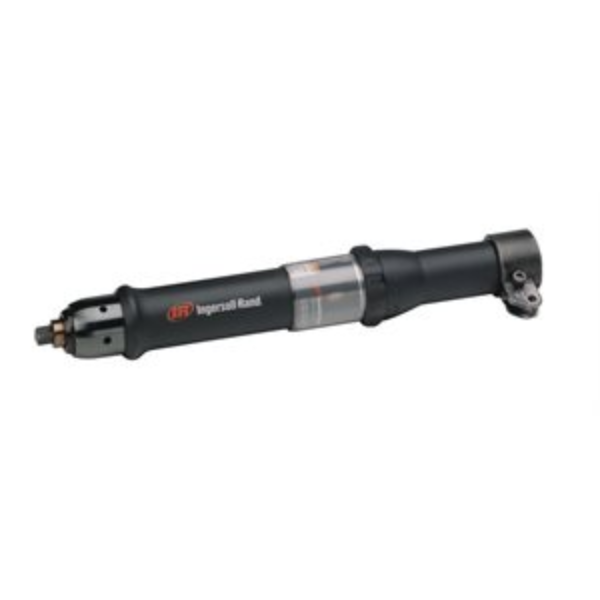

IR QE4TS025R11S06

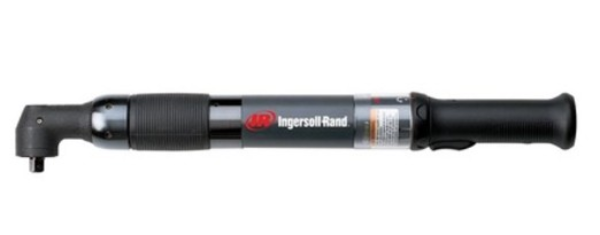

IR QE6SE050F41S08

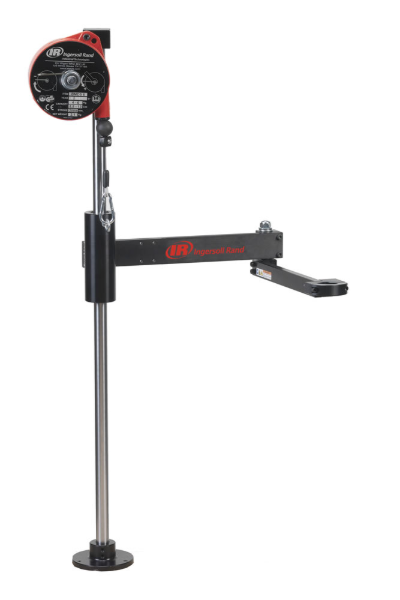

IR QTA040

Bench-mounted Torque Reaction Arm, 25" Reach, 40 NM Torque, 17.5" Vertical Travel Distance, 6.5 LB Weight Capacity, 39.7" H

Description: Ingersoll Rand QTA Series bench-mounted torque reaction arms are constructed of lightweight aluminum. They include an Ingersoll Rand spring-loaded, die-cast aluminum balancer for impressive strength and reduced weight.

Features And Benefits:

• Spring balancer adjusts easily and offers effortless vertical movement.
• Simple, proven design for trouble-free setup and dependability.
• Anodized aluminum body delivers toughness in a lightweight design.
• Chrome-plated pole paired with a self-lubricating bearing, provides unmatched durability.
• Adjustable reach for easy use and convenience when locating fasteners.
• Multiple-tool holder options include right angle, swivel, and pistol grip.
• Cable or air line clamps keep work area clear and organized.
• Custom tool holder options enable seamless integration with Ingersoll Rand QA and QE tools.
• Position arm at 90-degree angle for optimum torque reaction performance. Arm should not be used in fully extended or fully collapsed position as this reduces reaction capabilities.

Product Application and Uses:

For use with assembly tools.

• Includes: tool holder and spring balancer

IR QXX2PT04PS4

IR QXXD5PT000P000

IR RTS225PH8

RTS 1/2in 20V Mechanical Cordless Pulse Tool, 165ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Reatiner

Description: RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360 degree status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits:

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360 degree status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT Connect controller or mobile app, Expert setup via INSIGHTqcx MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20 battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS225PH8-K2 Kit which includes (2) 5.0 Ah Batteries and a charger.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Production Environment

• Fastener Size: M12-M18

• Housing Material: Glass-filled Nylon (PA6-GF30)

• Lumens: 11
• Max Free Speed (rpm): 2700
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 6.69

• Product Weight (lb): 2.46
• Product Weight (lb) (with Battery): 3.37
• Pulses per Minute: 3600
• Recommended Forward Torque Range (ft-lb): 44-166
• Recommended Forward Torque Range (in-lb): 531-1991
• Recommended Forward Torque Range (nm): 60-225
• Retainer Type: Friction Ring and Thru-hole
• Reversible: Reversible

• Sound Pressure/Power Db(A): 95 / 103

• Vibration Level (m/s2): 14.8
• Vibration Uncertainy K* (m/s2): 2.7
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth

IR TA-VP1B-40

IR VA1-441

IR VA2-A888N

NTT 180244.B08

NTT W1817.I15D

NTT W1817.I18D

NTT W1817.I20

STR 10695

Torque Testers: Torq-Tronics 2 Digital Torque Testers, ft-lb

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870778
