Cordless Clutch Programmable 30 Nm Angle - 3/8" Square Dr

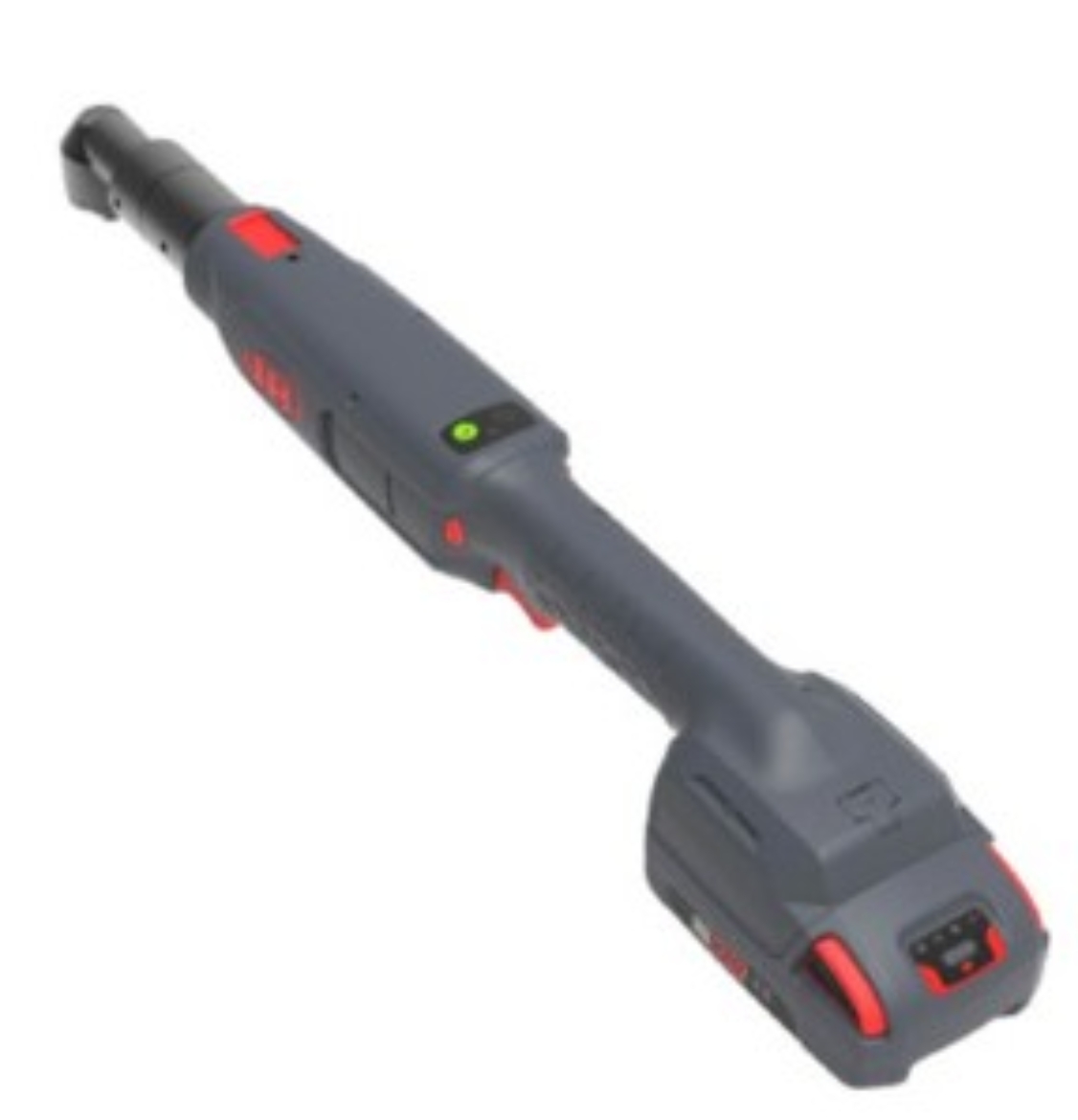

IR QCP2A30S6

3/8" 20V Cordless Angle Clutch Tool, 30 Nm, 300 RPM, Programmable

Description: QC Series Clutch Tools are engineered for robust performance, withstanding over 500k cycles in demanding assembly environments and delivering precision in every fastening application. The clutch tool offers a seamless setup experience via the INSIGHT Connect app, enabling quick programming of advanced parameters to meet specific application needs. Designed with user comfort in mind, the balanced ergonomic build helps reduce fatigue, while the dual-speed non-contact trigger provides smooth, efficient operation. Experience the perfect blend of durability, simplicity, and precision with the QC Series Clutch Tools.

Features And Benefits:

• Precise: Thanks to an auto shutoff clutch, QC Series Clutch tools achieve Cmk >1.67 at +/—10% accuracy, providing higher repeatability and consistent output, The QC Series Clutch Tool configuration is equipped with a lockable, tamper-proof clutch that delivers up to 30 Nm of torque for various applications, Program RPM and other advanced tool settings via the Insight CONNECT mobile and desktop app.
• Simple: The multi-color 360º status beam LED ring light illuminates the work area and provides clear feedback to the user on the workpiece, Combined with the Cycle Status Indicator, which shows pass/fail and helps users verify their work quickly, it helps minimize defects and improve overall quality, Unlock faster and smarter tool configurations with 8 programmable parameters, making it easy to meet specific application requirements, QC Series Clutch Tools are compatible with IQV20 battery and charger platform, providing flexibility and reducing operational costs.
• Durable: Designed to last more than 500k cycles in a high-speed assembly environment, QC Series Clutch Tools deliver reliable performance in almost any application.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Right Angle
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Production Environment

• Housing Material: Nylon

• Lumens: 11
• Max Free Speed (rpm): 300
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 20.07

• Product Weight (lb): 3.7
• Product Weight (lb) (with Battery): 4.6
• Recommended Forward Torque Range (ft-lb): 11-22
• Recommended Forward Torque Range (in-lb): 133-266
• Recommended Forward Torque Range (nm): 15-30
• Retainer Type: Pin Detent
• Reversible: Reversible

• Sound Pressure/Power Db(A): 72 / 80

• Vibration Level (m/s2): 0.7
• Vibration Uncertainy K* (m/s2): 0.4
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: USB-C

• Accessories: BC1124
• Accessories: BC1221
• Accessories: BL2012
• Accessories: BL2022

• Parts: TK-QC2-300
• Parts: TK-QC2A-040

• Parts: TK-QC2A-054
• Parts: TK-QC2A-064
• Parts: TK-QC2A-105
• Parts: TK-QC2A-250
• Parts: TK-QC2A-499-P30
• Parts: TK-QC2A-550
• Parts: TK-QC2A-581
• Parts: TK-QC2A-750
• Parts: TK-QC2P-306
• Parts: VP1-365
