GG 25F164

GUN, AUTO, CONV .042

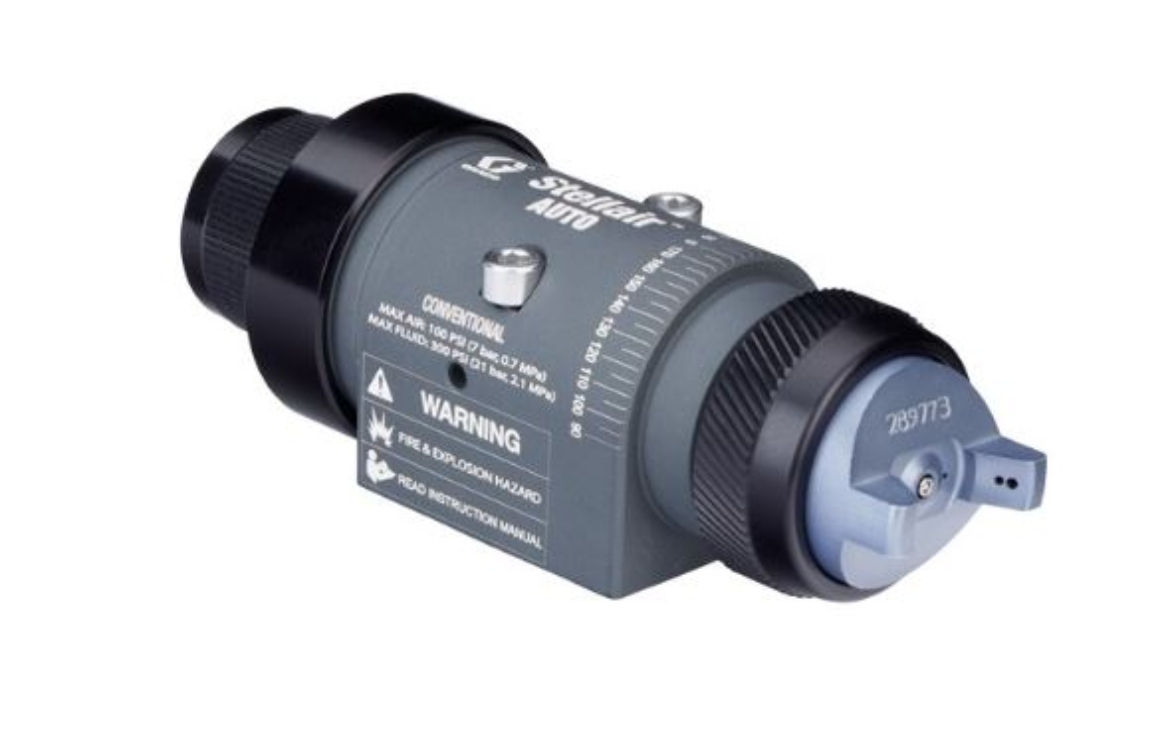

Graco 25F164 Stellair Automatic Air Spray Gun, Conventional, 0.042 in (1.1 mm) Nozzle for General Industry

Conventional air spray gun delivers stellar results as part of a robotic, reciprocator, flat line or other automated finishing system.

• Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
• General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure.
• Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
• Small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
• Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Application: General Industry
• Applicator Type: Automatic

• Body Material: Metal

• Compatible Material: Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne

• Fluid Adjustment Knob: N/A
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.10

• Gun Model: Stellair
• Gun Series: Automatic
• Gun Type: Conventional Gun
• Gun Weight (g): 430
• Gun Weight (lb): 1

• Manifold Type: Not Included

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (oz/min): 14

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Working Pressure (bar): 21
• Maximum Fluid Working Pressure (MPa): 2.1
• Maximum Fluid Working Pressure (psi): 300

• Minimum Air Inlet Pressure (bar): 3.4
• Minimum Air Inlet Pressure (MPa): 0.34
• Minimum Air Inlet Pressure (psi): 50

• Needle Tip Material: PEEK
• Nozzle Size (in): 0.042
• Nozzle Size (mm): 1.10

• Overall Height (in): 1.9
• Overall Height (mm): 48.3
• Overall Length (in): 5.10
• Overall Length (mm): 129.5
• Overall Width (in): 1.63
• Overall Width (mm): 41.4
