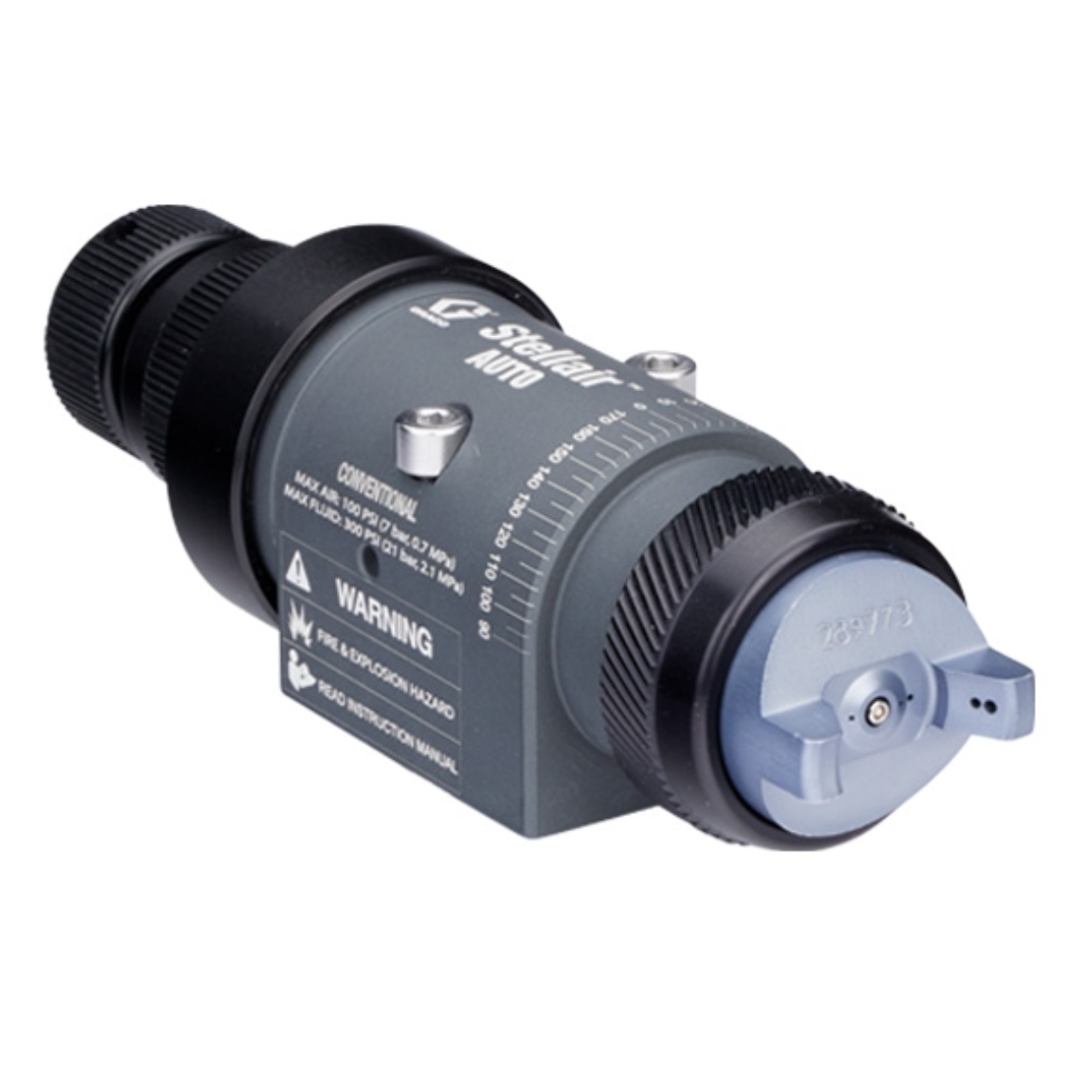

Stellair Automatic Air Spray Gun, Conv, 0.042 in (1.1 mm) Nozzle For General Applications w/Fluid Control Knob

GG 25F168

GUN, AUTO, CONV, .042, ADJ

Graco 25F168 Stellair Automatic Air Spray Gun, Conventional, 0.042 in (1.1 mm) Nozzle for General Industry with fluid control knob

Conventional air spray gun delivers stellar results as part of a robotic, reciprocator, flat line or other automated finishing system.

• Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
• General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure.
• Precise fluid flow control click knob with true zero set point ensures accurate paint thickness.
• One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
• Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Application: General Industry
• Applicator Type: Automatic

• Body Material: Metal

• Compatible Material: Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne

• Fluid Adjustment Knob: Clicking
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.10

• Gun Model: Stellair
• Gun Series: Automatic
• Gun Type: Conventional Gun
• Gun Weight (g): 430
• Gun Weight (lb): 1

• Manifold Type: Not Included

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (oz/min): 14

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Working Pressure (bar): 21
• Maximum Fluid Working Pressure (MPa): 2.1
• Maximum Fluid Working Pressure (psi): 300

• Minimum Air Inlet Pressure (bar): 3.4
• Minimum Air Inlet Pressure (MPa): 0.34
• Minimum Air Inlet Pressure (psi): 50

• Needle Tip Material: PEEK
• Nozzle Size (in): 0.042
• Nozzle Size (mm): 1.10

• Overall Height (in): 1.9
• Overall Height (mm): 48.3
• Overall Length (in): 5.9
• Overall Length (mm): 150
• Overall Width (in): 1.63
• Overall Width (mm): 41.4
