Scalers and Hammers

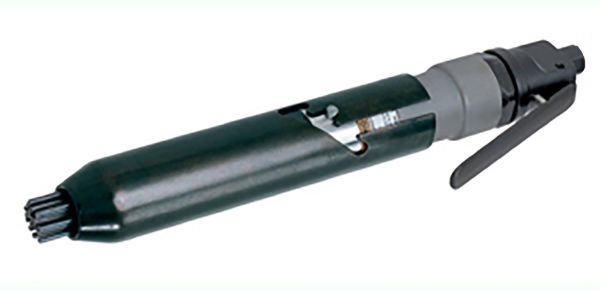

IR 172LNA1

Air Needle Scaler, 5500 BPM, 9/16" Stroke

At 5,500 blows per minute, this lever-operated needle scaler is not only fast, but extremely durable and efficient.

Features And Benefits

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, along with a strengthened head block that will hold up in tough conditions.
• Comfort: Compact, well balanced and low vibration maximize operators comfort
• Power: 9/16" stroke, 5500 blows per minute.

Includes: 19 steel precision heat-treated needles (1/8" diameter 5" length)
Product Application and Uses: Remove Paint, Rust, Dirt, Weld Slags
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 12
Air Consumption @ Load (l/min): 340
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 5500
Bore Diameter (in): 0.94
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Needle Qty: 19 Needles
Non Sparking: No
Power Source: Air Powered
Product Length (in): 13.75
Product Width (in): 6.8
Product Height (in): 2.7
Product Weight (lb): 5.25
Shank SIze (in): .5
Shank Type: Ingersoll Rand Shank
Sound Pressure/Power Db(A): 107.5 / 118.5
Stroke Length (in): 0.56
Vibration Level (m/s2): 12.5
Warranty: 1-year

Similar IR

• 182LNA1
• 172L
• 182L

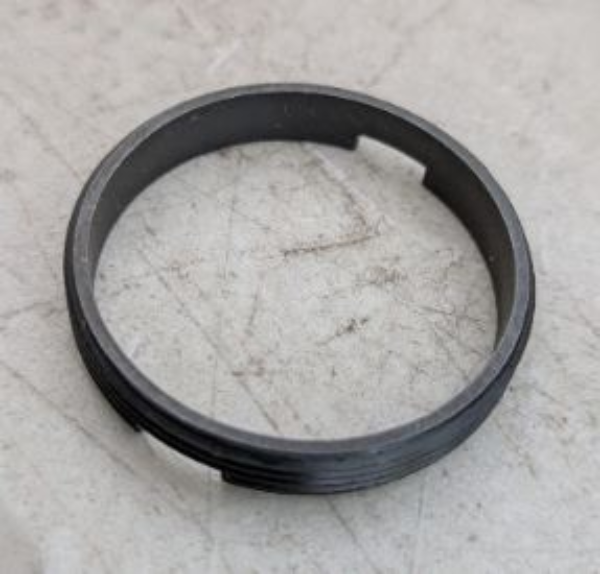

IR 182A83-531

Spindle Bearing Cap

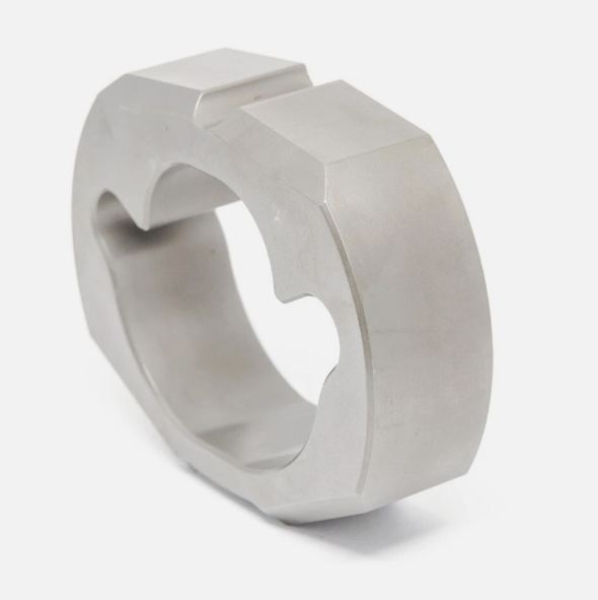

IR 2950-724

HAMMER

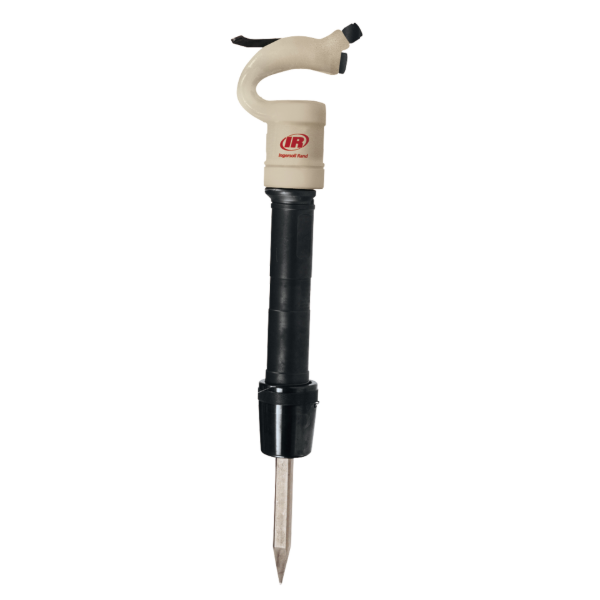

IR 9001

Rivet Buster, 9" Stroke, 900 BPM, Jumbo Shank, Threaded Barrel Retainer, Outside Trigger

The Ingersoll Rand 9001 Series are versatile tools for most of your construction and demolition needs. The 9-inch stroke length rivet busters come with either a threaded lock clip retainer for increased ease of steel changing.

Features And Benefits

• Versatile: From bridge deck work to rivet removal to general concrete demolition, the 9001 Series can take on any job you want to throw at it.
• Durable: In addition to its versatility, the 9001 Series of rivet busters will hold up to repeated wear and tear in a variety of harsh environments.
• Swan Neck Handle: The 9001 Series rivet busters come with an open swan neck handle for better performance in tight spaces.
• Directional Exhaust: The 9001 Series expels exhaust in multiple areas so it never interferes with your workspace.
• Accepts Industry Standard Jumbo Steel: You can easily purchase steel for our 8001 Series rivet buster at most retail locations.

Product Application and Uses: These Rivet Busters are designed for breaking concrete and other demolition work in construction applications.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Blows per Min: 900
Bore Diameter (in): 1.06
Color: Black
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: No
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Muffler: No
Power Source: Air Powered
Product Length (in): 22.5
Product Weight (lb): 24.75
Retainer Type: Threaded Barrel With Lock Clip
Shank SIze (in): .866
Shank Type: Jumbo
Side to Center Distance (in): 1.38
Side to Center Distance (mm): 35
Standards/Certifications: Standards
Steels: Yes
Stroke Length (in): 9
Warranty: 1-year

Similar IR

• 9001A

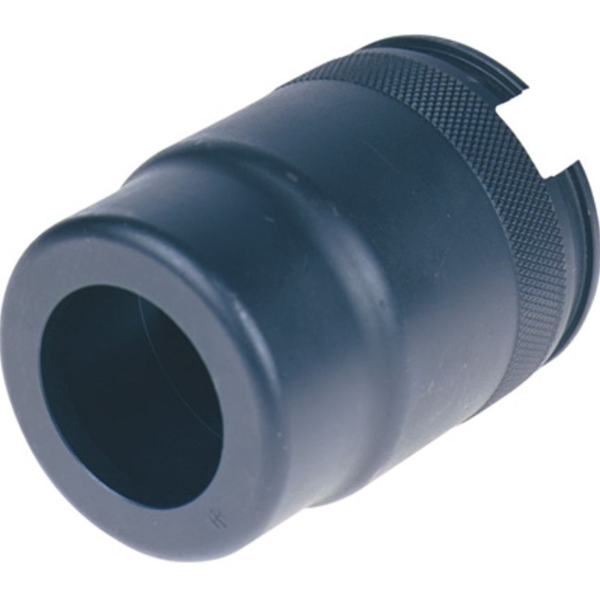

IR 9001-220

Upper Sleeve, Threaded or Grooved Barrel for Ingersoll Rand Rivet Busters

Product Application and Uses: For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 threaded or grooved rivet busters.
Housing Material: Steel

For Use With

• 11001
• 11001A
• 8001A
• 9001
• 9001A

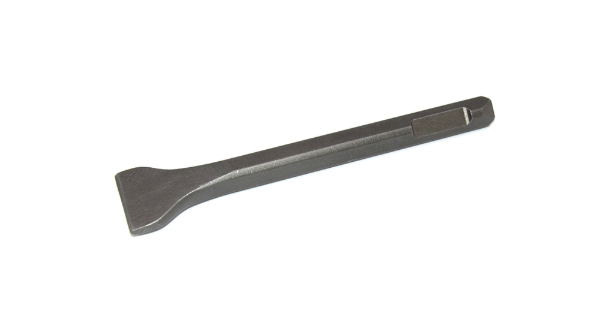

IR WF-14B-007

Standard Wide Scaler Chisel Steels 7"L

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Ingersoll Rand chisel and needle scalers are your best solution for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials.

Includes: (5) Chipping Hammer Chisel Steels
Product Application and Uses: Designed for making customized points for removing unwanted surface coatings and deposits.They’re ideal for removing paint, rust, weld splatter and slag, and other materials. For use with Ingersoll Rand 172L, 182L, 170PG, 180PG, 182LNA1, 172LNA1, 180G, 182G Scalers.
Chisel Style: Wide
Housing Material: Steel
Product Length (in): 7
Product Weight (lb): 0.5
Shank SIze (in): 0.5
Shank Type: Ingersoll Rand Shank

For Use With

• 172L
• 182G
• 182L

SUM ABP60

Pistol Grip Air Torque Screwdriver, 550 rpm, 26.6 - 97.4 in-lb

CL 932334

Pistol Grip Housing Assy

CL CH-30-HX

HAMMER CHIPPING 3" HEX NOSE STD RET

DC 01-2201

Pistol Grip Handle

IR 182A53-606

BEVEL PINION BEARING

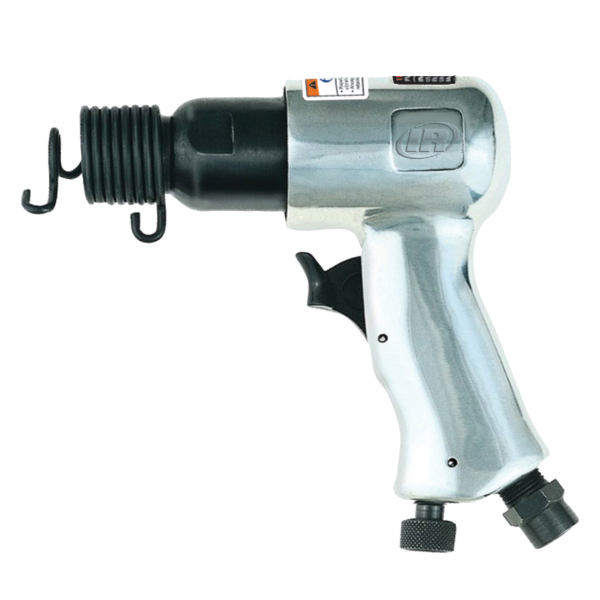

IR 115

Air Hammer, 5,000 BPM, 1-5/8" Stroke

This powerful, yet economical high-speed air hammer is designed for light exhaust system work and general cutting, chipping, and scraping. With enhanced user comfort and control, this hammer will make any job a breeze.

Features And Benefits

• This hammer has an alloyed steel barrel and heat-treated piston to elongate its life and make sure it continues to perform the way it did on day one.
• Thanks to an ergonomic design, this hammer is lightweight at 2.6lbs and easy to handle.
• The 115 standard air hammer delivers up to 5,000 blows per minute, but thanks to a built-in power regulator, you’ll have full control over the speed and power of the tool.

Product Application and Uses: These Air Percussive Hammers are designed for hammering, punching, cutting, chipping and scraping material through repetitive application of linear impacts of a tool steel that is retained and driven by the Hammer. Applications include light exhaust system work and general cutting, chipping, and scraping.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 14
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 2
Average Air Consumption (l/min): 57
Blows per Min: 5000
Bore Diameter (in): .75
Color: Silver
Configuration/Handle Type: Pistol Grip
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.1
Product Weight (lb): 2.6
Retainer Type: Spring
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 101.4 / 112.4
Stroke Length (in): 1.63
Vibration Level (m/s2): 14.8
Warranty: 1-year

Similar IR

• 116
• 117
• 121/Q
• 123MAX
• 125-A

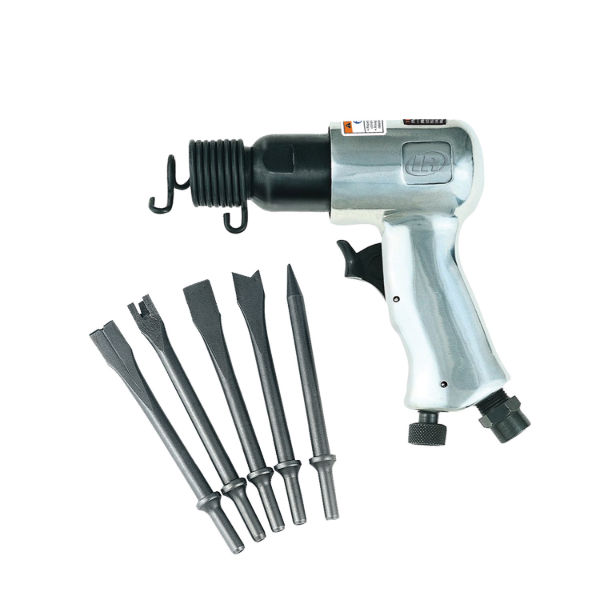

IR 115K

Air Hammer 5-Piece Chisel Set, 5000 BPM, 1-5/8" Stroke

This powerful, yet economical high-speed air hammer is designed for light exhaust system work and general cutting, chipping, and scraping. With enhanced user comfort and control, this hammer will make any job a breeze.

Features And Benefits

• This hammer has an alloyed steel barrel and heat-treated piston to elongate its life and make sure it continues to perform the way it did on day one.
• Thanks to an ergonomic design, this hammer is lightweight at 2.6lbs and easy to handle.
• The 115 standard air hammer delivers up to 5,000 blows per minute, but thanks to a built-in power regulator, you’ll have full control over the speed and power of the tool.
• Includes Air Hammer, and 5 chisels (Punch Chisel, Edging Tool, Tail Pipe Cutter, Blade Straight Chisel, Cutting Chisel)

Includes: Air Hammer and 5-peice chisel set (Punch Chisel, Edging Tool, Tail Pipe Cutter, Blade Straight Chisel, Cutting Chisel)
Product Application and Uses: These Air Percussive Hammers are designed for hammering, punching, cutting, chipping and scraping material through repetitive application of linear impacts of a tool steel that is retained and driven by the Hammer. Applications include light exhaust system work and general cutting, chipping, and scraping.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 14
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 2
Average Air Consumption (l/min): 57
Blows per Min: 5000
Bore Diameter (in): .75
Color: Silver
Configuration/Handle Type: Pistol Grip
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.1
Product Weight (lb): 2.6
Retainer Type: Spring
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 101.4 / 112.4
Stroke Length (in): 1.63
Vibration Level (m/s2): 14.8
Warranty: 1-year

Similar IR

• 116
• 117
• 121/Q
• 123MAXK
• 125-A

IR 122MAX-123

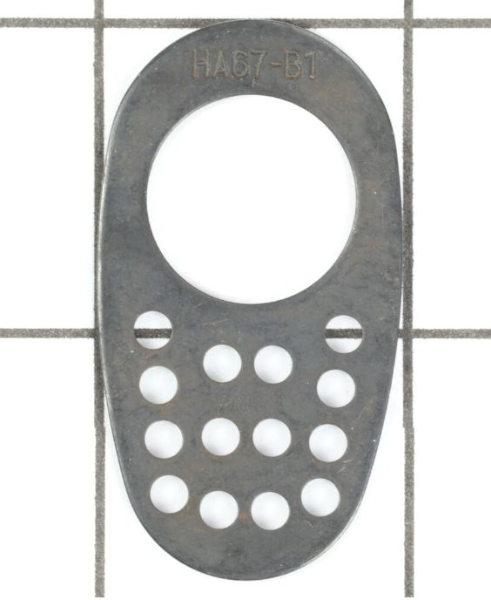

DEFLECTOR

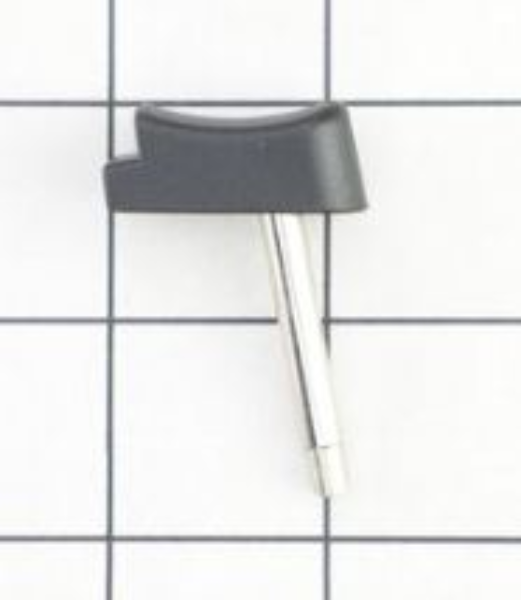

IR 122MAX-93

TRIGGER UNIT

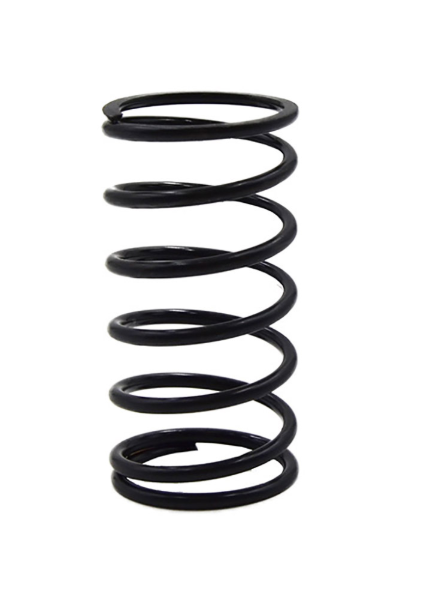

IR 125-A-227

Spring Replacement Part for Ingersoll Rand 125 Series Scalers

Product Application and Uses: For use with Ingersoll Rand 125-A and 125CI-A Scalers

For Use With

• 125-A

Supersedes

• PF2219-27

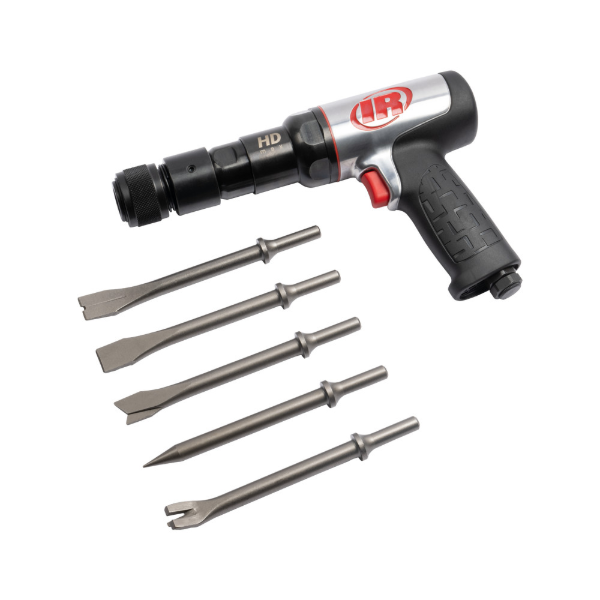

IR 135MAXK

Vibration Reduced Quick Change Air Hammer 5-Piece Chisel Set, 2600 BPM, 3" Stroke, Round Shank

The 135MAX HD Air Hammer is the next generation air hammer that builds on the foundation set by 119MAX—incredible performance and power at an accessible cost—while leveraging a fine-tuned feather-able trigger, inspired by legendary Ingersoll Rand® impact wrenches, for more precision and even better results. Featuring an optimized combination of power and speed to achieve best-in-class 2600 BPM, the 135MAX can breeze through any job, from heavy duty front-end applications to the jobs that call for a lighter touch. And it’s all backed by a two-year warranty. Send your productivity soaring with the 135MAX HD Air Hammer.

Features And Benefits

• MAX Power: Break at lightspeed with the most powerful air hammer available- 15% more powerful to get your job done 15% faster than the leading competitive air hammer.
• MAX Productivity: Quick-Change retainer provides fast chisel changeovers (included with tool).
• MAX Control: Feather-able trigger to give you the ultimate control over every job- from jobs that require the lightest touch to the hardest hitting applications, we’ve got you covered.
• MAX Assurance: The 135MAX is backed by a two-year warranty, giving you peace of mind that your tool will work when you need it, every time.
• MAX Comfort: Shock reduction and anti-slip grip.

Includes: Quick Change Retainer, 5 Assorted Chisels, Plastic Blow Molded Case
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 2.66
Air Consumption @ Load (l/min): 75.36
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 2600
Bore Diameter (in): 3/4
Collar Type: Round
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Heavy Duty
Exhaust Location: Handle
Housing Material: Aluminum Alloy
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.66
Product Width (in): 2.22
Product Height (in): 6.91
Product Weight (lb): 4.5
Retainer Type: Quick Change
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 98 / 107
Standards/Certifications: CE, UKCA
Stroke Length (in): 3
Vibration Level (m/s2): 5.4
Warranty: 2-year

Similar IR

• 119MAXK
• 119MAX
• 123MAXK
• 123MAX
• 135MAX

Supersedes

• 119MAXHK

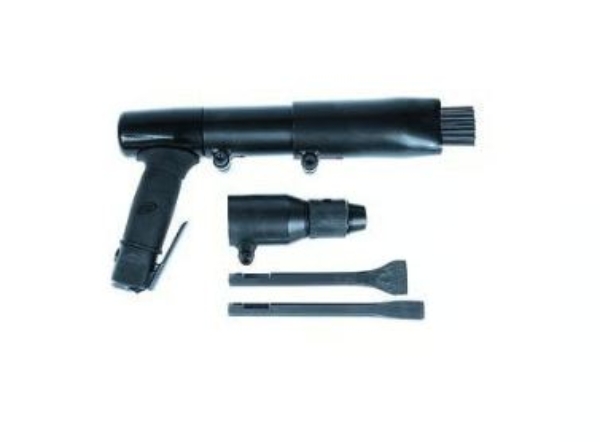

IR 180PG

Air Needle Scaler, 2200 BPM, 1.54" Stroke

This pistol grip needle scaler is designed with both power and ergonomics in mind. With a rubber over mold grip for maximum comfort, you can use this tool for hours with minimal fatigue.

Features And Benefits

• Reliability: The 180 Series pistol grip needle scaler is as reliable as it is efficient. Able to withstand repeated drops and harsh conditions, you can take these tools anywhere.
• Comfort: With a rubber over mold grip for operator comfort, you’ll be able to grip your tool for as long as you need without discomfort.

Includes: Tool, (28) flat tip 7" (3mm) carbon steel needles
Product Application and Uses: Designed for removing weld splatter or other unwanted surface deposits from metal
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 8
Air Consumption @ Load (l/min): 22.7
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 2200
Bore Diameter (in): 1.13
Color: Black
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Lock Mechanism: Bayonet Needle
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Needle Length: 7"
Needle Qty: 28
Power Source: Air Powered
Product Length (in): 13.5
Product Weight (lb): 8.9
Shank SIze (in): .5
Shank Type: Ingersoll Rand Shank
Standards/Certifications: Vibration : ISO 28927-9:2009Sound : ISO 15744:2008Safety : ISO 11148-4:2012
Stroke Length (in): 1.54
Warranty: 1-year

Similar IR

• 170PG
• 180PG-KIT
• 180PG-CS

IR 182A53-165

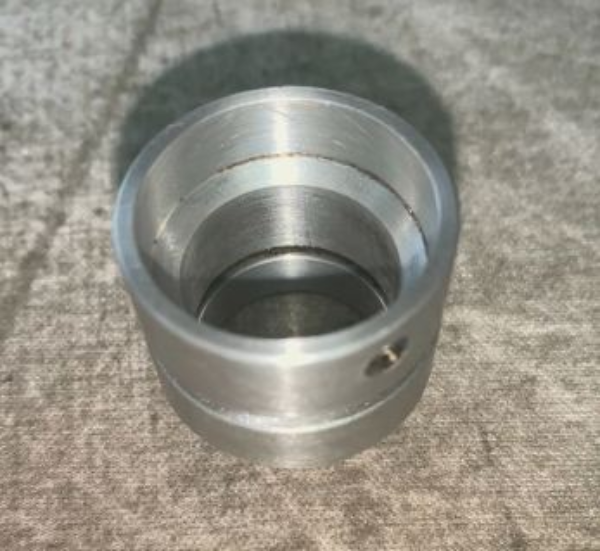

SPACER

IR 182A53-A602

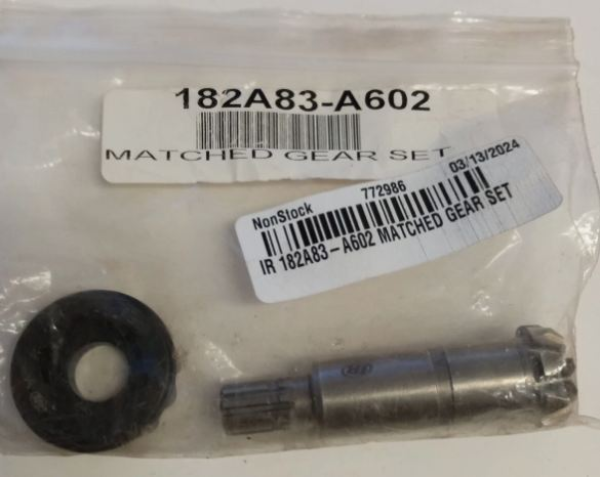

MATCHED GEAR SET

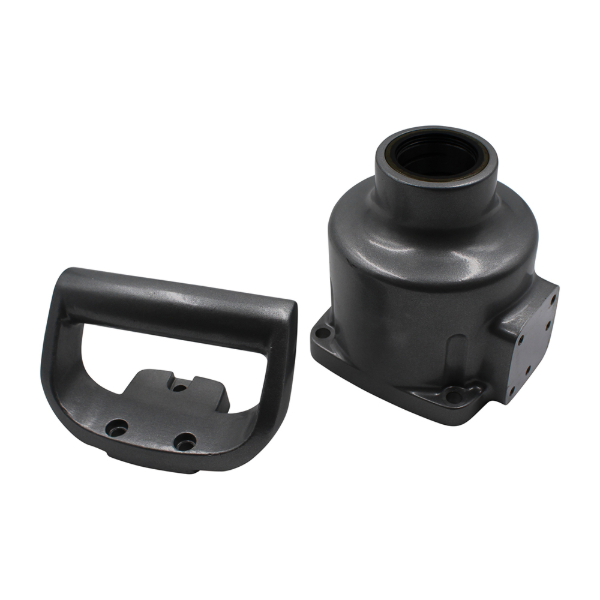

IR 285B-K727-6

Hammer Case Replacement Kit for Ingersoll Rand 285B Series Air Impact Wrench

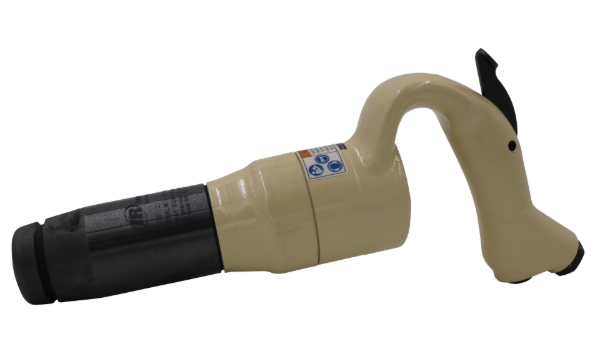

IR 2A1SA

Air Chipping Hammer, 2" Stroke, 2300 BPM, Hex Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 16
Product Weight (lb): 15.13
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 2
Warranty: 1-year

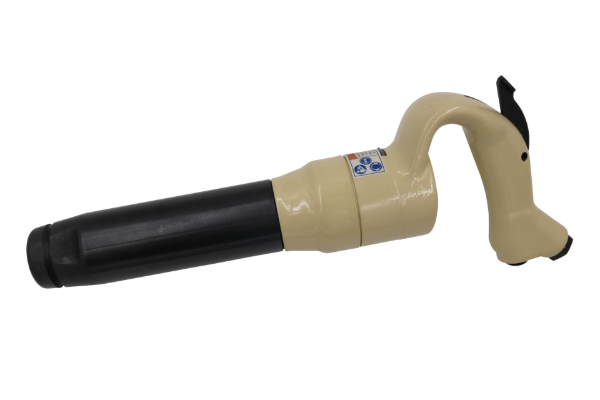

IR 4A2SA

Air Chipping Hammer, 4" Stroke, 1480 BPM, Round Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1480
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 19
Product Weight (lb): 17.5
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 4
Warranty: 1-year

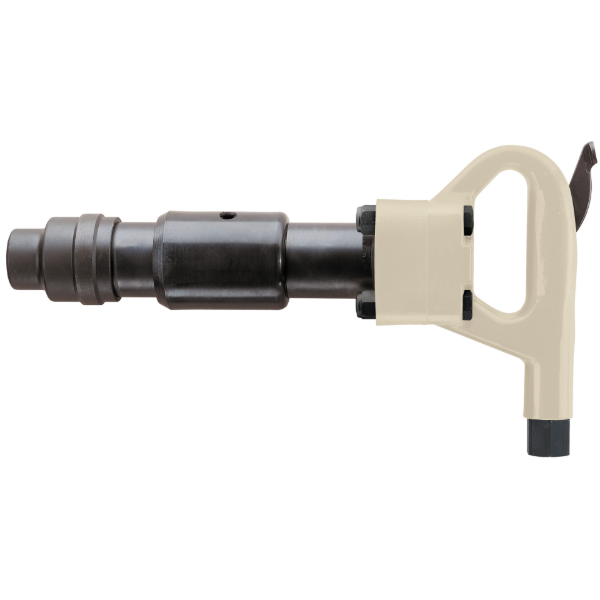

IR 4DA2SA

Air Chipping Hammer, 4" Stroke, 1600 BPM, Round Shank Oval Collar

The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits

• Weight: At 14 lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 34
Air Consumption @ Load (l/min): 963
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 1600
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 18
Product Weight (lb): 14
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 4
Warranty: 1-year

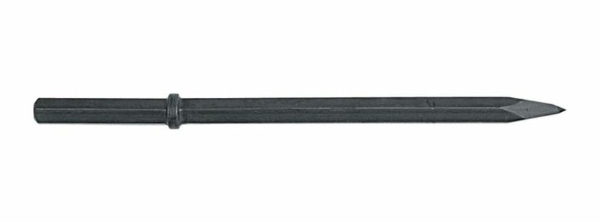

IR 50050285

24" Moil Point Pavement Breaker/Digger Steel, Hex 7/8" x 3-1/4" Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Choose from a complete line of tool steels for your pavement breaker, with products for many applications including concrete, asphalt, excavation, and general demolition.

Includes: (1) Moil Point Steel
Product Application and Uses: Ideal for concrete, asphalt, excavation, and general demolition. For use with Ingersoll Rand 93A1, 93LA1, 95A1, 95LA1 diggers.
Chisel Style: Moil Point
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 24
Product Length (in): 27.25
Product Weight (lb): 5.25
Shank Length (in): 3.25
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex

For Use With

• 93A1
• 93LA1
• 95A1
• 95LA1
