Chipper Round Nozzlew/Retainer

IR 4A2SA

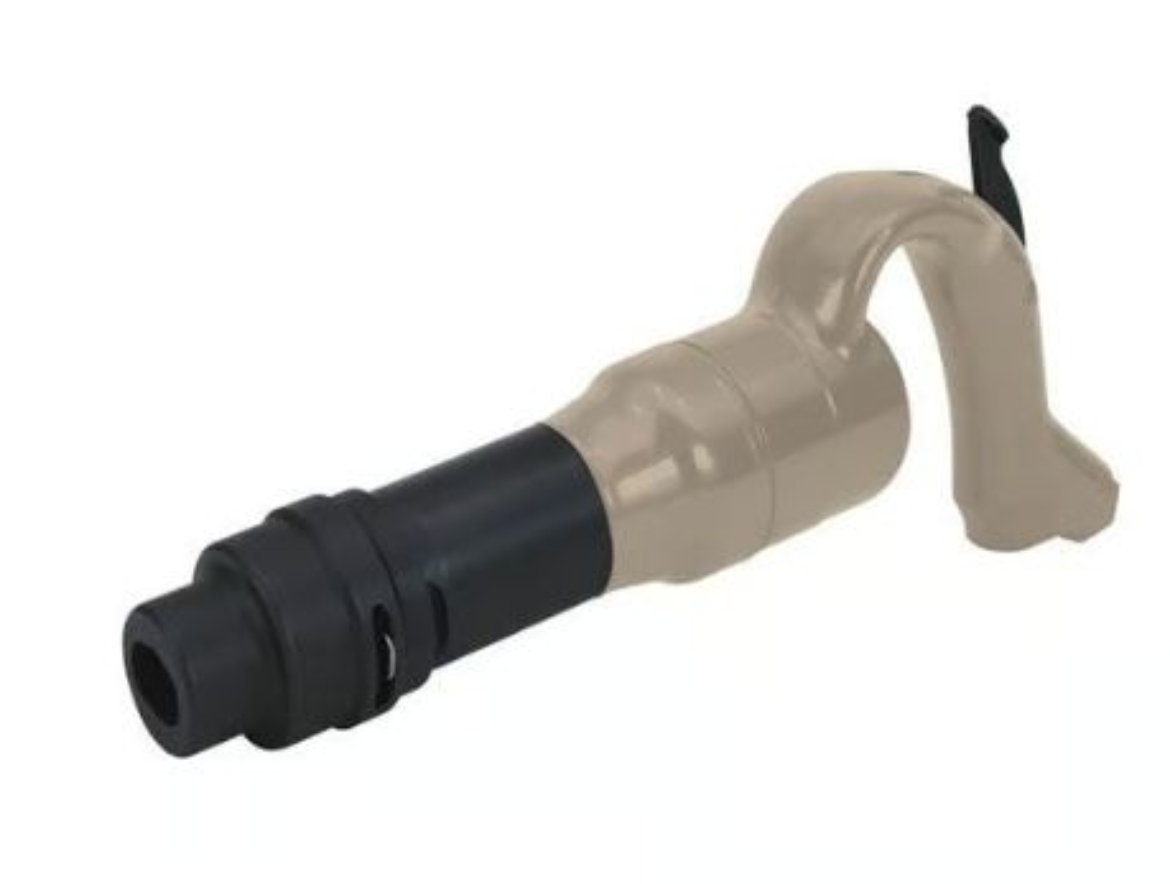

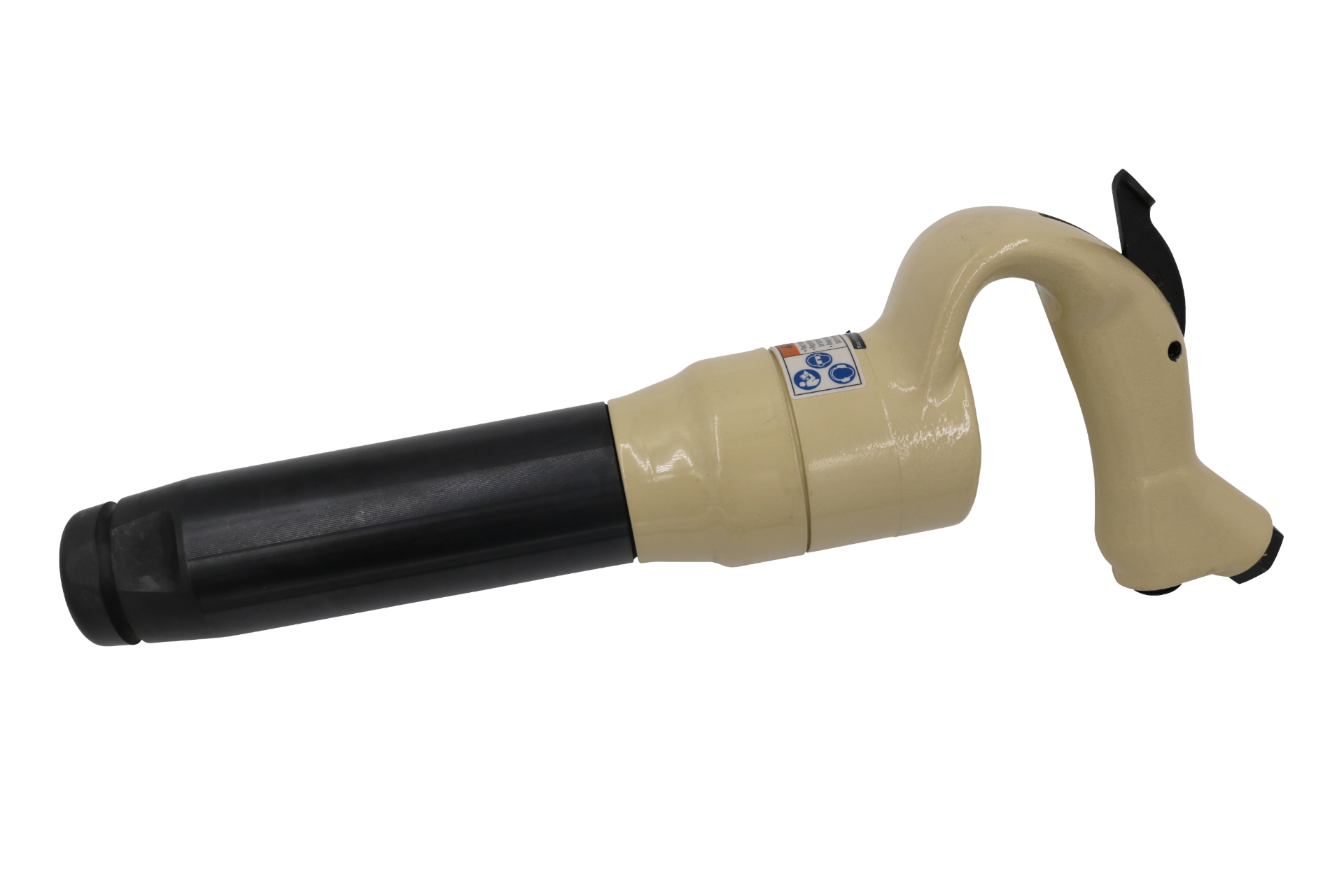

Air Chipping Hammer, 4" Stroke, 1480 BPM, Round Shank Oval Collar

Description: Whether you're working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits:

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.

Product Application and Uses:

These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Consumption @ Load (cfm): 29
• Air Consumption @ Load (l/min): 821
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Blows per Min: 1480
• Bore Diameter (in): 1.125

• Collar Type: Oval
• Color: Beige
• Configuration/Handle Type: Swan Neck
• Duty Rating: Industrial Duty

• Exhaust Location: Side - Adjustable

• Housing Material: Aluminum

• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/2
• Muffler: No

• Power Source: Air Powered
• Product Length (in): 19

• Product Weight (lb): 17.5
• Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)

• Shank SIze (in): 0.68
• Shank Type: Round

• Stroke Length (in): 4

• Warranty: 1-year

• Accessories: HH1-1190
• Accessories: HH1-215-12
• Accessories: HH1-215-18
• Accessories: HH1-215B-12
• Accessories: HH1-215B-18
• Accessories: HH1-215B-9
• Accessories: HH1-215D-12
• Accessories: HH1-215F-12
• Accessories: HH1-215F-18
• Accessories: HH1-215F-24
• Accessories: HH1-215F-36
• Accessories: HH1-215F-48
• Accessories: HH1-215F-60
• Accessories: HH1-215F-72
• Accessories: HH1-215F-9
• Accessories: HH1-215F-96
• Accessories: HH1-215M-12
• Accessories: HH1-215M-18
• Accessories: HH1-215M-24
• Accessories: HH1-215M-36
• Accessories: HH1-215M-9
• Accessories: HH1-215S-12

• Accessories: HH1-215T-9
• Accessories: HH1-323-12
• Accessories: HH1-323-18
• Accessories: HH1-323-24
• Accessories: HH1-323-48
• Accessories: HH1-323-60
• Accessories: HH1-323-72
• Accessories: HH1-323-9
• Accessories: HH1-323-96

• Lubrication: 10P
• Parts: HH1-1194
