Scalers and Hammers

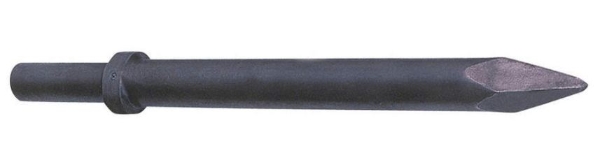

IR HH1-215M-12

12" Moil Point Chipping Hammer Steel, Round Shank Oval Collar

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.

Includes: (15) Moil Point Steels
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand 2DA2SA, 3DA2SA, 4DA2SA, 1A2SA, 2A2SA, 3A2SA, 4A2SA chipping hammers
Chisel Style: Moil Point
Collar Thickness (in): 0.813
Collar Type: Oval
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 9.625
Product Length (in): 12
Product Weight (lb): 1.75
Shank Length (in): 2.375
Shank SIze (in): 0.68
Shank Type: Round

For Use With

• 1A2SA
• 2A2SA
• 2DA2SA
• 3A2SA
• 3DA2SA
• 4A2SA
• 4DA2SA

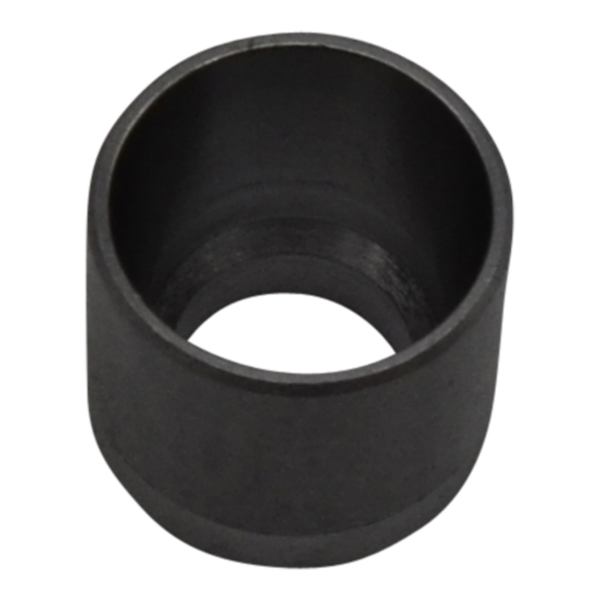

IR HH-603A

Bushing for Ingersoll Rand A, W Series Chipping Hammer

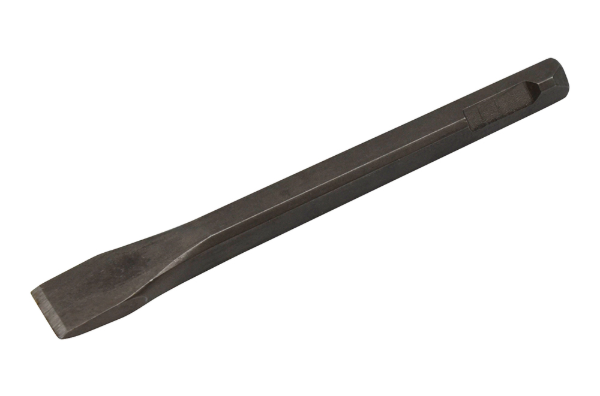

IR WF-14F-7

Narrow Scaler Chisel Steels 7"L

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Ingersoll Rand chisel and needle scalers are your best solution for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials.

Includes: (5) Chipping Hammer Chisel Steels
Product Application and Uses: Designed for making customized points for removing unwanted surface coatings and deposits.They’re ideal for removing paint, rust, weld splatter and slag, and other materials. For use with Ingersoll Rand 172L, 182L, 170PG, 180PG, 182LNA1, 172LNA1, 180G, 182G Scalers.
Chisel Style: Narrow
Housing Material: Steel
Product Length (in): 7
Product Weight (lb): 0.5
Shank SIze (in): 0.5
Shank Type: Ingersoll Rand Shank

For Use With

• 172L
• 182G
• 182L

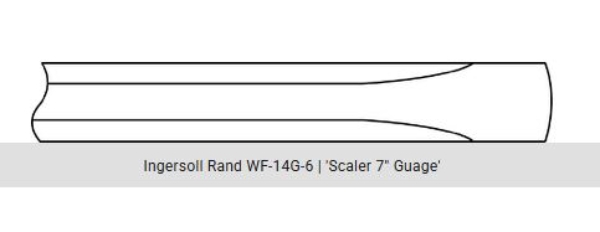

IR WF-14G-6

GOUGE SCALER - 7" SHK IR

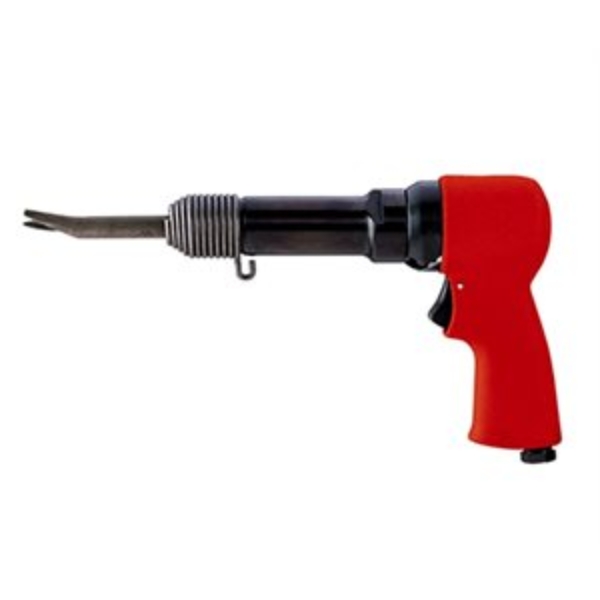

SX 270A-4

Air Slugger Long

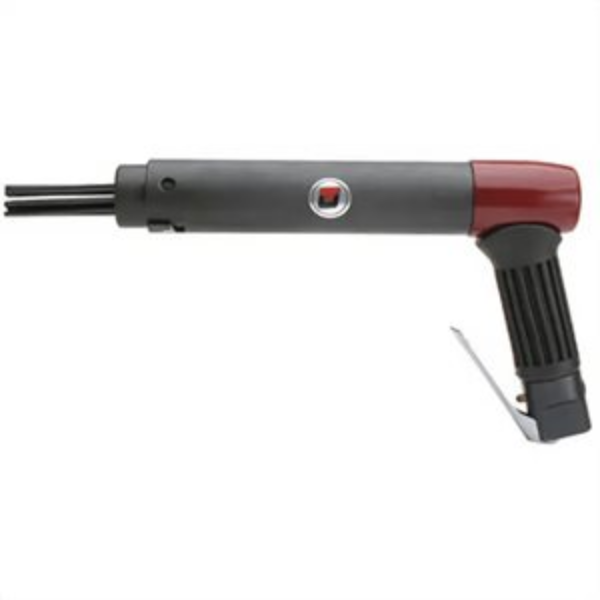

U UT9914

Pistol Recoilless Needle Scaler

CL 937427PT

Pistol Grip Housing Assy

IR 182A53-610

SEAL

IR 182A83-P507-1/2

SPINDLE

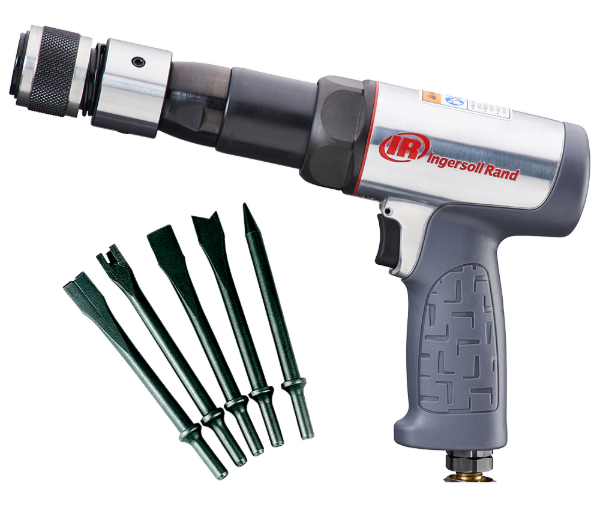

IR 119MAXK

Vibration Reduced Long Barrel Air Hammer 5-Piece Chisel Set, 2530 BPM, 3-1/2" Stroke, Round Shank

This long barrel hammer will deliver the punch you need to get the job done quickly and comfortably. Great for exhaust and front-end jobs, general bolt cutting, pin driving, and body shearing work.

Features And Benefits

• Increased Power: The 119MAX hammer has a 15% impact force increase over standard air hammers.
• Reduced Vibration: The 119MAX vibration reduced air hammer comes equipped with anti-vibration features that reduce vibration by 30%.
• Comfort Grip: Shock reduction and anti-slip grip.
• Quick-Change Retainer: This quick-change retainer allows you to quickly and easily change out chisels, increasing your productivity as you work.
• Durable: This heavy duty tool can withstand harsh environments and repeated drops, so no matter what you throw at it, it will continue to perform at top conditions.
• Swivel Air Inlet: Prevents hose twisting during use.
• Optimized for the vehicle repair industry, heavy trucks, and MRO.

Includes: 119MAX Long Barrel Air Hammer, Quick-change Retainer, Manuals, & 5-piece Chisel Set
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 23.8
Air Consumption @ Load (l/min): 673.94
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 2530
Bore Diameter (in): 3/4
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Handle Material: Composite
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.1
Product Width (in): 2
Product Height (in): 7.2
Product Weight (lb): 4.5
Retainer Type: Quick Change
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 95.7 / 106.7
Special Features: Vibration reduced
Standards/Certifications: Ce, Eac
Stroke Length (in): 3.5
Vibration Level (m/s2): 4.5
Warranty: 1-year

Similar IR

• 135MAXK
• 123MAXK
• 119MAX
• 117K
• 121-K6
• 135MAX

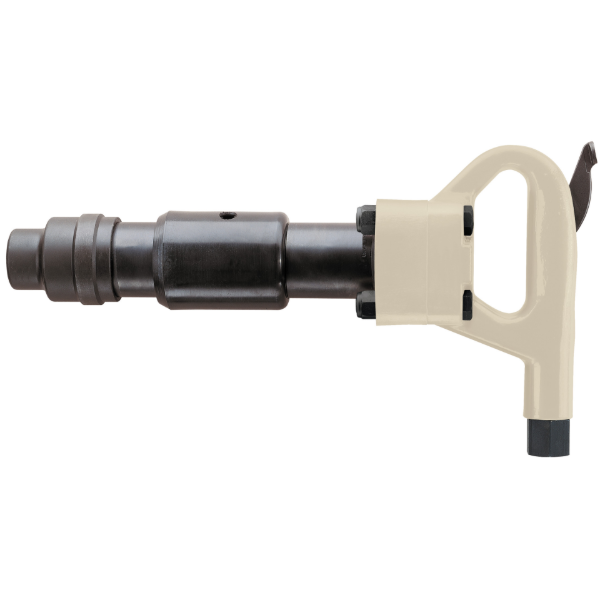

IR 2DA1SA

Air Chipping Hammer, 2" Stroke, 2200 BPM, Hex Shank Oval Collar

The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits

• Weight: At 11.74lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.
• Precision: With the D Series’ tease throttles, you’ll be able to control the tool’s impact down to the smallest margin.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 2200
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 13.75
Product Weight (lb): 11.75
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 2
Warranty: 1-year

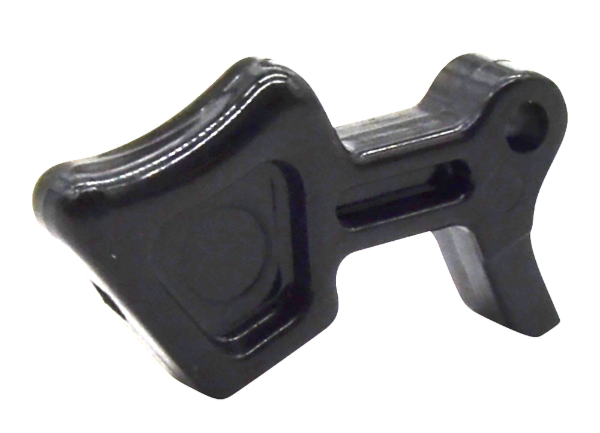

IR 705-93

Trigger for Ingersoll Rand 2705P1, 2705P1, 231C

For Use With

• 231C
• 2705P1
• 2707P1

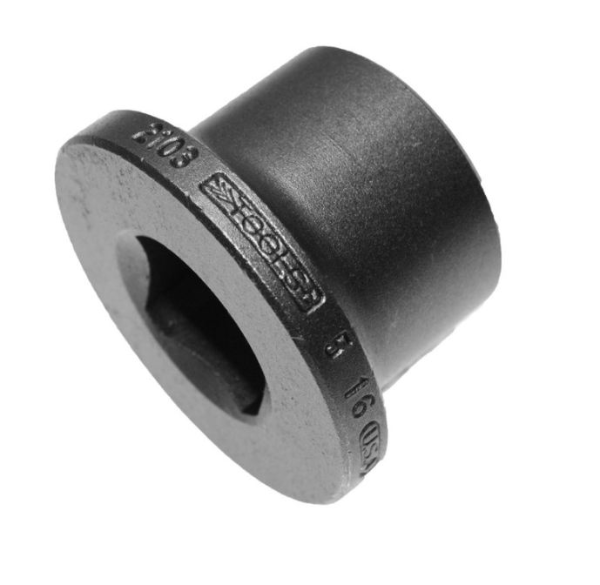

IR 9001-201

Lower Sleeve, Threaded or Grooved Barrel for Ingersoll Rand Rivet Busters

Product Application and Uses: For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 threaded or grooved rivet busters.
Housing Material: Steel

For Use With

• 11001
• 11001A
• 8001A
• 9001
• 9001A

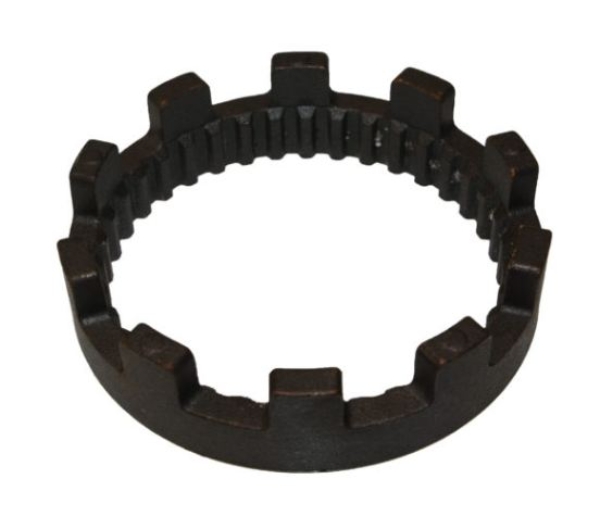

IR HH-196A

LOCKING RING

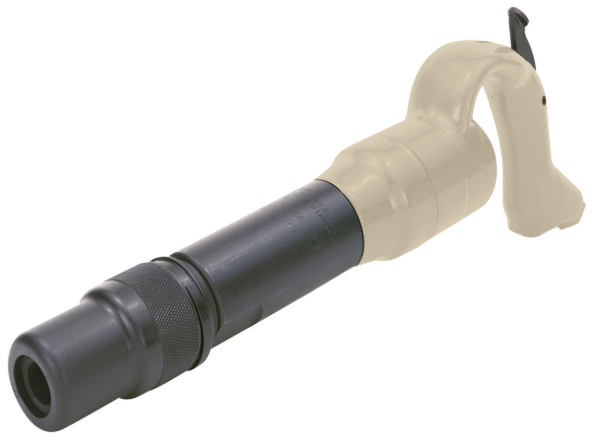

IR W4A2

Air Chipping Hammer, 4" Stroke, 1480 BPM, Round Shank Round Collar

As the strongest chipping hammers in the Ingersoll Rand lineup, the W Series chipping hammers are ready to take on even the toughest of jobs.

Features And Benefits

• Power: With a die cast aluminum housing and a swan neck handle, these tools are as ergonomic as they are powerful and have an excellent power-to-weight ratio, making handling a breeze.
• Durability: These hammers have a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life, to last you a long time. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1480
Bore Diameter (in): 1.13
Collar Type: Round
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 19.25
Product Weight (lb): 17.5
Retainer Type: Threaded barrel with rubber buffered
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 4
Warranty: 1-year

IR 125-A-21

NEEDLE HOLDER

IR 35-724

HAMMER

IR JQ4-442

SPACER, HAMMER CAM

MPT MP-CH3R

4 Bolt Chipping Hammer, R/O

SX 2205

Scraper

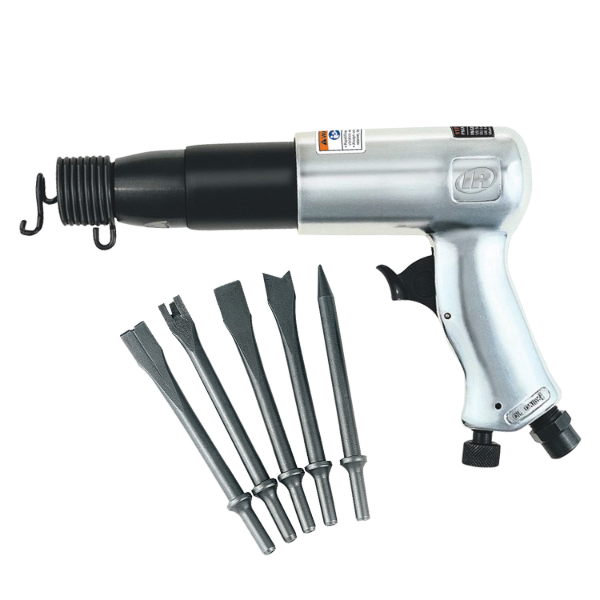

IR 117K

Air Hammer 5-Piece Chisel Set, 2000 BPM, 3-1/2" Stroke

The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.

Features And Benefits

• Performance: This general duty air hammer has a 3-1/2" stroke and 2,000 blows per minute.
• Control: This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.
• Longer Life: To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel.
• Kit Includes: Tool, Retainer, Manuals and 5 Piece Chisel Set; (1) punch chisel, (1) edging tool, (1) tail pipe cutter, (1) 3/4" wide blade straight chisel, and (1) cutting chisel.

Includes: Tool, Retainer, Manuals and 5 Piece Chisel Set; (1) punch chisel, (1) edging tool, (1) tail pipe cutter, (1) 3/4" wide blade straight chisel, and (1) cutting chisel.
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 2000
Bore Diameter (in): 0.69
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: General Duty
Handle Material: Aluminum
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.9
Product Width (in): 7.4
Product Height (in): 2.68
Product Weight (lb): 4.1
Retainer Type: Spring
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 103.5 / 114.5
Standards/Certifications: Ce
Stroke Length (in): 3.5
Vibration Level (m/s2): 9.2
Warranty: 1-year

Similar IR

• 116
• 115

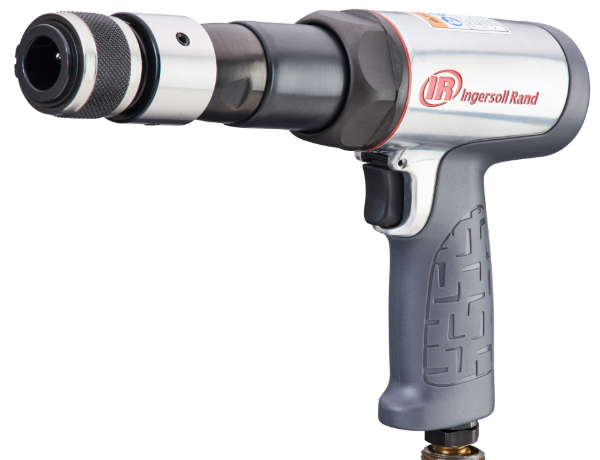

IR 119MAX

Vibration Reduced Long Barrel Air Hammer, 2530 BPM, 3-1/2" Stroke, Round Shank

This long barrel hammer will deliver the punch you need to get the job done quickly and comfortably. Great for exhaust and front-end jobs, general bolt cutting, pin driving, and body shearing work.

Features And Benefits

• Increased Power: The 119MAX hammer has a 15% impact force increase over standard air hammers.
• Reduced Vibration: The 119MAX vibration reduced air hammer comes equipped with anti-vibration features that reduce vibration by 30%.
• Comfort Grip: Shock reduction and anti-slip grip.
• Quick-Change Retainer: This quick-change retainer allows you to quickly and easily change out chisels, increasing your productivity as you work.
• Durable: This heavy duty tool can withstand harsh environments and repeated drops, so no matter what you throw at it, it will continue to perform at top conditions.
• Swivel Air Inlet: Prevents hose twisting during use.
• Optimized for the vehicle repair industry, heavy trucks, and MRO.

Includes: 119MAX Long Barrel Air Hammer, Quick-change Retainer, Manuals
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 23.8
Air Consumption @ Load (l/min): 673.94
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 2530
Bore Diameter (in): 3/4
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Handle Material: Composite
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.1
Product Width (in): 2
Product Height (in): 7.2
Product Weight (lb): 4.5
Retainer Type: Quick Change
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 95.7 / 106.7
Special Features: Vibration reduced
Standards/Certifications: Ce, Eac
Stroke Length (in): 3.5
Vibration Level (m/s2): 4.5
Warranty: 1-year

Similar IR

• 135MAX
• 123MAX
• 117
• 135MAXK

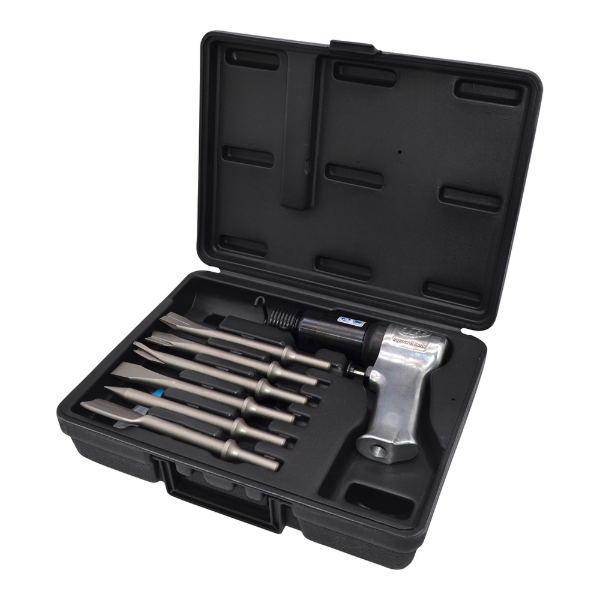

IR 121-K6

Super Duty Air Hammer Kit, 3000 BPM, 2-9/32" Stroke

The 121 super duty air hammer makes fast work of body panel crimping and cutting, bushing driving, shearing, and other general front-end work. No matter how hard you work, this hammer will make it easier.

Features And Benefits

• Durable: Built to withstand repeated drops and harsh conditions, this hammer will never let you down.
• Long Lasting: The 121 super duty air hammer was built with an alloyed steel barrel and heat-treated piston to make sure it lasts as long as you need it to.
• Super Duty: This hammer can produce up to 3,000 blows per minute so you can speed through your tasks with ease.
• 6 Chisels: Air hammer comes in a blow molded case with 6 chisels.
• Built-in power regulator and trigger control
• Easy to Maintain: "Easy out" throttle valve assembly.

Includes: 121 Air Hammer, Blow-molded Black Carrying Case and (6) Six Assorted Chisels. Assorted Chisels Include (1) 3/4 Flat Blade Chisel, (1) Punch Chisel, (1) Claw Ripper-edging Tool, (1) Single Blade Cutter, (1) Kwik Cutter, (1) Vee Chisel-spot Welder Breaker.
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 425
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 3000
Bore Diameter (in): 3/4
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Super Duty
Handle Material: Aluminum
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.6
Product Width (in): 9.7
Product Height (in): 3.6
Product Weight (lb): 7.2
Retainer Type: Spring
Shank SIze (in): 0.401
Shank Type: Round
Sound Pressure/Power Db(A): 95.3 / 111.3
Standards/Certifications: Ce, Eac
Stroke Length (in): 2.28
Vibration Level (m/s2): 19.9
Warranty: 1-year

Similar IR

• 115K
• 116K
• 117K

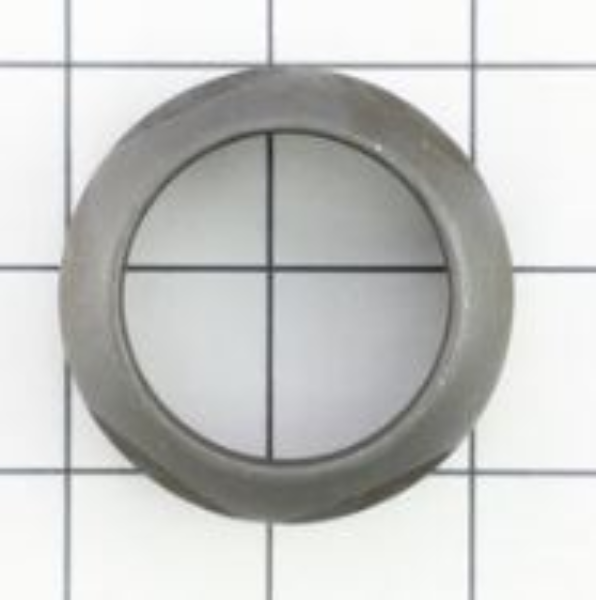

IR 122MAX-27

FRONT CAP

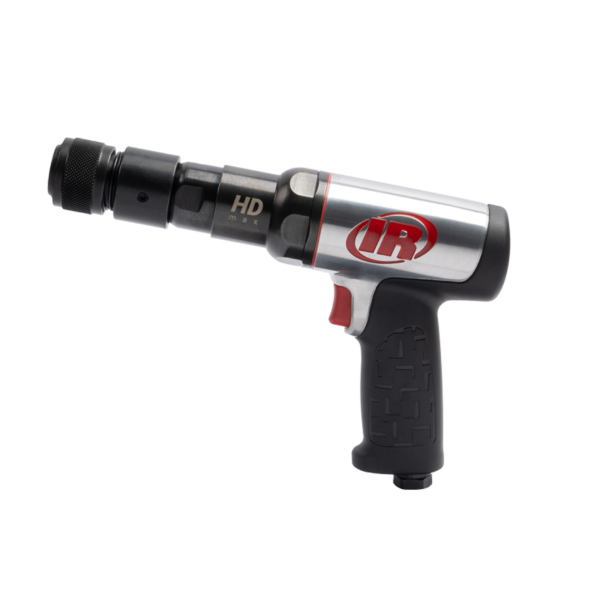

IR 135MAX

Vibration Reduced Heavy Duty Quick Change Air Hammer, 2600 BPM, 3" Stroke, Round Shank

The 135MAX HD Air Hammer is the next generation air hammer that builds on the foundation set by 119MAX—incredible performance and power at an accessible cost—while leveraging a fine-tuned feather-able trigger, inspired by legendary Ingersoll Rand® impact wrenches, for more precision and even better results. Featuring an optimized combination of power and speed to achieve best-in-class2600 BPM, the 135MAX can breeze through any job, from heavy duty front-end applications to the jobs that call for a lighter touch. And it’s all backed by a two-year warranty. Send your productivity soaring with the 135MAX HD Air Hammer.

Features And Benefits

• MAX Power: Break at lightspeed with the most powerful air hammer available – 15% more powerful to get your job done 15% faster than the leading competitive air hammer.
• MAX Productivity: Quick-Change retainer provides fast chisel changeovers (included with tool).
• MAX Control: Feather-able trigger to give you the ultimate control over every job- from jobs that require the lightest touch to the hardest hitting applications, we’ve got you covered.
• MAX Assurance: The 135MAX is backed by a two-year warranty, giving you peace of mind that your tool will work when you need it, every time.
• MAX Comfort: Shock reduction and anti-slip grip.

Includes: Quick Change Retainer. Chisels sold separately or with 135MAXK kit.
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 2.66
Air Consumption @ Load (l/min): 75.36
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 2600
Bore Diameter (in): 3/4
Collar Type: Round
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Heavy Duty
Exhaust Location: Handle
Housing Material: Aluminum Alloy
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.67
Product Width (in): 2.22
Product Height (in): 6.89
Product Weight (lb): 4.5
Retainer Type: Quick Change
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 98 / 107
Standards/Certifications: CE, UKCA
Stroke Length (in): 3
Vibration Level (m/s2): 5.4
Warranty: 2-year

Similar IR

• 119MAX
• 119MAXK
• 123MAX
• 123MAXK
