Scalers and Hammers

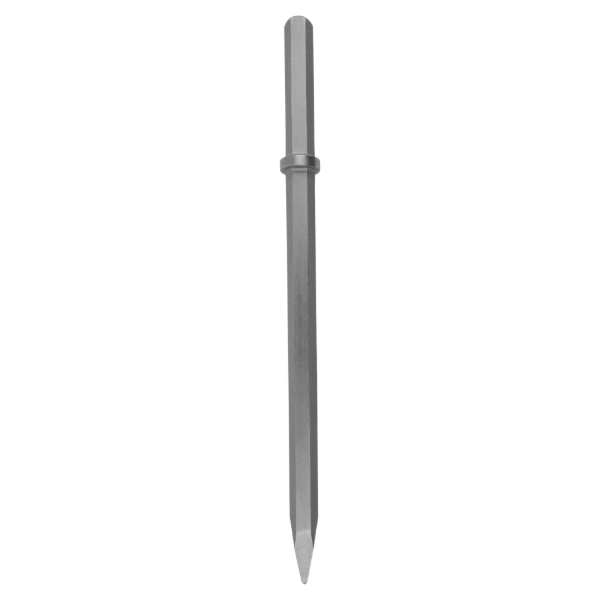

IR 50055524

18" Moil Point Pavement Breaker/Digger Steel, Hex 1-1/8" x 6" Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Choose from a complete line of tool steels for your pavement breaker, with products for many applications including concrete, asphalt, excavation, and general demolition.

Includes: (5) Moil Point Steels
Product Application and Uses: Ideal for concrete, asphalt, excavation, and general demolition. For use with Ingersoll Rand PB50A, MX60A, MX90A pavement breakers.
Chisel Style: Moil Point
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 18
Product Length (in): 24
Product Weight (lb): 7.25
Shank Length (in): 6
Shank SIze (in): 1-1/8 x 6
Shank Type: Hex

For Use With

• MX60A
• MX90A
• PB50AL1
• PB50AS1

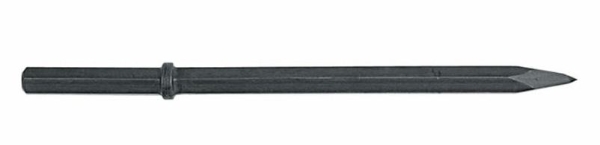

IR 50055565

MOIL POINT - 36" SHK 1-1/8" X 6" , QTY 1

IR 9001-297-9

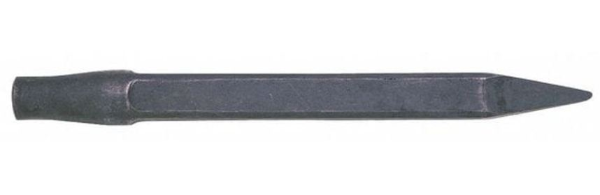

9" Moil Point Rivet Buster Steel, Jumbo Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Our jumbo shank rivet buster steels and attachments are ideal for general demolition and steel demolition applications.

Includes: (15) Moil Point Steels
Product Application and Uses: Ideal for general demolition. For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 rivet busters.
Chisel Style: Moil Point
Housing Material: Steel
Product Length (in): 9
Product Weight (lb): 2
Shank SIze (in): 0.866
Shank Type: Jumbo

For Use With

• 11001
• 11001A
• 8001A
• 9001
• 9001A

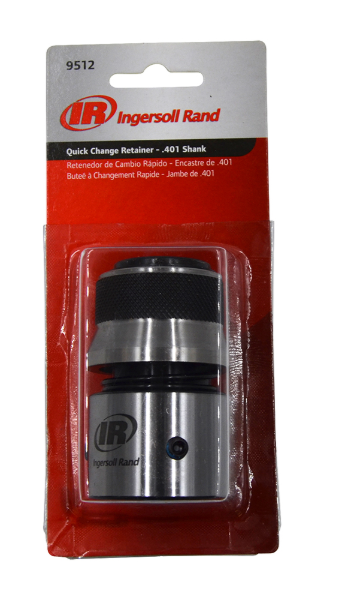

IR 9512

Air Hammer Quick Change Retainer, .401" Shank

This pneumatic hammer chisel retainer is built from high-quality steel for the utmost in quality, strength, and durability. This quick change hammer coupler holds 0.401 shank chisels in place, simply install the chisel by pulling back the collar. The 9512 is compatible with IR Air Hammer models 121, 132, 772.

Product Application and Uses: The 9512 is compatible with IR Air Hammer models 121, 132, 772.
Housing Material: Steel
Retainer Type: Quick Change
Shank SIze (in): .401

For Use With

• 121/Q
• 121/Q-EU
• 121/QH-EU
• 132
• 772
• AVC10A1
• AVC12A1
• AVC13A1

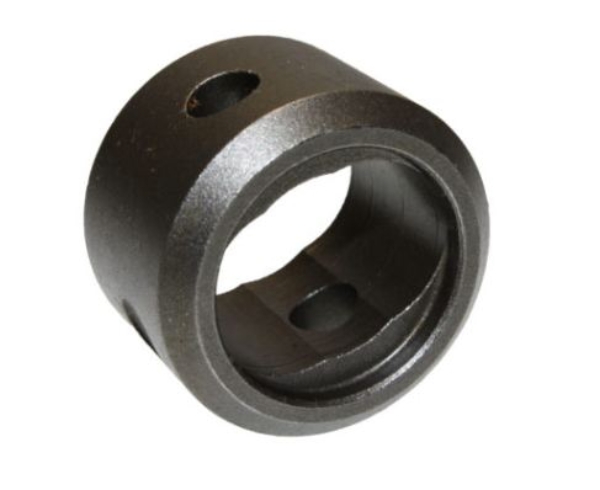

IR HH1-1191-3

ROTATING INSERT

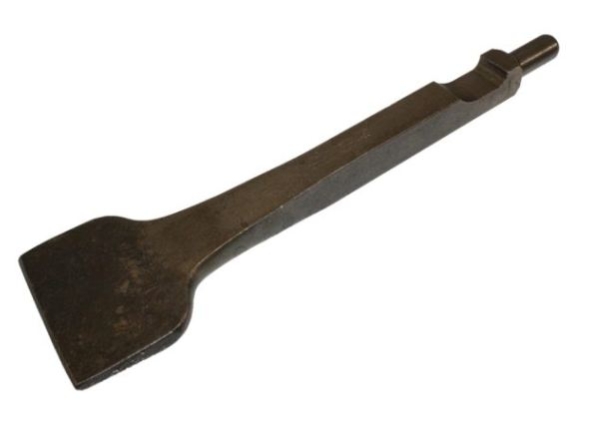

IR PF2200-390

2" Wide CLECO Scaler Chisel Steels 7"L

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Ingersoll Rand chisel and needle scalers are your best solution for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials.

Includes: (5) Scaler Chisel Steels
Product Application and Uses: Designed for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials. For use with CLECO style chisels including Ingersoll Rand 125CI-A, 125CI, 125-A, 125.
Chisel Style: 2" Wide
Housing Material: Steel
Product Length (in): 7
Product Width (in): 2
Product Weight (lb): 0.5
Shank SIze (in): 0.68
Shank Type: CLECO

For Use With

• 125CI-A

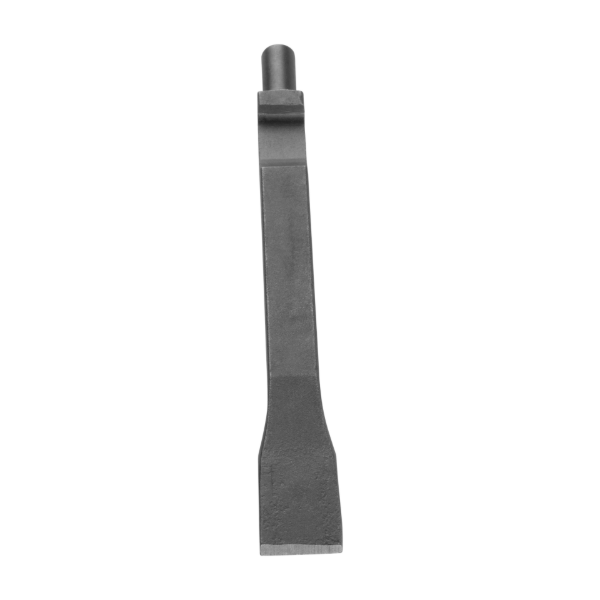

IR PF2200-392

Narrow CLECO Scaler Chisel Steels 7"L

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Ingersoll Rand chisel and needle scalers are your best solution for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials.

Includes: (5) Scaler Chisel Steels
Product Application and Uses: Designed for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials. For use with CLECO style chisels including Ingersoll Rand 125CI-A, 125CI, 125-A, 125.
Chisel Style: Narrow
Housing Material: Steel
Product Length (in): 7
Product Weight (lb): 0.5
Shank SIze (in): 0.68
Shank Type: CLECO

For Use With

• 125CI-A

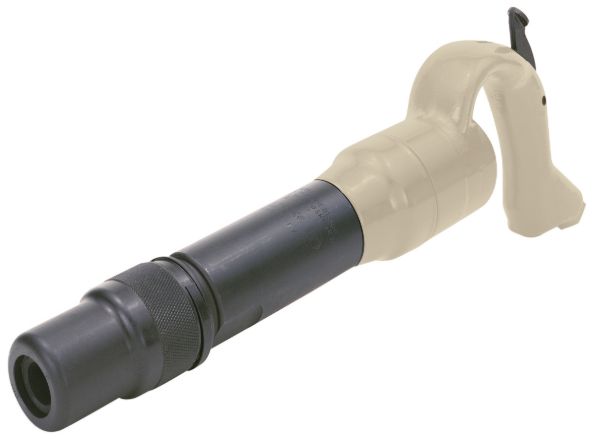

IR W2A2

Air Chipping Hammer, 2" Stroke, 2300 BPM, Round Shank Round Collar

As the strongest chipping hammers in the Ingersoll Rand lineup, the W Series chipping hammers are ready to take on even the toughest of jobs.

Features And Benefits

• Power: With a die cast aluminum housing and a swan neck handle, these tools are as ergonomic as they are powerful and have an excellent power-to-weight ratio, making handling a breeze.
• Durability: These hammers have a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life, to last you a long time. Comes with a 1-year warranty.
• Reliability: With a long nozzle that allows the bit to rotate, you can expect the same result every time you use these hammers.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 1.13
Collar Type: Round
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 16.38
Product Weight (lb): 15.13
Retainer Type: Threaded barrel with rubber buffered
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 2
Warranty: 1-year

IR W4A1

Air Chipping Hammer, 4" Stroke, 1480 BPM, Hex Shank Round Collar

As the strongest chipping hammers in the Ingersoll Rand lineup, the W Series chipping hammers are ready to take on even the toughest of jobs.

Features And Benefits

• Power: With a die cast aluminum housing and a swan neck handle, these tools are as ergonomic as they are powerful and have an excellent power-to-weight ratio, making handling a breeze.
• Durability: These hammers have a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life, to last you a long time. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1480
Bore Diameter (in): 1.13
Collar Type: Round
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 19.25
Product Weight (lb): 17.5
Retainer Type: Threaded barrel with rubber buffered
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 4
Warranty: 1-year

AIM US-LT31PB-17

Pistol Grip Air Screwdriver 6.2-13.2 In./Lbs. 1700 RPM

GW 82254

HMR CLW CURV FGL 16OZ

IR 182A83-A600

HOUSING (AG120P63-A23)

IR 50713049

H THREAD ROD - 36" SHK 1" X 4-1/4" , QTY 1

MP MP5187

Needle Scaler Lightweight 4200 RPM Q

MPT MP-182L

Hammer Scaler

MPT MP-456L

Hammer Scaler Lever Throttle

MPT MP-CH2R

Chipping Hammer, Stl Handle

SX IW38TB-42

Hammer

SX IW75-46

1 In Square Drive Anvil

IR 1211-THK1

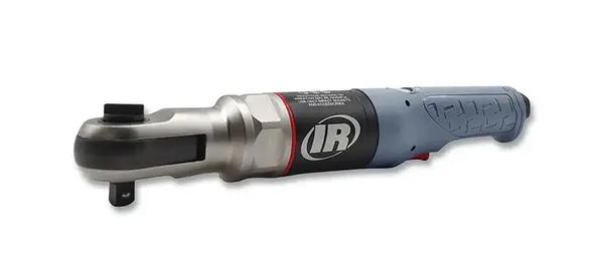

Hammer Mechanism Kit for Ingersoll Rand 1211MAX Series Ratchet Wrench

Includes: Hammer frame and hammer pins (2)
Product Application and Uses: For use with Ingersoll Rand 1211MAX Series ratchet wrenches

For Use With

• 1211MAX-D3
• 1211MAX-D4

IR 122MAX-59

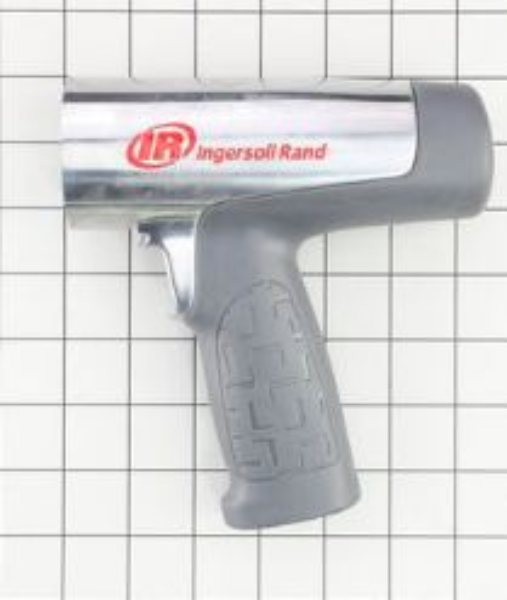

HOUSING

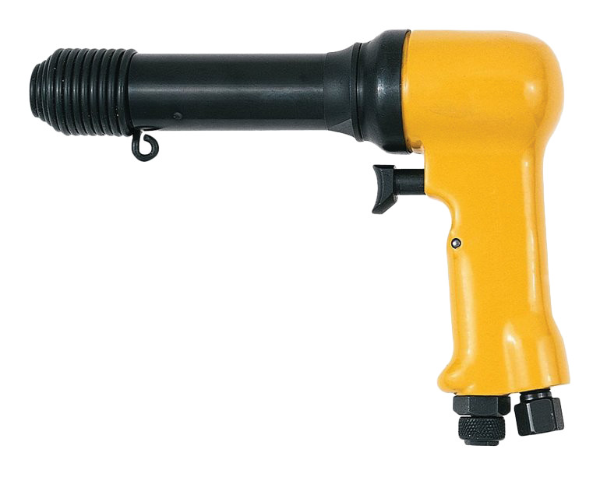

IR 132

Super Duty Air Hammer, 1725 BPM, 4" Stroke

Professionals who want the best choose the 132 Super Duty Air Hammer for front end work, heavy exhaust work, riveting, king pin removal, bushing driving, and bolt shearing.

Features And Benefits

• Up to 1,725 blows per minute
• Alloyed steel barrel and heat-treated piston for longer life
• Built-in power regulator and trigger control

Product Application and Uses: These Air Percussive Hammers are designed for hammering, punching, cutting, chipping and scrapping material through repetitive application of linear impacts of a tool steel that is retained and driven by the hammer. Great for front end work, heavy exhaust work, riveting, king pin removal, bushing driving, and bolt shearing.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 11
Air Consumption @ Load (l/min): 311
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Blows per Min: 1725
Bore Diameter (in): 0.56
Color: Yellow
Configuration/Handle Type: Pistol Grip
Duty Rating: Super Duty
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Product Length (in): 8.5
Product Weight (lb): 3.4
Retainer Type: Spring
Shank SIze (in): 0.401
Shank Type: Round
Stroke Length (in): 4
Warranty: 1-year

Similar IR

• 121/Q

IR 50283183

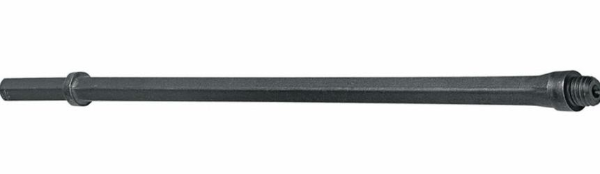

48" H Thread Jackhammer/Rock Drill Rod Steel 1" x 4-1/4" Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. All jackhammer rods are sold as single units (no required box quantities).

Includes: All jackhammer rods are sold as single units (no required box quantities).
Product Application and Uses: For use with Ingersoll Rand JH40C3 jack hammers and JRD50-C rock drills.
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 48
Product Length (in): 52.25
Product Weight (lb): 12
Shank Length (in): 4.25
Shank SIze (in): 1 x 4-1/4
Shank Type: Hex

For Use With

• JH40C3
• JRD50-C

IR 705-941

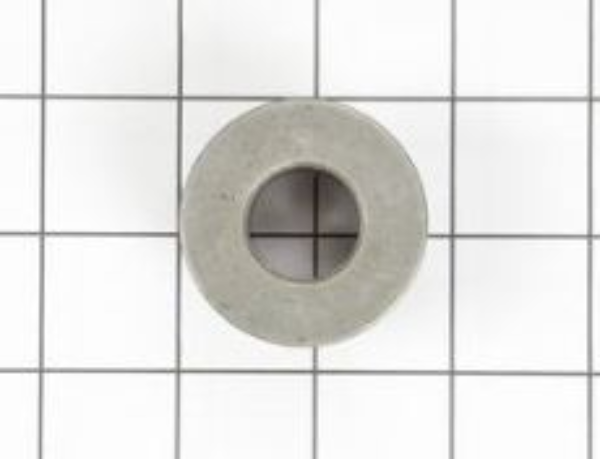

BUSHING (48951-160)

IR 9001-200

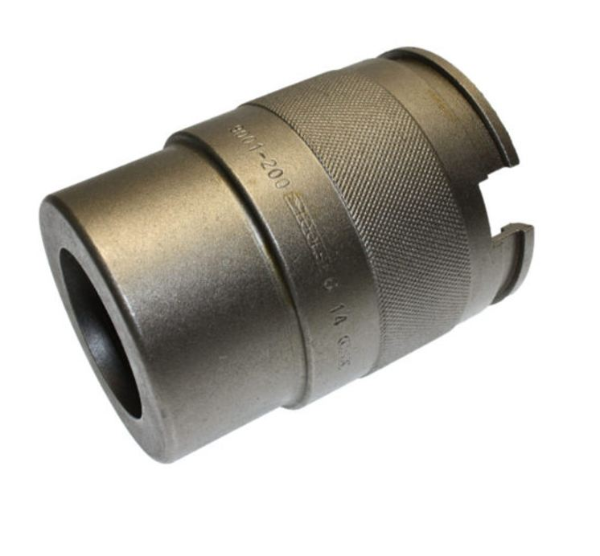

Threaded Barrel Retainer for Ingersoll Rand Rivet Busters

Product Application and Uses: For Use with Ingersoll Rand 8001, 9001, 11001 Threaded Barrel Rivet Busters
Retainer Type: Threaded barrel with rubber buffered

For Use With

• 11001
• 9001
