Scalers and Hammers

IR 2A2SA

Air Chipping Hammer, 2" Stroke, 2300 BPM, Round Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place.
• Access: With a swan neck handle and long nozzle, you’ll be able to work in tight, hard to reach spaces with ease.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28.0
Air Consumption @ Load (l/min): 793
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Height Over Spindle (in): 16
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: Yes
Power Source: Air Powered
Product Length (in): 16
Product Width (in): 9.06
Product Weight (lb): 16.8
Retainer Type: Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Standards/Certifications: Standards
Steels: Yes
Stroke Length (in): 2
Warranty: 1-year

Similar IR

• 2A1SA
• W2A2
• W2A1

IR 172L

Air Chisel Scaler, 5500 BPM, 9/16" Stroke

At 5,500 blows per minute, this lever-operated chisel scaler is not only fast, but extremely durable and efficient.

Features And Benefits

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, along with a strengthened head block that will hold up in tough conditions.
• Comfort: Compact, well balanced and low vibration maximize operators comfort

Includes: Bare Tool
Product Application and Uses: Remove Paint, Rust, Dirt, Weld Slags
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 12
Air Consumption @ Load (l/min): 340
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 5500
Bore Diameter (in): 0.94
Color: Silver
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Non Sparking: No
Power Source: Air Powered
Product Length (in): 12.7
Product Width (in): 6.2
Product Height (in): 2.2
Shank SIze (in): .5
Shank Type: Ingersoll Rand Shank
Sound Pressure/Power Db(A): 107.5 / 118.5
Stroke Length (in): 0.56
Vibration Level (m/s2): 11.6
Warranty: 1-year

Similar IR

• 182L
• 182K1
• 172LNA1

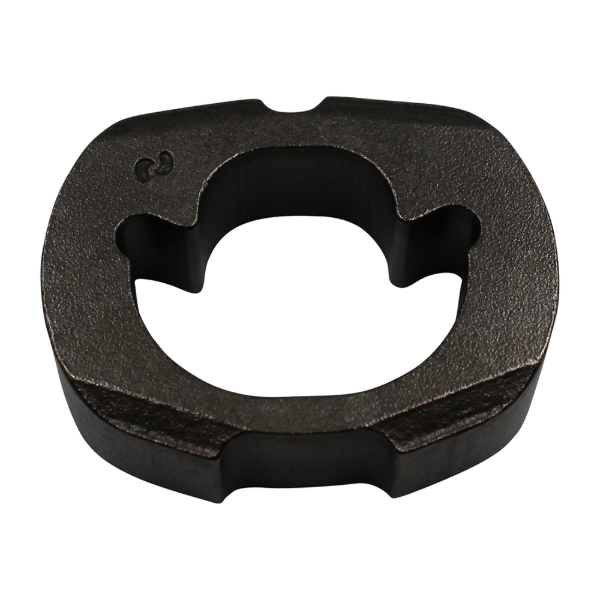

IR 231XP-724

Hammer for Ingersoll Rand Air Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2130, 2132, 2135, 231, 232 and 231H Series impact wrenches

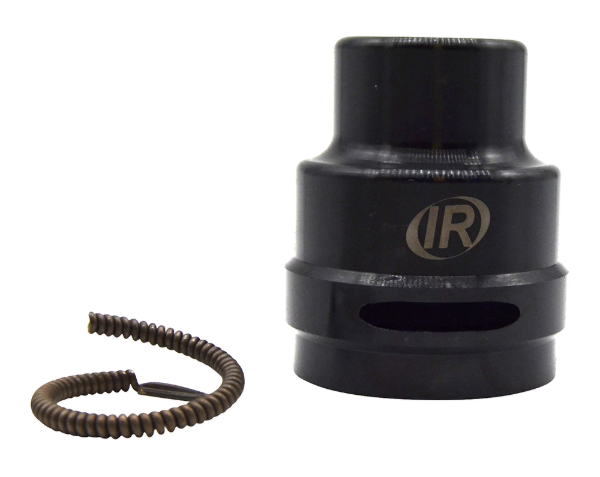

IR HH1-1190

Standard Retainer Replacement Part for Ingersoll Rand A, W, D, MDT3-EU Series Chipping Hammer

For Use With

• 1A1SA
• 1A2SA
• 2A1SA
• 2A2SA
• 2DA1SA
• 2DA2SA
• 3A1SA
• 3A2SA
• 3DA1SA
• 3DA2SA
• 4A1SA
• 4A2SA
• 4DA1SA
• 4DA2SA

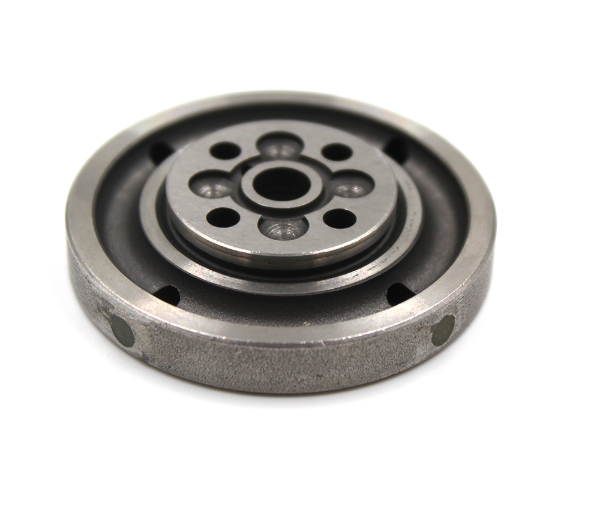

IR HH-4

Valve Cap for Ingersoll Rand A, W, D, MDT3-EU Series Chipping Hammer

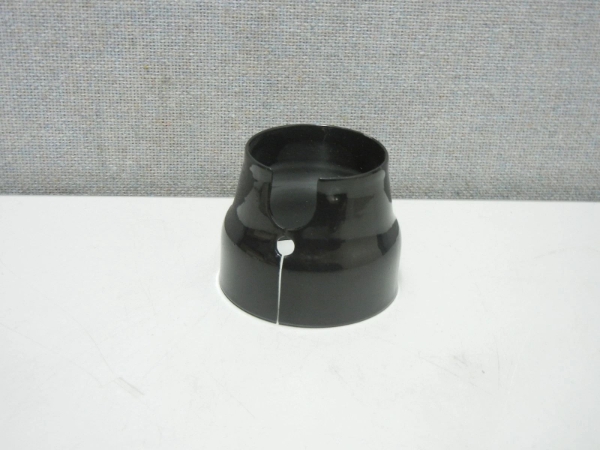

IR HH-85AP

DEFLECTOR (BNHH-85)

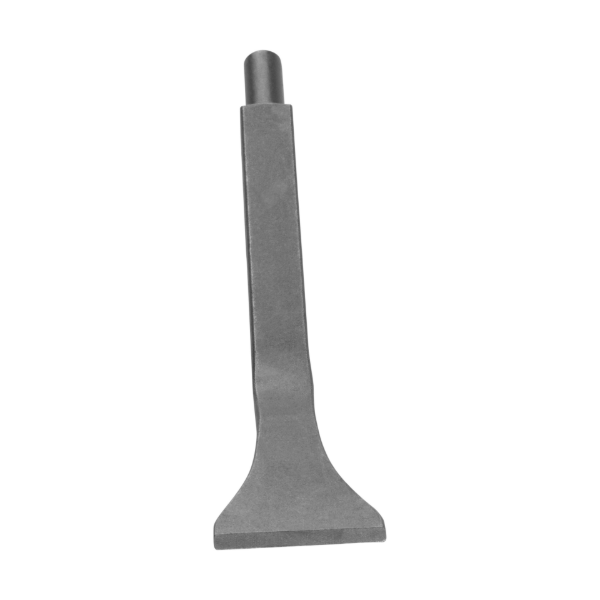

IR PF2200-394

Spoon CLECO Scaler Chisel Steels 7"L

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Ingersoll Rand chisel and needle scalers are your best solution for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials.

Includes: (5) Scaler Chisel Steels
Product Application and Uses: Designed for removing unwanted surface coatings and deposits. They’re ideal for removing paint, rust, weld splatter and slag, and other materials. For use with CLECO style chisels including Ingersoll Rand 125CI-A, 125CI, 125-A, 125.
Chisel Style: Spoon
Housing Material: Steel
Product Length (in): 7
Product Weight (lb): 0.5
Shank SIze (in): 0.68
Shank Type: CLECO

For Use With

• 125CI-A

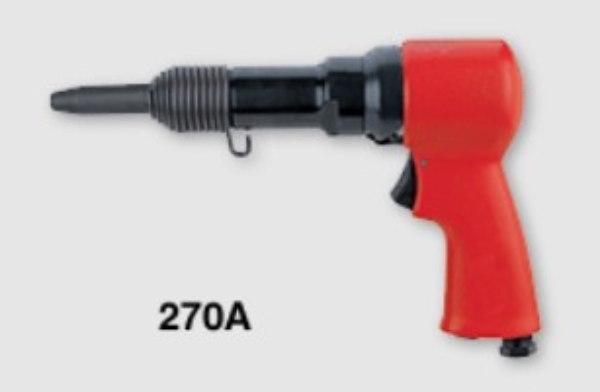

SX 270A

Rivet Hammer

COP 8900000116

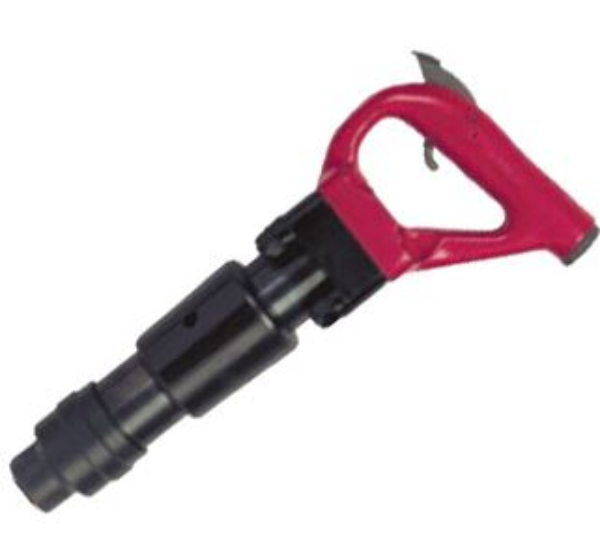

CP 4130 3R CHIPPING HAMMER

IR 122MAX-210

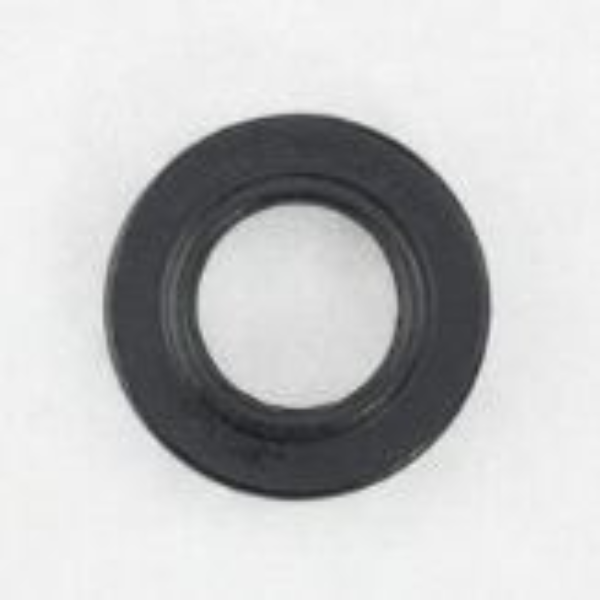

SEAL

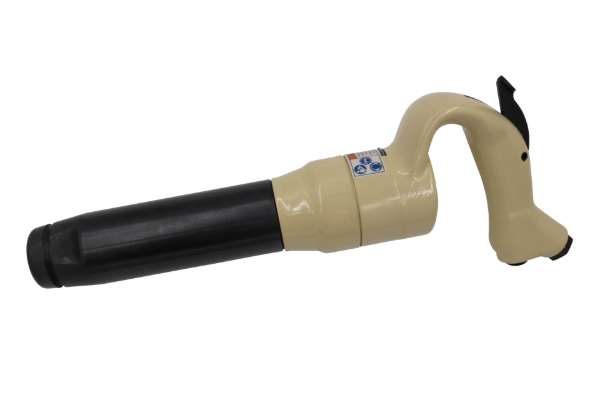

IR 4A1SA

Air Chipping Hammer, 4" Stroke, 1480 BPM, Hex Shank Oval Collar

Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

Features And Benefits

• Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
• Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1480
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 19
Product Weight (lb): 17.5
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 4
Warranty: 1-year

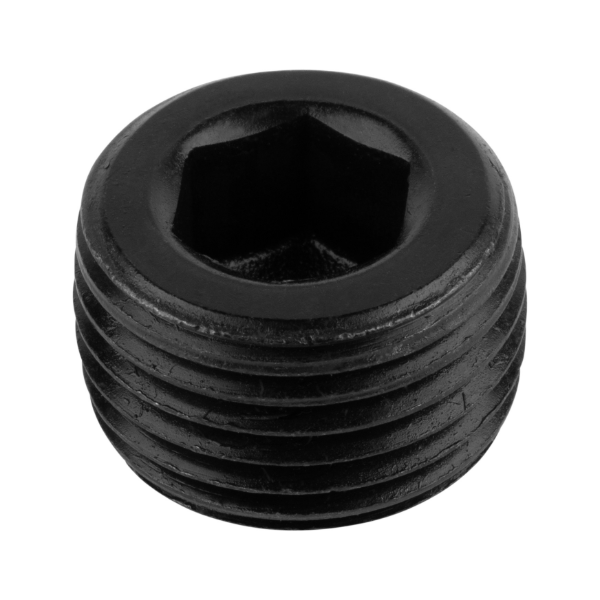

IR HH-266

Lubricator Valve Cap Service Part for Ingersoll Rand Power Tools

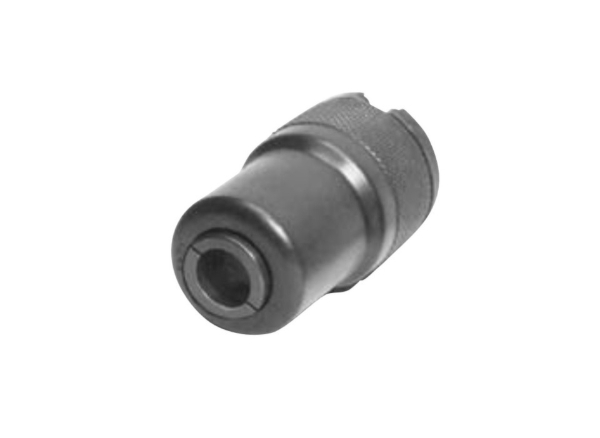

IR HHW1-300

RETAINER

IR W3A2

Air Chipping Hammer, 3" Stroke, 1725 BPM, Round Shank Round Collar

As the strongest chipping hammers in the Ingersoll Rand lineup, the W Series chipping hammers are ready to take on even the toughest of jobs.

Features And Benefits

• Power: With a die cast aluminum housing and a swan neck handle, these tools are as ergonomic as they are powerful and have an excellent power-to-weight ratio, making handling a breeze.
• Durability: These hammers have a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life, to last you a long time. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1725
Bore Diameter (in): 1.13
Collar Type: Round
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 18.25
Product Weight (lb): 16.63
Retainer Type: Threaded barrel with rubber buffered
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 3
Warranty: 1-year

CSU 136.3599

5FT HD LONG REACH SCALER

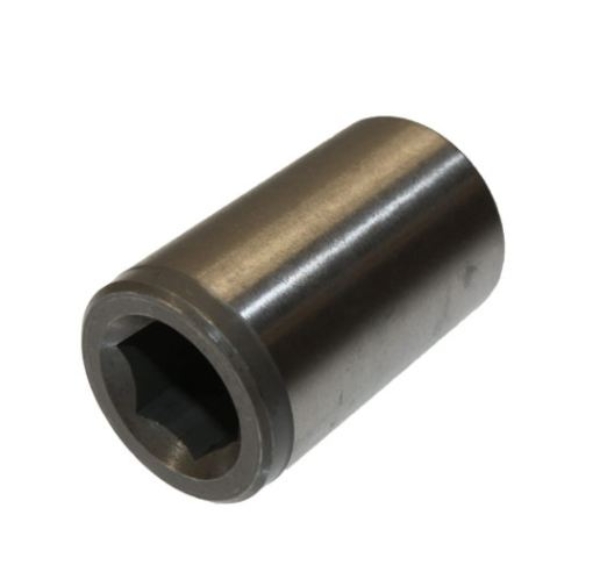

IR B01-7B

HEX NOZZLE

U UT9925

Pistol Recoiless Air Hammer

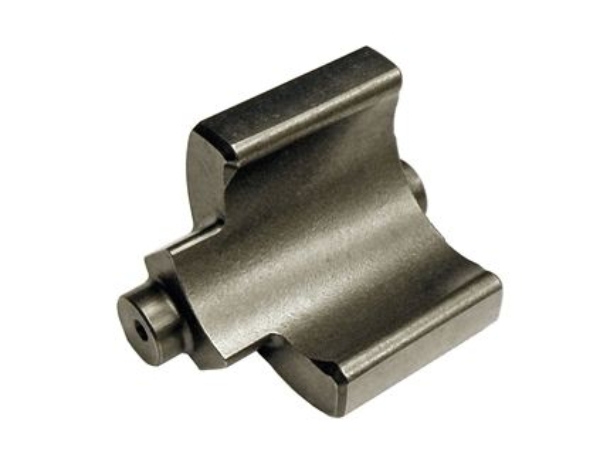

IR 285B-724

HAMMER

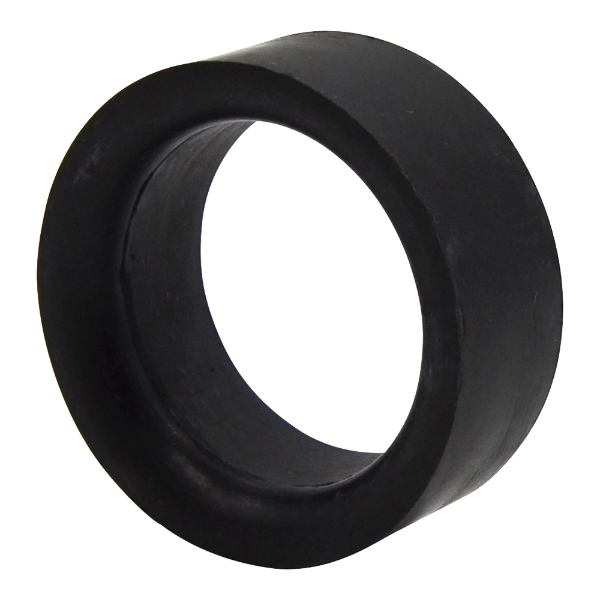

IR 9001-203

Bumper, Threaded or Grooved Barrel for Ingersoll Rand Rivet Busters

Product Application and Uses: For use with Ingersoll Rand 8001A, 9001, 9001A, 11001A, 11001 threaded or grooved rivet busters.
Housing Material: Steel

For Use With

• 11001
• 11001A
• 8001A
• 9001
• 9001A

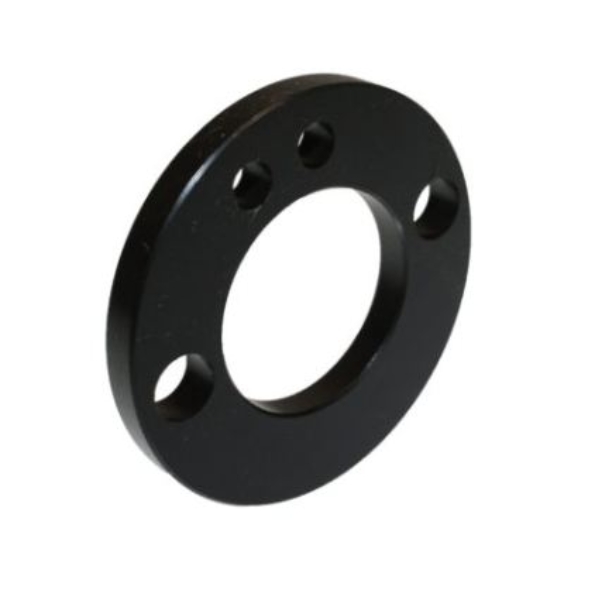

IR HH-8A

SPACER

IR HHW1-A300

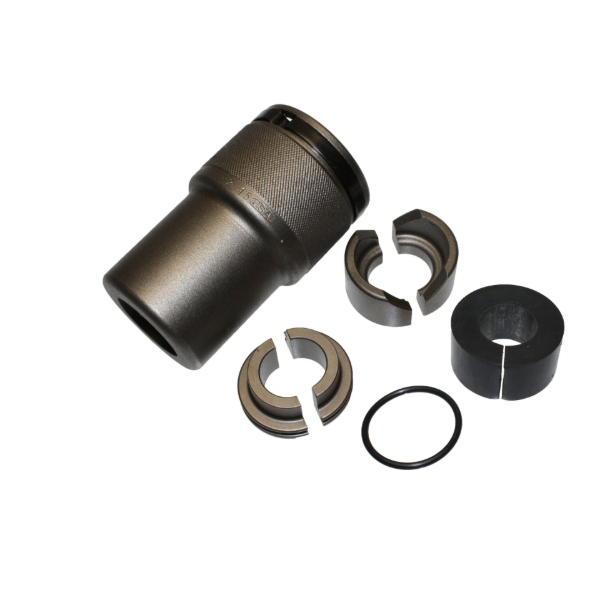

RUBBER BUFFERED RETAINER QTY 1

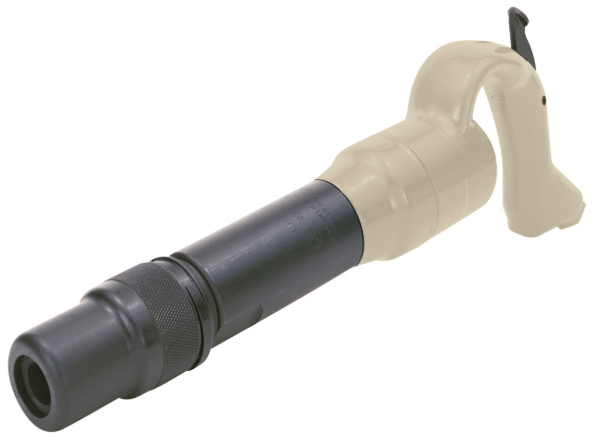

IR W2A1

Air Chipping Hammer, 2" Stroke, 2300 BPM, Hex Shank Round Collar

As the strongest chipping hammers in the Ingersoll Rand lineup, the W Series chipping hammers are ready to take on even the toughest of jobs.

Features And Benefits

• Power: With a die cast aluminum housing and a swan neck handle, these tools are as ergonomic as they are powerful and have an excellent power-to-weight ratio, making handling a breeze.
• Durability: These hammers have a heavy duty front end featuring a threaded barrel and rubber buffered retainer for increased steel and retainer life, to last you a long time.
• Reliability: With a long nozzle that allows the bit to rotate, you can expect the same result every time you use these hammers.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 1.13
Collar Type: Round
Color: Beige
Configuration/Handle Type: Swan Neck
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: No
Power Source: Air Powered
Product Length (in): 16.38
Product Weight (lb): 15.13
Retainer Type: Threaded barrel with rubber buffered
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 2
Warranty: 1-year

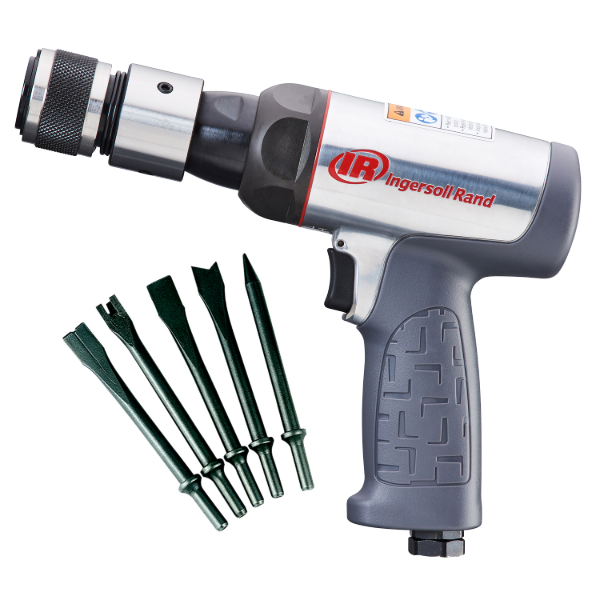

IR 123MAXK

Vibration Reduced Air Hammer 5-Piece Chisel Set, 3530 BPM, 2-5/8" Stroke, Round Shank

Great for front-end jobs, general bolt cutting, pin driving, and body shearing work, this short barreled hammer is ready to deliver the punch you need.

Features And Benefits

• Increased Power: The 123MAX hammer has a 15% impact force increase over standard air hammers.
• Reduced Vibration: The 123MAX vibration reduced air hammer comes equipped with anti-vibration features that reduce vibration by 30%.
• Comfort Grip: Shock reduction and anti-slip grip.
• Quick-Change Retainer: This quick-change retainer allows you to quickly and easily change out chisels, increasing your productivity as you work.
• Durable: This hammer can withstand anything, including repeated drops and harsh conditions. No matter where you take it, it will perform like new.
• Swivel Air Inlet: Prevents hose twisting during use.
• Optimized for the vehicle repair industry, heavy trucks, and MRO.

Includes: 123MAX Air Hammer, Quick Change Retainer & 5-piece Chisel Set
Product Application and Uses: Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 24.1
Air Consumption @ Load (l/min): 682.4
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 3530
Bore Diameter (in): 3/4
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Handle Material: Composite
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.2
Product Width (in): 2
Product Height (in): 7.2
Product Weight (lb): 3.9
Retainer Type: Quick Change
Shank SIze (in): .401
Shank Type: Round
Sound Pressure/Power Db(A): 95 / 106
Special Features: Vibration reduced
Standards/Certifications: Ce, Eac
Stroke Length (in): 2.63
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 119MAXK
• 121-K6
• 117K
• 135MAX
• 135MAXK

IR 182A83-578

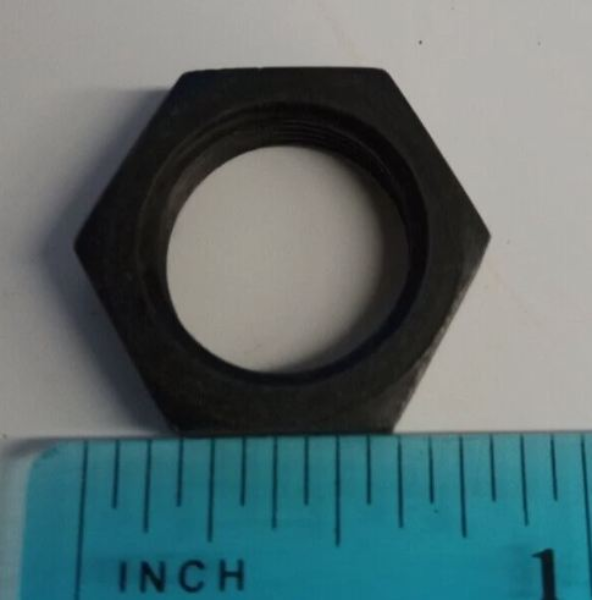

BEVEL GEAR LOCKNUT

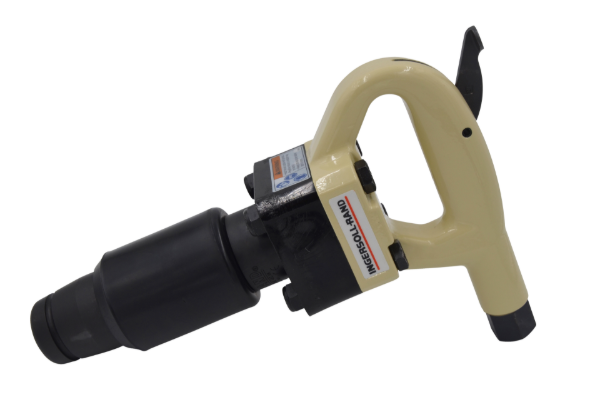

IR 2DA2SA

Air Chipping Hammer, 2" Stroke, 2200 BPM, Round Shank Oval Collar

The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits

• Weight: At 11.75 lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 2200
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 13.75
Product Weight (lb): 11.75
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.68
Shank Type: Round
Stroke Length (in): 2
Warranty: 1-year
