IR 172LNA1

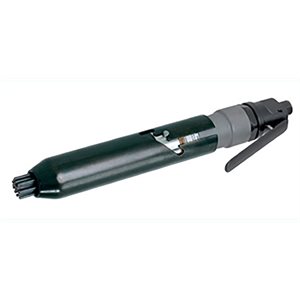

Air Needle Scaler, 5500 BPM, 9/16" Stroke
At 5,500 blows per minute, this lever-operated needle scaler is not only fast, but extremely durable and efficient.
Features And Benefits
- Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
- Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, along with a strengthened head block that will hold up in tough conditions.
- Comfort: Compact, well balanced and low vibration maximize operators comfort
- Power: 9/16" stroke, 5500 blows per minute.
Includes: 19 steel precision heat-treated needles (1/8" diameter 5" length)
Product Application and Uses: Remove Paint, Rust, Dirt, Weld Slags
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 12
Air Consumption @ Load (l/min): 340
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 5500
Bore Diameter (in): 0.94
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Needle Qty: 19 Needles
Non Sparking: No
Power Source: Air Powered
Product Length (in): 13.75
Product Width (in): 6.8
Product Height (in): 2.7
Product Weight (lb): 5.25
Shank SIze (in): .5
Shank Type: Ingersoll Rand Shank
Sound Pressure/Power Db(A): 107.5 / 118.5
Stroke Length (in): 0.56
Vibration Level (m/s2): 12.5
Warranty: 1-year
