GG AP2614
REACTOR A-25 SYSTEM, FUSION AP

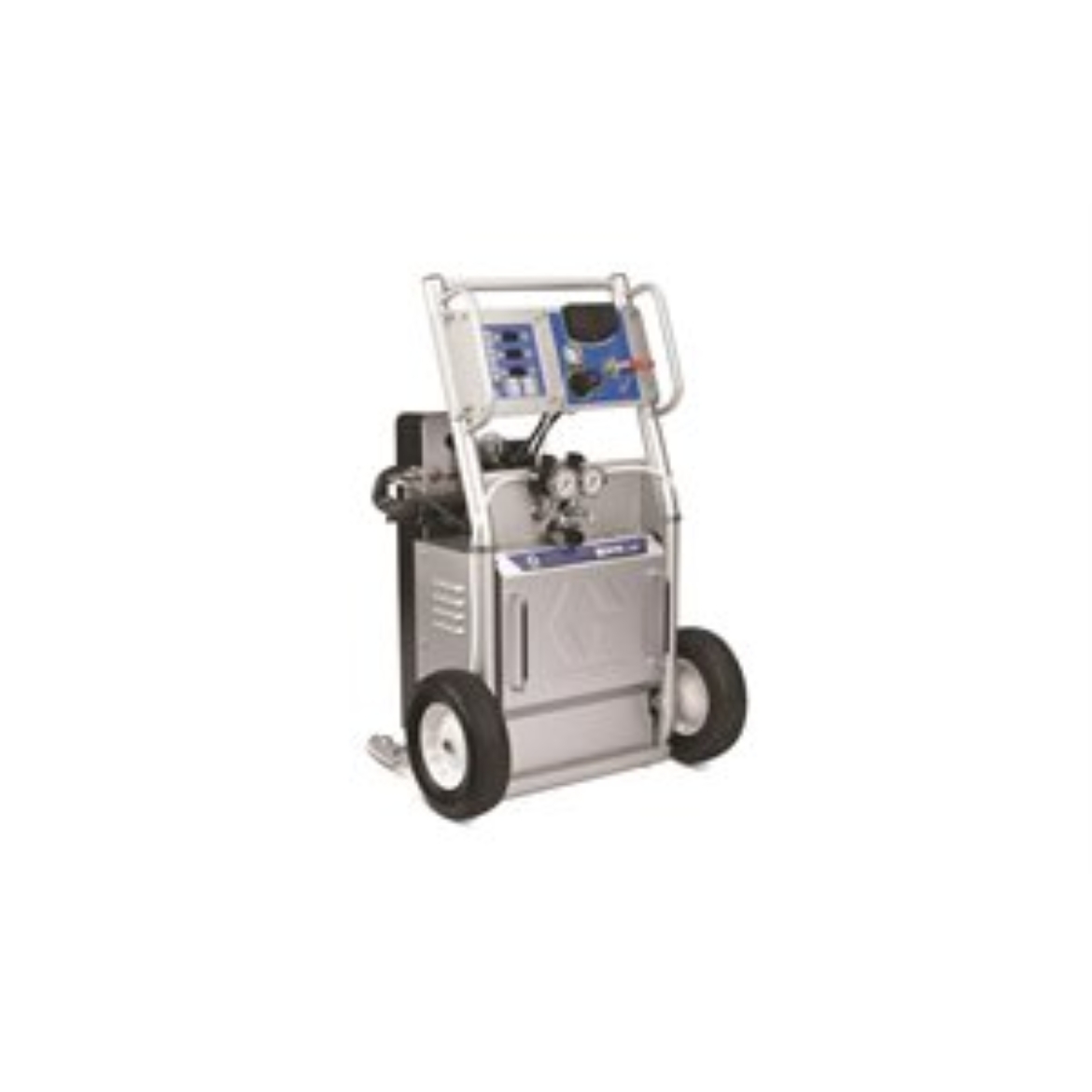

Graco AP2614 Reactor A25 Proportioner Package, Fusion AP Gun, Wheels, DataTrak, 230/400 V
The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when youre spraying at maximum flow rates - resulting in better quality foam.
Application: For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute.
- Maintains temperature setpoints for better yield
- Maintains consistent output pressure for uniform spray pattern
- Easy to operate and maintain
- DataTrak Control
Resettable counter tracks material usage
- Three Heat Zones
Three independent heat zones - ISO, resin and hose heat
Provide accurate heat control for reliable spraying to handle different chemical viscosities
Digital temperature controls
- Recirculation Manifold
A quick, easy way to balance system pressures
- NXT Air Motor
Low air consumption for increased efficiency
Muffler provides low operating noise levels
Air valve provides smooth and rapid changeover
- Quick Knockdown Lower Pumps
For easy disassembly and maintenance
- ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft
- ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft
- Model: Reactor
- Series: A-25
- Air Inlet Size (cm): 1.27
- Air Inlet Size (in): 1/2
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase)
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component A Inlet Size (in): 3/4
- Component A Inlet Size (mm): 19.05
- Component A Thread Gender: Female
- Component A Thread Type: NPT
- Component B Inlet Size (in): 3/4
- Component B Inlet Size (mm): 19.05
- Component B Thread Gender: Female
- Component B Thread Type: NPT
- Component Type: Two Component
- Hose Length (ft): 50, 10
- Hose Length (m): 15, 3
- Includes: Proportioner, Fusion AP Gun, Heated Hose, Wheels, DataTrak
- Material Application: Polyurethane Foam
- Maximum Air Consumption (SCFM): 28 scfm at 1500 psi
- Maximum Air Inlet Pressure (bar): 8.62
- Maximum Air Inlet Pressure (kPa): 862
- Maximum Air Inlet Pressure (psi): 125
- Maximum Flow Rate (kg/min): 11.4
- Maximum Flow Rate (lb/min): 25
- Maximum Fluid Temperature ( degree C): 88
- Maximum Fluid Temperature ( degree F): 190
- Maximum Fluid Viscosity (cP): 1500
- Maximum Fluid Temperature ( degree C): 88
- Maximum Fluid Temperature ( degree F): 190
- Maximum Fluid Viscosity (cP): 1500
- Minimum Fluid Viscosity (cP): 250
- Overall Depth (cm): 76.2
- Overall Depth (in): 30
- Overall
