Other Pumps

GG CM3L79

GG CM5F79

GG CM7F3F

CHECK-MATE SUPPLY UNIT,20:1,0 VOLT,S20,20L

Graco CM7F3F 20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button Quick placement of pail
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Closed Door Height (in): 14
• Closed Door Height (mm): 356

GG EC1141

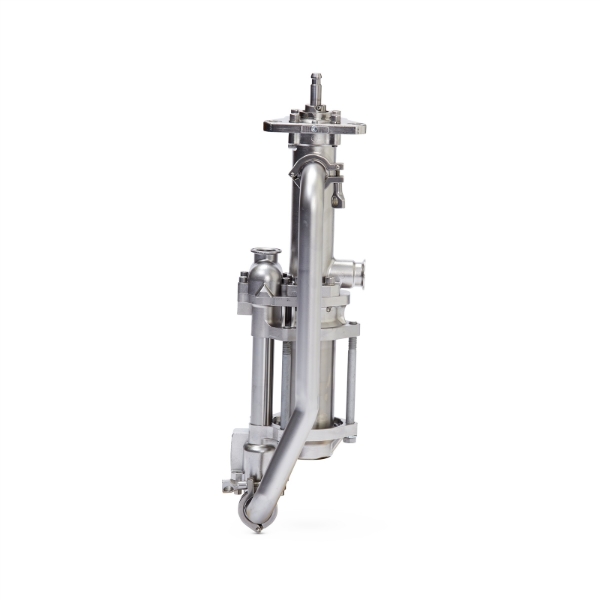

E-FLO PUMP, 1HP, 750, BSC, TRI, SLD, STND

Graco EC1141 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Basic, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand

The E-Flo DC (Dual Control) electric circulating pump has been found to be up to five times more efficient than similar sized pneumatic pumps – lowering your energy bill and saving you money

• Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
• Minimal pulsation at changeover provides a more consistent finish
• Electric motor eliminates icing – giving you smoother pump operation and better finished product

• Model: E-Flo
• Series: DC 4-Ball

• Application: Circulation

• Compatible Material: Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Sealed

• Includes: Basic Control, Stand

• Input Voltage (V ac): 250

• Material: Stainless Steel

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.14

• Maximum Input Amperage (A): 20

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Maximum Working Pressure (bar): 20.7
• Maximum Working Pressure (kPa): 2070
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Motor Type: AC

• Portable: Non-Portable

• Power Rating (HP): 1

GG EC1242

GG EFR2AJRC

EFR SYSTEM, 240V, ADM, 50, 100, CS

Graco EFR2AJRC 2:1 EFR Metering System 240 Volt with 50cc Low Volume and 100cc High Volume Z pumps Carbon Steel Manifold

The Graco Electric Fixed Ratio (EFR) system is a meter, mix and dispense system for two component sealant and adhesive delivery. Ideal for applications requiring precision dispense, the EFR provides superior control over material and dispensing of gaskets, beads, shots and potting applications. Trust in the EFR, which is accurate, versatile and easy to use.

• Model: EFR

GG EFR2AXXX

EFR SYSTEM, 240V, ADM, NO PUMPS

Graco EFR2AXXX EFR Metering System, 240 Volt with ADM & No Pumps

The Graco Electric Fixed Ratio (EFR) system is a meter, mix and dispense system for two component sealant and adhesive delivery. Ideal for applications requiring precision dispense, the EFR provides superior control over material and dispensing of gaskets, beads, shots and potting applications. Trust in the EFR, which is accurate, versatile and easy to use.

• Model: EFR
• A Pump Size (cc): No Pump
• Air Controls Included: Included
• Air Dryer Consumption (CFM): 0

• Air Dryer Model: N/A
• Air Inlet Size (cm): N/A
• Air Inlet Size (in): N/A

• Amperage (A): 20

• B Pump Size (cc): No Pump

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: None

• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Maximum Input Pressure (psi): 2000

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Power Source: Electric

GG EMC7164

GG EMC7274

GG G18C03

MERKUR SYSTEM PUMP 18:01 125CC CT STD

Graco G18C03 18:1 Merkur Pump, 2 gpm (7.5 lpm) fluid flow, Cart Mount, Pump/Gun Air Controls, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Compatible Material: Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Hose Inlet Diameter (cm): 0.476
• Hose Inlet Diameter (in): 3/16
• Hose Inlet Diameter (mm): 4.76

• Includes: Pump and Gun Air Controls, Suction Hose

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.5

• Maximum Working Pressure (bar): 124
• Maximum Working Pressure (kPa): 12400
• Maximum Working Pressure (psi): 1800

• Mount Type: Cart Mount

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Bare Package

• Pump Ratio: 18:1
• Pump Type: Pneumatic Piston Pump

GG HFRB-11AMAFANN

GG HFRB-14AGAHDNN

GG HFRB-14AHAGANN

GG HFRS52

GG HFRS94

GG HFRSA1

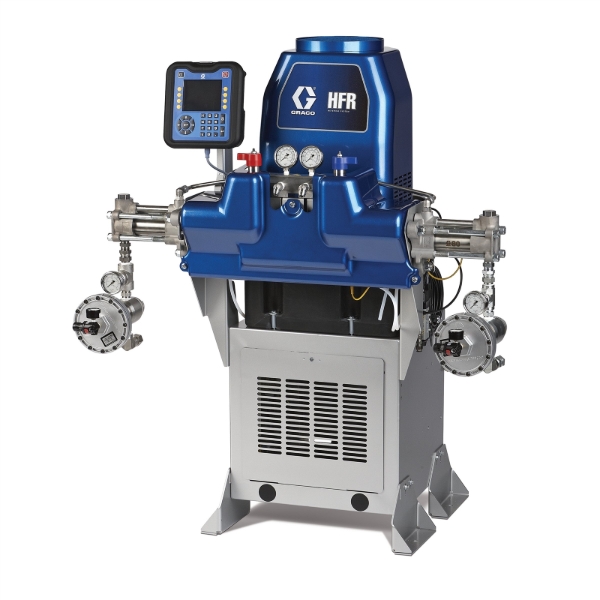

HFR SILICONE SYSTEM,SI,230/1,1:1,CS,NO FE

Graco HFRSA1 1:1 Ratio Carbon Steel HFR Metering System for Sealants & Adhesives

With its accuracy and repeatability, the Graco HFR lets you hit a specific ratio and volume – the first time, and every time. Static, dynamic, or impingement mixing options along with positive displacement pump technology will improve throughput while reducing scrap and rework. Whether drawing beads, putting down small or large material shots or using a robot with continuous flow, the modular design of the Graco HFR provides the flexibility to configure the components to your specific application.

Application: Some application examples include batch processing, potting, encapsulating, vacuum infusion, pultrusion and automated bead applications. Designed for flexibility, the Graco HFR Metering System is an advanced and reliable meter, mix and dispense solution for two-component materials, including adhesives, urethanes, polysulfides, epoxies, silicones and resins.

• More Technology, More Support, Less Investment

  • Constant pressure or constant flow rate material outputs
  • Lower cost than basic shot meters or gear pumps
  • Faster lead times – configured equipment solutions delivered faster than a custom engineered solution
  • Easier maintenance with standard parts â—¦Eliminate costly pump rebuilds and the need for backup pumps
  • In-person support and service through Graco's global distribution network

• Graco HFR technology succeeds the former Reactor IP

  • Precision, on-ratio dispense reduces material waste for a better bottom line
  • More technology for less money
  • Fully configurable
  • Stores 100 shot sizes and five sequences of 20 positions each
  • Compact footprint saves space in your plant
  • Intuitive, easy-to-use controls simplify training
  • Integrated USB lets you download process data onto a flash drive for further analysis

• Model: HFR
• Series: S

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPS

• Amperage (A): 55
• Applicator Type: Automatic

GG JC30M9

HIGH-FLO PUMP, 2200/1500, LOW DT, OPN, NPT

Graco JC30M9 High-Flo 4-Ball Pump, CS, 3:1, Low Noise Exhaust, DataTrak, Open Wet Cup Lower, NPT Fittings, Ultralife Rod/Cylinder

Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.

• Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
• Rugged body armor, won't rust or dent
• De-icing controls eliminate stalling
• DataTrak tracks material usage, monitors and protects your pump

• Model: High-Flo
• Series: 4-Ball

• Application: Circulation

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Open Wet Cup

• Includes: Carbon Steel Pump, Low Noise Exhaust, DataTrak Monitor, NPT Fittings, Ultralife Rods, Ultralife Cylinder

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 12

• Maximum Flow Rate (GPM): 23.2
• Maximum Flow Rate (L/min): 87.82

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 24
• Maximum Working Pressure (kPa): 2400
• Maximum Working Pressure (MPa): 2.4
• Maximum Working Pressure (psi): 350

• Motor Type: Low Noise NXT with DataTrak

• Portable: Non-Portable

• Pump Ratio: 3:1

GG JC40L9

HIGH-FLO PUMP, 2200/1000, LOW N, OPN, NPT

Graco JC40L9 High-Flo 4-Ball Pump, CS, 4:1, Low Noise Exhaust, Open Wet Cup Lower, NPT Fittings, Ultralife Rod/Cylinder

Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.

• Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
• Rugged body armor, won't rust or dent
• De-icing controls eliminate stalling

• Model: High-Flo
• Series: 4-Ball

• Application: Circulation

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Open Wet Cup

• Includes: Carbon Steel Pump, Low Noise Exhaust, NPT Fittings, Ultralife Rods, Ultralife Cylinder

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 12

• Maximum Flow Rate (GPM): 16.9
• Maximum Flow Rate (L/min): 63.97

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 31
• Maximum Working Pressure (kPa): 3100
• Maximum Working Pressure (MPa): 3.1
• Maximum Working Pressure (psi): 450

• Motor Type: Low Noise NXT

• Portable: Non-Portable

• Pump Ratio: 4:1

GG K30FH1

KING SPRAYER, 30:1, H-P, BF, HD, COMP

Graco K30FH1 King 30:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

• Simple Maintenance
  • This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
  • All motor parts are easily accessible and require simple maintenance.
• Improved Icing Performance
  • The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
  • The icing potential has been reduced by up to 70%
• Less Pulsation
  • With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
  • Eliminating the " wink" in your pattern - it is a difference you will feel.
• New Air Motor
  • Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.

• Model: King

• Approved for Hazardous Locations: Yes

• Compatible Material: Protective Coating

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Size (mm): 31.75
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Heavy-Duty Cart

• Gun Model: XTR-5

• Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun

• Lower Type: Integrated Filter

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 150

• Maximum Fluid Working Pressure (psi): 3150

• Maximum Sound Pressure Level (dB(A)): 81.48

• Maximum Tip Size (in): Variable

• Maximum Working Pressure (bar): 217
• Maximum Working Pressure (kPa): 21700
• Maximum Working Pressure (MPa): 21.7
• Maximum Working Pressure (psi): 3150

• Motor Type: XL High Performance

• Number of Guns: 1

• Package Options: Air Controls, Siphon Kit, Hose, Gun
• Package Pressure Ratio (Motor/Lower): 30:1 XL3400 / 220cc

• Power Source: Air

• Product Type: Single Leg
• Pump Mount Type: Heavy-Duty Cart

• Pump Rod Type: MaxLife
• Pump Type: Pneumatic Piston Pump

GG K40FH0

KING SPRAYER, 40:1, H-P, BF, HD, BARE

Graco K40FH0 King 40:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

• Simple Maintenance
  • This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
  • All motor parts are easily accessible and require simple maintenance.
• Improved Icing Performance
  • The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
  • The icing potential has been reduced by up to 70%
• Less Pulsation
  • With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
  • Eliminating the " wink" in your pattern - it is a difference you will feel.
• New Air Motor
  • Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.

• Model: King

• Approved for Hazardous Locations: Yes

• Compatible Material: Protective Coating

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Size (mm): 31.75
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Heavy-Duty Cart

• Gun Model: No Applicator

• Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit

• Lower Type: Integrated Filter

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 150

• Maximum Fluid Working Pressure (psi): 3800

• Maximum Sound Pressure Level (dB(A)): 81.48

• Maximum Tip Size (in): Variable

• Maximum Working Pressure (bar): 262
• Maximum Working Pressure (kPa): 26200
• Maximum Working Pressure (MPa): 26.2
• Maximum Working Pressure (psi): 3800

• Motor Type: XL High Performance

• Number of Guns: 0

• Package Options: Air Controls, Siphon Kit
• Package Pressure Ratio (Motor/Lower): 40:1 XL3400 / 180cc

• Power Source: Air

• Product Type: Single Leg
• Pump Mount Type: Heavy-Duty Cart

• Pump Rod Type: MaxLife
• Pump Type: Pneumatic Piston Pump

GG K60NH1

KING SPRAYER, 60:1, H-P, NF, HD, COMP

Graco K60NH1 King 60:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-7+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

• Simple Maintenance
  • This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
  • All motor parts are easily accessible and require simple maintenance.
• Improved Icing Performance
  • The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
  • The icing potential has been reduced by up to 70%
• Less Pulsation
  • With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
  • Eliminating the " wink" in your pattern - it is a difference you will feel.
• New Air Motor
  • Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.

• Model: King

• Approved for Hazardous Locations: Yes

• Compatible Material: Protective Coating

• Control Type: Fixed Ratio
• Convertible: Non-Convertible

• Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Size (mm): 31.75
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Type: NPT

• Frame Configuration: Heavy-Duty Cart

• Includes: Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun

• Lower Type: Non-Filter

• Material Application: Paints, Primers

• Maximum Air Inlet Pressure (psi): 150

• Maximum Fluid Working Pressure (psi): 6000

• Maximum Sound Pressure Level (dB(A)): 81.48

• Maximum Tip Size (in): Variable

• Maximum Working Pressure (bar): 417
• Maximum Working Pressure (kPa): 41700
• Maximum Working Pressure (MPa): 41.7
• Maximum Working Pressure (psi): 6000

• Motor Type: XL High Performance

• Number of Guns: 1

• Package Options: Air Controls, Siphon Kit, Hose, Gun
• Package Pressure Ratio (Motor/Lower): 60:1 XL6500 / 220cc

• Power Source: Air

• Product Type: Single Leg
• Pump Mount Type: Heavy-Duty Cart

• Pump Rod Type: MaxLife
• Pump Type: Pneumatic Piston Pump

GG L040S8

LOWER,CHEMICAL,040,S8

Graco L040S8 Z-Pump, 40 cc, Elite, S8

Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Elite coatings and 7/8 inch (2.22 cm) checks easily manage material wear from thermal interface material (TIMs) or other abrasive applications.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Elite high-wear pump seals reduce maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S8

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 7/8
• Ball Material: Silicon Nitride

• Coating Type: Elite

GG L050S4

LOWER, CHEMICAL, 050, SST, UCUP

Graco L050S4 Z-Pump, 50 cc, Severe Duty, S4

Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S4

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1/2
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: EFR, HFR

• Maximum Flow Rate (GPM): 0.79

• Maximum Operating Temperature (°F): 180
• Maximum Output (cm³): 50

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG L075S4

GG L080S4

LOWER, CHEMICAL, 080, SST, UCUP

Graco L080S4 Z-Pump, 80 cc, Severe Duty, S4

Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S4

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1/2
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: EFR, HFR

• Maximum Flow Rate (GPM): 1.27

• Maximum Operating Temperature (°F): 180
• Maximum Output (cm³): 80

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000
