PROMIX 2KE PUMP, 23:1 PROPORTIONER

GG 24F096

PROMIX 2KE PROPORTIONER, SYSTEM, PUMP

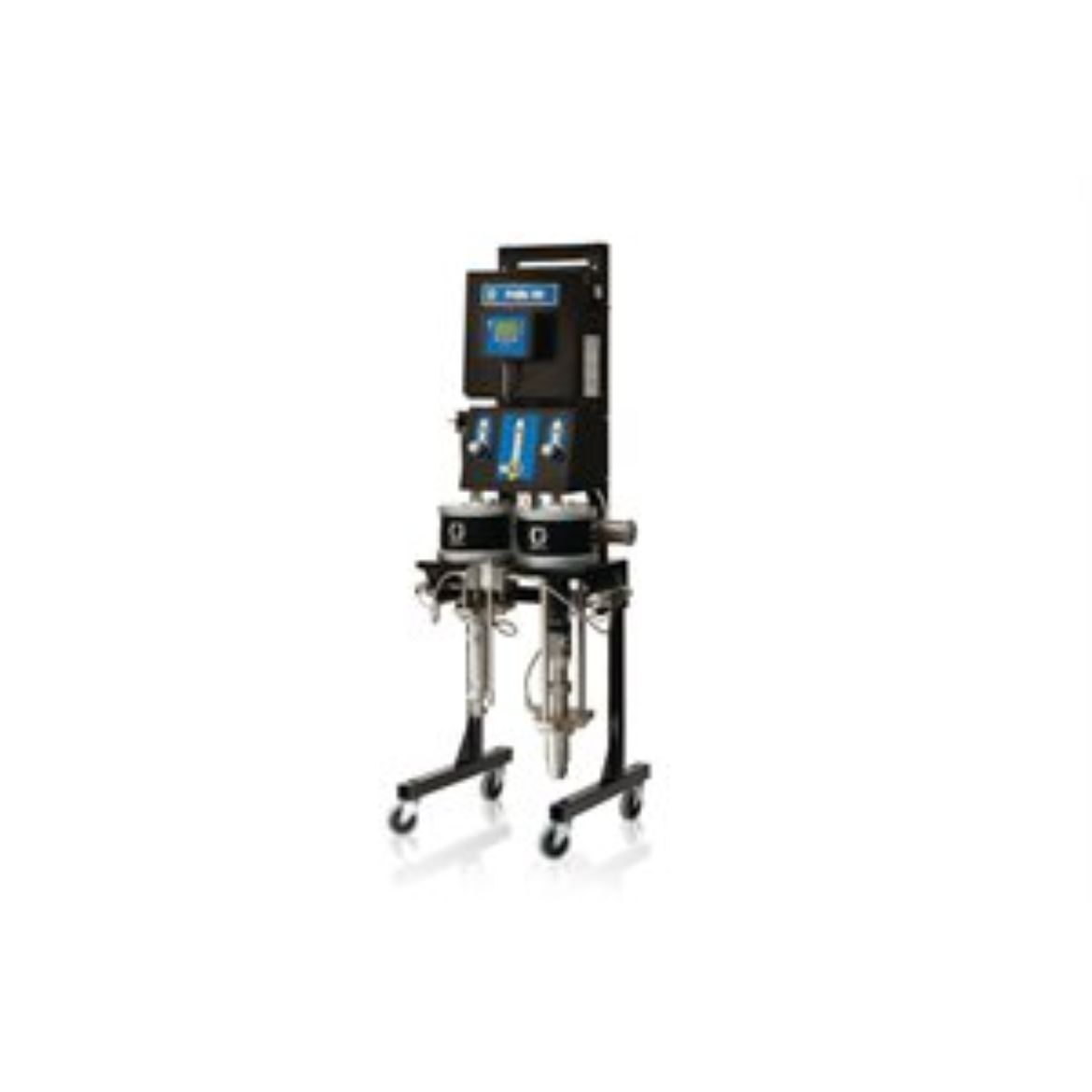

Graco 24F096 ProMix 2KE Proportioner, electric, 23:1 Air Assist Merkur pumps, USB reporting, for non-hazardous location

The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.

• Designed for multi-color, two component, in-booth applications
• Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
• Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
• Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more

• Model: ProMix
• Series: 2KE

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual Air-Assist

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Includes: Air Motor, A-Lower, B-Lower, A-Tie Rod, B-Tie Rod, Lower Adapter, TSL Reservoir

• Material Type: Two Component

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Fluid Viscosity (cP): 5000

• Maximum Fluid Viscosity (cP): 5000

• Maximum Mix Ratio: 30:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 158
• Maximum Working Pressure (kPa): 15800
• Maximum Working Pressure (MPa): 15.8
• Maximum Working Pressure (psi): 2300
• Measuring Type: Pump

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: N/A
• Number of Colors: 1

• Number of Resin Colors: 1

• Power Source: Electric

• Proportioning Type: Manual Electronic

• Pump Ratio: 23:1
• Pump Type: Air-Assisted
