Linelazer Sprayer, V,3400

GG 25M224

LINELAZER SPRAYER, V, 3400

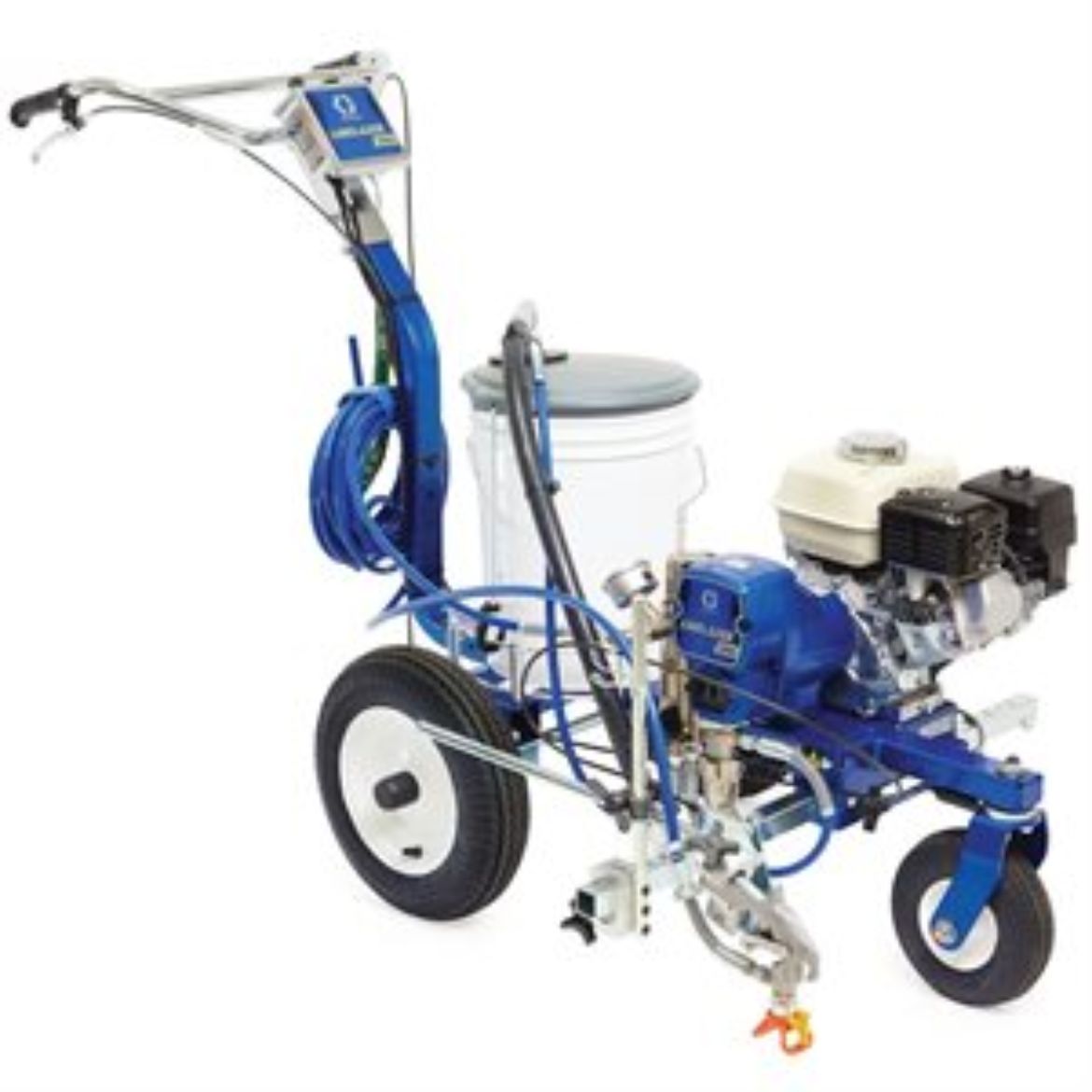

Graco 25M224 LineLazer 3400 Gas Airless Line Striper, 1 Manual Gun

The LineLazer 3400 is the professional choice for dependable, 1-gun striping for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.

• Updated Frame


  Improved Tracking & Line Quality

  Added stability with newly designed, 3-inch longer frame

  Accepts 15-gallon hopper and EZ Bead System

• Rear Mount Hose Wrap


  Easier Stencil Jobs

  Easy on/off functionality

• Easy-To-Reach Controls


  Fine-tune the striper without stopping

  Operator controls are located on the handlebars

• Electronic Pressure Control


  Improved Line Quality

  Accurate, tight tolerance system

• Endurance Chromex Pump


  Reliable, Long-Life Pump

  Industry-best pump performance — field-proven design

  Handle the most demanding materials with long-life rod treatment

  4X harder than ordinary chrome

• Honda GX Engine


  Reliable, Easy-to-Start Power

  Contractor-preferred — excellent power and proven reliability

  Oil Alert shuts down engine to prevent damage if oil level drops too low

• Easy Out Pump Filter


  Easy Pump Maintenance & Less Clogging

  Inside-out design means less mess with fewer tip clogs

• Front Swivel Wheel


  Easier Maneuverability

  Ability to stripe right up to the curb

  Makes easy work of hard-to-do curves

  Years of dependable operation with tapered locking pin design

• Model: LineLazer
• Series: 3400
• Product Series: Standard

• Attachments: None

• Compatible Material: Road-Marking Paint
• Compatible Surfaces: Pavement, Turf

• Engine Brand: Honda
• Engine Model: GX120

• Fuel Tank Capacity (gal): 0.66
• Fuel Tank Capacity (L): 2.5

• Gun Activation: 1 Manual

• Hopper Volume Capacity (gal): 15
• Hopper Volume Capacity (L): 56.8

• Includes: Flex Plus Gun, LineLazer RAC 5 317 Spray Tip, LineLazer RAC 5 319 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL, 4 oz (118 ml)

• Maximum Flow Rate (GPM): 0.75
• Maximum Flow Rate (L/min): 2.8

• Maximum Sound Pressure Level (dB(A)): 91

• Maximum Tip Size (cm): 0.0686
• Maximum Tip Size (in): 0.027
• Maximum Tip Size (mm): 0.6858

• Maximum Working Pressure (bar): 227
• Maximum Working Pressure (kPa): 2270
• Maximum Working Pressure (psi): 3300

• Number of Colors: One Color

• Number of Guns: 1
• Number of Pumps: 1

• Overall Height (cm): 100.0
• Overall Height (in): 39.4
• Overall Height (mm): 1000.76
• Overall Length (cm): 168.4
• Overall Length (in): 66.3
• Overall Length (mm): 1684.02
• Overall Width (cm): 66.0
• Overall Width (in): 26.0
• Overall Width (mm): 660.4

• Power Rating (HP): 4
• Power Rating (kW): 2.98
• Power Rating (W): 2980
• Power Source: Gas

• Pump Type: Endurance

• Recommended Annual Usage: Up to 250 gallons per week
