Other Pumps

GG 231063

PRESIDENT SPRAYER,PAINT,30-1,55 GL

Graco 231063 Stationary Airless Paint Sprayer- 30:1 President Hydra–Spray

GG 232256

GG 235540

GG 236612

GG 246904

FIREBALL 225 PUMP, 3:1, 16 GL

Graco 246904 Mini Fire-Ball® 225 3:1 16 Gallon (60 Liter) Cover Mounted Oil Pump Package

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 43.5

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Includes: Hose Installation Kit, Drum Cover, Air Regulator

• Maximum Air Consumption (SCFM): 20
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 37
• Maximum Working Pressure (kPa): 3700
• Maximum Working Pressure (MPa): 3.7
• Maximum Working Pressure (psi): 540

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 24F113

PROMIX 2KE PROPORTIONER, SYSTEM, PUMP

Graco 24F113 ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur & Merkur Bellows pumps, USB reporting, for hazardous location

The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.

• Designed for multi-color, two component, in-booth applications
• Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
• Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
• Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more

• Model: ProMix
• Series: 2KE

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2
• Applicator Type: Manual Air Spray

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Includes: Air Motor, Adapter Plate, A-Lower, B-Lower, A-Tie Rod, B-Tie Rod, Coupling, Lower Adapter, TSL Reservoir

• Material Type: Two Component

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Fluid Viscosity (cP): 5000

• Maximum Fluid Viscosity (cP): 5000

• Maximum Mix Ratio: 30:1
• Maximum Number of Colors: Up to 3

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300
• Measuring Type: Pump

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 1
• Number of Color Valves: N/A
• Number of Colors: 1

• Number of Resin Colors: 1

• Overall Depth (cm): 37.6
• Overall Depth (in): 14.8
• Overall Depth (mm): 376

• Overall Height (cm): 91.7
• Overall Height (in): 36.1
• Overall Height (mm): 917
• Overall Width (cm): 51.1
• Overall Width (in): 20.1
• Overall Width (mm): 511

• Power Source: Air

• Proportioning Type: Manual Electronic

• Pump Ratio: 3:1
• Pump Type: Air Spray Bellows

GG 24G502

GG 24V004

GG 24V007

GG 24X427

CHEMSAFE PUMP, 307PT-P01A-PT3-PT-PT-PO

Graco 24X427 ChemSafe 307 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port

Gracos ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. Theres no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus theyre dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.

• Max flow rate of 7.9 gpm (30 lpm)
• High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
• Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
• Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater

• Model: ChemSafe
• Series: 307

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE Overmold

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: PTFE

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: PTFE

• Maximum Air Consumption (SCFM): 9.3
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 610

• Maximum Flow Rate (GPM): 6.7
• Maximum Flow Rate (L/min): 25.4

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 100
• Maximum Operating Temperature (°F): 212

• Maximum Solid Size (cm): 0.2
• Maximum Solid Size (in): 0.08
• Maximum Solid Size (mm): 2

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 24X429

CHEMSAFE PUMP, 205PT-P01A-PT3-PT-PT-PO

Graco 24X429 ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port

Gracos ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. Theres no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus theyre dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.

• Max flow rate of 3.6 gpm (14 lpm)
• High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
• Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
• Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater

• Model: ChemSafe
• Series: 205

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE Overmold

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: PTFE

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: PTFE

• Maximum Air Consumption (SCFM): 4.8
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 375

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.5

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 100
• Maximum Operating Temperature (°F): 212

• Maximum Solid Size (cm): 0.15
• Maximum Solid Size (in): 0.06
• Maximum Solid Size (mm): 1.5

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 279035

PUMP, FTB100, 1:1, UNIVERSAL

Graco 279035 Fast-Ball 100 Universal Pump

Redesigned for enhanced quality, durability and reliability, the Fast-Ball 100 air-operated piston pump is easy to install, easy to operate, and simple design allows for efficient serviceability when necessary to minimize downtime and keep your operations running.

• In-line design with fewer parts for less pump wear
• Double-acting pump provides reliable fluid flow
• Differential air motor ensures smooth pumping

• Model: Fast-Ball
• Series: 100

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Fast Lube and Service Centers

• Compatible Material: ATF, Gear Lube, Oil

• Cycles Per Gallon: 31

• Fluid Inlet Size (in): 1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (psi): 150

• Maximum Continuous Cycle Rate (CPM): 170

• Maximum Working Pressure (psi): 150

• Power Type: Pneumatic

• Pump Ratio: 1:1

GG 557815

METER-FLO PUMP, 55/83 CU IN/MIN CCW NPT

Graco 557815 Meter-Flo Electric Pump, 84 cu in/min (1377 cc/min) @ 1,725 rpm, NPT Ports, CCW

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm's with output volumes of 245 cubic inches per minute (4015 cc/min).

• Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
• Positive displacement helps assure constant delivery of proper volume.
• Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
• Adjustable pressure relief valve protects pump against overload conditions.
• Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
• Lubriquip part number 540-800-021

• Model: Meter-Flo

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPT

• Maximum Flow Rate (ci/min): 84

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum SUS Grade (SUS): 3000

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature (°C): 10
• Minimum Operating Temperature (°F): 50

• Minimum SUS Grade (SUS): 300

• Power Type: Electric

GG 563307

GG 704MS8

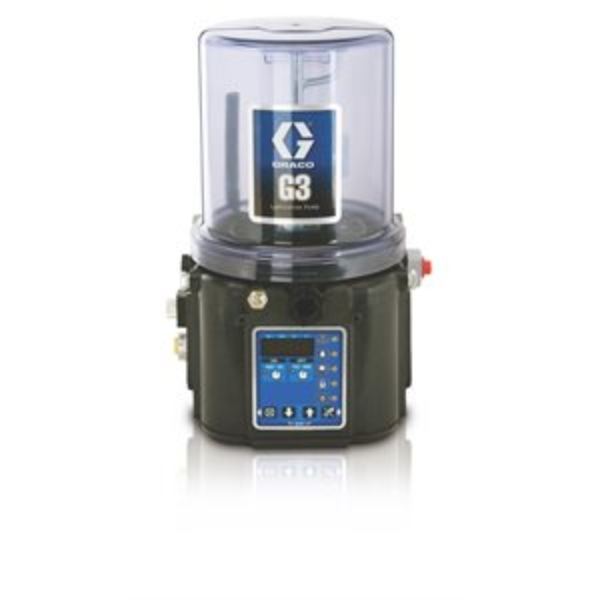

GG 96G014

G3 PRO PUMP, G-ACPR-2LFL00-0D000000

Graco 96G014 G3 Pro Grease Lubrication Pump, 90-240 VAC, 2 Liter, Follower Plate, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Current (A): 1.5
• Alarm Relay Inductive Maximum Operating Voltage (VAC): 250
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 0.2
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Operating Voltage (VAC): 250
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 µA, 10m VDC
• Alarm Relay Resistive Rated Load (A): 0.4

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Follower Plate, Low Level

• Input Cycle Rate (Hz): 8
• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 22.9
• Overall Depth (in): 9
• Overall Depth (mm): 229

• Overall Height (cm): 33.7
• Overall Height (in): 13.25
• Overall Height (mm): 337
• Overall Width (cm): 20.3
• Overall Width (in): 8
• Overall Width (mm): 203

GG CM9A2B

CHECK-MATE SUPPLY UNIT,61:1,0 V,S20 CART,20L

Graco CM9A2B 61:1 Ratio 20 L L20C Cart Mounted Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20c - Same as the S20, but includes a cart
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

GG EC3D52

GG EC5941

E-FLO PUMP, DC, 3000CC, SEALED

Graco EC5941 E-Flo DC 4-Ball Electric Circulation Pump, 3000cc, 2x2 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

• Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
• Minimal pulsation at changeover provides a more consistent finish
• Electric motor eliminates icing – giving you smoother pump operation and better finished product

• Model: E-Flo
• Series: DC 4-Ball

• Application: Circulation

• Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Sealed

• Includes: Advanced Control Input, Stand

• Input Voltage (V ac): 240

• Material: Stainless Steel

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 15.9
• Maximum Flow Rate (L/min): 60.19

• Maximum Input Amperage (A): 20

• Maximum Operating Temperature (°C): 40
• Maximum Operating Temperature (°F): 104

• Maximum Working Pressure (bar): 27.6
• Maximum Working Pressure (kPa): 2760
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 400

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Motor Type: AC

• Portable: Non-Portable

• Power Rating (HP): 4

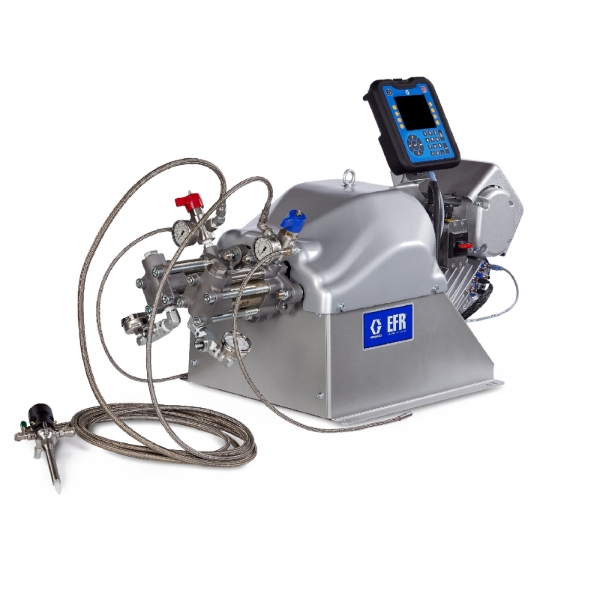

GG EFR4AXXX

EFR SYSTEM, 480V, ADM, NO PUMPS

Graco EFR4AXXX EFR Metering System 480 Volt w/ ADM & No Pumps

The Graco Electric Fixed Ratio (EFR) system is a meter, mix and dispense system for two component sealant and adhesive delivery. Ideal for applications requiring precision dispense, the EFR provides superior control over material and dispensing of gaskets, beads, shots and potting applications. Trust in the EFR, which is accurate, versatile and easy to use.

• Model: EFR
• A Pump Size (cc): No Pump
• Air Controls Included: Included
• Air Dryer Consumption (CFM): 0

• Air Dryer Model: N/A
• Air Inlet Size (cm): N/A
• Air Inlet Size (in): N/A

• Amperage (A): 10

• B Pump Size (cc): No Pump

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: None

• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Maximum Input Pressure (psi): 2000

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Power Source: Electric

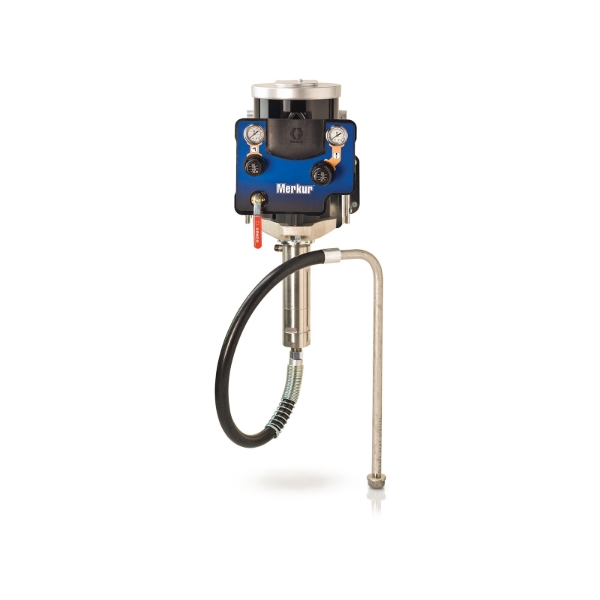

GG G36W03

MERKUR SYSTEM PUMP 36:01 100CC WA STD

Graco G36W03 36:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Wall Mount, Pump Air Controls

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency External valve access allows for easy servicing and online replacement to minimize downtime

• Model: Merkur

GG HFRB-14AMAMDNN

GG HSHC5B

XD SERIES 30 REEL, 1/2 X 50, GREASE, BLUE

Graco HSHC5B XD30, Grease, 1/2 in. (13 mm) Inlet, 1/2 in. X 50 ft. (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco's XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

• Model: XD
• Series: 30

• Application: Grease

• Color: Metallic Blue

• Dry Weight (lb): 98

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 50
• Hose Length (m): 15

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPSM

• Maximum Working Pressure (psi): 5000

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7

• Overall Height (in): 27.6
• Overall Height (mm): 701
• Overall Length (in): 25.96
• Overall Length (mm): 659
• Overall Width (in): 9.0
• Overall Width (mm): 229

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Grease

GG N34DN0

GG P14LSM
