G3 Pro Pump,G-Acpr-2Lfl00-0D000000

GG 96G014

G3 PRO PUMP, G-ACPR-2LFL00-0D000000

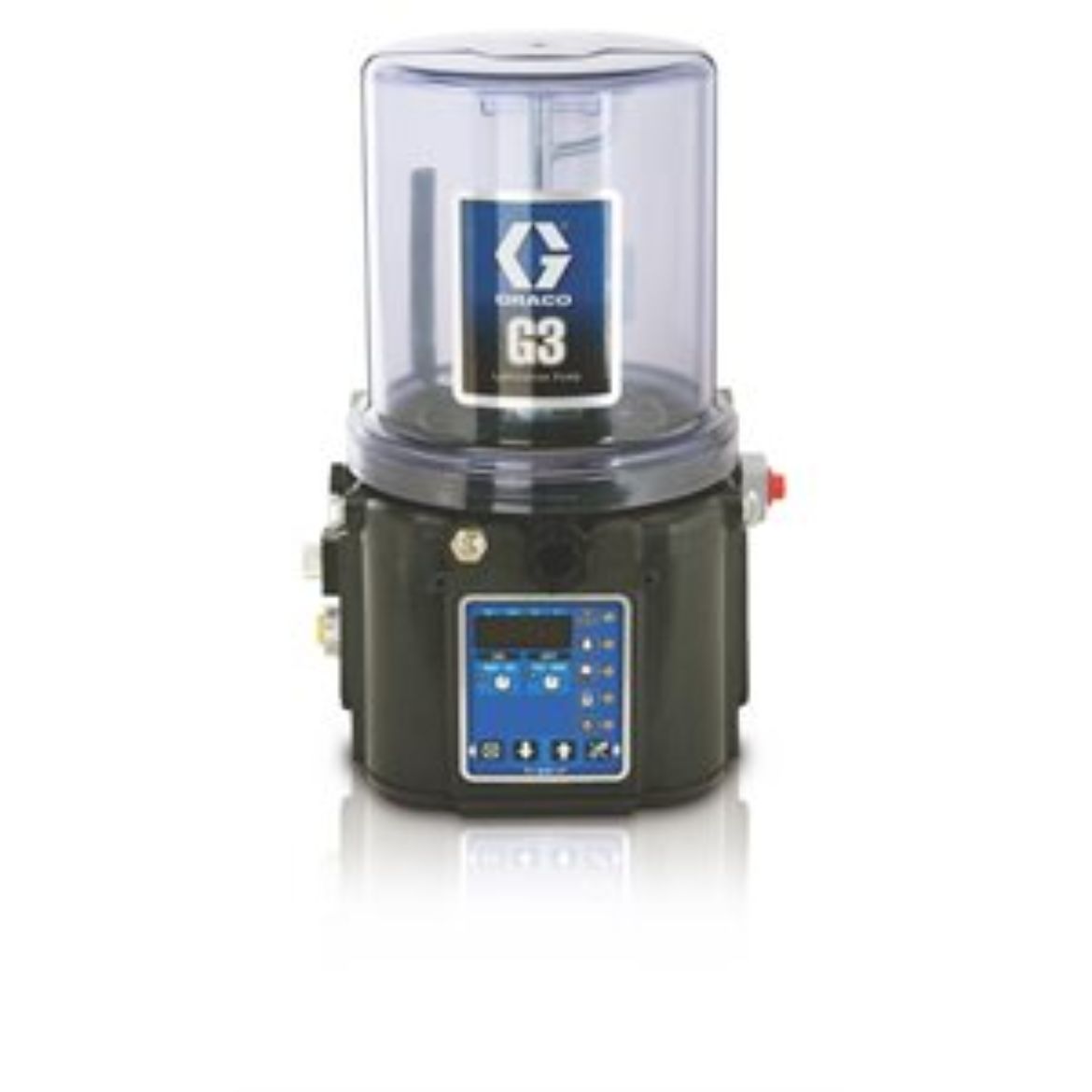

Graco 96G014 G3 Pro Grease Lubrication Pump, 90-240 VAC, 2 Liter, Follower Plate, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option also available)
• Pre-lube function can initiate lube cycle on start-up

• Model: G3
• Series: Pro

• Alarm Relay Inductive Maximum Operating Current (A): 1.5
• Alarm Relay Inductive Maximum Operating Voltage (VAC): 250
• Alarm Relay Inductive Maximum Switching Capacity: 25 VA, 30 W
• Alarm Relay Inductive Minimum Permissible Load: 10 ?A, 10m VDC
• Alarm Relay Inductive Rated Load (A): 0.2
• Alarm Relay Resistive Maximum Operating Current (A): 3
• Alarm Relay Resistive Maximum Operating Voltage (VAC): 250
• Alarm Relay Resistive Maximum Switching Capacity: 50 VA, 60 W
• Alarm Relay Resistive Minimum Permissible Load: 10 µA, 10m VDC
• Alarm Relay Resistive Rated Load (A): 0.4

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Control Options: Pro

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Follower Plate, Low Level

• Input Cycle Rate (Hz): 8
• Input Impedance: 1.1
• Input Load Current (mA @ 24 VDC): 22
• Input Maximum Off Current (mA): 1.5
• Input Maximum Residual Voltage (V): 4
• Input Required Switch Type: Normally Open
• Input Response Time (ms): 60
• Input Sensor Voltage (VDC): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 1.2
• Low Level Contact Rating (W): 10
• Low Level Switch Rating (VDC): 200
• Low Level Switching Current (A): 0.5

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Machine Count Sensor Inputs: 1
• Number of Pressure and Cycle Sensor Inputs: 3
• Number of Pump Elements: Up to 3

• Overall Depth (cm): 22.9
• Overall Depth (in): 9
• Overall Depth (mm): 229

• Overall Height (cm): 33.7
• Overall Height (in): 13.25
• Overall Height (mm): 337
• Overall Width (cm): 20.3
• Overall Width (in): 8
• Overall Width (mm): 203
