Other Pumps

GG C100-V2

GG P63LCS

CHECK-MATE PUMP, 63:1 3400/100 CS SD

Graco P63LCS 63:1 - 100cc Check-Mate Pump with NXT 3400 Air Motor, Severe Duty Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• NXT 3400 Air Motor


  Low Noise

  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 100cc Check-Mate Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Xtreme Coupler - No tool connection

  Quick-disconnect coupler for easy maintenance

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity

  • NEW Xtreme® Coupler

    Quick-disconnect coupler for easy maintenance

    • Replaceable Outlet Fitting

      Reduces repair costs

      • Piston Valve with Floating Piston Seal

        For maximum pressure balance over a range of material viscosities

        • Replaceable Seat

          Minimizes service costs

          • Floating Priming Plate

            Provides uniform flow

            • Cast Outlet and Inlet Housing

              Improves structural integrity

              • NEW Cartridge Throat Packings

                Allows for easy servicing without removing from ram

                • Modular Air Valve

                  De-icing controls

                  Up to 50% quieter than previous models

                  Modular air valve - eliminates stalling, easy-to-repair

                  • Hard Part Coatings

                    Standard Severe Dutyâ„¢ coating on rods and cylinder maximizes wear life




                    • Model: Check-Mate
                    • Ambient/Warm Melt/Hot Melt: Ambient
                    • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
                    • Fluid Outlet Size (in): 3/4
                    • Fluid Outlet Thread Gender: Male
                    • Fluid Outlet Thread Type: NPT
                    • Includes: Motor, Displacement Pump
                    • Material: Carbon Steel
                    • Maximum Working Pressure (bar): 441
                    • Maximum Working Pressure (kPa): 44100
                    • Maximum Working Pressure (MPa): 44.1
                    • Maximum Working Pressure (psi): 6300
                    • Power Type: Pneumatic
                    • Pump Ratio: 63:1

GG 223596

MONARK PUMP,23:1 (CHROME)

Graco 223596 Series B 23:1 Ratio Monark Pump

• Reliable, low maintenance air motor
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids Drum and stubby length models available for mounting and application flexibility

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

GG 226290

MANUAL PUMP, HAND, ROTARY

Graco 226290 Rotary Pump for 16 Gallon (60 Liter) or 55 Gallon (200 Liter) Bulk Lubricants for Petroleum-Based Products - 1 Gallon per 18 Cycles

Rotary hand pump for dispensing bulk fluids.

• Application: Industrial

• Compatible Material: Oil

• Includes: Bung Adapter, Spout Outlet

GG 24W351

ENDURA-FLO PUMP, 4:1 AODD, 350, TRI, STD

Graco 24W351 Endura-Flo 4D350, 4:1 Air Operated Diaphragm Pump, 350cc, Tri-Clamp

The Endura-Flo 4D offers the industry's highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

• Model: Endura-Flo
• Series: 4D350

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Tri-Clamp

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4

• Includes: Tri-Clamp Fittings

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 5.5
• Maximum Flow Rate (L/min): 20.8

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Fluid Pressure (bar): 28
• Maximum Fluid Pressure (kPa): 2800
• Maximum Fluid Pressure (MPa): 2.8
• Maximum Fluid Pressure (psi): 400

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Overall Height (in): 14.39

• Power Source: Air

• Pump Ratio: 4:1

GG 24X485

CHEMSAFE PUMP, 1590UH-P01A-UH3-UH-PT-PO

Graco 24X485 ChemSafe 1590 Air Operated Double Diaphragm Plastic Pump

• Model: ChemSafe
• Series: 1590

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE Overmold

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: UHMWPE

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: UHMWPE

• Maximum Air Consumption (SCFM): 46
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 230

• Maximum Flow Rate (GPM): 100
• Maximum Flow Rate (L/min): 379

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 70
• Maximum Operating Temperature (°F): 158

• Maximum Solid Size (cm): 203
• Maximum Solid Size (in): 80
• Maximum Solid Size (mm): 2030

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 25M739

ENDURA-FLO PUMP, 3:1 AODD, 150, TRI, STD

Graco 25M739 Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, Tri-Clamp

The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

• Model: Endura-Flo
• Series: 3D150

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Tri-Clamp

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4

• Includes: Tri-Clamp Fittings

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.1

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Power Source: Air

• Pump Ratio: 3:1

GG 288638

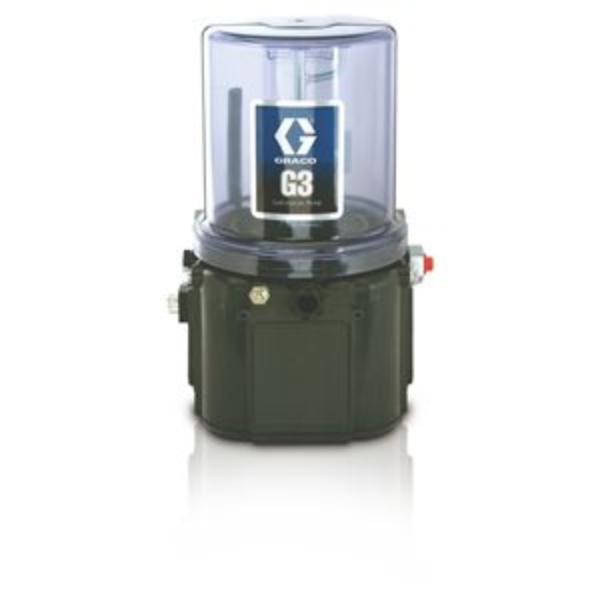

GG 96G007

G3 STANDARD PUMP, G-ACNC-2L0A00-LD000000

Graco 96G007 G3 Standard Grease Lubrication Pump, 90-240 VAC, 2 Liter, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

• No internal controller–use with separate or existing machine control for a low cost solution
• Capable of sending a low level signal to your external controller or PLC

• Model: G3
• Series: Standard

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Control Options: Standard

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Injector-Based Systems, Series Progressive Systems

• Includes: Wiper Arm, External Low Level

• IP Rating: IP69K

• Maximum Fill Inlet Pressure (bar): 344.7
• Maximum Fill Inlet Pressure (kPa): 34470
• Maximum Fill Inlet Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Run Time (min): 30

• Maximum Voltage (V ac): 264

• Maximum Working Pressure (bar): 351.6
• Maximum Working Pressure (kPa): 35160
• Maximum Working Pressure (MPa): 35.1
• Maximum Working Pressure (psi): 5100

• Minimum Voltage (V ac): 88

• Number of Pump Elements: Up to 3

• Overall Depth (cm): 22.9
• Overall Depth (in): 9
• Overall Depth (mm): 229

• Overall Height (cm): 33.7
• Overall Height (in): 13.25
• Overall Height (mm): 337
• Overall Width (cm): 20.3
• Overall Width (in): 8
• Overall Width (mm): 203

• Power Connection Type: DIN

• Power Type: Electric

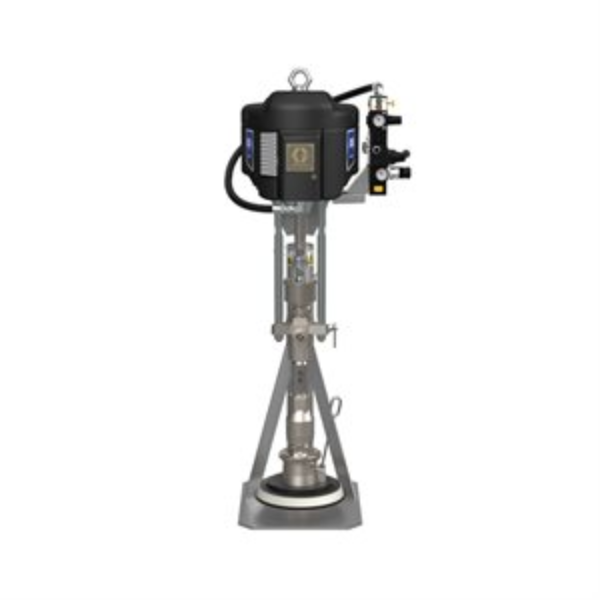

GG CM153B

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, S20, 20L

Graco CM153B 63:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 441
• Maximum Working Pressure (kPa): 44100
• Maximum Working Pressure (MPa): 44.1
• Maximum Working Pressure (psi): 6300

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 63:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG 239327

GG 25M743

ENDURA-FLO PUMP, 3:1 AODD, 150, NPT, ADV

Graco 25M743 Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, NPT, DataTrak

The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.

• Endure-Flo diaphragms last longer against extreme operating conditions
• Easy access to critical components for fast online maintenance
• Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
• Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
• DataTrek option prevents runaway and tracks material usage

• Model: Endura-Flo
• Series: 3D150

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set

• Connection Type: Threaded

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Type: NPT

• Includes: NPT Fittings, DataTrak

• Material: Stainless Steel

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 2.4
• Maximum Flow Rate (L/min): 9.1

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300

• Maximum Operating Temperature (°C): 50
• Maximum Operating Temperature (°F): 122

• Power Source: Air

• Pump Ratio: 3:1

GG 557816

METER-FLO PUMP, 76/116 CU IN/MIN CCW NPT

Graco 557816 Meter-Flo Electric Pump, 117 cu in/min (1917 cc/min) @ 1,725 rpm, NPT Ports, CCW

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm's with output volumes of 245 cubic inches per minute (4015 cc/min).

• Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
• Positive displacement helps assure constant delivery of proper volume.
• Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
• Adjustable pressure relief valve protects pump against overload conditions.
• Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
• Lubriquip part number 540-800-041

• Model: Meter-Flo

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPT

• Maximum Flow Rate (ci/min): 117

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Fluid Output Pressure (bar): 103
• Maximum Fluid Output Pressure (psi): 1500

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum SUS Grade (SUS): 3000

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature (°C): 10
• Minimum Operating Temperature (°F): 50

• Minimum SUS Grade (SUS): 300

• Power Type: Electric

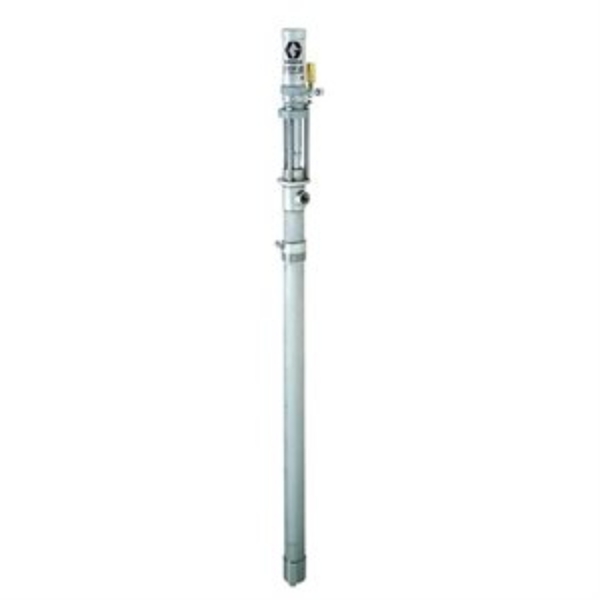

GG 237131

FAST-FLO PUMP, (1:1)

Graco 237131 1:1 Ratio Fast-Flo Air Operated Stubby Piston Transfer Pump

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 7.1

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

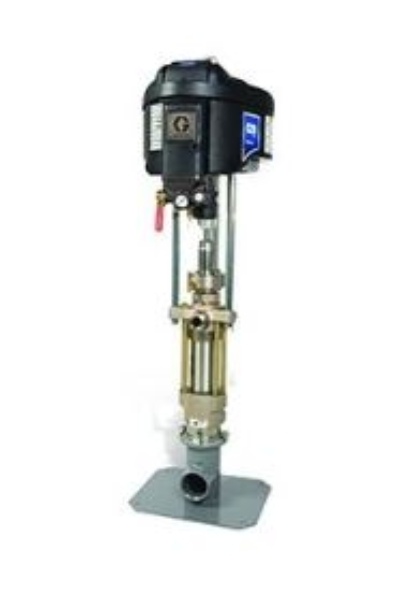

GG 24E008

CHECK-MATE SYSTEM, 29:1, FLOOR STAND

Graco 24E008 NXT Check-Mate 29:1 Floor Standing Oil Pump without DataTrak and Thermal Relief Kit

Tested to outperform and outlast all other pumps on the market – with its long-life design and intuitive, easy-to-use controls – the NXT Check-Mate pump is the best value for the money. Fewer parts, faster repairs and long-lasting durability.

• Optional DataTrak Control - Intuitive, easy-to-use DataTrak control gives you pump diagnostics, material usage tracking and pump runaway protection.
• NXT Air Motor - Modular design for easier maintenance with rugged body armor that won't rust or dent.
• Modular Air Valves - Easy-to-repair valve eliminates stalling and contains de-icing controls.
• Piston Valve with Floating Piston Seal - For maximum pressure balance over a range of material viscosities.

• Air Inlet Size (in): 3/4

• Application: Industrial

• Compatible Material: Oil

• Fluid Inlet Size (in): 1.5

• Fluid Outlet Size (in): 1.5

• Maximum Fluid Working Pressure (psi): 2600

• Power Type: Pneumatic

• Pump Ratio: 26:1

GG 24V688

GG 563358

E-SERIES PUMP, 1/4NPSF

Graco 563358 E-Series Pump Only - with 1750 psi (121 bar) Rupture Disc

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

• Easy field installation of accessories without disturbing existing plumbing
• Smart pump design with few moving parts ensures long-lasting dependability
• Lubriquip part number 521-300-180

• Model: E-Series

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPSF

• Includes: E-Series Pump, Rupture Disc

• Material: Aluminum, Plastic

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum cST Grade (cST): 30000
• Maximum Cycle Rate (CPM): 10

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 137.9
• Maximum Working Pressure (kPa): 13790
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Power Type: Pneumatic

GG 563376

MAXI-FLO PUMP, 115 VAC REMOTE

Graco 563376 Maxi-Flo Electric Pump, 115 VAC, 4 pt. (1.89 liter) Plastic Rectangular Oil Reservoir, Remote Control

Compact design with everything you need to get your single line resistive oil lubrication system installed and running quickly. A standard package comes complete with reservoir, pump, gear motor, and choice of internal or remote control. Simple slide switches allow for easy setup of pump run cycle time. Bright LED indicators for low level and power allow for easy troubleshooting and verification.

• Integrated control with manual run button for easy setup
• Compact design fits anywhere
• 500 psi (34 bar) rating for using with various orifice metering devices

• Model: Maxi-Flo

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.125
• Fluid Outlet Size (mm): 3.1750
• Fluid Outlet Thread Type: NPSF

• Includes: 4 pt Plastic Rectangular Oil Reservoir, Remote Control

• Material: Plastic

• Maximum Flow Rate (ci/min): 0.12

• Maximum Fluid Output Pressure (bar): 34
• Maximum Fluid Output Pressure (psi): 500

• Maximum Fluid Output Pressure (bar): 34
• Maximum Fluid Output Pressure (psi): 500

• Maximum SUS Grade (SUS): 30000

• Maximum Working Pressure (bar): 34.5
• Maximum Working Pressure (kPa): 3450
• Maximum Working Pressure (MPa): 3.5
• Maximum Working Pressure (psi): 500

• Minimum SUS Grade (SUS): 60

• Overall Depth (cm): 16.4
• Overall Depth (in): 6.44
• Overall Depth (mm): 164

• Overall Height (cm): 24.1
• Overall Height (in): 9.5
• Overall Height (mm): 241

• Power Type: Electric

GG CM3A58

CHECK-MATE SUPPLY UNIT,55:1,3.0 RAM,200L

• Model: Check-Mate

GG CM7F1F

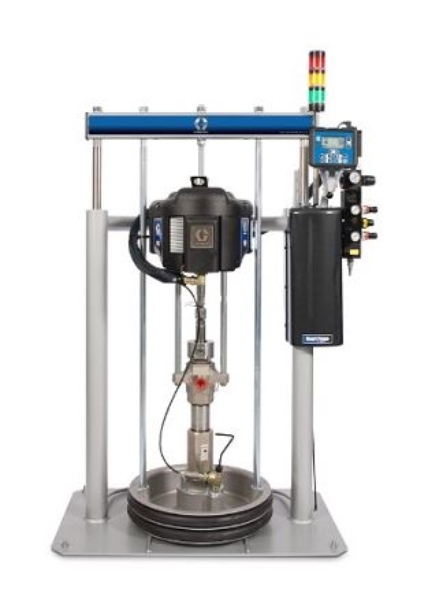

GG CM8B5A

CHECK-MATE SUPPLY UNIT, 38:1, 0 VOLT, D200, 200L

Graco CM8B5A 38:1 Ratio 200 L D200 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 262
• Maximum Fluid Pressure (kPa): 26200
• Maximum Fluid Pressure (psi): 3800

• Maximum Fluid Pressure (bar): 262
• Maximum Fluid Pressure (kPa): 26200
• Maximum Fluid Pressure (psi): 3800

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 262
• Maximum Working Pressure (kPa): 26200
• Maximum Working Pressure (MPa): 26.2
• Maximum Working Pressure (psi): 3800

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 38:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

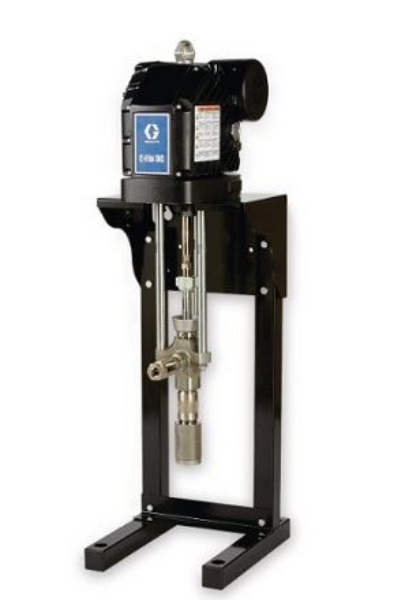

GG ES0851

AA DAB05-APCC-2-A

CSU 253 511

GG 205595
