GG EFR4AXXX
EFR SYSTEM, 480V, ADM, NO PUMPS

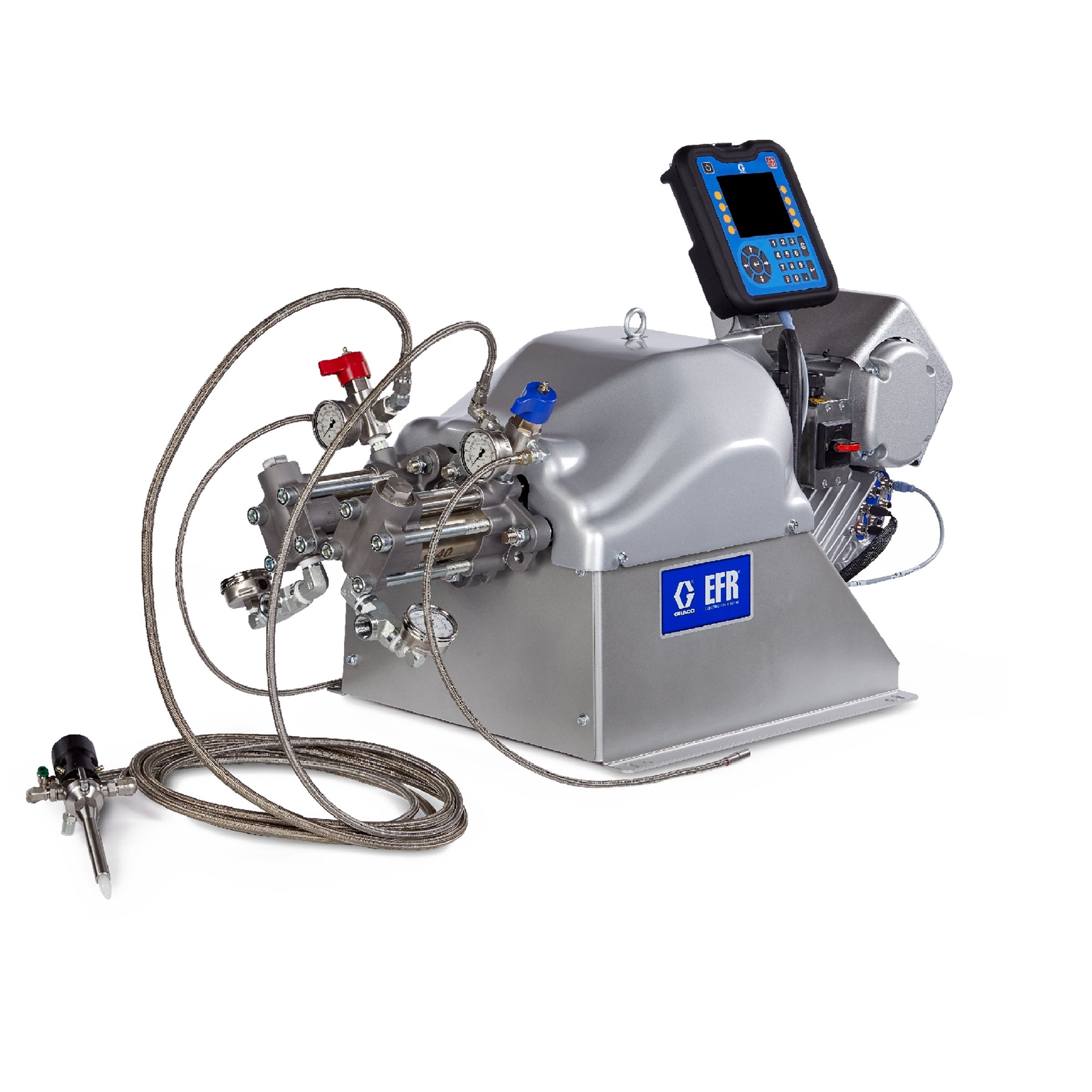

Graco EFR4AXXX EFR Metering System 480 Volt w/ ADM & No Pumps
The Graco Electric Fixed Ratio (EFR) system is a meter, mix and dispense system for two component sealant and adhesive delivery. Ideal for applications requiring precision dispense, the EFR provides superior control over material and dispensing of gaskets, beads, shots and potting applications. Trust in the EFR, which is accurate, versatile and easy to use.
- Model: EFR
- A Pump Size (cc): No Pump
- Air Controls Included: Included
- Air Dryer Consumption (CFM): 0
- Air Dryer Model: N/A
- Air Inlet Size (cm): N/A
- Air Inlet Size (in): N/A
- B Pump Size (cc): No Pump
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Fluid Temperature (°C): 50
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Temperature (°C): 50
- Maximum Fluid Temperature (°F): 120
- Maximum Input Pressure (psi): 2000
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
