GG 24F113
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP

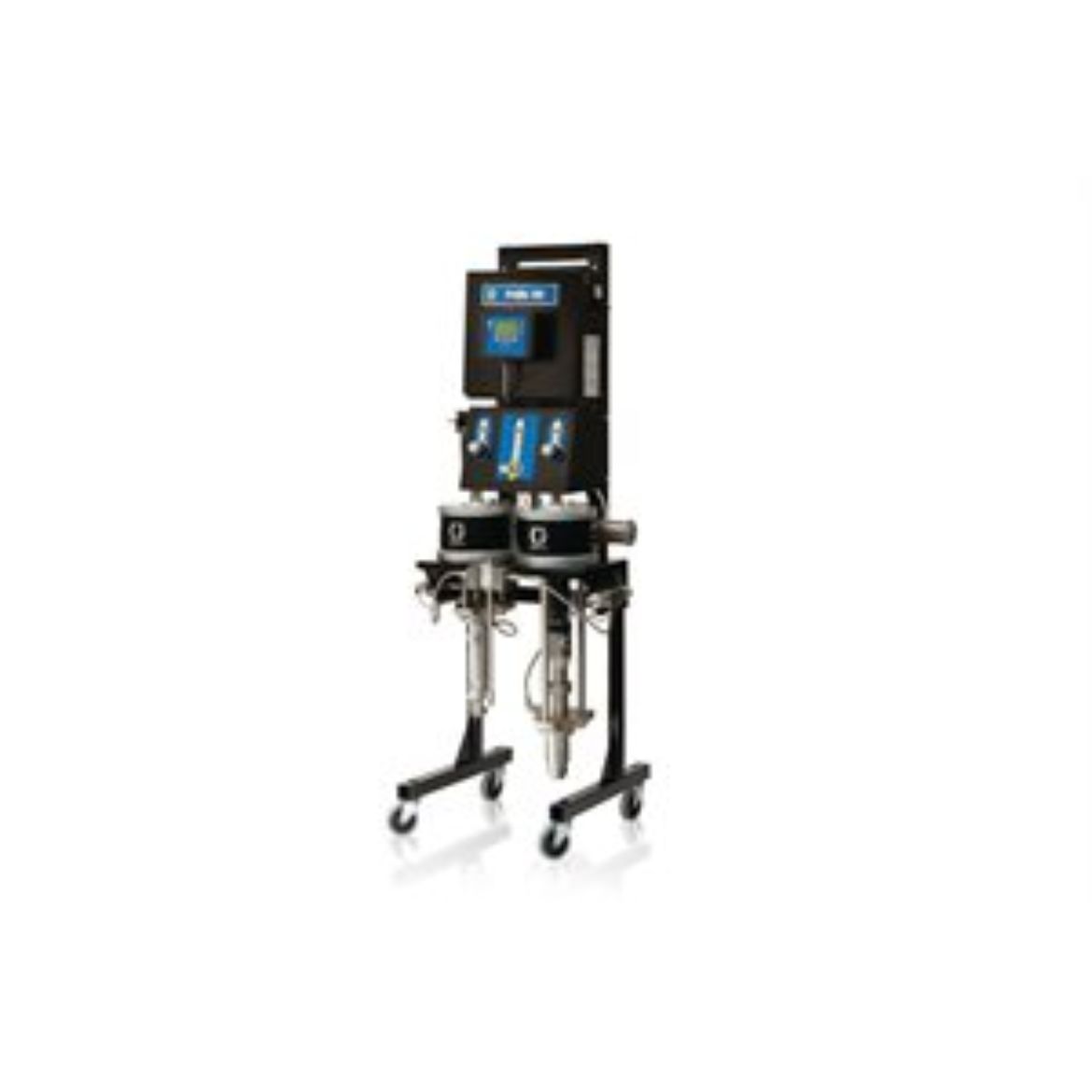

Graco 24F113 ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur & Merkur Bellows pumps, USB reporting, for hazardous location
The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.
- Designed for multi-color, two component, in-booth applications
- Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
- Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
- Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Applicator Type: Manual Air Spray
- Component Type: Two Component
- Includes: Air Motor, Adapter Plate, A-Lower, B-Lower, A-Tie Rod, B-Tie Rod, Coupling, Lower Adapter, TSL Reservoir
- Material Type: Two Component
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Viscosity (cP): 5000
- Maximum Fluid Viscosity (cP): 5000
- Maximum Mix Ratio: 30:1
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (MPa): 2.1
- Maximum Working Pressure (psi): 300
- Measuring Type: Pump
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Number of Catalysts: 1
- Number of Color Valves: N/A
- Number of Colors: 1
- Number of Resin Colors: 1
- Overall Depth (cm): 37.6
- Overall Depth (in): 14.8
- Overall Depth (mm): 376
- Overall Height (cm): 91.7
- Overall Height (in): 36.1
- Overall Height (mm): 917
- Overall Width (cm): 51.1
- Overall Width (in): 20.1
- Overall Width (mm): 511
- Proportioning Type: Manual Electronic
- Pump Ratio: 3:1
- Pump Type: Air Spray Bellows
