Chemsafe Pump,205Pt-P01A-Pt3-Pt-Pt-Po

GG 24X429

CHEMSAFE PUMP, 205PT-P01A-PT3-PT-PT-PO

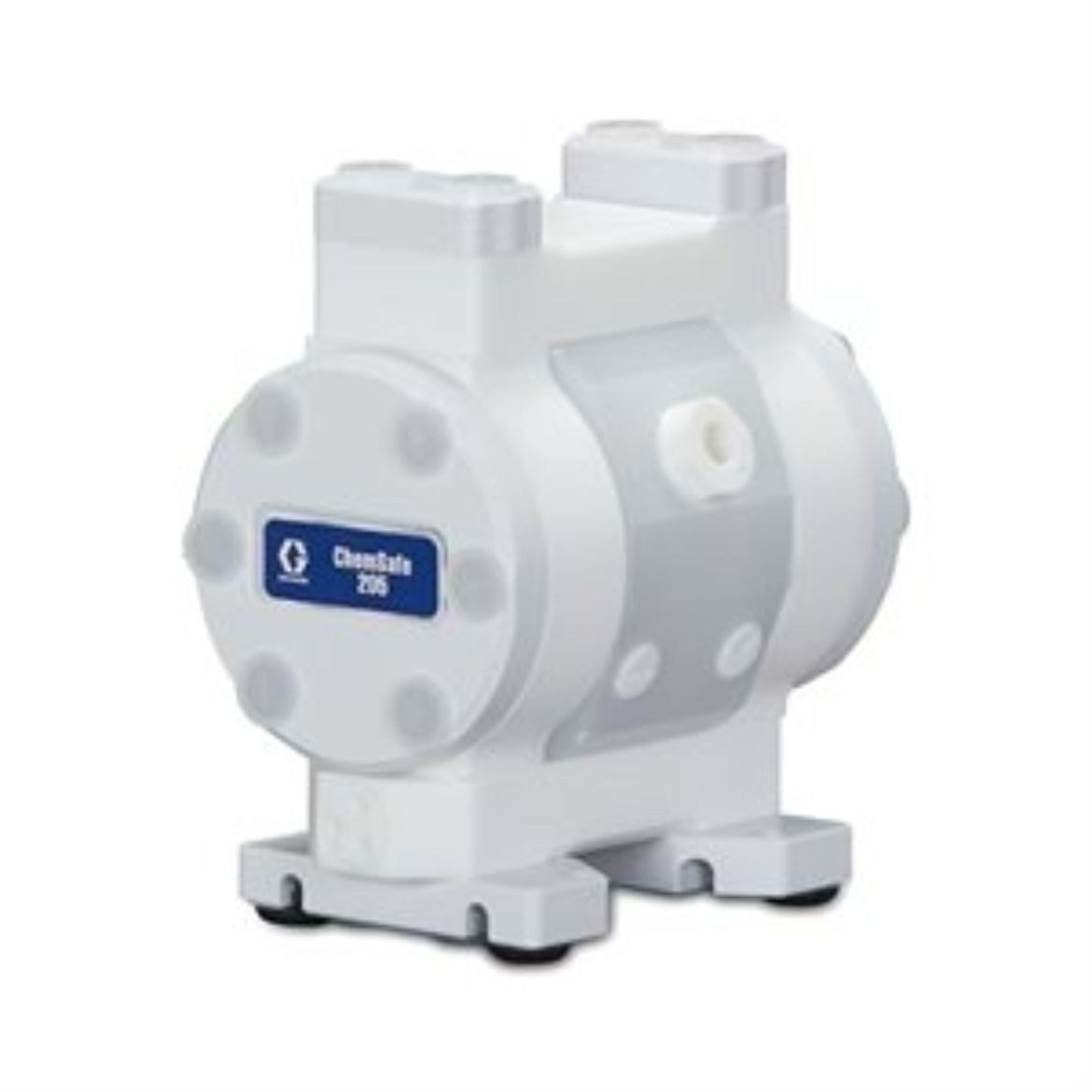

Graco 24X429 ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port

Gracos ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. Theres no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus theyre dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.

• Max flow rate of 3.6 gpm (14 lpm)
• High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
• Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
• Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater

• Model: ChemSafe
• Series: 205

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE Overmold

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: PTFE

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: PTFE

• Maximum Air Consumption (SCFM): 4.8
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 375

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.5

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 100
• Maximum Operating Temperature (°F): 212

• Maximum Solid Size (cm): 0.15
• Maximum Solid Size (in): 0.06
• Maximum Solid Size (mm): 1.5

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air
