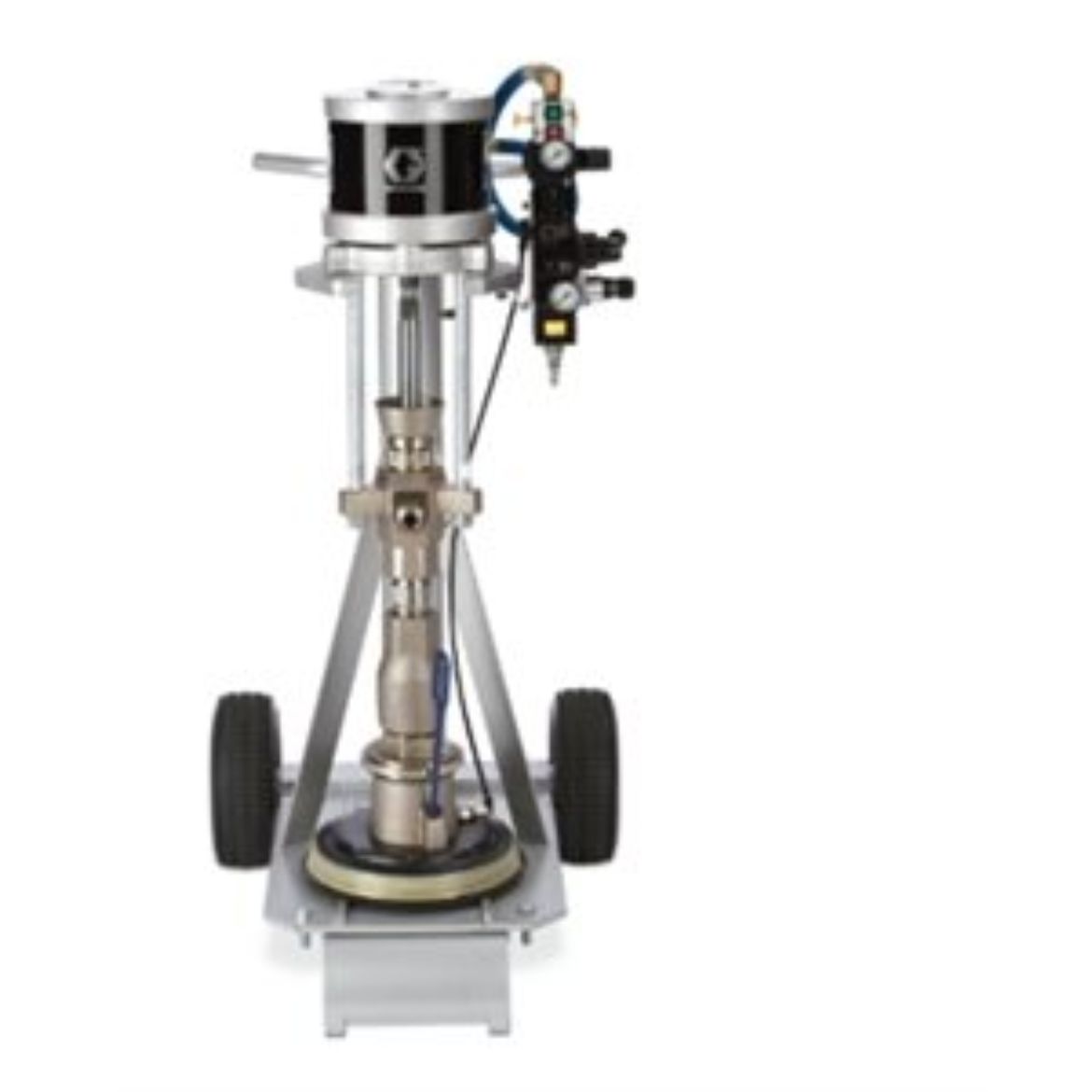

GG CM7A3B
CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L
Graco CM7A3B 20:1 Ratio 20 L S20 Supply Unit
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.
- 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
- Graco S20 - For low-volume applications of medium to high-viscosity materials
- Industry-first controls give you immediate and important information at the touch of a button
- Platen wipers can be replaced in seconds
- Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
- Model: Check-Mate
- Series: S20
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Container Type: Pail
- Control Panel Material: N/A
- Material Container Volume (gal): 5.3
- Material Container Volume (l): 20
- Maximum Air Inlet Pressure (bar): 8.62
- Maximum Air Inlet Pressure (kg/cm²): 8.79
- Maximum Air Inlet Pressure (kPa): 862
- Maximum Air Inlet Pressure (psi): 125
- Maximum Flow Rate (GPM): 0.9
- Maximum Flow Rate (L/min): 3.4
- Maximum Fluid Pressure (bar): 137.9
- Maximum Fluid Pressure (kPa): 13790
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Pressure (bar): 137.9
- Maximum Fluid Pressure (kPa): 13790
- Maximum Fluid Pressure (psi): 2000
- Maximum Height (cm): 150.6
- Maximum Height (ft): 4.94
- Maximum Height (in): 59.3
- Maximum Height (m): 1.51
- Maximum Height (mm): 1506
- Maximum Operating Temperature (°C): 49
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Minimum Height (cm): 90.9
- Minimum Height (ft): 2.98
- Minimum Height (in): 35.8
- Minimum Height (m): 0.91
- Minimum Height (mm): 909
- Overall Depth (cm): 48.26
- Overall Depth (in): 19
- Overall Depth (mm): 482.6
- Overall Width (cm): 43.18
- Overall Width (in): 17
- Overall Width (mm): 431.8
- Pump Ratio: 20:1
- Pump Type: Priming Piston
- Ram Material: Carbon Steel
