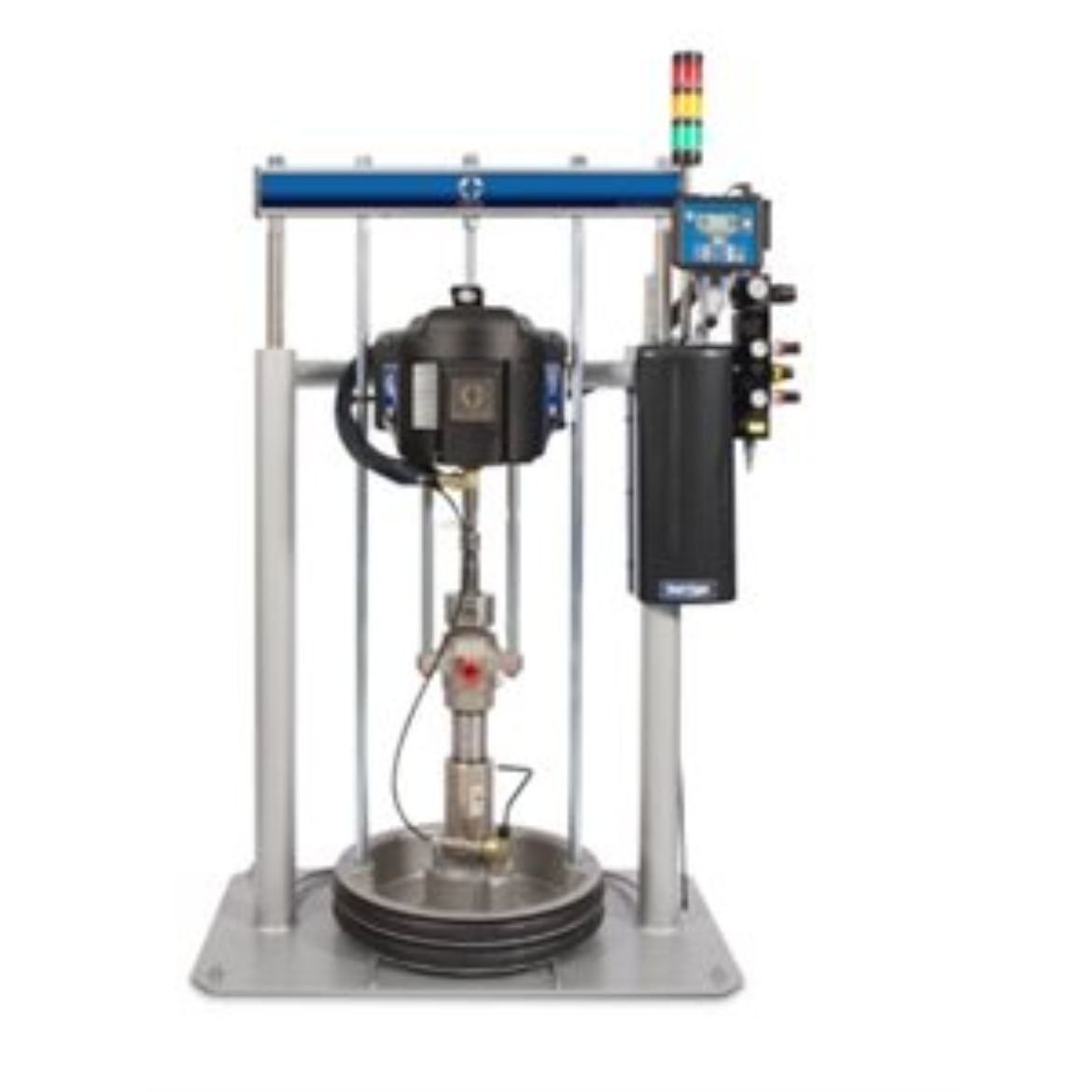

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

Manufacturer: GRACO INC. S10595

GG CM155A

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

Graco CM155A 63:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.
  • For large drums up to 200 liter (55 gal)
  • Graco D200 - For high-volume in-plant applications
  • Industry-first controls give you immediate and important information at the touch of a button
  • Platen wipers can be replaced in seconds
  • Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
  • High-quality, durable parts reduce maintenance time, maximize uptime


  • Model: Check-Mate
  • Series: D200
  • Ambient/Warm Melt/Hot Melt: Ambient
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
  • Container Type: Drum
  • Material Container Volume (gal): 52.8
  • Material Container Volume (l): 200
  • Maximum Air Inlet Pressure (bar): 10.34
  • Maximum Air Inlet Pressure (kg/cm²): 10.55
  • Maximum Air Inlet Pressure (kPa): 1034
  • Maximum Air Inlet Pressure (psi): 150
  • Maximum Flow Rate (GPM): 1.6
  • Maximum Flow Rate (L/min): 6.1
  • Maximum Fluid Pressure (bar): 434.4
  • Maximum Fluid Pressure (kPa): 43440
  • Maximum Fluid Pressure (psi): 6300
  • Maximum Fluid Pressure (bar): 434.4
  • Maximum Fluid Pressure (kPa): 43440
  • Maximum Fluid Pressure (psi): 6300
  • Maximum Height (cm): 259.9
  • Maximum Height (ft): 8.53
  • Maximum Height (in): 102.3
  • Maximum Height (m): 2.6
  • Maximum Height (mm): 2599
  • Maximum Operating Temperature (°C): 49
  • Maximum Operating Temperature (°F): 120
  • Maximum Working Pressure (bar): 441
  • Maximum Working Pressure (kPa): 44100
  • Maximum Working Pressure (MPa): 44.1
  • Maximum Working Pressure (psi): 6300
  • Minimum Height (cm): 164.6
  • Minimum Height (ft): 5.4
  • Minimum Height (in): 64.8
  • Minimum Height (m): 1.65
  • Minimum Height (mm): 1646
  • Overall Depth (cm): 63.5
  • Overall Depth (in): 25
  • Overall Depth (mm): 635
  • Overall Width (cm): 106.7
  • Overall Width (in): 42
  • Overall Width (mm): 1067
  • Power Type: Pneumatic
  • Pump Ratio: 63:1
  • Pump Type: Priming Piston
  • Ram Material: Carbon Steel
SKU: GG CM155A
Availability:
Price: $21,650.00
