Impactool

IR 2130

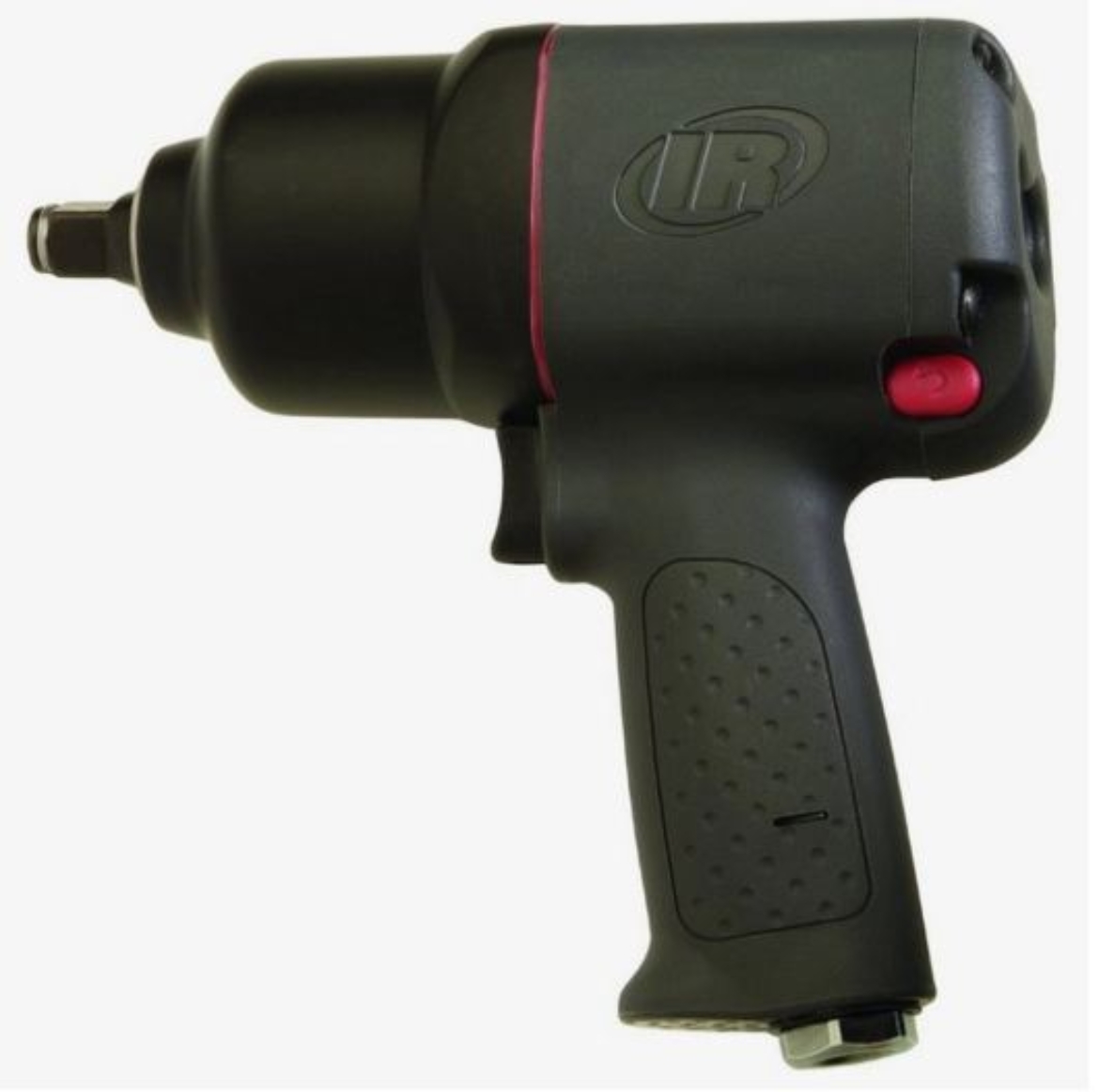

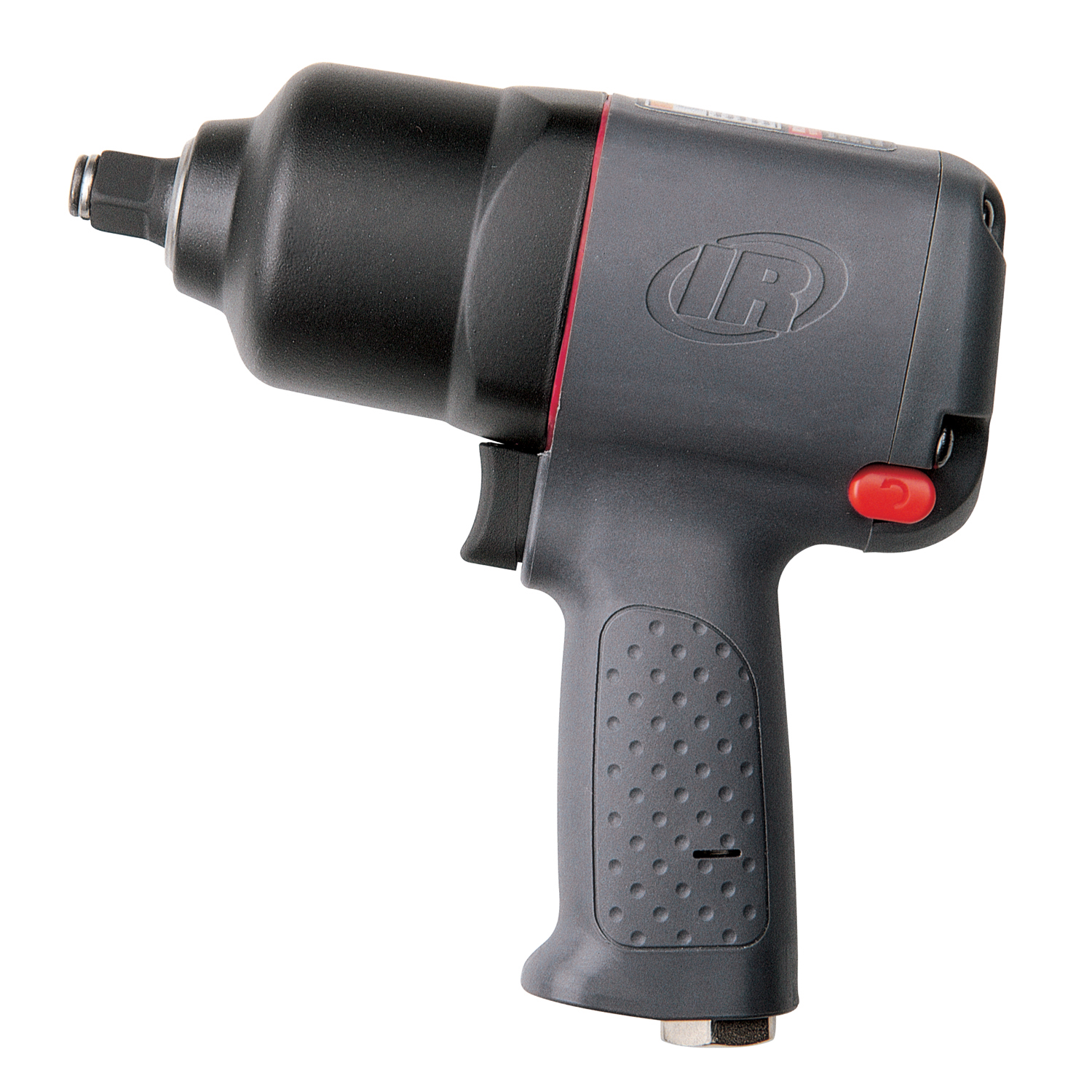

1/2" Air Impact Wrench, Heavy Duty, 550 ft-lb Torque, Friction Ring Retainer, Pistol

Description: Reliable and durable, this 2130 Series Impact Wrench was built to help you succeed. From your first to your last job, this wrench will see you through.

Features And Benefits:

• Access: This impact wrench is great for changing tires and general vehicle repair.
• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It'll never let you down.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 22
• Air Consumption @ Load (l/min): 623
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.4
• Average Air Consumption (l/min): 125

• Blows per Min: 1200

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 89.8 / 100.8

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.5 / 105.5

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 9500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 549
• Max Torque (in-lb): 6594
• Max Torque (nm): 745
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 131
• Product Length (in): 7.3

• Product Width (in): 2.8
• Product Height (in): 7.2
• Product Weight (lb): 4.2
• Recommended Forward Torque Range (ft-lb): 25-350
• Recommended Forward Torque Range (in-lb): 301-4195
• Recommended Forward Torque Range (nm): 34-474
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.7
• Warranty: 1-year

• Accessories: 2130-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2130-D1093
• Parts: 2130-TK1
