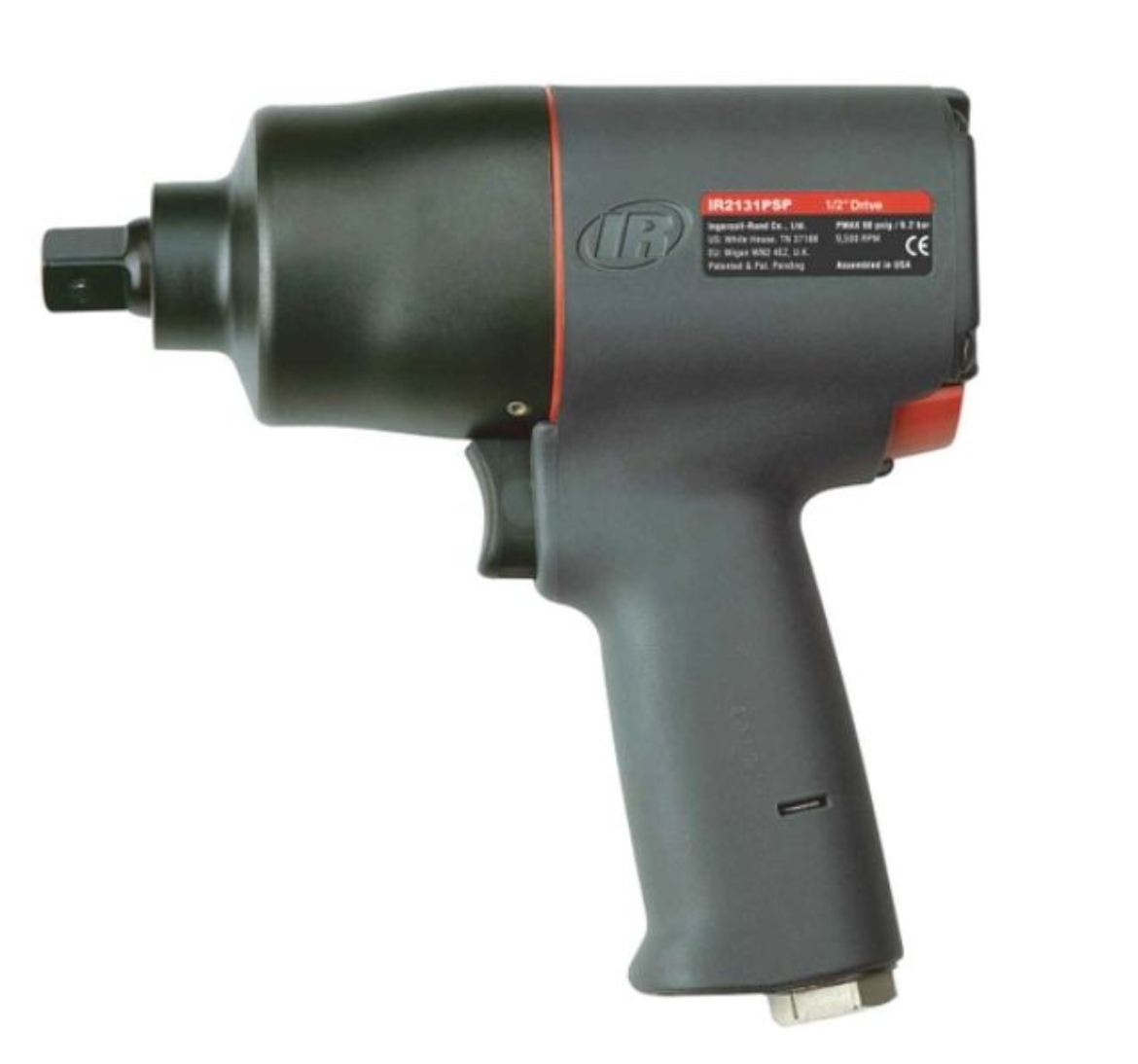

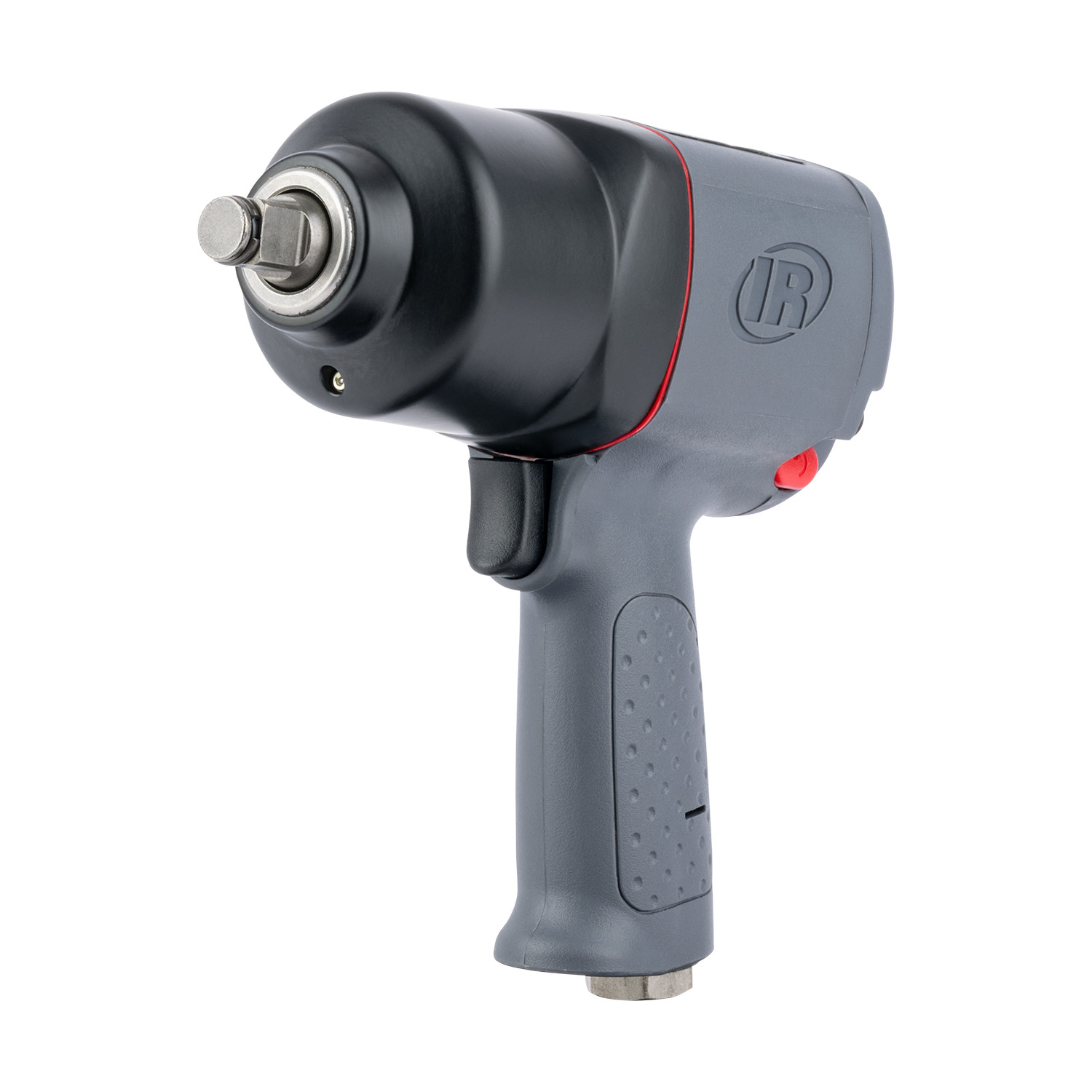

1/2in IMPACT WRENCH, ATEX

IR 2131PEX

1/2" Air Impact Wrench, ATEX/Hazardous Duty, 600 ft-lb Torque, Pin Retainer, Pistol

Description: Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, this 2130 Series Impact Wrench was built to help you succeed. Reliable and durable from your first to your last job, this wrench will see you through.ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits:

• Durability: Thanks to its steel hammer case and composite housing, this wrench will endure anything, from repeated drops to harsh chemicals. It'll never let you down.
• Bronze bushing reduces risk of sparks
• Twin hammer mechanism ensure consistent power and balance
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Feather-touch trigger allows precise delivery of pressure and speed
• Composite Housing is impact and chemical resistant to extend the life of the tool.
• ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified

Product Application and Uses:

Hazardous Environment, Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.8

• Blows per Min: 1250

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Atex/Hazardous Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 86.4 / 97.4

• Hammer Case: Steel
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 90.4 / 101.4

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 10250
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 122
• Product Length (in): 7.3

• Product Width (in): 2.7
• Product Height (in): 7.2
• Product Weight (lb): 4.9
• Recommended Forward Torque Range (ft-lb): 450
• Recommended Forward Torque Range (in-lb): 5399
• Recommended Forward Torque Range (nm): 610
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.35
• Side to Center Distance (mm): 34

• Special Features: ATEX Rated
• Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 8.31
• Warranty: 1-year

• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M19L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: S64M27L-PS1

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
