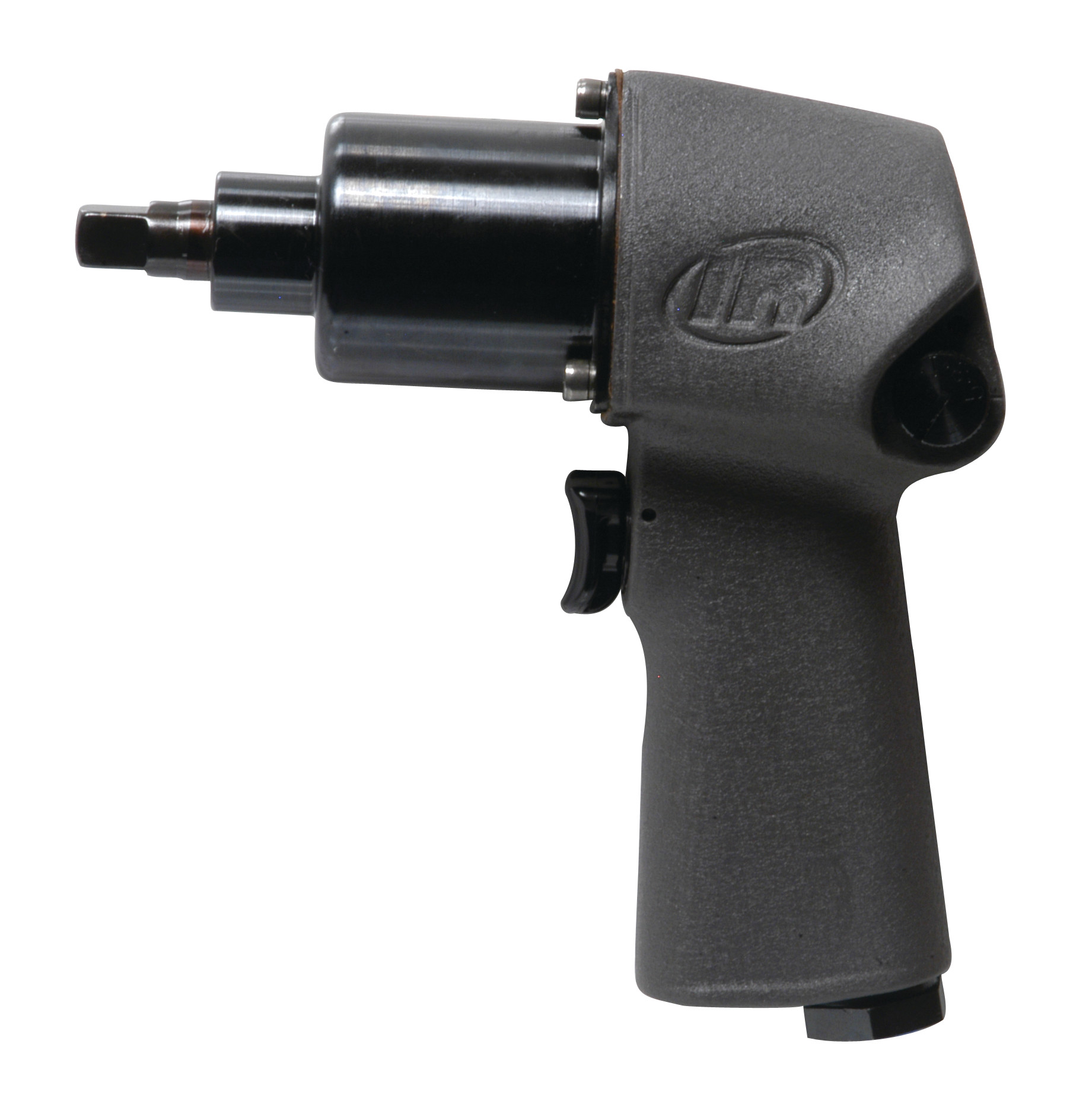

Heavy Duty Impactool

IR 1702P1

3/8" Air Impact Wrench, 125 ft-lb Torque, Pin Retainer, Pistol

Description: The 1702 Series Impact Wrench's steel hammer case and metal housing ensure a tough, durable tool that'll help you breeze through any job without having to worry about your tools giving up.

Features And Benefits:

• Power: With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.
• Reliable: No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time. Comes with a 1-year warranty.

Product Application and Uses:

These air impact wrenches are designed to remove and install threaded fasteners.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 15
• Air Consumption @ Load (l/min): 425
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1500

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 92.2 / 103.2

• Max Bolt Diameter (in): 0.4375
• Max Free Speed (rpm): 10000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 125
• Max Torque (in-lb): 1496
• Max Torque (nm): 169
• Min Hose Size (in): 5/16
• Motor: Non-Biased

• Number of Power Settings: 6
• Power Source: Air Powered
• Product Length (in): 6

• Product Width (in): 2.7
• Product Height (in): 6.3
• Product Weight (lb): 2.75
• Recommended Forward Torque Range (ft-lb): 20-100
• Recommended Forward Torque Range (in-lb): 239-1204
• Recommended Forward Torque Range (nm): 27-136
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.35
• Side to Center Distance (mm): 34

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 2.7
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1702P-TK2
• Parts: 1901-365

• Parts: 401-42A-6
