Impacts

IR 3955-302

Throttle Valve Plunger Service Part for Ingersoll Rand Power Tools

IR 3955A2TI

1-1/2" Air Impact Wrench, Super Duty, 5000 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

With a titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs of torque, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.

Product Application and Uses: Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 80
Average Air Consumption (l/min): 2266
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
Max Free Speed (rpm): 2750
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5000
Max Torque (in-lb): 60000
Max Torque (nm): 6779
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 16.5
Product Weight (lb): 34.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3900
Recommended Forward Torque Range (in-lb): 46803
Recommended Forward Torque Range (nm): 5288
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: High-torque
Vibration Level (m/s2): 20.8
Vibration Uncertainy K* (m/s2): 8.5
Warranty: 1-year

Similar IR

• 3956A2TI

Superseded To

• 3956A2TI

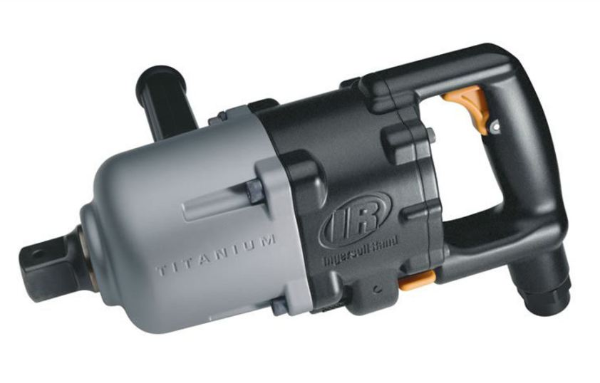

IR 3955B1TI

SUPERCEDED BY 3956B1TI

IR 3955B2TIEX

1-1/2" Air Impact Wrench, ATEX Rated, 5000 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with a titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 5000 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry.ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits

• Environmental, Heath and Safety: ISO 80079-36 Certified and ATEX Zone 1 or Zone 2 requirements.
• Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this series is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler

Product Application and Uses: Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 80
Average Air Consumption (l/min): 2266
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
Max Bolt Diameter (in): 1-1/2
Max Free Speed (rpm): 2750
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5000
Max Torque (in-lb): 60000
Max Torque (nm): 6779
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 144.5
Product Length (in): 16.6
Product Width (in): 8.2
Product Height (in): 5.3
Product Weight (lb): 34.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 4700
Recommended Forward Torque Range (in-lb): 56397
Recommended Forward Torque Range (nm): 6372
Retainer Type: Thru-hole
Side to Center Distance (in): 4.1
Side to Center Distance (mm): 104
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 20.8
Vibration Uncertainy K* (m/s2): 8.5
Warranty: 1-year

Similar IR

• 3955B2TI

Superseded To

• 3956B2TIEX

IR 3956B1TI

No. 5 Spline Air Impact Wrench, 5450 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

The 3956 Series Titanium Pneumatic Impacts has a 360° D-auxiliary handle ensures enhanced ergonomic performance, with greater access and less operator fatigue. An increased power rating provides the confidence you need to power through the toughest of jobs. Our brand name prominently and proudly emblazoned on the side lets you know it’s from the first name in impact tools: Ingersoll Rand®. Because when it comes to performance, durability and reliability, there is simply no substitute for the best.

Features And Benefits

• Performance: Best-in-class power-to-weight performance, delivering 5,450 ft-lbs (7,300 Nm) of breakaway torque.
• Ergonomic: Ergonomically enhanced 360° D-auxiliary handle.
• Reliability: Assembled in the USA and backed by our broad network of parts and service to ensure unsurpassed serviceability.
• Durability: Optimized titanium hammercase, along with bronze endplates and corrosion-resistant parts.

Includes: Hanger Bracket
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 105
Air Consumption @ Load (l/min): 2971.5
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 145
Average Air Consumption (l/min): 4103.5
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): No. 5
Drive Type: Spline
Duty Rating: Industrial Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.8 / 109.8
Hammer Case: Titanium
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 97.9 / 108.9
Max Bolt Diameter (in): 1-1/2
Max Free Speed (rpm): 3600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5384
Max Torque (in-lb): 64610
Max Torque (nm): 7300
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Nut-busting/Breakaway Torque (ft-lb): 5384
Nut-busting/Breakaway Torque (in-lb): 64610
Nut-busting/Breakaway Torque (nm): 7300
Power Source: Air Powered
Product Length (in): 16.68
Product Width (in): 5.26
Product Height (in): 11.31
Product Weight (lb): 34.3
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 5178
Recommended Forward Torque Range (in-lb): 62132
Recommended Forward Torque Range (nm): 7020
Retainer Type: Thru-hole
Side to Center Distance (in): 2.67
Side to Center Distance (mm): 68
Standard Bolt Capacity (in): 2
Standards/Certifications: ISO11148-6 2012, CAGIB186.1-2009, ISO 28927-2, ISO 15744
Tool Type: High-torque
Vanes: 7
Vibration Level (m/s2): 16.4
Vibration Uncertainy K* (m/s2): 5.6
Warranty: 1-year

Supersedes

• 3955B1TI

IR 3956B2TIEX

1-1/2" Air Impact Wrench, ATEX/Hazardous Duty, 5450 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with a titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 5450 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. The 360° D-auxiliary handle ensures enhanced ergonomic performance, with greater access and less operator fatigue. An increased power rating provides the confidence you need to power through the toughest of jobs. ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X ISO 80079-36 Certified.

Features And Benefits

• Performance: Best-in-class power-to-weight performance, delivering 5,450 ft-lbs (7,300 Nm) of breakaway torque.
• Ergonomic: Ergonomically enhanced 360° D-auxiliary handle.
• Reliability: Assembled in the USA and backed by our broad network of parts and service to ensure unsurpassed serviceability.
• Durability: Optimized titanium hammercase, along with bronze endplates and corrosion-resistant parts.
• Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.

Includes: Hanger Bracket
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 105
Air Consumption @ Load (l/min): 2971.5
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 145
Average Air Consumption (l/min): 4103.5
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.8 / 109.8
Hammer Case: Titanium
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 97.9 / 108.9
Max Bolt Diameter (in): 1-1/2
Max Free Speed (rpm): 3600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5384
Max Torque (in-lb): 64610
Max Torque (nm): 7300
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Nut-busting/Breakaway Torque (ft-lb): 5384
Nut-busting/Breakaway Torque (in-lb): 64610
Nut-busting/Breakaway Torque (nm): 7300
Power Source: Air Powered
Product Length (in): 16.68
Product Width (in): 5.26
Product Height (in): 11.31
Product Weight (lb): 34.3
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 5178
Recommended Forward Torque Range (in-lb): 62132
Recommended Forward Torque Range (nm): 7020
Retainer Type: Thru-hole
Side to Center Distance (in): 2.67
Side to Center Distance (mm): 68
Standard Bolt Capacity (in): 2
Standards/Certifications: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
Tool Type: High-torque
Vanes: 7
Vibration Level (m/s2): 16.4
Vibration Uncertainy K* (m/s2): 5.6
Warranty: 1-year

Similar IR

• 3955B2TIEX

Supersedes

• 3955B2TIEX

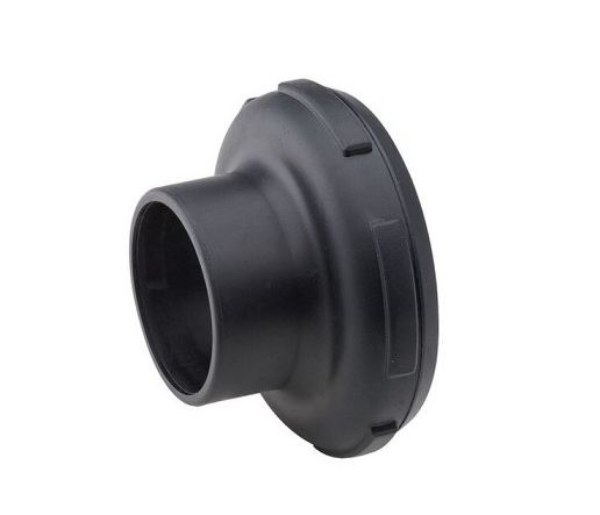

IR 431L-62

HAMMER CASE BOOT

IR 588A1

2-1/2" Air Impact Wrench, Super Duty, 50,000 ft-lb Torque, Thru-hole Retainer, T-handle

The 588A1 Impact Wrench delivers high power, doesn’t stall, and delivers smooth, constant speed from its motor.

Features And Benefits

• Durability: With a cast iron hammer case and bronze end-plate, this wrench is spark proof and corrosion resistant. It will withstand even the harshest conditions.
• Reliability: Doesn’t stall, and delivers smooth, constant speed from its motor. Built with the most premium parts in the industry, this wrench is designed to last.
• Power: With a high torque output and maximum power of 50,000 ft-lbs max torque, this wrench makes every job a breeze.
• Built-in lubricator

Product Application and Uses: These Air Impact Wrenches are designed to remove and install threaded fasteners requiring high torque. Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 155
Average Air Consumption (l/min): 4389
Blows per Min: 550
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 2-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 110.0 / 121.0
Hammer Case: Cast Iron
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3
Max Free Speed (rpm): 355
Max Pressure (bar): 6.2
Max Torque (ft-lb): 50000
Max Torque (in-lb): 599992
Max Torque (nm): 67790
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 26.63
Product Weight (lb): 215
Recommended Forward Torque Range (ft-lb): 12000-25003
Recommended Forward Torque Range (in-lb): 144002-300040
Recommended Forward Torque Range (nm): 16270 - 33900
Retainer Type: Thru-hole
Side to Center Distance (in): 4
Side to Center Distance (mm): 102
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year

Similar IR

• 5980A1
• 5982A1

IR 5980A1

1-1/2" Air Impact Wrench, Super Duty, 10,000 ft-lb Torque, Thru-hole Retainer, T-handle

The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

Features And Benefits

• Durability: With an aluminum hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.
• Reliability: Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger.
• Power: This series has a high torque output of 10,000 ft.-lbs. max. torque and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
• Built-in lubricator

Product Application and Uses: Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 138
Average Air Consumption (l/min): 3908
Blows per Min: 1000
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 103.1 / 114.1
Gear Train: Planetary
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 2
Max Free Speed (rpm): 830
Max Pressure (bar): 6.2
Max Torque (ft-lb): 10000
Max Torque (in-lb): 119998
Max Torque (nm): 13558
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 23
Product Weight (lb): 88
Recommended Forward Torque Range (ft-lb): 5500
Recommended Forward Torque Range (in-lb): 66000
Recommended Forward Torque Range (nm): 7457
Retainer Type: Thru-hole
Side to Center Distance (in): 3.06
Side to Center Distance (mm): 78
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year

Similar IR

• 588A1
• 5982A1

IR 5982A1

2-1/2" Air Impact Wrench, Super Duty, 20000 ft-lb Torque, Thru-hole Retainer, T-handle

The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

Features And Benefits

• Durability: With a Cast aluminum hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.
• Reliability: Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger. Comes with a 1-year warranty.
• Power: This series has a high torque output and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
• Built-in lubricator

Product Application and Uses: These Air Impact Wrenches are designed to remove and install threaded fasteners requiring high torque. Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 130
Average Air Consumption (l/min): 3681
Blows per Min: 850
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 2-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.1 / 113.1
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 2.25
Max Free Speed (rpm): 830
Max Pressure (bar): 6.2
Max Torque (ft-lb): 20000
Max Torque (in-lb): 239997
Max Torque (nm): 27116
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 25.38
Product Weight (lb): 120
Recommended Forward Torque Range (ft-lb): 10000
Recommended Forward Torque Range (in-lb): 119998
Recommended Forward Torque Range (nm): 13558
Retainer Type: Thru-hole
Side to Center Distance (in): 3.5
Side to Center Distance (mm): 89
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year

Similar IR

• 588A1
• 5980A1

IR 810-97

Front Rotor Bearing Service Part for Ingersoll Rand Power Tools

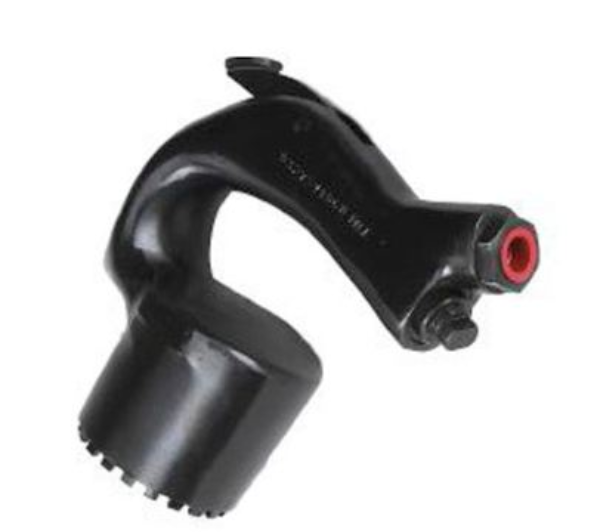

IR AS-1A

HANDLE

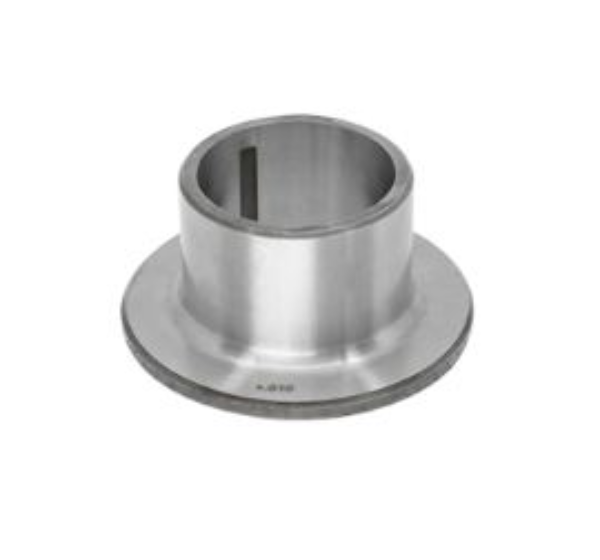

IR ILA578A1-641

BUSHING

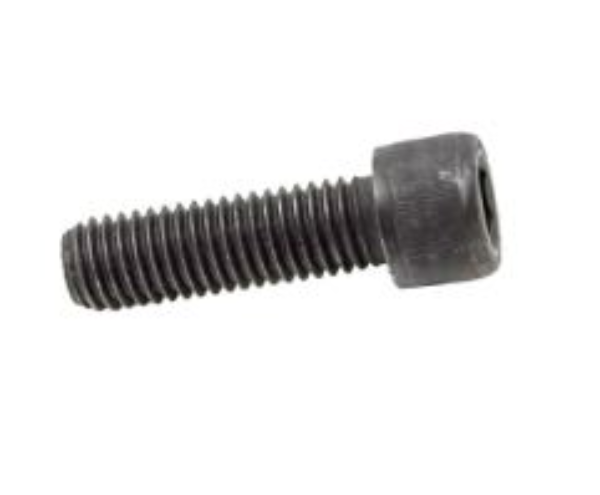

IR ILA582A1-638

SCREW (23-708)

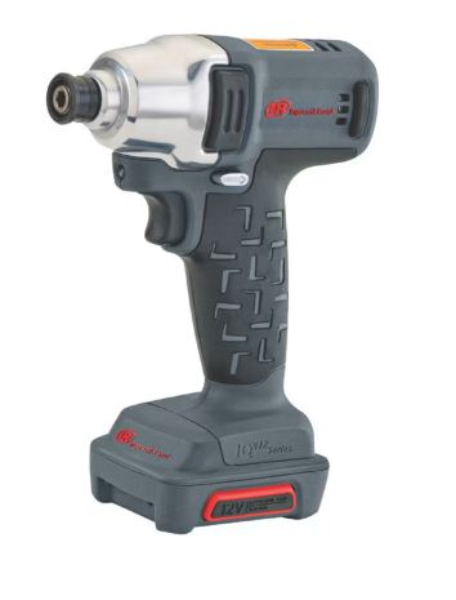

IR W1110

SUPERCEDED BY W3111

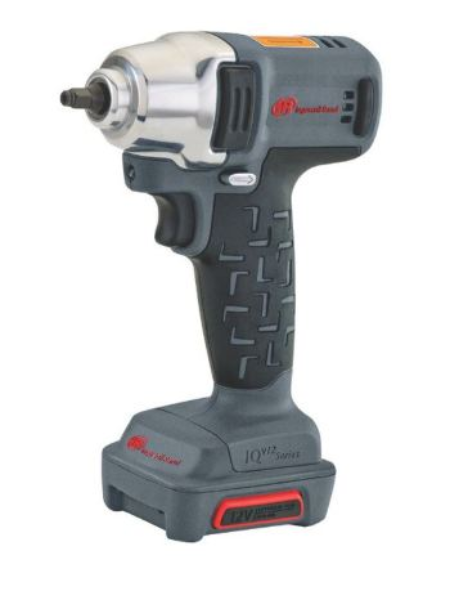

IR W1120

1/4" 12V SQUARE W/RING IMPACT

IR W5133P

3/8" 20V Cordless Impact Wrench, 550 ft-lb Torque, Pin Retainer, Pistol

The Ingersoll Rand W5133P impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• Control: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• Durable: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5133P is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• Access: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133P can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System
• Pin anvil ensures positive socket retention

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.77
Product Length (in): 7
Product Width (in): 2.8
Product Height (in): 8.3
Product Height (in) (with Battery): 10.4
Product Weight (lb): 3.8
Product Weight (lb) (with Battery): 5.3
Recommended Fo

IR W7152P

1/2" 20V Cordless Impact Wrench, 1500 ft-lb Torque, Pin Retainer, Pistol

The W7152P is the most powerful ½” cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV® Intelligent Control System, the W7152P can go from MAX torque to “hand tight” in no time.

Features And Benefits

• POWER: Powerful brushless motor and finely tuned impact mechanism with 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque for best in class power-to-weight ratio.
• CONTROL: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
• DURABLE: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7152P from every day abuse.
• ACCESS: 8.1” short tip-to-tail design and 360⁰ shadowless task light provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning
• 4 dimmable settings on the shadowless 360º LED light ring
• Ideally used for removing or fastening cradle bolts tire changing, fleet truck maintenance and in industrial and MRO settings
• Weighs only 7.6 lbs (with BL2022 battery)
• 3-year warranty
• Pin anvil ensures positive socket retention

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 39
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 197.37
Product Length (in): 8.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6
Product Weight (lb) (with Battery): 7.6
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Pin Detent
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 95 / 106
Standards/Certifications: Ul Listed, Csa Certified
Tool T

IR W8191

1" 20V Cordless Impact Wrench Bare Tool, 2000 ft-lb Torque, Friction Ring Thru-hole, Pistol

Meet the crown jewel of Ingersoll Rand’s cordless portfolio. Behind the 2,000 ft-lbs of torque in Ingersoll Rand’s IQV20™ W8000 Series cordless impact wrenches are best-in-class features that help you work with speed, power, and control. Whether you’re removing nuts from a wheel hub or assembling an appliance with tight tolerances, when you put your tools down at the end of the day, you’ll know your impact wrench operated at peak performance- and you got the job done right. Also available in the W8191-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Features And Benefits

• Power: With over 2,000 ft-lbs of breakaway torque, they’re the most powerful pistol grip cordless impact wrenches on the market.
• Safety: Remove hoses & trip hazards to keep operators & technicians safe without sacrificing power.
• IQV® Power Control System includes 4 forward modes: MAX Power, MID, Wrench, Snug and full power reverse.
• Brushless Motor: A powerful brushless motor helps remove stubborn fasteners up to 33% faster than our leading competitor.
• Shadowless Light: A patented 360° ring light around the anvil completely eliminates shadows around fasteners, making your work easier to see.
• Variable Speed Trigger: Lets you apply the speed you need.
• Durable: Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Productivity: Tackle a full day’s worth of work with 99 bolts per charge . Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
• IPX6 rated for tough environmental conditions.
• IQV20 Compatible: All Ingersoll Rand cordless impact wrenches are compatible with the IQV20™ battery platform.
• Also available in the W8191-K2 kit which includes (2) BL2022 5.0Ah Batteries and 20V battery charger.

Includes: Hanger Kit included. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: High nut busting torque previously limited to pneumatic tools, requiring compressors for mobile applications. Typical uses include: mobile repair for heavy equipment, heavy vehicle repair (buses, agriculture, etc), and industrial MRO (rail car, oil & gas, power generation).
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 1900
Bolts per Charge (on and Off): 99
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 18
Forward Torque setting 1 (in-lb): 221
Forward Torque setting 1 (nm): 25
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 450
Forward Torque setting 3 (in-lb): 5400
Forward Torque setting 3 (nm): 610
Forward Torque setting 4 (ft-lb): 1302
Forward Torque setting 4 (in-lb): 15622
Forward Torque setting 4 (nm): 1765
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 38
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 1350
Max Torque (ft-lb): 2000
Max Torque (in-lb): 23986
Max Torque (nm): 2710
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 23986
Nut-busting/Breakaway Torque (nm): 2710
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 271
Product Length (in): 8.77
Product Width (in): 3.82
Product Height (in): 10
Product Height (in) (with Battery): 11.75
Product Weight (lb):

CL 19RAA07AH3

NUTRUNNER (500 rpm, 6.8Nm, 3/8 SQ DR)

CL CV-375R

IMPACT WRENCH, COMP 3/8" SQ DR, RING RET

CL CV-500P

IMPACT WRENCH, COMP 1/2" SQ DR, PIN RET

CL CWC-500P

IMPACT WRENCH, COMP 1/2" SQ DR, PIN RET

CL CWC-750P

IMPACT WRENCH, COMP 3/4" SQ DR, PIN RET

CL CWM-500P

IMPACT WRENCH, METAL 1/2" SQ DR, PIN RET
