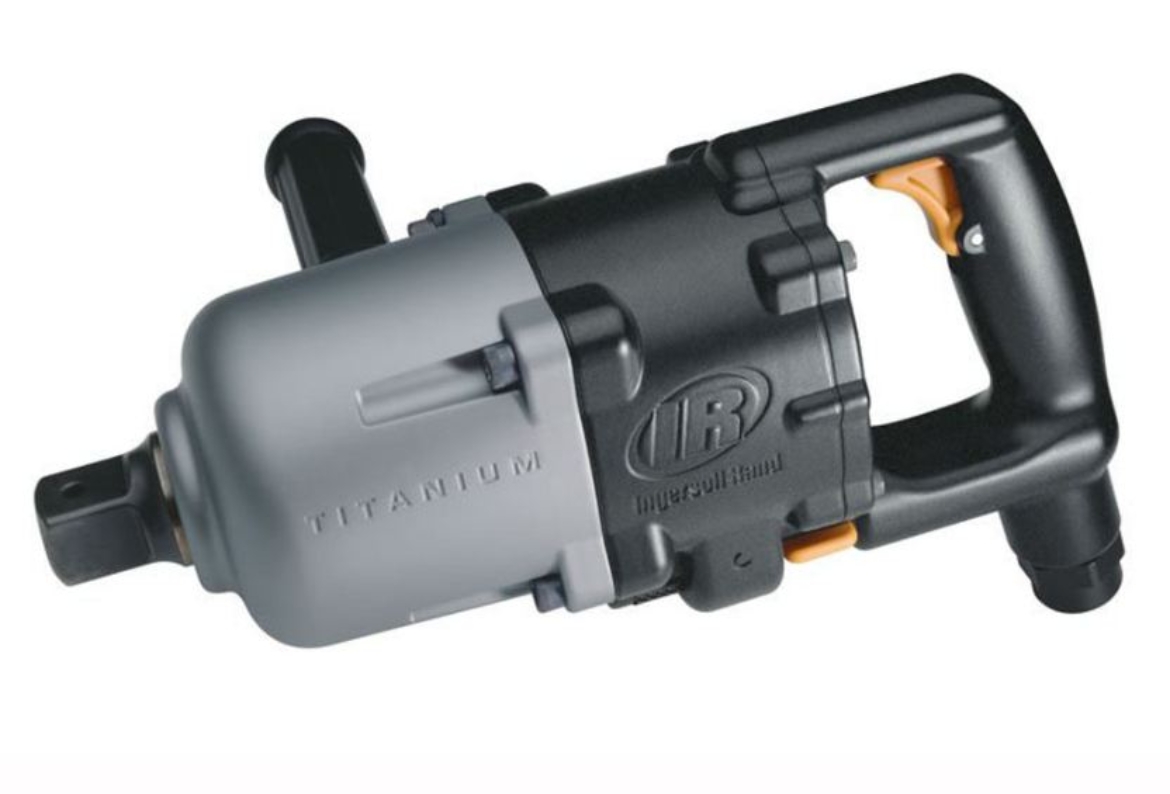

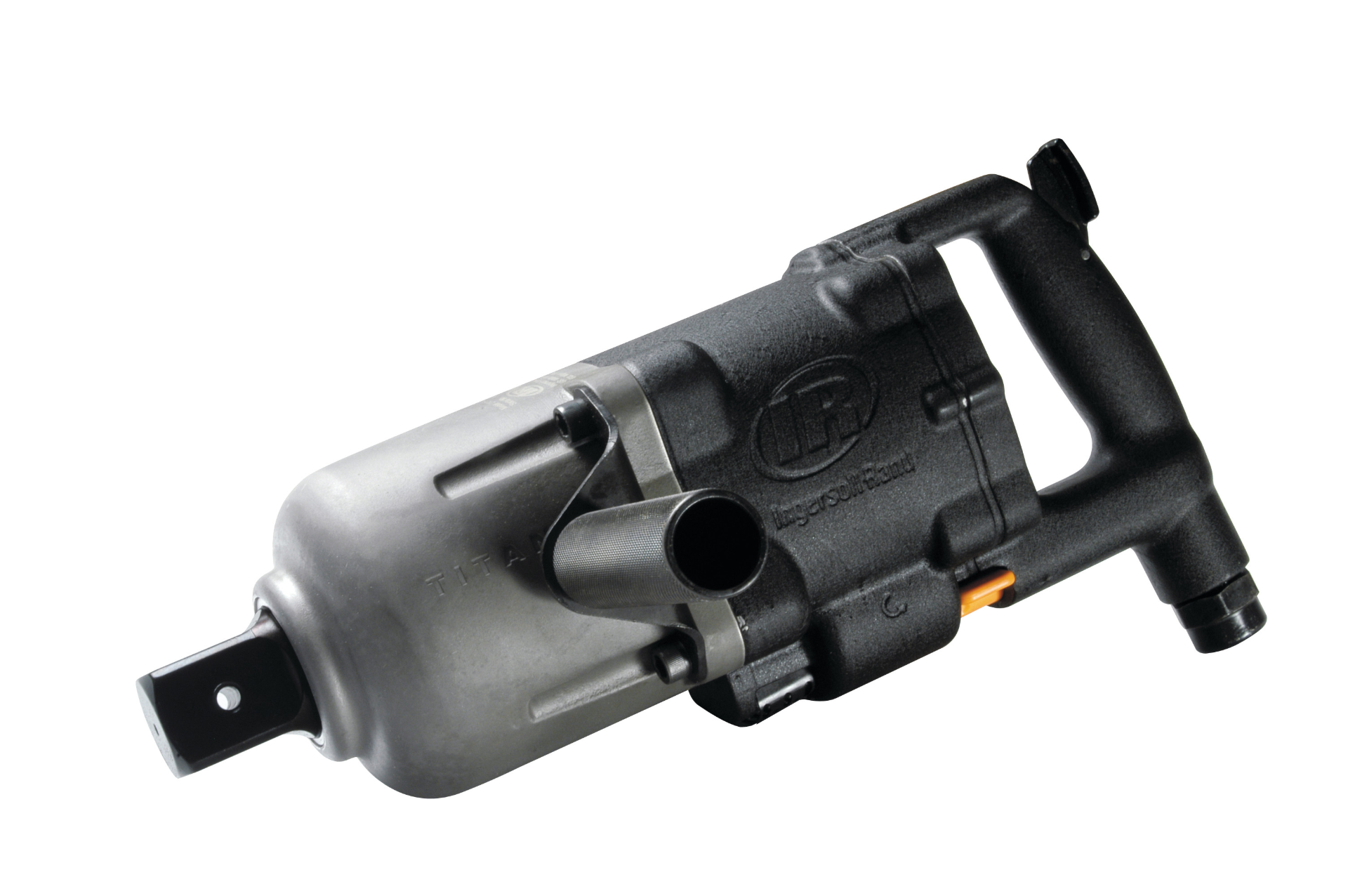

1.5" Impactool

IR 3955A2TI

1-1/2" Air Impact Wrench, Super Duty, 5000 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

Description: With a titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs of torque, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits:

• Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.

Product Application and Uses:

Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 80
• Average Air Consumption (l/min): 2266

• Blows per Min: 700

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1-1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 101.2 / 112.2

• Max Free Speed (rpm): 2750
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 5000
• Max Torque (in-lb): 60000
• Max Torque (nm): 6779
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 16.5

• Product Weight (lb): 34.6
• Quiet Tool: No
• Recommended Forward Torque Range (ft-lb): 3900
• Recommended Forward Torque Range (in-lb): 46803
• Recommended Forward Torque Range (nm): 5288
• Retainer Type: Thru-hole

• Special Features: Titanium hammercase

• Tool Type: High-torque
• Vibration Level (m/s2): 20.8
• Vibration Uncertainy K* (m/s2): 8.5
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
