Impacts

IR 232-110

IR 232-A40

IR 232-A727A

IR 232TGSL-P32

Protective Boot for Ingersoll Rand 232TGSL ThunderGun Street Legal Impact Wrench

Product Application and Uses:

For use with ingersoll Rand 232TGSL impact wrench

• For Use With: 232TGSL

IR 232TGTI-TK1

IR 24474173

IR 244-A40

IR 251-24

IR 251-A302

IR 259-105

IR 259-212

IR 259-23

IR 259-283

IR 259-311

IR 259-330

IR 259-36

Hammer Case Gasket for Ingersoll Rand 259 Series Impact Wrench

IR 259-510

IR 259-A40

IR 259-A727

IR 259-A93

IR 261-301

IR 261-A40

IR 261-BOOT

Protective Boot for Ingersoll Rand 261 Series Impact Wrench

Description: Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits:

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

• Color: Red

• Housing Material: Thermoplastic Polymer

• For Use With: 261
• For Use With: 261-3
• For Use With: 261-6

IR 261-THK1

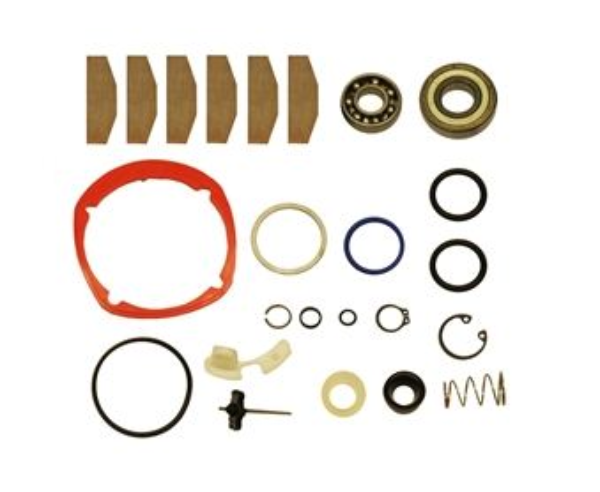

Tune-up Kit for Ingersoll Rand 261 Series Impact Wrench

• For Use With: 261

IR 280-6

1" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

Description: For a versatile impact wrench that doesn't compromise safety for power, the 280 Series can't be beat. The D-shaped handle fits comfortably in your hand and the jumbo hammer impact mechanism provides an excellent power-to-weight ratio.

Features And Benefits:

• Durability: The steel hammer case and metal housing of the 280 Series make this impact wrench incredibly durable and long-lasting.
• Increased Safety: Square thru-hole retainer increases on-the-job safety by providing a strong socket connection.
• Power: The jumbo hammer impact mechanism and 6 vane motor gives you the ability to power up to 1600 ft.-lbs. of torque for your toughest applications.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.

Product Application and Uses:

Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 55
• Air Consumption @ Load (l/min): 1557
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 750

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 103 / 114

• Max Bolt Diameter (in): 1.25
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1600
• Max Torque (in-lb): 19197
• Max Torque (nm): 2169
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 18.5

• Product Width (in): 4.8
• Product Height (in): 6.7
• Product Weight (lb): 23.8
• Recommended Forward Torque Range (ft-lb): 148-1003
• Recommended Forward Torque Range (in-lb): 1770-12037
• Recommended Forward Torque Range (nm): 200-1360
• Recommended Reverse Torque (ft-lb): 148-1003
• Recommended Reverse Torque (nm): 200-1360
• Retainer Type: Thru-hole

• Special Features: Extended anvil
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 21.8
• Warranty: 1-year

• Lubrication: 10P
• Parts: 280-TK2
• Parts: 2934-42-6
