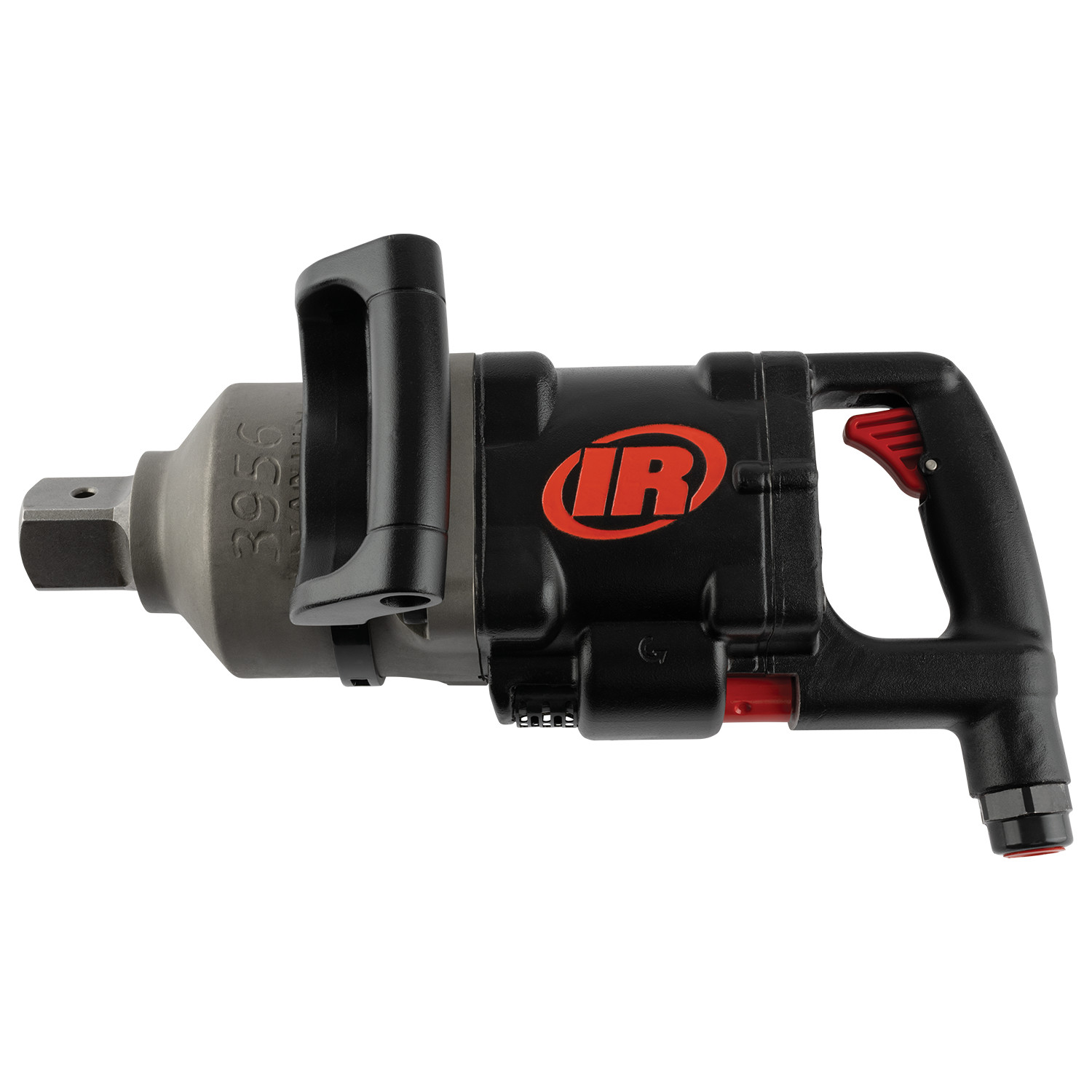

IR 3956B2TIEX
1-1/2" Air Impact Wrench, ATEX/Hazardous Duty, 5450 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger
Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with a titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 5450 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. The 360° D-auxiliary handle ensures enhanced ergonomic performance, with greater access and less operator fatigue. An increased power rating provides the confidence you need to power through the toughest of jobs. ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X ISO 80079-36 Certified.
Features And Benefits
- Performance: Best-in-class power-to-weight performance, delivering 5,450 ft-lbs (7,300 Nm) of breakaway torque.
- Ergonomic: Ergonomically enhanced 360° D-auxiliary handle.
- Reliability: Assembled in the USA and backed by our broad network of parts and service to ensure unsurpassed serviceability.
- Durability: Optimized titanium hammercase, along with bronze endplates and corrosion-resistant parts.
- Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
Includes: Hanger Bracket
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 105
Air Consumption @ Load (l/min): 2971.5
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 145
Average Air Consumption (l/min): 4103.5
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.8 / 109.8
Hammer Case: Titanium
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 97.9 / 108.9
Max Bolt Diameter (in): 1-1/2
Max Free Speed (rpm): 3600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5384
Max Torque (in-lb): 64610
Max Torque (nm): 7300
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Nut-busting/Breakaway Torque (ft-lb): 5384
Nut-busting/Breakaway Torque (in-lb): 64610
Nut-busting/Breakaway Torque (nm): 7300
Power Source: Air Powered
Product Length (in): 16.68
Product Width (in): 5.26
Product Height (in): 11.31
Product Weight (lb): 34.3
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 5178
Recommended Forward Torque Range (in-lb): 62132
Recommended Forward Torque Range (nm): 7020
Retainer Type: Thru-hole
Side to Center Distance (in): 2.67
Side to Center Distance (mm): 68
Standard Bolt Capacity (in): 2
Standards/Certifications: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
Tool Type: High-torque
Vanes: 7
Vibration Level (m/s2): 16.4
Vibration Uncertainy K* (m/s2): 5.6
Warranty: 1-year
