Impacts

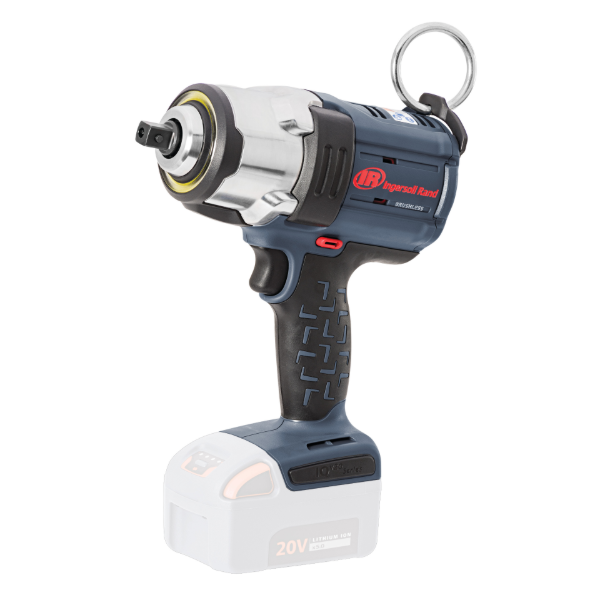

IR W7152P

1/2" 20V Cordless Impact Wrench, 1500 ft-lb Torque, Pin Retainer, Pistol

The W7152P is the most powerful ½” cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV® Intelligent Control System, the W7152P can go from MAX torque to “hand tight” in no time.

Features And Benefits

• POWER: Powerful brushless motor and finely tuned impact mechanism with 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque for best in class power-to-weight ratio.
• CONTROL: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
• DURABLE: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7152P from every day abuse.
• ACCESS: 8.1” short tip-to-tail design and 360⁰ shadowless task light provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning
• 4 dimmable settings on the shadowless 360º LED light ring
• Ideally used for removing or fastening cradle bolts tire changing, fleet truck maintenance and in industrial and MRO settings
• Weighs only 7.6 lbs (with BL2022 battery)
• 3-year warranty
• Pin anvil ensures positive socket retention

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 39
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 197.37
Product Length (in): 8.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6
Product Weight (lb) (with Battery): 7.6
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Pin Detent
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 95 / 106
Standards/Certifications: Ul Listed, Csa Certified
Tool T

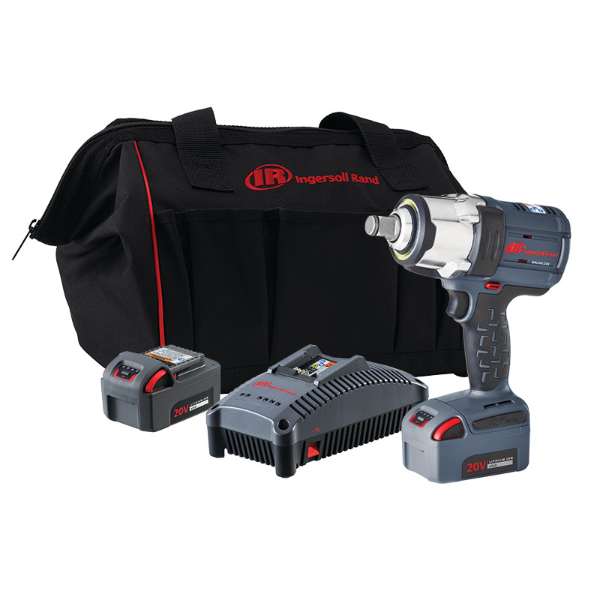

IR W7172-K22

3/4" 20V Cordless Impact Wrench 2 Battery Kit, 1500 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

Features And Benefits

• POWER: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
• CONTROL: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
• ACCESS: 8.5” short tip-to-tail design and 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning.
• Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops
• Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
• Weighs only 7.8 lbs (with BL2022 battery).
• 3-year warranty.
• Compatible with IQV® 20 Series Battery System.

Includes: W7172 3/4" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 194.81
Product Length (in): 8.5
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.1
Product Weight (lb) (with Battery): 7.7
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Friction Ring and Thru-hole
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 92 / 103
Standards/Certifications: Ul Listed, Csa Certified
Tool Type: High-torque
Vibration Level (m/s2): 16.6
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• W7152-K22
• W7152P-K22

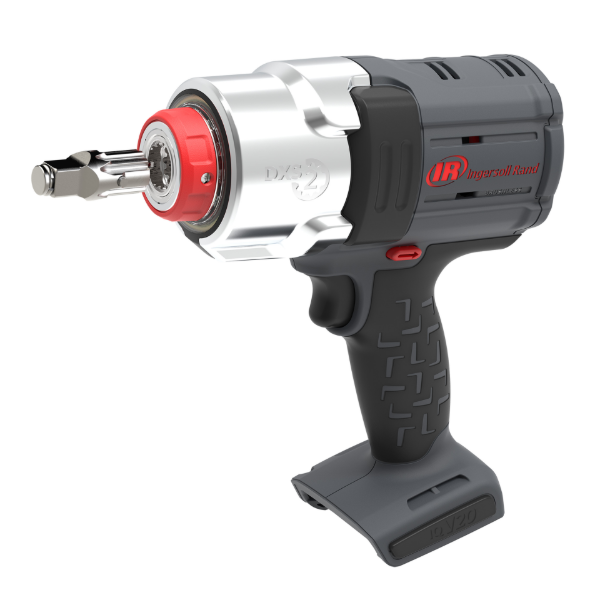

IR W7153

DXS2 1/2" 20V Cordless Impact Wrench, 1600 ft-lb, Friction Ring Retainer, Pistol, Bare Tool

The Ingersoll Rand® W7153 DXS® Cordless Impact Wrench combines robust versatility with exceptional value to deliver the power of pneumatic in a cordless tool that works smarter, not harder. Features the patented DXS® Drive Xchange System™ that uses a proprietary spline-type interface and fast-swap, interchangeable drives, so you can perform multiple jobs with one tool – without compromise. With up to 1,600 ft-lbs*. of breakaway torque and a lightweight, compact design, the W7153 offers best-in-class performance that eliminates the need for adapters and extensions. A 5 yr. Limited Warranty stands behind our legendary quality, while IQV20™ batteries keep you and your tool running all day long. Ditch your adapters and experience the versatility of the industry’s most compact high torque cordless impact wrench.

Features And Benefits

• Performance: The patented DXS® system features torque that works smarter, not harder. Tight-fitting DXS® attachments deliver up to 15% more motor torque to fasteners*, making the tools more effective – so you never lose power.
• Productivity: Fast-swapping DXS® accessories let you perform multiple jobs with one tool, decreasing downtime and saving space in your toolkit.
• Versatility: Maneuver more easily with a compact design that provides greater access to tight spaces. IQV20™ battery compatibility eliminates the need to purchase multiple battery types.
• Durability: Withstand the rigors of the job site with an impact-resistant body and IPX6-certified environmental rating for protection against water ingress.
• Ergonomics: Lightweight 6.1lb build and ergonomic pistol grip for comfortable all-day use and less operator fatigue.
• Convenience: Get all the power of pneumatic in a go-anywhere 20V cordless design that eliminates air hoses – and the risk of trip hazards.
• Quality: Our best warranty ever – 5 yr. Limited Warranty stands behind our legendary quality and durability.
• Value: Increase your time in service and save replacement costs by simply switching out worn or broken drives to get the tool working like new.
• Power: Powerful brushless motor and ball and cam impact mechanism are finely tuned for best in class power-to-weight ratio. 1600 ft-lbs of nut-busting torque (when used with ¾” DXS® drive accessories).
• Visibility: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
• Includes 1/2” standard anvil length (A41H); 3/8” and 3/4” drive size options as well as extended lengths sold separately.

Includes: DXS2 1/2" Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8” and 3/4” drive size options as well as extended lengths sold separately. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: DXS Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Handle Material: Overmolde

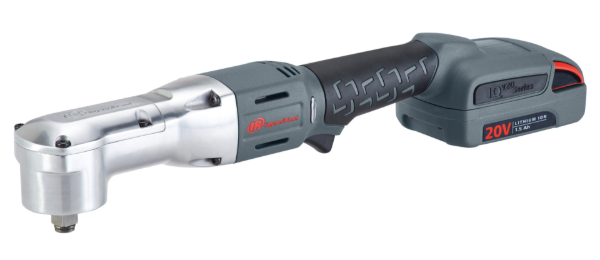

IR W5350

1/2" 20V Cordless Angle Impact Wrench, 190 ft-lb Torque, Friction Ring Retainer, Bare Tool, Inline

The 20V W5350 Impact Wrench’s right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done. Also available in the W5350-K12 (1) battery or W5350-K22 (2) battery kit.

Features And Benefits

• 180 ft-lbs. of reactionless torque and great power-to-weight ratio, you’ll be able to work quickly and efficiently without having to over-exert yourself.
• From 0-1,900 rpm just like your favorite impact wrench, the W5330 flies through bolts with the variable speed trigger for more control.
• Durable steel-lined aluminum hammer case is designed to be strong and lightweight, while protecting interior components of this cordless impact wrench.
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids.
• Ergonomic handle and comfort grip offers the same reach as a ratchet.
• Conveniently located forward/ reverse switch for maximum control.
• Fully serviceable head for extended tool life; save on parts and replacement tool costs by removing a few quick screws for better accessibility.
• Patented Inline battery design can go places other impact wrenches only dream of- spaces that used to be reserved for a traditional ratchet or your bare hands.
• Compatible with all IQV® 20 batteries.
• Available in the W5350-K12 (1) battery kit or W5350-K22 (2) Kit which also includes a charger and carrying case.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Actuation/Throttle Type/Switch Type: Trigger
Blows per Min: 3000 (BL2022)
Blows per Min: 3000 (BL2012)
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 1/2
Drive Type: Square
Free Speed Sound Pressure/Power Db(A): 85
Hammer Case: Aluminum
Handle Material: Nylon
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 181
Max Torque (in-lb): 2168
Max Torque (nm): 245
Number of Batteries Required: 1
Power Source: Battery Powered
Recommended Forward Torque Range (ft-lb): 181
Recommended Forward Torque Range (in-lb): 2168
Recommended Forward Torque Range (nm): 245
Retainer Type: Friction Ring
Sound Pressure/Power Db(A): 85 / 96
Speed Setting: Variable Speed
Vibration Level (m/s2): 10
Vibration Uncertainy K* (m/s2): 6.3
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

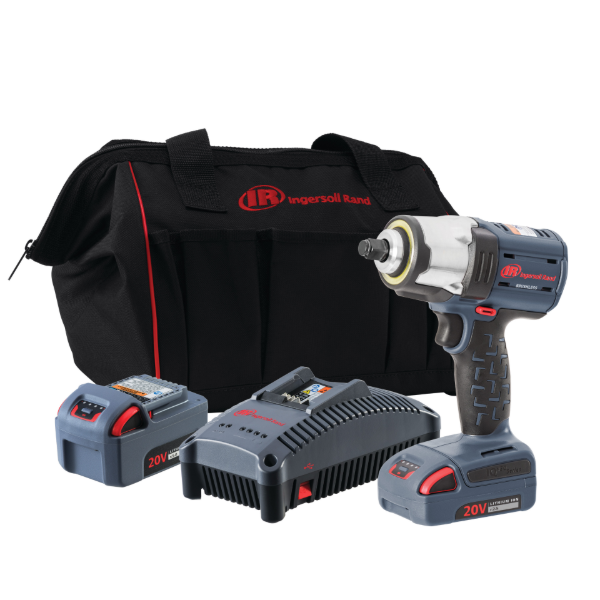

IR W5153-K22

1/2" 20V Cordless Impact Wrench 2 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol

Features And Benefits

• POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• ACCESS: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System
• Kit includes 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah battery, (1) BL2012 2.5Ah battery, 20V Battery Charger, Tool Bag

Includes: W5153 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, (1) BL2012 2.5Ah Battery, 20V Battery Charger, Tool Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.85
Product Length (in): 7.2
Product Width (in): 2.8
Product Height (in): 8.3
Product Height (in) (with Battery): 10.4
Product Weight (lb): 3.9
Product Weight (lb) (with Battery): 5.3
Recommended Forward Torque Range (ft-lb): 339
Recommended Forward Torque Range (in-lb): 4071
Recommended Forward Torque Range (nm): 460
Retainer Type: Frictio

IR W5153

1/2" 20V Cordless Impact Wrench, 550 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool

The Ingersoll Rand W5153 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drive train and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• ACCESS: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Free Speed Sound Pressure/Power Db(A): 85
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 101.85
Product Length (in): 7.2
Product Width (in): 2.8
Product Height (in): 8.3
Product Height (in) (with B

IR W5133P

3/8" 20V Cordless Impact Wrench, 550 ft-lb Torque, Pin Retainer, Pistol

The Ingersoll Rand W5133P impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• Control: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• Durable: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5133P is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• Access: Thanks to its 6.5” tip-to-tail compact ergonomic design and lightweight build, the W5133P can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System
• Pin anvil ensures positive socket retention

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Industrial Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.77
Product Length (in): 7
Product Width (in): 2.8
Product Height (in): 8.3
Product Height (in) (with Battery): 10.4
Product Weight (lb): 3.8
Product Weight (lb) (with Battery): 5.3
Recommended Fo

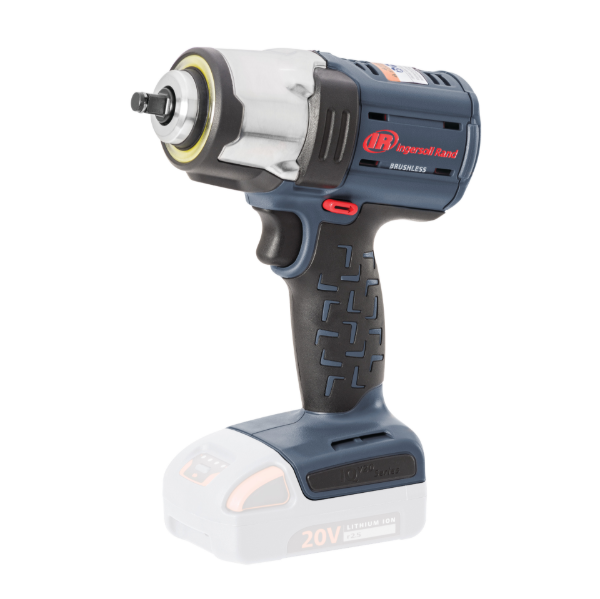

IR W5133

3/8" 20V Cordless Impact Wrench, 550 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool

The Ingersoll Rand W5133 impact wrench enhances the features you demanded: increased durability with stronger internal parts, and increased access with its tapered front end. This next generation compact impact wrench packs 365 ft.-lbs. of MAX torque in a cordless compact unit that weighs only 5.3 lbs. (with a BL2022 battery). Tested by real technicians, ready to tackle real work.

Features And Benefits

• Power: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool and increases safety-release trigger.
• Control: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there’s no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• Durable: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5133 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV® spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• Access: 6.5” tip-to-tail ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV® 20 Series Battery System

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 3300
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 2.2-8.9
Forward Torque setting 1 (in-lb): 27-106
Forward Torque setting 1 (nm): 3-12
Forward Torque setting 2 (ft-lb): 9.6-24
Forward Torque setting 2 (in-lb): 115-292
Forward Torque setting 2 (nm): 13-33
Forward Torque setting 3 (ft-lb): 240
Forward Torque setting 3 (in-lb): 2876
Forward Torque setting 3 (nm): 325
Forward Torque setting 4 (ft-lb): 339
Forward Torque setting 4 (in-lb): 4071
Forward Torque setting 4 (nm): 460
Free Speed Sound Pressure/Power Db(A): 85
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.3
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 32
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 2100
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 549
Nut-busting/Breakaway Torque (in-lb): 6594
Nut-busting/Breakaway Torque (nm): 745
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.77
Product Length (in): 7
Product Width (in): 2.8
Product Height (in): 8.3
Product Height

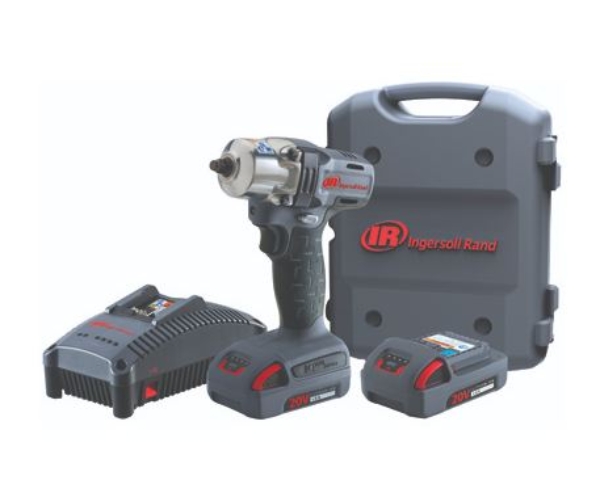

IR W5130-K22

3/8 in Impact Driver Kit, 20 Volt Repl by W5133-K22

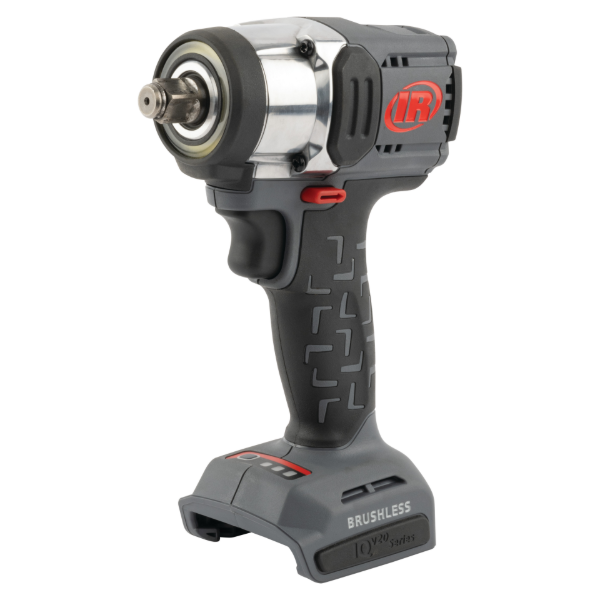

IR W3151

1/2" 20V Cordless Impact Wrench, 450 ft-lb Torque, Compact, Friction Ring Retainer, Pistol, Bare Tool

From the brand you trust for precise, high-performance fastening tools – Ingersoll Rand grows its IQV® 20 system with the W3151 Compact Impact Wrench. Its brushless motor delivers breakaway torque up to 450 ft-lbs. to quickly complete demanding applications. A compact form factor with 5.3” tip-to-tail length and weight under 2.3 lbs. provide excellent control and maneuverability in tight workspaces. Including 3 speed modes and patented 360º LED light ring to fully eliminate shadows, the W3151 Compact Impact Wrench includes 3-year limited warranty and is compatible with all IQV® 20 batteries.

Features And Benefits

• PERFORMANCE: Powerful Brushless Motor Delivers up to 450 ft-lbs. of Breakaway Torque.
• COMPACT: Short 5.3” tip-to-tail length enables working in enclosed spaces.
• VERSATILE: 3 Speed modes with Variable Speed Trigger to Fine-Tune for Application.
• DURABLE: Impact-resistant design with comfortable over molded handle grip.
• LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
• VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
• COMPATIBLE: Cordless Impact wrench works with all IQV® 20 batteries.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 100
Forward Torque setting 1 (in-lb): 1195
Forward Torque setting 1 (nm): 135
Forward Torque setting 2 (ft-lb): 181
Forward Torque setting 2 (in-lb): 2168
Forward Torque setting 2 (nm): 245
Forward Torque setting 3 (ft-lb): 321
Forward Torque setting 3 (in-lb): 3850
Forward Torque setting 3 (nm): 435
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 321
Max Torque (in-lb): 3850
Max Torque (nm): 435
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 450
Nut-busting/Breakaway Torque (in-lb): 5400
Nut-busting/Breakaway Torque (nm): 610
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.4 (BL2022)
Product Length (in): 5.3
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 321
Recommended Forward Torque Range (in-lb): 3850
Recommended Forward Torque Range (nm): 435
Retainer Type: Friction Ring
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/EN/IEC 62841-1, EN/IEC 62841-2-2
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• 36QMAX
• 2235TIMAX
• W5153

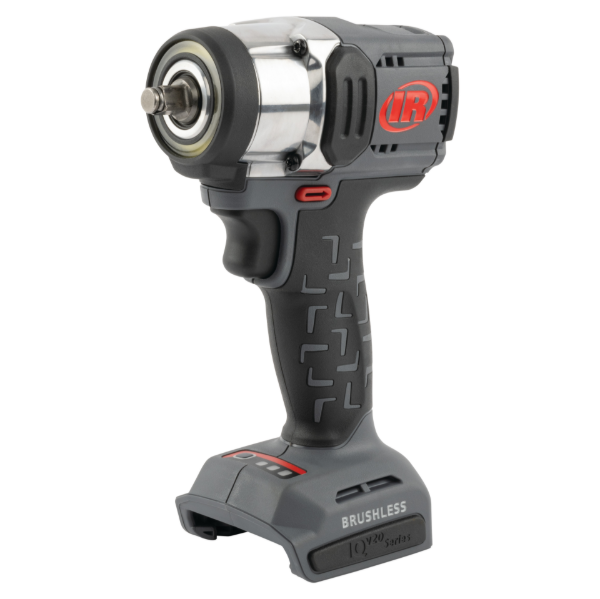

IR W3131

3/8" 20V Cordless Impact Wrench, 400 ft-lb Torque, Compact, Friction Ring Retainer, Pistol, Bare Tool

From the brand you trust for precise, high-performance fastening tools – Ingersoll Rand grows its IQV® 20 system with the W3131 20V 3/8” Impact Wrench. Its brushless motor delivers breakaway torque up to 400 ft-lbs. to quickly complete demanding applications. A compact form factor with 5.2” tip-to-tail length and weight under 2.3 lbs. provide excellent control and maneuverability in tight workspaces. With 3 speed modes and patented 360º LED light ring to fully eliminate shadows, the W3131 20V 3/8” Impact Wrench includes 3-year limited warranty and is compatible with all IQV® 20 batteries.

Features And Benefits

• PERFORMANCE: Powerful brushless motor delivers up to 400 ft-lbs of breakaway torque.
• COMPACT: Short 5.2” tip-to-tail Length enables working in enclosed spaces.
• VERSATILE: 3 speed modes with variable speed trigger to fine-tune for application.
• DURABLE: Impact-resistant design with comfortable over molded handle grip.
• LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
• VISIBILITY: 360º shadowless LED light ring to fully eliminate shadows.
• COMPATIBLE: Cordless impact wrench works with all IQV® 20 batteries.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 4200 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 89
Forward Torque setting 1 (in-lb): 1062
Forward Torque setting 1 (nm): 120
Forward Torque setting 2 (ft-lb): 148
Forward Torque setting 2 (in-lb): 1770
Forward Torque setting 2 (nm): 200
Forward Torque setting 3 (ft-lb): 300
Forward Torque setting 3 (in-lb): 3585
Forward Torque setting 3 (nm): 405
Hammer Case: Metal
Housing Material: Impact and chemical-resistant composite housing
Impact Mechanism: Ball and Cam
Lumens: 34
Max Free Speed (rpm): 2800
Max Torque (ft-lb): 300
Max Torque (in-lb): 3585
Max Torque (nm): 405
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 402
Nut-busting/Breakaway Torque (in-lb): 4824
Nut-busting/Breakaway Torque (nm): 545
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 106.1 (BL2022)
Product Length (in): 5.2
Product Width (in): 2.56
Product Height (in): 8.31
Product Height (in) (with Battery): 10.2
Product Weight (lb): 2.26
Product Weight (lb) (with Battery): 3.19 (BL2012)
Product Weight (lb) (with Battery): 3.77 (BL2022)
Recommended Forward Torque Range (ft-lb): 300
Recommended Forward Torque Range (in-lb): 3585
Recommended Forward Torque Range (nm): 405
Retainer Type: Friction Ring
RPM Setting 1: 725
RPM Setting 2: 1600
Side to Center Distance (in): 1.28
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 90 / 101
Speed Setting: Variable Speed
Standards/Certifications: UL/EN/IEC 62841-1, EN/IEC 62841-2-2
Tool Type: Mid-torque
Tool Type: Compact
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.8
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

Similar IR

• 15QMAX
• W5133
• 2115TIMAX

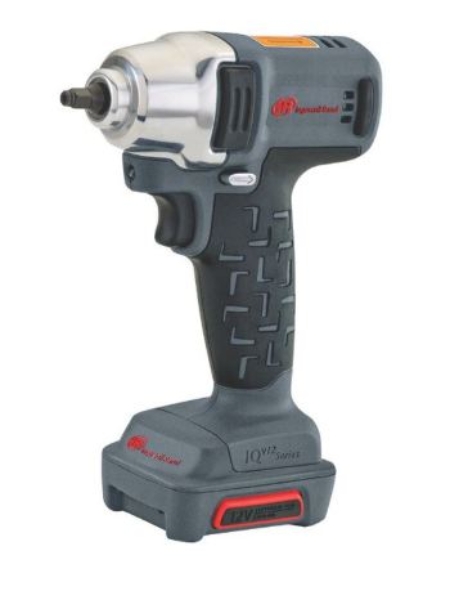

IR W1120

1/4" 12V SQUARE W/RING IMPACT

IR W1110

SUPERCEDED BY W3111

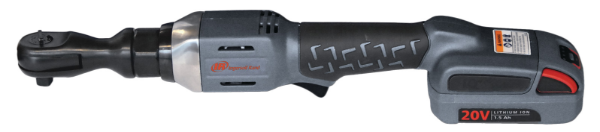

IR R3150

1/2" 20V Cordless Ratchet Wrench, 54 ft-lb Torque, 225 RPM, Bare Tool

Convenience of Cordless. Power of Air. The Ingersoll Rand R3000 Series 20V Ratchet Wrench delivers the power you need where you need it — from the engine compartment to the maintenance department. Designed for professional service technicians, the R3150 offers exceptional performance in a variety of applications. With long-lasting durability and best-in-class power to- weight ratio for access to tight spots, you can rely on the it to do the job, do it fast, and do it every time.

Features And Benefits

• Performance: With 54 ft-lbs of maximum torque and 225 rpm, the R3150 cordless ratchet delivers the same kind of power you expect from an air tool.
• Durability: Steel frame and tough composite housing is designed to be strong and durable, to protect the interior components of this cordless ratchet wrench.
• Versatility: Proven engineered head is the same durable ratchet head used in our air-powered ratchet, so it stands up to the toughest professional use.
• All-metal Gear Train: is robust, durable and optimized for maximum power and efficiency.
• Control: Variable-speed switch with electronic brake provides maximum control of this cordless ratchet wrench and increases safety-depress trigger, drive stops spinning.
• Access: Unique slim-line design provides easy access in tight spots; where you can get your arm, you can get your cordless ratchet wrench.
• Compatible with the IQV 20 Series battery platform.
• Warranty: 3-year warranty
• Ideal for a wide range of applications from engine repair and under car work to light industrial maintenance, repair & operations (MRO).
• Bare tool only; batteries and charger sold separately or with other kits.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: These Cordless Ratchet Wrenches are designed to remove and install threaded fasteners. Ideal for general auto repair, collision repair and facilities maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Color: Grey
Drive Size (in): 1/2
Drive Type: Square
Head Width (in): 1.57
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 225
Max Torque (ft-lb): 54
Max Torque (in-lb): 646
Max Torque (nm): 73
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 17.5
Product Width (in): 3.2
Product Height (in): 1.89
Product Weight (lb): 3.5
Recommended Forward Torque Range (ft-lb): 10-47
Recommended Forward Torque Range (in-lb): 124-566
Recommended Forward Torque Range (nm): 14-64
Sound Pressure/Power Db(A): 86 / 97
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.5
Vibration Uncertainy K* (m/s2): .7
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

Similar IR

• R3130

U UT8365C

3/4" Composite Impact

U UT8080Q

1/4in Hex Impact Driver

U UT8080P

3/8 In Sq. Drive Impact

U UT8095Q

1/4in Compact Impact Driver

U UT2025R

3/8 In Butterfly Impact Wrench

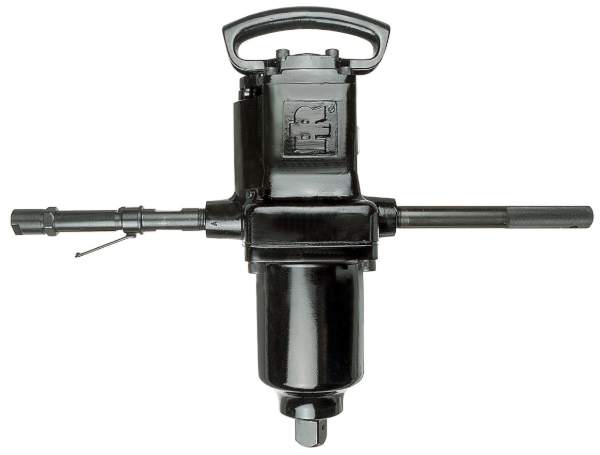

IR 5982A1

2-1/2" Air Impact Wrench, Super Duty, 20000 ft-lb Torque, Thru-hole Retainer, T-handle

The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

Features And Benefits

• Durability: With a Cast aluminum hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.
• Reliability: Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger. Comes with a 1-year warranty.
• Power: This series has a high torque output and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
• Built-in lubricator

Product Application and Uses: These Air Impact Wrenches are designed to remove and install threaded fasteners requiring high torque. Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 130
Average Air Consumption (l/min): 3681
Blows per Min: 850
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 2-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.1 / 113.1
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 2.25
Max Free Speed (rpm): 830
Max Pressure (bar): 6.2
Max Torque (ft-lb): 20000
Max Torque (in-lb): 239997
Max Torque (nm): 27116
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 25.38
Product Weight (lb): 120
Recommended Forward Torque Range (ft-lb): 10000
Recommended Forward Torque Range (in-lb): 119998
Recommended Forward Torque Range (nm): 13558
Retainer Type: Thru-hole
Side to Center Distance (in): 3.5
Side to Center Distance (mm): 89
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year

Similar IR

• 588A1
• 5980A1

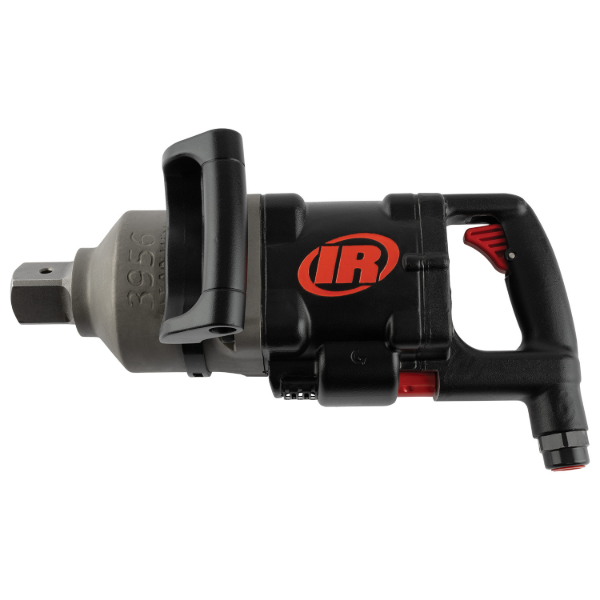

IR 3956B2TI

1-1/2" Air Impact Wrench, 5450 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

The 3956 Series Titanium Pneumatic Impacts has a 360° D-auxiliary handle ensures enhanced ergonomic performance, with greater access and less operator fatigue. An increased power rating provides the confidence you need to power through the toughest of jobs. Our brand name prominently and proudly emblazoned on the side lets you know it’s from the first name in impact tools: Ingersoll Rand®. Because when it comes to performance, durability and reliability, there is simply no substitute for the best.

Features And Benefits

• Performance: Best-in-class power-to-weight performance, delivering 5,450 ft-lbs (7,300 Nm) of breakaway torque.
• Ergonomic: Ergonomically enhanced 360° D-auxiliary handle.
• Reliability: Assembled in the USA and backed by our broad network of parts and service to ensure unsurpassed serviceability.
• Durability: Optimized titanium hammercase, along with bronze endplates and corrosion-resistant parts.

Includes: Hanger Bracket
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 105
Air Consumption @ Load (l/min): 2971.5
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 145
Average Air Consumption (l/min): 4103.5
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Industrial Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.8 / 109.8
Hammer Case: Titanium
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 97.9 / 108.9
Max Bolt Diameter (in): 1-1/2
Max Free Speed (rpm): 3600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5384
Max Torque (in-lb): 64610
Max Torque (nm): 7300
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Nut-busting/Breakaway Torque (ft-lb): 5384
Nut-busting/Breakaway Torque (in-lb): 64610
Nut-busting/Breakaway Torque (nm): 7300
Power Source: Air Powered
Product Length (in): 16.68
Product Width (in): 5.26
Product Height (in): 11.31
Product Weight (lb): 34.3
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 5178
Recommended Forward Torque Range (in-lb): 62132
Recommended Forward Torque Range (nm): 7020
Retainer Type: Thru-hole
Side to Center Distance (in): 2.67
Side to Center Distance (mm): 68
Standard Bolt Capacity (in): 2
Standards/Certifications: ISO11148-6 2012, CAGIB186.1-2009, ISO 28927-2, ISO 15744
Tool Type: High-torque
Vanes: 7
Vibration Level (m/s2): 16.4
Vibration Uncertainy K* (m/s2): 5.6
Warranty: 1-year

Similar IR

• 3955B2TI

Supersedes

• 3955B2TI

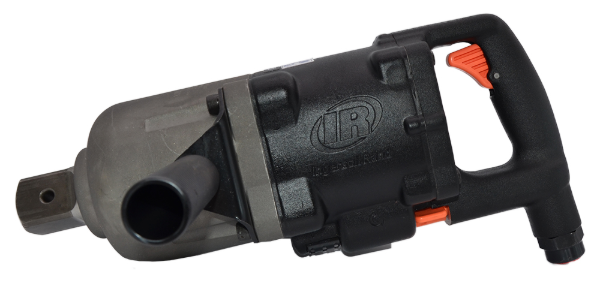

IR 3955B2TIEX

1-1/2" Air Impact Wrench, ATEX Rated, 5000 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with a titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 5000 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry.ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits

• Environmental, Heath and Safety: ISO 80079-36 Certified and ATEX Zone 1 or Zone 2 requirements.
• Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this series is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler

Product Application and Uses: Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 80
Average Air Consumption (l/min): 2266
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
Max Bolt Diameter (in): 1-1/2
Max Free Speed (rpm): 2750
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5000
Max Torque (in-lb): 60000
Max Torque (nm): 6779
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 144.5
Product Length (in): 16.6
Product Width (in): 8.2
Product Height (in): 5.3
Product Weight (lb): 34.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 4700
Recommended Forward Torque Range (in-lb): 56397
Recommended Forward Torque Range (nm): 6372
Retainer Type: Thru-hole
Side to Center Distance (in): 4.1
Side to Center Distance (mm): 104
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 20.8
Vibration Uncertainy K* (m/s2): 8.5
Warranty: 1-year

Similar IR

• 3955B2TI

Superseded To

• 3956B2TIEX

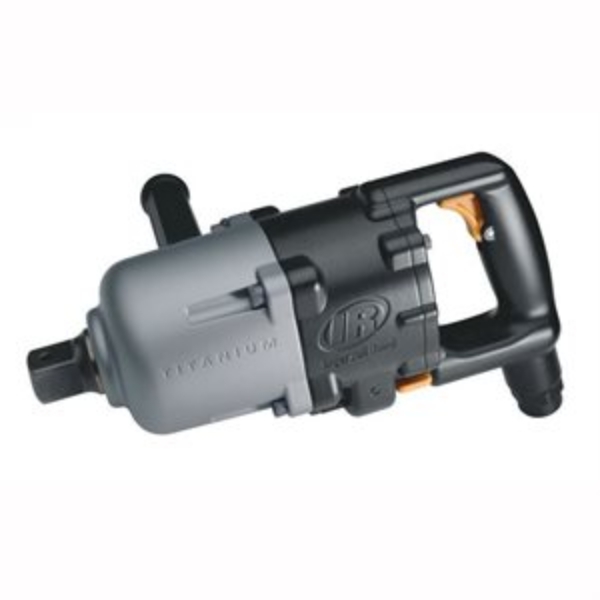

IR 3955B2TI

1.5" IMPACTOOL

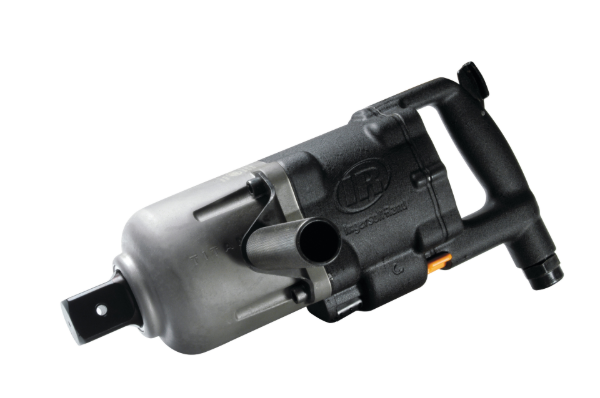

IR 3955A2TI

1-1/2" Air Impact Wrench, Super Duty, 5000 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

With a titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs of torque, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits

• Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.

Product Application and Uses: Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 80
Average Air Consumption (l/min): 2266
Blows per Min: 700
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
Max Free Speed (rpm): 2750
Max Pressure (bar): 6.2
Max Torque (ft-lb): 5000
Max Torque (in-lb): 60000
Max Torque (nm): 6779
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 16.5
Product Weight (lb): 34.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3900
Recommended Forward Torque Range (in-lb): 46803
Recommended Forward Torque Range (nm): 5288
Retainer Type: Thru-hole
Special Features: Titanium hammercase
Tool Type: High-torque
Vibration Level (m/s2): 20.8
Vibration Uncertainy K* (m/s2): 8.5
Warranty: 1-year

Similar IR

• 3956A2TI

Superseded To

• 3956A2TI

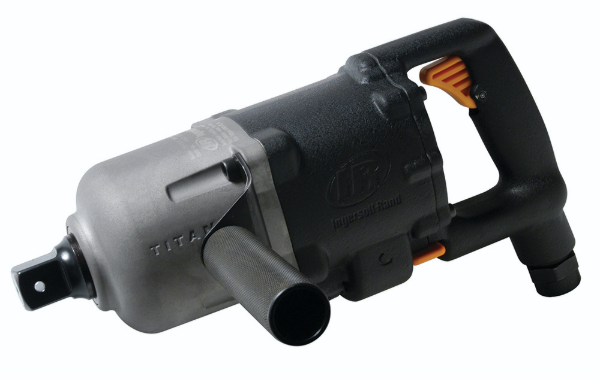

IR 3942B2TIEX

1" Air Impact Wrench, ATEX/Hazardous Duty, 3250 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 3250 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. ATEX Marking ATEX 2014/34/EU Ex h IIA T6 Gb X and ISO 80079-36 Certified.

Features And Benefits

• Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
• Power: The 3900 Series delivers a high torque output of 3250 ft-lbs and 850 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Reverse bias motor to help remove the most stubborn bolts.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler

Product Application and Uses: Hazardous Environment, Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 95
Average Air Consumption (l/min): 2690
Blows per Min: 800
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.7 / 113.7
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 99.0 / 110.0
Max Bolt Diameter (in): 1-3/8
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3250
Max Torque (in-lb): 39005
Max Torque (nm): 4407
Min Hose Size (in): 3/4
Motor: Reverse Bias
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 144
Product Length (in): 14.3
Product Weight (lb): 22.6
Quiet Tool: No
Recommended Forward Torque Range (ft-lb): 3000
Recommended Forward Torque Range (in-lb): 36005
Recommended Forward Torque Range (nm): 4068
Retainer Type: Thru-hole
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 16.9
Vibration Uncertainy K* (m/s2): 4.6
Warranty: 1-year

Similar IR

• 3940B2TIEX
