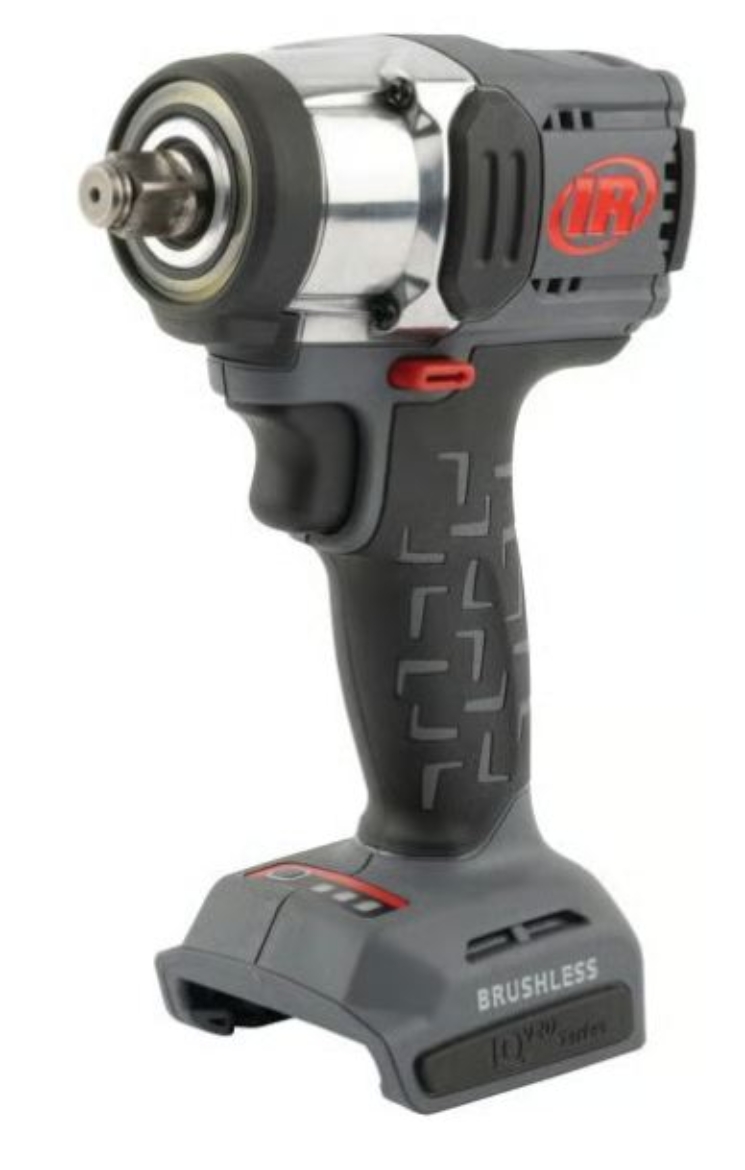

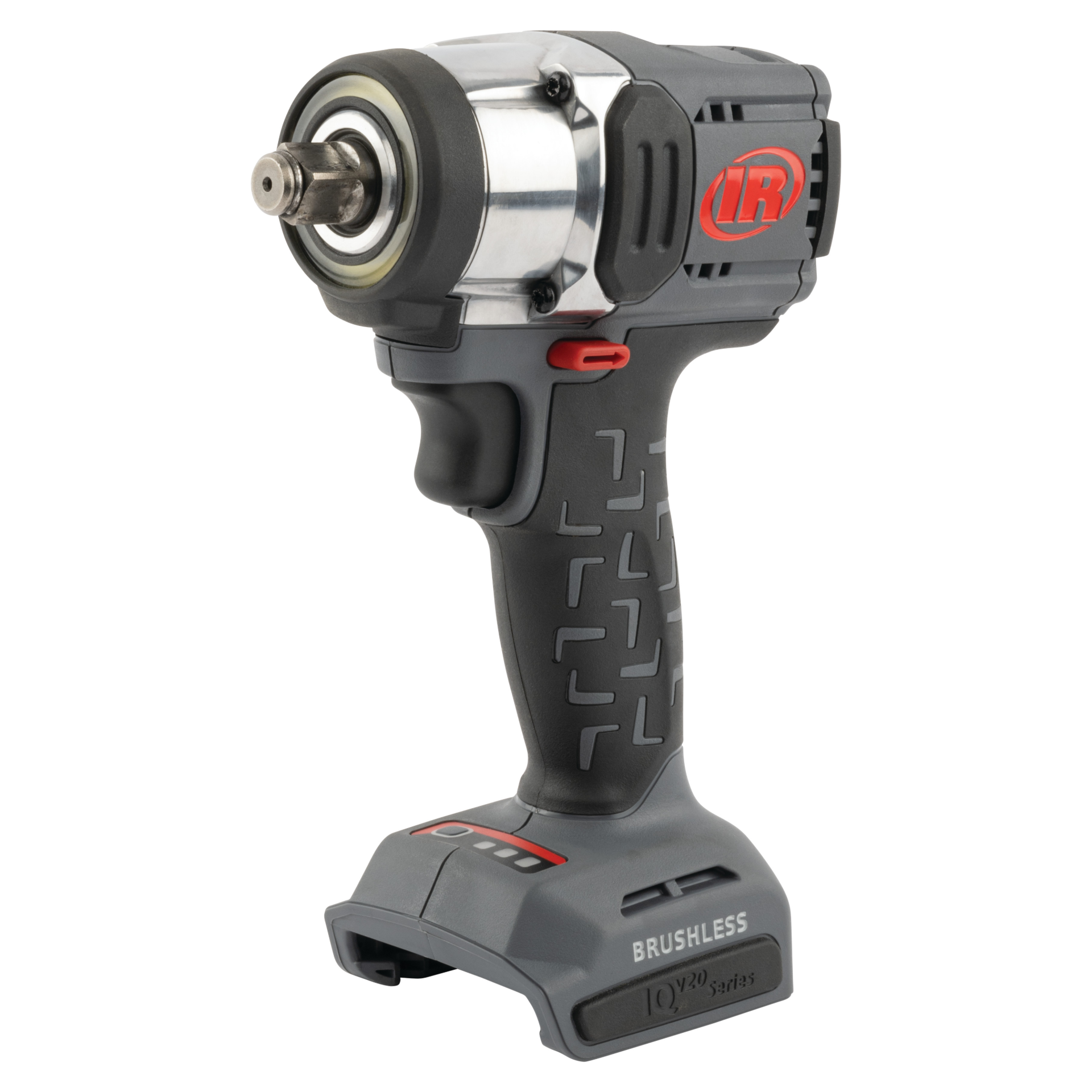

IR W3151
1/2in 20V Cordless Impact Wrench, 450 ft-lb Torque, Compact, Friction Ring Retainer, Pistol, Bare Tool
Description: From the brand you trust for precise, high-performance fastening tools - Ingersoll Rand grows its IQV 20 system with the W3151 Compact Impact Wrench. Its brushless motor delivers breakaway torque up to 450 ft-lbs. to quickly complete demanding applications. A compact form factor with 5.3" tip-to-tail length and weight under 2.3 lbs. provide excellent control and maneuverability in tight workspaces. Including 3 speed modes and patented 360 degree LED light ring to fully eliminate shadows, the W3151 Compact Impact Wrench includes 3-year limited warranty and is compatible with all IQV 20 batteries.
Features And Benefits:
- PERFORMANCE: Powerful Brushless Motor Delivers up to 450 ft-lbs. of Breakaway Torque.
- COMPACT: Short 5.3" tip-to-tail length enables working in enclosed spaces.
- VERSATILE: 3 Speed modes with Variable Speed Trigger to Fine-Tune for Application.
- DURABLE: Impact-resistant design with comfortable over molded handle grip.
- LIGHT WEIGHT: Light 2.3 lbs. weight provides excellent control and maneuverability of tool.
- VISIBILITY: 360 degree shadowless LED light ring to fully eliminate shadows.
- COMPATIBLE: Cordless Impact wrench works with all IQV 20 batteries.
Product Application and Uses:
Cordless Impact Wrenches are designed to remove and install threaded fasteners.
- Includes: Bare tool only, batteries and charger sold separately or with other kits.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Blows per Min: 4200 (BL2022)
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Drive Size (in): 1/2
- Drive Type: Square
- Duty Rating: General Duty
- Forward Torque setting 1 (ft-lb): 100
- Forward Torque setting 1 (in-lb): 1195
- Forward Torque setting 1 (nm): 135
- Forward Torque setting 2 (ft-lb): 181
- Forward Torque setting 2 (in-lb): 2168
- Forward Torque setting 2 (nm): 245
- Forward Torque setting 3 (ft-lb): 321
- Forward Torque setting 3 (in-lb): 3850
- Forward Torque setting 3 (nm): 435
- Hammer Case: Metal
- Housing Material: Impact and chemical-resistant composite housing
- Impact Mechanism: Ball and Cam
- Lumens: 34
- Max Free Speed (rpm): 2800
- Max Torque (ft-lb): 321
- Max Torque (in-lb): 3850
- Max Torque (nm): 435
- Motor: Brushless Motor
- Number of Batteries Required: 1
- Number of Power Settings: 3
- Nut-busting/Breakaway Torque (ft-lb): 450
- Nut-busting/Breakaway Torque (in-lb): 5400
- Nut-busting/Breakaway Torque (nm): 610
- Power Source: Battery Powered
- Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 119.4 (BL2022)
- Product Length (in): 5.3
- Product Width (in): 2.56
- Product Height (in): 8.31
- Product Height (in) (with Battery): 10.2
- Product Weight (lb): 2.26
- Product Weight (lb) (with Battery): 3.19 (BL2012)
- Product Weight (lb) (with Battery): 3.77 (BL2022)
- Recommended Forward Torque Range (ft-lb): 321
- Recommended Forward Torque Range (in-lb): 3850
- Recommended Forward Torque Range (nm): 435
- Retainer Type: Friction Ring
- RPM Setting 1: 725
- RPM Setting 2: 1600
- Side to Cente
